2000 FORD E-150 fuse

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1 Ð Not Used
2 Ð Not Used
3 Ð Not Used
4 10A* PCM Keep Alive Memory, Instrument
Cluster
5 10A* Right Trailer Turn Signal
6 10A* Left Trailer Turn Signal
7 Ð Not Used
8 60A** I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28
9 30A** PCM Power Relay, Engine Compartment
Fuse 4
10 60A** Auxiliary Battery Relay, Engine
Compartment Fuses 14, 22
11 30A** IDM Relay
12 60A** Engine Compartment Fuses 26, 27
13 50A** Blower Motor Relay (Blower Motor)
AB3
2
146 5715 14 13 12 11 10 9 823 22 21 20 19 18 17 1624 26 25 27
29
CDG F EK J H
28
Roadside emergencies
135
ProCarManuals.com

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
14 30A** Trailer Running Lamps Relay, Trailer
Backup Lamps Relay
15 40A** Main Light Switch
16 50A** RKE Module, Auxiliary Blower Motor Relay
17 30A** Fuel Pump Relay, IDM (Diesel)
18 60A** I/P Fuses 40, 41
19 60A** 4WABS Module
20 20A** Electric Brake Controller
21 50A** Modified Vehicle Power
22 40A** Trailer Battery Charge Relay (Modified
Vehicles Only)
23 60A** Ignition Switch
24 Ð Not Used
25 20A* NGV Module
26 10A* Generator/Voltage Regulator (Diesel Only)
27 15A* DRL Module, Horn Relay
28 Ð PCM Diode
29 Ð Not Used
A Ð Not Used
B Ð Not Used
C Ð Trailer Backup Lamps Relay
D Ð Trailer Running Lamps Relay
E Ð Trailer Running Lamps Relay
F Ð IDM Relay
G Ð PCM Relay
H Ð Blower Motor Relay
J Ð Horn Relay
K Ð Fuel Pump Relay, IDM Relay (Diesel)
* Mini Fuses ** Maxi Fuses
Roadside emergencies
136
ProCarManuals.com

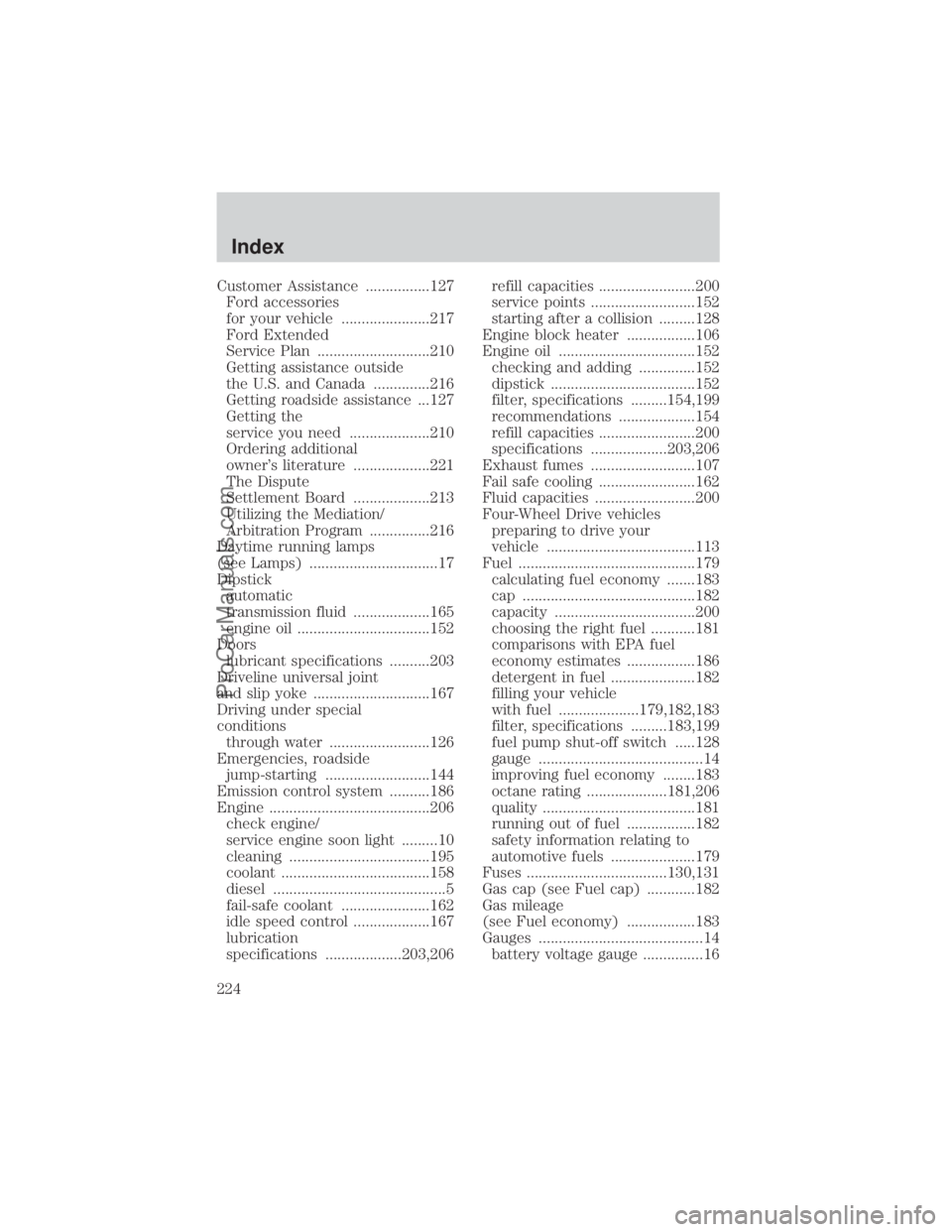

Customer Assistance ................127
Ford accessories
for your vehicle ......................217
Ford Extended
Service Plan ............................210
Getting assistance outside
the U.S. and Canada ..............216
Getting roadside assistance ...127
Getting the
service you need ....................210
Ordering additional
owner's literature ...................221
The Dispute
Settlement Board ...................213
Utilizing the Mediation/
Arbitration Program ...............216
Daytime running lamps
(see Lamps) ................................17
Dipstick
automatic
transmission fluid ...................165
engine oil .................................152
Doors
lubricant specifications ..........203
Driveline universal joint
and slip yoke .............................167
Driving under special
conditions
through water .........................126
Emergencies, roadside
jump-starting ..........................144
Emission control system ..........186
Engine ........................................206
check engine/
service engine soon light .........10
cleaning ...................................195
coolant .....................................158
diesel ...........................................5
fail-safe coolant ......................162
idle speed control ...................167
lubrication
specifications ...................203,206refill capacities ........................200
service points ..........................152
starting after a collision .........128
Engine block heater .................106
Engine oil ..................................152
checking and adding ..............152
dipstick ....................................152
filter, specifications .........154,199
recommendations ...................154
refill capacities ........................200
specifications ...................203,206
Exhaust fumes ..........................107
Fail safe cooling ........................162
Fluid capacities .........................200
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................113
Fuel ............................................179
calculating fuel economy .......183
cap ...........................................182
capacity ...................................200
choosing the right fuel ...........181
comparisons with EPA fuel
economy estimates .................186
detergent in fuel .....................182
filling your vehicle
with fuel ....................179,182,183
filter, specifications .........183,199
fuel pump shut-off switch .....128
gauge .........................................14
improving fuel economy ........183
octane rating ....................181,206
quality ......................................181
running out of fuel .................182
safety information relating to
automotive fuels .....................179
Fuses ...................................130,131
Gas cap (see Fuel cap) ............182
Gas mileage
(see Fuel economy) .................183
Gauges .........................................14
battery voltage gauge ...............16
Index
224
ProCarManuals.com

Motorcraft parts .................183,199
Octane rating ............................181
Odometer .....................................16
Oil (see Engine oil) ..................152
Overdrive .....................................64
Panic alarm feature, remote
entry system ................................68
Parking brake ............................111
Parts (see Motorcraft parts) ....199
Power distribution box
(see Fuses) ...............................134
Power door locks ........................66
Power steering ..........................112
fluid, checking and adding ....164
fluid, refill capacity ................200
fluid, specifications ..........203,206
Preparing to
drive your vehicle .....................113
Radio ............................................25
Relays .................................130,137
Remote entry system ............67,68
illuminated entry ......................70
locking/unlocking doors ...........68
panic alarm ...............................68
replacement/additional
transmitters ...............................70
replacing the batteries .............69
Safety belts (see Safety
restraints) ................13,77,79,80,81
Safety defects, reporting ..........222
Safety restraints ...........77,79,80,81
belt minder ...............................84
cleaning the safety belts ...87,198
extension assembly ..................83
for adults .........................79,80,81
for children ..........................93,94
lap belt ......................................82
warning
light and chime ...............12,13,83
Safety seats for children ............95
Seat belts
(see Safety restraints) ...............77Seats ............................................71
child safety seats ......................95
Servicing your vehicle ..............150
Spark plugs,
specifications ......................199,206
Special notice ................................3
ambulance conversions ..............4
diesel-powered vehicles .............5
utility-type vehicles ....................3
Specification chart,
lubricants ............................203,206
Speed control ..............................59
Speedometer ...............................14
Starting your vehicle .........104,106
jump starting ..........................144
Steering wheel
tilting .........................................63
Tilt steering wheel ......................63
Tires ......................137,174,175,176
changing ...........................137,138
checking the pressure ............176
replacing ...........................140,177
rotating ....................................176
snow tires and chains ............178
tire grades ...............................175
treadwear ................................175
Towing ................................120,176
recreational towing .................126
trailer towing ..........................120
wrecker ....................................149
Traction-lok rear axle ...............113
Transmission .............................114
fluid, checking and adding
(automatic) .............................165
fluid, refill capacities ..............200
lubricant specifications ...203,206
Transmission
control indicator light .................12
Trip odometer .............................16
Turn signal .............................13,59
Vehicle dimensions ...................206
Index
