2000 CHEVROLET CORVETTE traction control

2-36
Running Your Engine While You're
Parked (Automatic Transmission)
It's better not to park with the engine running. But if you
ever have to, here are some things to know.
CAUTION:
Idling the engine with the climate control system
off could allow dangerous exhaust into your
vehicle (see the earlier Caution under
ªEngine Exhaustº).
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the fan switch is at the highest setting. One place
this can happen is a garage. Exhaust
-- with
CO
-- can come in easily. NEVER park in a
garage with the engine running.
Another closed-in place can be a blizzard.
(See ªBlizzardº in the Index.)
CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you've left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake and
move the shift lever to PARK (P).
Follow the proper steps to be sure your vehicle won't
move. See ªShifting Into PARK (P)º in the Index.
Limited-Slip Rear Axle
Your limited-slip rear axle can give you additional
traction on snow, mud, ice, sand or gravel. It works
like a standard axle most of the time, but when one of
the rear wheels has no traction and the other does,
this feature will allow the wheel with traction to move
the vehicle.

2-45
The Driver Information Center (DIC) will display the cruise
set speed in a digital number. For example, the DIC will
say CRUISE SET 60 mph (97 km/h). When you apply
the brakes or push the clutch pedal, the cruise control
disengages. The DIC will show CRUISE DISENGAGED.
See ªDIC Warnings and Messagesº in the Index.

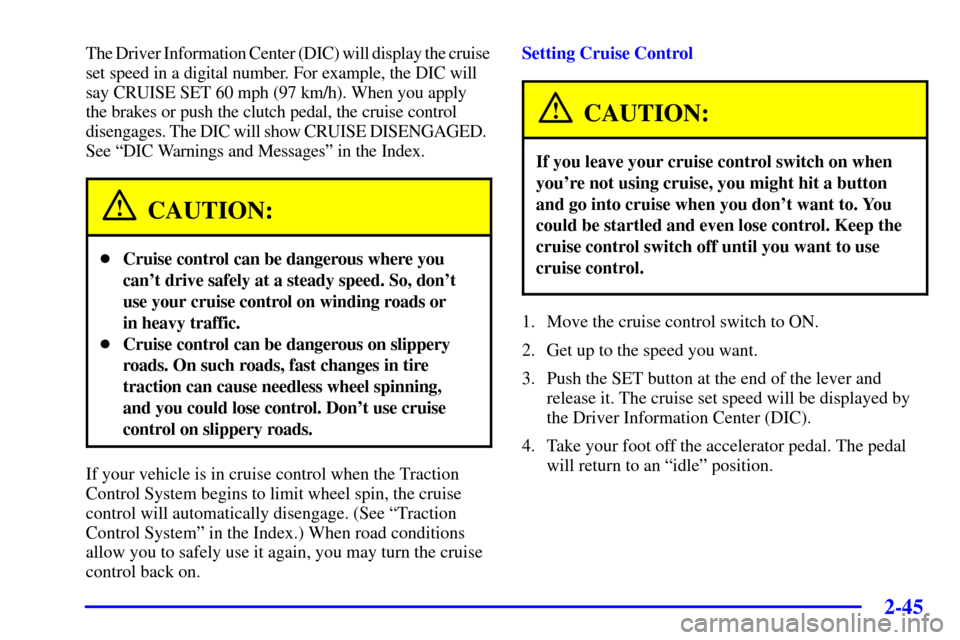

CAUTION:

Cruise control can be dangerous where you
can't drive safely at a steady speed. So, don't
use your cruise control on winding roads or
in heavy traffic.

Cruise control can be dangerous on slippery
roads. On such roads, fast changes in tire
traction can cause needless wheel spinning,
and you could lose control. Don't use cruise
control on slippery roads.
If your vehicle is in cruise control when the Traction
Control System begins to limit wheel spin, the cruise
control will automatically disengage. (See ªTraction
Control Systemº in the Index.) When road conditions
allow you to safely use it again, you may turn the cruise
control back on.Setting Cruise Control
CAUTION:
If you leave your cruise control switch on when
you're not using cruise, you might hit a button
and go into cruise when you don't want to. You
could be startled and even lose control. Keep the
cruise control switch off until you want to use
cruise control.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
3. Push the SET button at the end of the lever and
release it. The cruise set speed will be displayed by
the Driver Information Center (DIC).
4. Take your foot off the accelerator pedal. The pedal
will return to an ªidleº position.

2-71
The main components of your instrument panel are:
A. Instrument Panel Brightness Control
B. Head
-Up Display Controls (Option)
C. Turn Signal/Multifunction Lever
D. Driver Information Center (DIC)
(Located in the Instrument Cluster)
E. Instrument Panel Cluster
F. Windshield Wiper/Washer Lever
G. Driver Information Center (DIC) Buttons
H. Hazard Warning Flasher Button
I. Center Air Vents
J. Audio System
K. Comfort Controls
L. Fog Lamp Button (Option)
M. Remote Hatch Release Button (Coupe) or Remote
Trunk Release Button (Convertible/Hardtop)N. Horn
O. Ignition Switch
P. Shift Lever (Automatic Shown)
Q. Traction Control System (TCS) Switch/Active
Handling Switch (Option)
R. Accessory Power Outlet
(Located in the Center Console)
S. Selective Real Time Damping (SRTD) (Option)
T. Instrument Panel Cupholder
U. Remote Fuel Door Release Button
(Located in the Center Console)
V. Ashtray and Cigarette Lighter
W. Parking Brake
X. Glove Box
Y. Instrument Panel Fuse Block
(Located behind the Toe
-Board)

2-77 Anti-Lock Brake System Warning Light
With the anti-lock brake
system, the light will come
on when you start your
engine and may stay on
for several seconds.
That's normal.
If the light stays on, turn the ignition to OFF. Or, if the
light comes on when you're driving, stop as soon as
possible and turn the ignition off. Then start the engine
again to reset the system. If the light still stays on, or
comes on again while you're driving, your vehicle needs
service. If the regular brake system warning light isn't
on, you still have brakes, but you don't have anti
-lock
brakes. If the regular brake system warning light is
also on, you don't have anti
-lock brakes and there's a
problem with your regular brakes. See ªBrake System
Warning Lightº earlier in this section. Also see
ªSERVICE ABSº under ªDriver Information
Center (DIC) Messagesº in the Index.
The anti
-lock brake system warning light should come
on briefly when you turn the ignition key to ON. If the
light doesn't come on then, have it fixed so it will be
ready to warn you if there is a problem.
Traction Control System (TCS) Light
This light should come on
briefly as you start the
engine. If the light doesn't
come on then, have it fixed
so it will be ready to warn
you if there's a problem.
If it stays on, or comes on and the DIC shows a
SERVICE TRACTION SYSTEM message when you're
driving, there's a problem with your TCS system and
your vehicle needs service. When this light is on, the
system will not limit wheel spin. Adjust your driving
accordingly. If the driver turns off the Traction Control
System by pressing the button on the console, the
TCS system light will come on and the TRACTION
SYSTEM OFF message will show on the DIC.

2-78
Active Handling System Light
If your vehicle has the
optional Active Handling
System, this light will come
on briefly as you start the
engine. If the light does not
come on then, have it fixed
so it will be ready to warn
you if there is a problem.
The light will also come on while the system warms up
and the ACT HNDLING WARMING UP message will
be displayed in the Driver Information Center (DIC).
If it stays on or comes on while you are driving, the DIC
shows a SERVICE ACTIVE HNDLG message and a
chime sounds, there is a problem with your Active
Handling System and your vehicle needs service. The
driver can acknowledge this message by pressing the
RESET button. When the SERVICE ACTIVE HNDLG
message is displayed, the Active Handling System will
not assist you in controlling the vehicle. You should
have the system serviced as soon as possible. Adjust
your driving accordingly.When the system is working, you will see the ACTIVE
HANDLING message displayed in the DIC. You may
also feel or hear the system working. This is normal.
If the driver turns off the Active Handling System by
pressing the button on the console, the Active Handling
System light will come on, a chime will sound, and the
TRAC/ACT HNDLG OFF message will be displayed in
the DIC. The Traction Control System will also be
turned off. See ªDriver Information Center Messagesº
in the Index for more information.
If the Active Handling System and the Traction Control
System are off, pressing the console button momentarily
will turn both systems on. The DIC will display the
TRAC/ACT HNDLG ON message, the instrument
cluster light will be off, and a chime will sound. See
ªDriver Information Center Messagesº in the Index
for more information.

2-98
ACT HNDLG - WARMING UP: When you first start
your vehicle (especially during cold winter weather),
and begin to drive away (up to 6 mph (10 km/h)), the
message ACT HNDLG
- WARMING UP may be
displayed in the DIC, the instrument panel cluster
light will be on, and a chime will sound. This is normal.
You can acknowledge this message by pressing the
RESET button. The Active Handling System
performance is affected until the next message
WARM UP COMPLETE is displayed in the DIC.
Under cold weather conditions, this message may
continue up to 12 mph (20 kph) for 30 seconds.
The Active Handling system is off until the WARM UP
COMPLETE message is displayed.
WARM UP COMPLETE: If you receive this message
and hear a chime, the system has completed the
functional check of the Active Handling System.
TRAC/ACT HNDLG
- ON: If the Traction Control
and Active Handling Systems are off, depressing the
Active Handling System console button momentarily
will turn both systems on. The message TRAC/ACT
HNDLG
- ON will be displayed temporarily in the DIC,
the instrument panel cluster light will be off and a chime
will sound.TRAC/ACT HNDLG
- OFF: By pressing the Active
Handling System console button briefly, the driver can
turn the Traction Control and Active Handling Systems
off. The message TRAC/ACT HNDLG
- OFF will be
displayed in the DIC, the instrument panel cluster
light will be on and a chime will sound. You can
acknowledge this message by pressing the RESET
button. The anti
-lock brake systems remains on with the
Traction Control and Active Handling Systems off.
You should adjust your driving accordingly.
COMPETITIVE DRIVING: When the Competitive
Driving mode is selected, this message will be displayed
in the DIC. The instrument panel cluster light will not be
on when the Competitive Driving mode is selected. The
Traction Control System will not be operating while in
the Competitive Driving mode. You should adjust your
driving accordingly.

2-99
SERVICE ABS (Anti-Lock Brake System): If the
SERVICE ABS message is displayed when you are
driving, stop as soon as possible and turn the ignition
off. Then start the engine again to reset the system.
If the message stays on, or comes back on again while
you are driving, your vehicle is in need of service.
If the regular brake system warning light isn't on, you
still have brakes, but don't have anti
-lock brakes.
If the regular brake system light is also on, you don't
have anti
-lock brakes and there is a problem with your
brakes. See ªBrake System Warning Lightº earlier in
this section.
If the SERVICE ABS message is being displayed, your
traction control system and the optional active handling
system will also be disabled. The driver information
center will scroll three messages: SERVICE ABS,
SERVICE TRACTION SYS and SERVICE ACTIVE
HNDLG, and the instrument cluster car icon will be
illuminated. The driver can acknowledge these messages
by pressing the reset button three times. When the
service message is displayed the computer controlled
systems will not assist the driver and you should have
the system repaired as soon as possible. Adjust your
driving accordingly.SERVICE COLUMN LOCK: If the system that
controls the locking and unlocking of the steering
column does not work properly, have the vehicle towed
to a dealer for service.
PULL KEY
- WAIT 10 SEC: If this message comes
on, the steering column lock system has detected a
problem while engaging the steering column lock. This
message may occur when the ignition key is removed
and reinserted before the steering column lock system
fully locks or unlocks the steering column. To
acknowledge that you have read this message, and to
clear it from the display, remove the ignition key and
wait 10 seconds before reinserting the key into the
ignition. If you attempt to operate your vehicle without
removing the key for 10 seconds, the vehicle's fuel
system will shut when you reach 1.5 mph (2.4 km/h).
If the message stays on after removing the key and
waiting 10 seconds, have your vehicle taken to an
authorized dealer as soon as possible for diagnosis
and repair.

2-101
SERVICE VEHICLE SOON: If this message appears
on the DIC, there may be an electrical or another system
problem with your vehicle. Have your vehicle checked
by your dealer if this message keeps appearing.
CHARGE SYSTEM FAULT: Press RESET to
acknowledge that you have read the message and to
remove it from the display. The message will reappear
every 10 minutes until this condition changes. You will
hear two chimes when this message is displayed.
If this message comes on while you are driving, you
may have a problem with the electrical charging system.
It could indicate that you have a loose or broken drive
belt or another electrical problem. Have it checked
right away. Driving while this light is on could drain
your battery.
If you must drive a short distance with the message on,
be certain to turn off your accessories, such as the radio
and air conditioner.
TRACTION SYS ACTIVE: When your Traction
Control System is limiting wheel spin, the TRACTION
SYS ACTIVE message will be displayed. Slippery road
conditions may exist if this message is displayed, so
adjust your driving accordingly. The message will stay
on for a few seconds after the traction control system
stops limiting wheel spin.TRACTION SYSTEM - ON: This message is
displayed when you decide to turn on the Traction
Control System by pressing the switch on the console.
This message will shut off automatically on its own.
TRACTION SYSTEM
- OFF: You will hear a single
quick tone when this message is displayed. This
message comes on and stays on when the Traction
Control System button on the console is pressed to
turn the system off. To acknowledge this message,
press RESET.
SERVICE TRACTION SYSTEM: If the SERVICE
TRACTION SYS message is displayed when you are
driving, there is a problem with your Traction Control
System and your vehicle is in need of service. When this
message is displayed, the system will not limit wheel
spin. Adjust your driving accordingly.
If you have the optional Active Handling System, the
SERVICE ACTIVE HNDLG message will also be
displayed and the instrument cluster car icon will also be
illuminated. The driver can acknowledge both messages
by pressing the reset button two times which will also
turn off the instrument cluster icon. When the service
messages are displayed, the computer controlled
systems will not assist the driver in controlling the
vehicle. Have the system repaired as soon as possible.
Adjust your driving accordingly.
