6-15
Engine Air Cleaner/Filter
The engine air cleaner
assembly has an indicator
that lets you know when the
engine air cleaner/filter is
dirty and needs to
be serviced.
The indicator is located on the air intake tube between
the engine air cleaner and the engine. See ªOwner
Checks and Servicesº in the Maintenance Schedule
booklet to determine when to check the indicator.
If the area inside the clear section of the indicator is
green, no engine air cleaner/filter service is required.
When the area inside the indicator is orange and
CHANGE AIR FILTER appears, the filter should
be replaced.
Your engine air cleaner/filter is located between the
battery and coolant recovery tank.
6-16

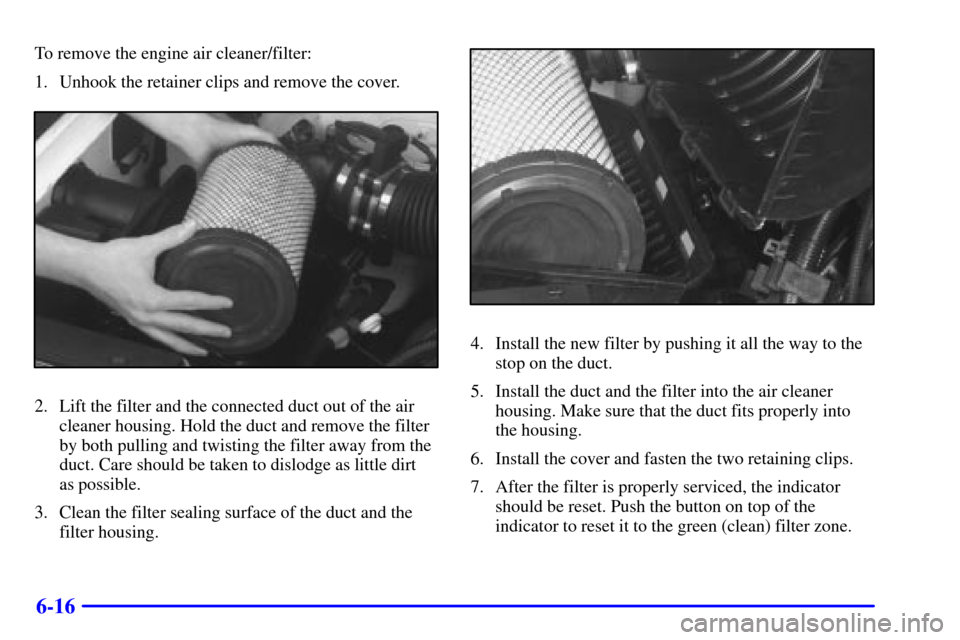

To remove the engine air cleaner/filter:
1. Unhook the retainer clips and remove the cover.
2. Lift the filter and the connected duct out of the air
cleaner housing. Hold the duct and remove the filter
by both pulling and twisting the filter away from the
duct. Care should be taken to dislodge as little dirt
as possible.
3. Clean the filter sealing surface of the duct and the
filter housing.
4. Install the new filter by pushing it all the way to the
stop on the duct.
5. Install the duct and the filter into the air cleaner
housing. Make sure that the duct fits properly into
the housing.
6. Install the cover and fasten the two retaining clips.
7. After the filter is properly serviced, the indicator
should be reset. Push the button on top of the
indicator to reset it to the green (clean) filter zone.
6-31
CAUTION:
The brake wear warning sound means that soon
your brakes won't work well. That could lead to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly torque wheel nuts in the
proper sequence to GM specifications.Your rear drum brakes don't have wear indicators, but if
you ever hear a rear brake rubbing noise, have the rear
brake linings inspected immediately. Also, the rear
brake drums should be removed and inspected each time
the tires are removed for rotation or changing. When
you have the front brake pads replaced, have the rear
brakes inspected, too.
Brake linings should always be replaced as complete
axle sets.
See ªBrake System Inspectionº in the Maintenance
Schedule booklet under Part C ªPeriodic
Maintenance Inspections.º
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you make a brake stop, your disc brakes
adjust for wear.
If your brake pedal goes down farther than normal, your
rear drum brakes may need adjustment. Adjust them by
backing up and firmly applying the brakes a few times.
