Table d. Valve guide specifications
Specifications
All engines (1997-2002)
Valve guide wear, maximum 0.5 mrn (0.020 in)
(valve tilt clearance
measured
with new valve)
Valve guide inside diameter,
installed
(tolerance per IS0 allowance H7)
Standard 6.0 mm (0.236 in)
Oversize
1 6.1 mrn (0.240 in)
Oversize 2 6.2
mm (0.244 in)
Valve stem oil seals
The purpose of the valve stem oil seal is to prevent excess oil
from entering the combustion chamber. The sign of faulty
valve stem oil seals is excessive oil consumption and smoke
from the exhaust immediately after starting and during decel-
eration.
NOTE-
Valve stem oil seals should not be reused. If valves are re-
moved, new valve stem oil seals should be installed.
Valve stem oil seal replacement requires that the cylinder
head be disassembled and the valves removed as described
above under Valves, removing and installing.
NOTE-
BMW special tools are available to remove the valve stem oil
seals. As an alternative, standard valve seal removal tools
are available from most automotive parts stores.
Lubricate new seal and install using hand pressure only. Be
sure to install valve spring
seat(s) before installing seal.

Downloaded from www.Manualslib.com manuals search engine
11 7 Camshaft Timing Chain
General ........................... .I I 7-2 Double VANOS System
Special tools ........................ .I 17-2 (M52 TU and M54 engines) ......... 11 7-34
Crankshaft Oil Seal, Front ........... I 17-6
Crankshaft oil seal, front,
replacing
(M52 engine) ................ .I1 7-6
Crankshaft oil seal, replacing
(M52 TU and M54 engines) ............ .I 17-9
Crankshaft oil seal, replacing
(M62 and M62 TU engines) ........... .I1 7-1 1
VANOS Control Unit and
Timing Chain
(M52 engine) ........ ,117-14
VANOS control unit, removing
(M52 engine) ...................... ,117-1 4
VANOS control unit, installing
(M52engine) ....................... 117-19
VANOS timing, checking and adjusting
(M52 engine) ...................... .I1 7-22
Timing chains, removing (M52 engine) . . ,117-26
Timing chain, installing (M52 engine) .... ,117-30
bouble VANOS system Tunctidn ........ 11 7-34
Double VANOS control unit ............ 117-36
VANOS control unit, removing
(M52 TU and M54 engines) ............ 11 7-37
VANOS control unit, installing
(M52 TU and M54 engines) ............ 1 17-41
VANOS timing, checking and adjusting
(M52 TU and M54 engines) ............ 1 17-43
Timing chains assembly
(M52 TU and M54 engines) ............ 1 17-50
Timing chains, removing
(M52 TU and M54 engines) ............ 11 7-51
Timing chains, installing
(M52 TU and M54 engines) ............ 11 7-57
Timing Chain (M62 engine to 9/98) . . 117-66
Timing chains, removing
(M62 engine to 9/98) ................. 11 7-66
Timing chains, installing
(M62 engine to 9/98) ................. 1 17-74
Camshaft timing, checking and adjusting
(M62engine) ....................... 117-79

Downloaded from www.Manualslib.com manuals search engine
1 17-8
Camshaft Timing Chain
4 Install oil seal puller (BMW special tool 11 2 380) and screw
in body of puller until it contacts seal. Tighten center screw to
draw seal out of cover.
4 Coat new seal with oil and position in timing chain cover. Use
BMW special tool
11 3 280 and crankshaft center bolt to draw
seal in flush with timing case cover.
4 Align hub with keyway and tap into place. Insert new center
bolt with washer shoulder
(arrow) facing hub.
CAUTION-
Inspect woodruffl - Reinstall cranltshaft holder tool.
NOTE-
Be careful while aligning locator pin hole in special tool 1 I 2
410 with vibration damper locator pin.
- While counterholding cranltshaft, tighten crankshaft center
bolt.
Tightening torque Vibration damoer hub
to crankshaft 410 Nm (302 ft-lb)

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing Chain
lnstall vibration damper mounting bolts. Note hub locating
dowel (arrow).
Tightening torque
Vibration damper to crankshaft hub
(ME) 22 Nm (16 ft-lb)
- Installation is reverse of removal noting the following:
Installing drive belts. See 020 Maintenance.
Install cooling fan. See 170 Radiator and Cooling Sys-
tem.
Crankshaft oil seal, replacing
(M52 TU and M54 engines)
The crankshafl front seal IS located in the lower timing cover,
behind the
vibrat~on damper.
- Disconnect negative (-) cable from battery.
Disconnecting the battery may erase fault
code(s) storedin
control module memoy Checlc for fault codes using spe-
cial
BMW diagnostic equipment.
Prior to disconnecting the battery, read the battery dis-
connection cautions given in
001 General Cautions
and Warnings.
- Remove splash guard from beneath engine
- Remove engine cooling fan assembly. See 170 Radiator
and Cooling System.
NOTE- Cooling fan nut
(32 mm wrench) has left-hand threads.
- Remove drive belts. See 020 Maintenance
NOTE-
Mark direction of belt rotation if reusing belt.
- Install crankshaft holding tool (BMW special tool 11 8 19011 1
8 200). Make sure tool locks into place in openings in damper
assembly. While counterholding crankshafl with special tool,
remove crankshaft center bolt.
CAUTIOI\C
Do not use flywheel locling tool to hold crankshaft station-
ary to loosen or tighten
cranl(shaft hub center bolt. Use
only the special tools specified, or equivalent hub holding
tool.
Use care when removing
damper/hub assembly, as ~t is
easy to damage the radiator

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing chain]
4 Coat new seal with oil and position in timing chain cover. Use
BMW special tool 11
3 280 and crankshaft center bolt to draw
seal in flush with timing case cover.
- Align vibration damper assembly with keyway and tap into
place. Insert new center bolt with washer.
CA
UTIOG
Inspect woodruff key for damage before installing hub
assembly.
- Install crankshaft holding tool malting sure tool locks into
place in openings in damper assembly. While counterholding
cranltshaft, tighten crankshaft center bolt.
- Attach special tools 11 8 20011 1 8 190 to damper assembly.
Counterhold damper with 11 8 190 while tightening center
bolt.
Tightening
torque
Vibration damper hub to crankshaft 410 Nm (302 it-ib)
- Installation is reverse of removal noting the following:
Install drive belts. See 020 Maintenance.
Install cooling fan. See 170 Radiator and Cooling Sys-
tem.
Crankshaft oil seal, replacing
(M62 and M62 TU engines)
- Disconnect negative (-) cable from battery
CAUTIOG
Disconnecting the battery may erase fault code(s) storedin
control module memory. Check for fault codes using spe-
cial BMW diagnostic equipment.
* Prior to disconnecting the battery, read the battery dis-
connection cautions in
001 General cautions and
warnings.
- Remove splash guard from beneath engine
- Remove engine cooling fan assembly. See 170 Radiator
and Cooling System.
NOTE
-
Cooling fan nut (32 mm wrench) has left-hand threads.
- Remove drive belts. See 020 Maintenance.
NOTE-
Marlc direction of belt rotation if reusing belt.

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing chain1

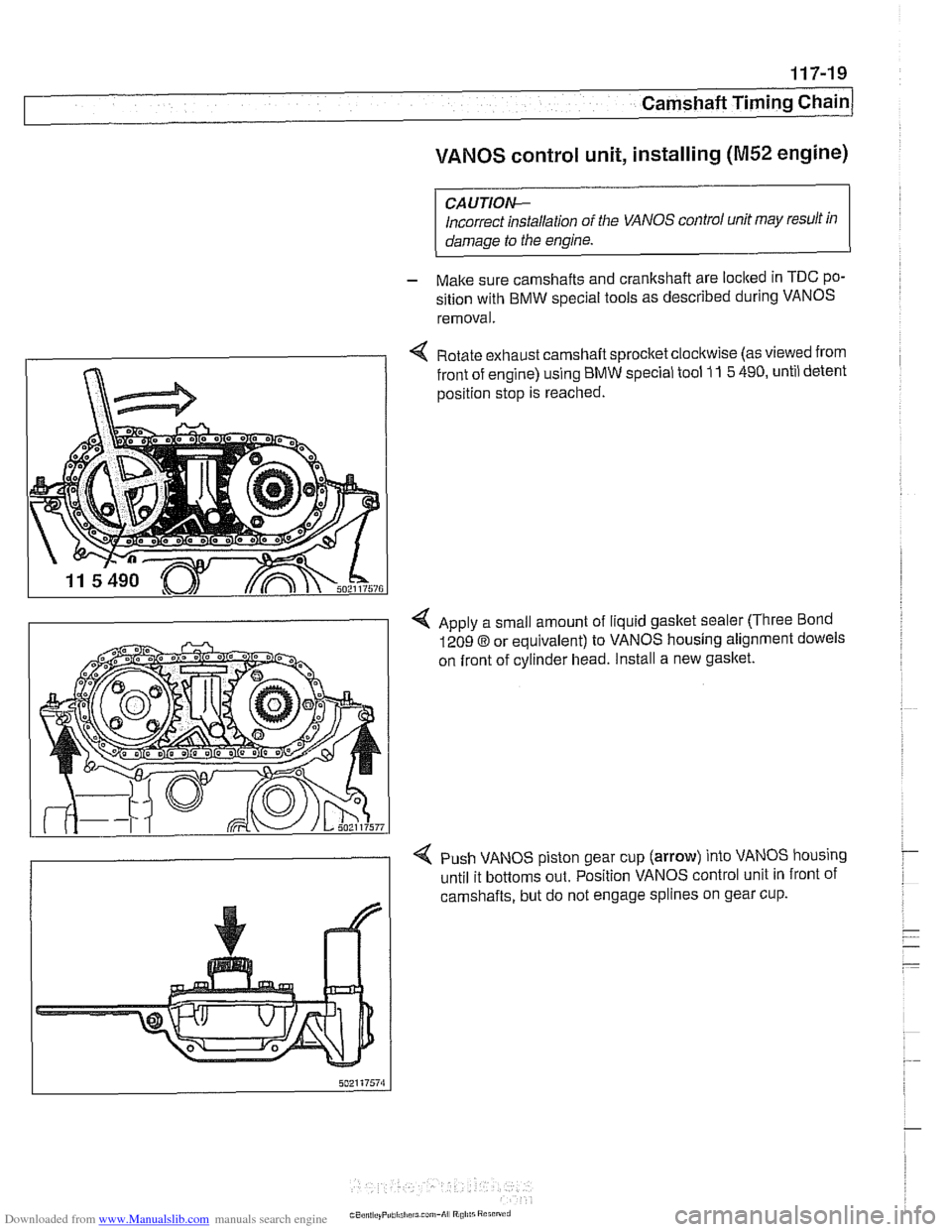

VANOS control unit, installing (M52 engine)
CAUTION-
Incorrect installation of the VANOS control unit may result in
damage to the engine.
- Make sure camshafts and crankshaft are loclted in TDC po-
sition with BMW special tools as described during VANOS
removal.
< Rotate exhaust camshaft sprocket clocltwise (as viewed from
front of engine) using BMW special tool
11 5 490, until detent
position stop is reached.
4 Apply a small amount of liquid gasket sealer (Three Bond
1209
8 or equivalent) to VANOS housing alignment dowels
on front of cylinder head. Install a new
gasket.
< Push VANOS piston gear cup (arrow) into VANOS housing
until it bottoms out. Position VANOS control unit in front of
camshafts, but do not engage splines on gear cup.

Downloaded from www.Manualslib.com manuals search engine
-
Camshaft Timing Chain -. -
Measure gap (B) between secondary timing chain tensioner
and intake camshaft sensor wheel. Make note of distance.
To determine VANOS control travel:
Distance
I3 - distance A = a minimum of 8.5 mm
CAUTION-
If the adjustment travel is less than 8.5 mm the VANOS ad-
justment unit must be removed and readjusted. See
VANOS
control unit, removing (M52 engine)
and VANOS con-
trol unit, installing
(M52 engine).
Remove special tools:
Cranltshaft locking tool.
Camshaft
loclting tool set.
Air fitting.
* VANOS cable adaptor.
- Install VANOS oil line with new seal
- Install oil baffle cover above intake camshaft.
- Install cylinder head cover mounting studs to rear of head.
- Install cylinder head cover,
Tightening
torques
Cylinder head cover 10 Nrn (89 in-lb)
VANOS oil line
32 Nm (24 R-lb)
VANOS solenoid to control unit 30 Nrn (22 ft-lb)
- Installation of remaining parts is reverse of removal.

Downloaded from www.Manualslib.com manuals search engine
1 17-30
I Camshaft Timing Chain
Timing chain, installing
(M52 engine)
CAUTION-
The procedure outlined below assumes that the camshafts
and the crankshaft are
lockedin the TDCposition with BMW
special tools.
- Inspect timing chain and sprocltets and guide rails for wear.
Replace worn parts.
NOTE-
If any of the sprockets are being replaced due to wear, the
chain should also be replaced.
Install primary timing chain
on exhaust camshaft. to crankshait
sprocket and hang
4 Apply a small bead oi silicon sealer (Three Bond 1209 @or
equivalent) to corners where tim~ng cover meets cylinder
head
(arrows).
