26-6
Mufflers with mounts
Vehicles with all-wheel drive
Vehicles with front-wheel-drive page 26
-9 .
1 -
40 Nm (30 ft lb)
2 -
From Three Way Catalytic Converter
(TWC)
3 -
Carriage bolts
4 -
Double clamp
5 -
25 Nm (18 ft lb)
6 -
Mounts
With retaining ring
7 -
Center muffler
8 -
Double clamp (for repair)
Pa
ge 7 of 12 Exhaust s
ystem com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.26.1
26-9

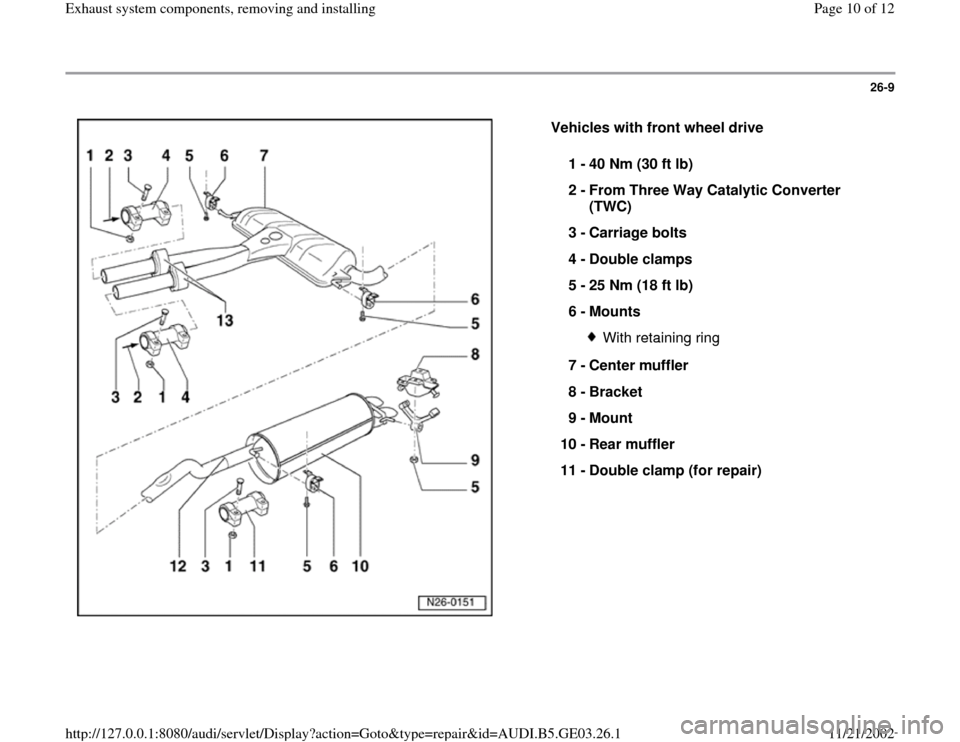

Vehicles with front wheel drive
1 -
40 Nm (30 ft lb)
2 -
From Three Way Catalytic Converter
(TWC)
3 -
Carriage bolts
4 -
Double clamps
5 -
25 Nm (18 ft lb)
6 -
Mounts
With retaining ring
7 -
Center muffler
8 -
Bracket
9 -
Mount
10 -
Rear muffler
11 -
Double clamp (for repair)
