2000 AUDI A8 wiring

24-48
If there is no voltage:

If there is still no voltage: - Connect multimeter between harness connector terminal 1 (to ECM)
and vehicle Ground, using VW 1594 connector test kit.
Specified value: 11.0-14.5 volts
- Check wiring between terminal 1 and relay panel using appropriate
wiring diagram.
Pa
ge 64 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-50
If there is no voltage:

- Connect VAG 1598/22 test box to ECM harness
connector Page 01
-56
.

If wiring is OK: - Check wiring for open circuit between ECM/test box and 4-pin HO2S
harness connector (to ECM).

Connector terminal 2 to ECM/test box socket 28
Specified value: max. 1.5
- Replace ECM -J220- Page 01
-57
- Carry out adaptation of throttle valve control module to ECM Page
24
-119
.
- Check readiness code Page 01
-59
. If Diagnostic Trouble Code
(DTC) memory has been erased, or ECM was disconnected, generate
new readiness code Page 01
-62
.
Pa
ge 66 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-57

Mass Air Flow (MAF) sensor, checking


Required special tools and test equipment

VAG 1551 or VAG 1552 Scan Tool (ST) with
VAG 1551/3 adapter cable
VAG 1598/22 test box
Multimeter US 1119 (Fluke 83 or equivalent)
VW 1594 connector test kit
Wiring diagram

Test requirements
All electrical consumers switched off (coolant
fan must not run during test).
A/C must be switched off
Fuse for MAF sensor OK
Pa
ge 75 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

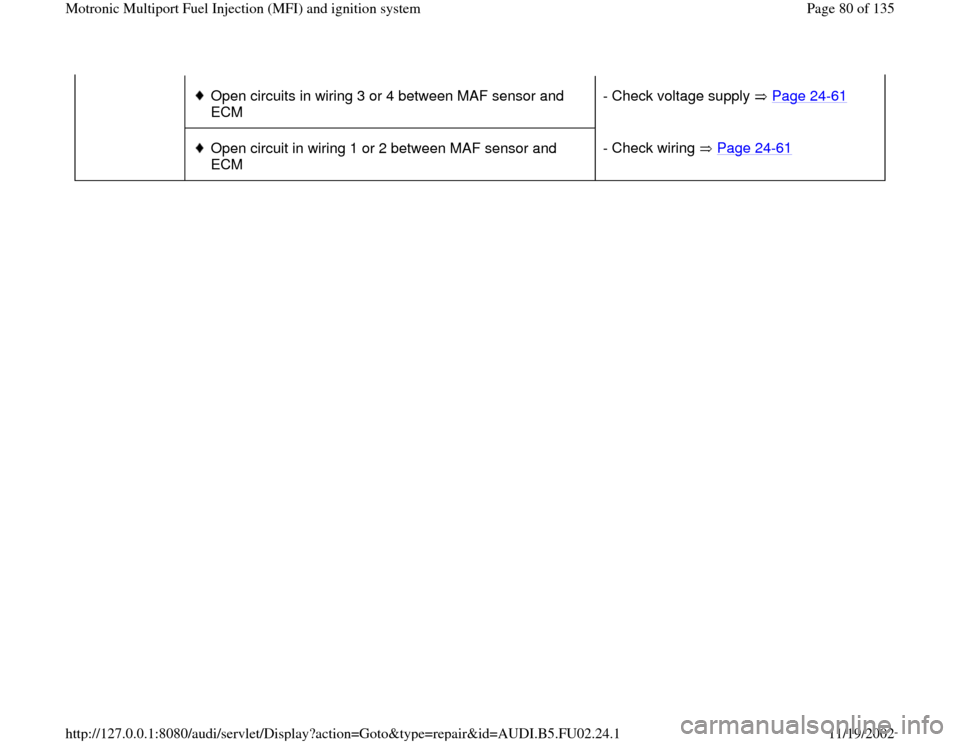

Open circuits in wiring 3 or 4 between MAF sensor and
ECM - Check voltage supply Page 24
-61


Open circuit in wiring 1 or 2 between MAF sensor and
ECM - Check wiring Page 24
-61
Pa
ge 80 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-61

Checking voltage supply

If there is no voltage:
Checking wiring - Disconnect 4-pin harness connector from Mass Air Flow sensor (MAF).
- Connect multimeter US 1119 (Fluke 83 or equivalent) between harness
connector terminals 1 and 3 (to ECM), using adapter cables from VW
1594 connector test kit.
Specified value: 9.0-14.5 volts
- Switch ignition off.
- Check wiring using applicable wiring diagram.
- Switch ignition off.
- Connect VAG 1598/22 test box to ECM harness connector Page 01
-
56
.

- Check wiring for open circuits between ECM/test box and 4-pin MAF
sensor harness connector.

Connector terminal 2 to ECM/test box socket 12
Connector terminal 4 to ECM/test box socket 13
Specified value: max. 1.5
Pa
ge 81 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-62

- Check wiring for short circuits between terminals
of 4-pin connector, and between connector and
ECM/test box.


Connector terminal 4 to ECM/test box
socket 12

Specified value:

- Switch multimeter to 20 VDC measuring
range.

- Check wiring at 4-pin connector for short circuit
to B+ (battery positive voltage), according to
applicable wiring diagram.


Connector terminal 2 to vehicle Ground

Connector terminal 4 to vehicle Ground

Specified value: 0 volts
If wiring is OK:

- Replace Mass Air Flow sensor (MAF) -G70-.

-
Check readiness code Page 01
-59
. If
Pa
ge 82 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-63

Engine Coolant Temperature (ECT)
sensor, checking


Required special tools and test equipment

VAG 1551 or VAG 1552 Scan Tool (ST) with
VAG 1551/3 adapter cable
VAG 1598/22 test box
Multimeter US 1119 (Fluke 83 or equivalent)
VW 1594 connector test kit
Wiring diagram

Test requirements
Engine cold
Pa
ge 84 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-65

- Compare display with specified value for engine
coolant temperature sensor (display field 2):

Display fields

1 2 3 4
Display group 1: Basic function, engine idle speed
Display xxxx RPM
xxx.x C
xx.x% XXXXXX
Indicates Engine
speed
(in 40 RPM
steps) Engine coolant temperature Oxygen sensor control Adjustment
conditions
Range 0-6800
RPM -46.5 to 141.0 C
-25.0 to 25.0 % ---
Specified
value 0 RPM
approx. ambient temperature
1)
Between -10.0 and 10.0%, value
must fluctuate by at least 2 % ---

--- If not as specified Page 24
-66
,
Evaluation of display group 1
--- ---
1) If indicated temperature deviates significantly from the ambient temperature, check ECT sensor wiring for resistance or
open circuits.

- Start engine and let run at idle.

Temperature value must increase evenly
Pa
ge 86 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1
