2000 AUDI A8 sensor

38-42

Wiring harness in transmission,
removing and installing


Removing

- Removing valve body page 38
-22
.

Only for Park/Neutral Position (PNP) Switch -E17- - Lever out retainer straps of connectors at solenoid valves using a small
screwdriver and disconnect connectors -A- in sequence.
- Unhook wiring harness at side retainer straps -B- of valve body.

- Turn valve body on its back side and loosen connector at Sensor for
transmission RPM -1-.
- Remove retaining clip (arrow A) and unclip wiring harness from
retaining clip (arrow B).
- Disconnect connector -2- from Solenoid Valve 4 -N91-.
Pa
ge 42 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

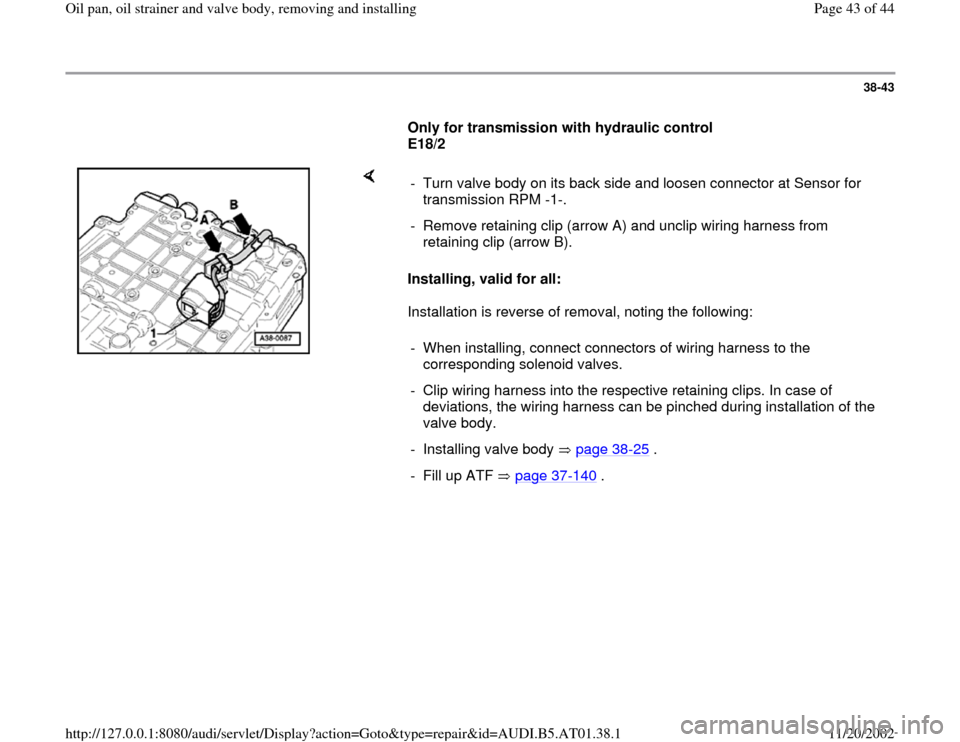

38-43

Only for transmission with hydraulic control
E18/2

Installing, valid for all:
Installation is reverse of removal, noting the following: - Turn valve body on its back side and loosen connector at Sensor for
transmission RPM -1-.
- Remove retaining clip (arrow A) and unclip wiring harness from
retaining clip (arrow B).
- When installing, connect connectors of wiring harness to the
corresponding solenoid valves.
- Clip wiring harness into the respective retaining clips. In case of
deviations, the wiring harness can be pinched during installation of the
valve body.
- Installing valve body page 38
-25
.
- Fill up ATF page 37
-140
.
Pa
ge 43 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-44

Transmission Fluid Temperature Sensor
-G93-, replacing


Note:
Transmission Fluid Temperature Sensor -G93- is
integrated in the transmission wiring harness.

Removing

- Remove wiring harness in transmission page
38
-42
.

Installing
Installation is the reverse of removal. Also carry
out the following procedure.

- Replace wiring harness with a new one.
