2000 AUDI A6 wiring

24-104
If LED does not flicker:

- Switch ignition off.

- Connect VAG1598/22 test box to ECM harness
connector page 01
-67
.

- Check wiring for open circuits between ECM/test
box and fuel injector harness connectors:


Cyl. 1 fuel injector terminal 2 to ECM/test
box socket 73

Cyl. 2 fuel injector terminal 2 to ECM/test
box socket 80

Cyl. 3 fuel injector terminal 2 to ECM/test
box socket 58

Cyl. 4 fuel injector terminal 2 to ECM/test
box socket 65

Cyl. 5 fuel injector terminal 2 to ECM/test
box socket 72

Cyl. 6 fuel injector terminal 2 to ECM/test
box socket 79
Pa
ge 133 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-105

- Check wiring for open circuit between fuel
injector connector terminal 1 and relay panel,
according to wiring diagram.


Specified value: max. 15
- Check wiring for short circuits between wires
and connector terminals.


Specified value:
Fuel injector resistance, checking

If resistance is NOT OK: - Check resistance of individual fuel injectors.

Specified value: 13.5-15.5 - Replace affected fuel injector.
Pa
ge 135 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-107

Checking

- Remove intake air hose between MAF sensor
and intake air noise muffler.

- Remove vacuum hose from Intake Manifold
Tuning (IMT) valve -N156- (change-over valve).

- Remove 5-pin connector from ignition coils, 2-
pin connector from valve for camshaft
adjustment -N208- (bank 2) and 2-pin connector
from camshaft position sensor -G163- (bank 1).

- Disconnect wiring harness from clips on fuel
rail.

- Disconnect fuel rail from intake manifold and remove fuel lines together
with injectors.
- Remove vacuum hose from fuel pressure regulator.
- Remove harness connectors from all injectors.
Pa
ge 137 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

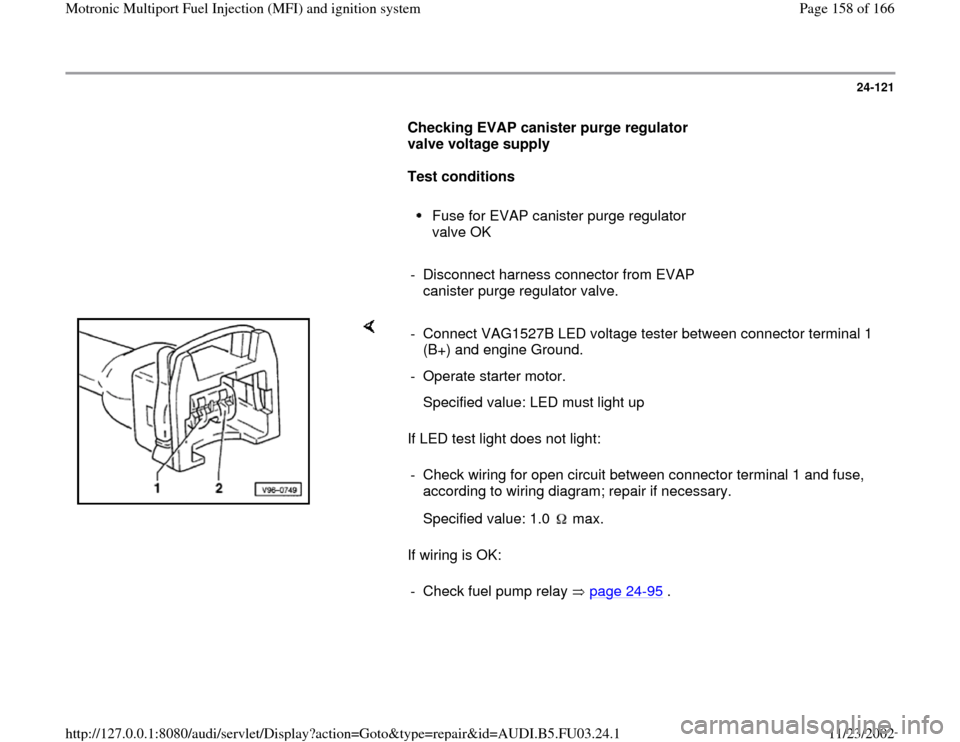

24-121

Checking EVAP canister purge regulator
valve voltage supply

Test conditions

Fuse for EVAP canister purge regulator
valve OK

- Disconnect harness connector from EVAP
canister purge regulator valve.

If LED test light does not light:
If wiring is OK: - Connect VAG1527B LED voltage tester between connector terminal 1
(B+) and engine Ground.
- Operate starter motor.
Specified value: LED must light up
- Check wiring for open circuit between connector terminal 1 and fuse,
according to wiring diagram; repair if necessary.

Specified value: 1.0 max.- Check fuel pump relay page 24
-95
.
Pa
ge 158 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-122

Checking signal to EVAP canister purge
regulator valve

If LED test light does not blink, or stays on:
If LED test light does not blink: - Connect VAG1527B LED voltage tester between connector terminals 1
(B+) and 2.
- Start output Diagnostic Test Mode (DTM) for EVAP canister purge
regulator valve -N80- page 01
-51
.
LED must blink
- Connect VAG1598/22 test box to ECM harness connector page 01
-
67
.

If LED test light stays on: - Check wiring between connector terminal 2 and Motronic ECM terminal
15 for open circuit or short circuit to B+.
- Check wiring between connector terminal 2 and Motronic ECM terminal
15 for short circuit to Ground.
Pa
ge 159 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-123
If wiring is OK:

- Replace Motronic ECM -J220- page 01
-68
.

- Carry out adaptation of throttle valve control
module to ECM page 24
-150
.

- Check readiness code page 01
-70
. If
Diagnostic Trouble Code (DTC) memory has
been erased, or ECM was disconnected,
generate new readiness code page 01
-73
.
Pa
ge 160 of 166 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/23/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU03.24.1

24-125

Voltage supply, checking

If LED tester does not light: - Disconnect harness connector for LDP -V144-.
- Connect VAG1527B LED voltage tester between connector terminal 3
(B+) and engine Ground.
- Start engine and run engine at idle.
LED must light up.
- Check fuse for LDP -V144-.
- Check wiring for open circuit between terminal 3 and fuse, according to
wiring diagram.

Specified value: max. 0.5 .- Check fuel pump relay and signal to relay page 24
-95
.
