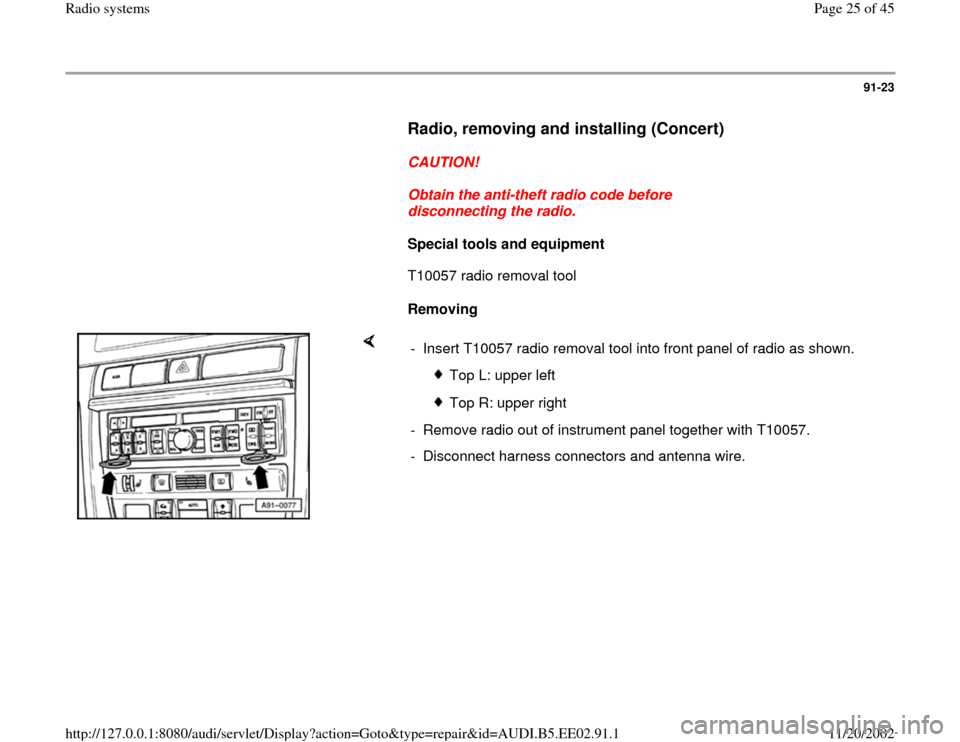

Radio, removing and installing (Concert)
CAUTION!
Obtain the anti-theft radio code before
disconnecting the radio.
Special tools and equipment
T10057 radio removal tool
Removing
- Insert T10057 radio removal tool into front panel of radio as shown.
Top L: upper left
Top R: upper right
- Remove radio out of instrument panel together with T10057.
- Disconnect harness connectors and antenna wire.
Pa
ge 25 of 45 Radio s
ystems
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE02.91.1
Page 26 of 45
91-24

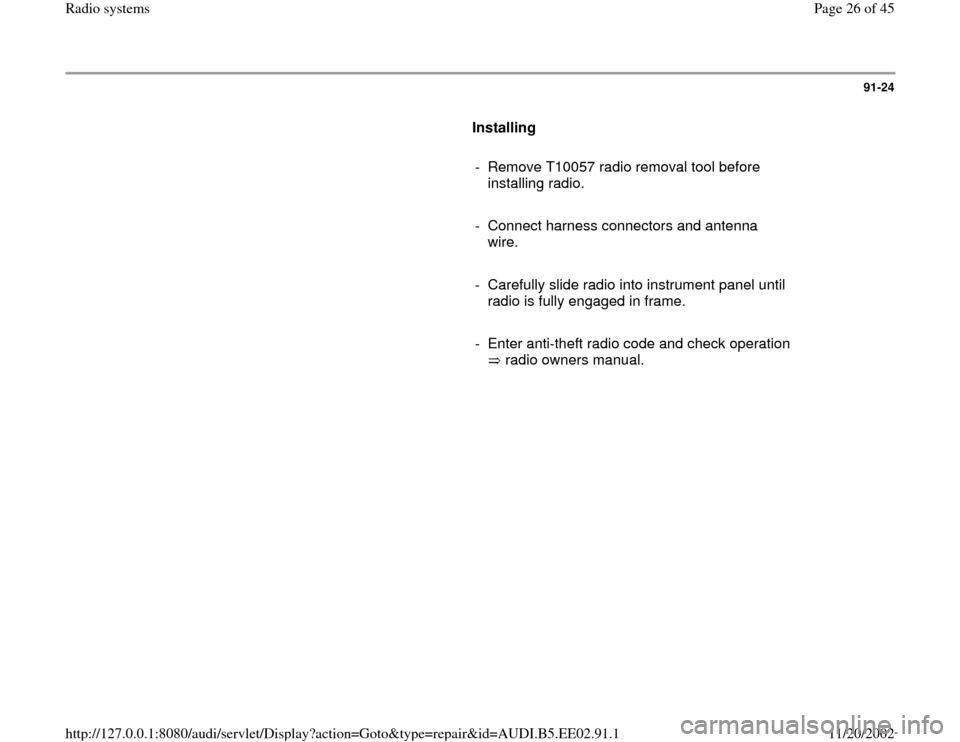

Installing
- Remove T10057 radio removal tool before
installing radio.
- Connect harness connectors and antenna
wire.
- Carefully slide radio into instrument panel until
radio is fully engaged in frame.
- Enter anti-theft radio code and check operation
radio owners manual.
Pa
ge 26 of 45 Radio s
ystems
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE02.91.1
Page 28 of 45
91-26

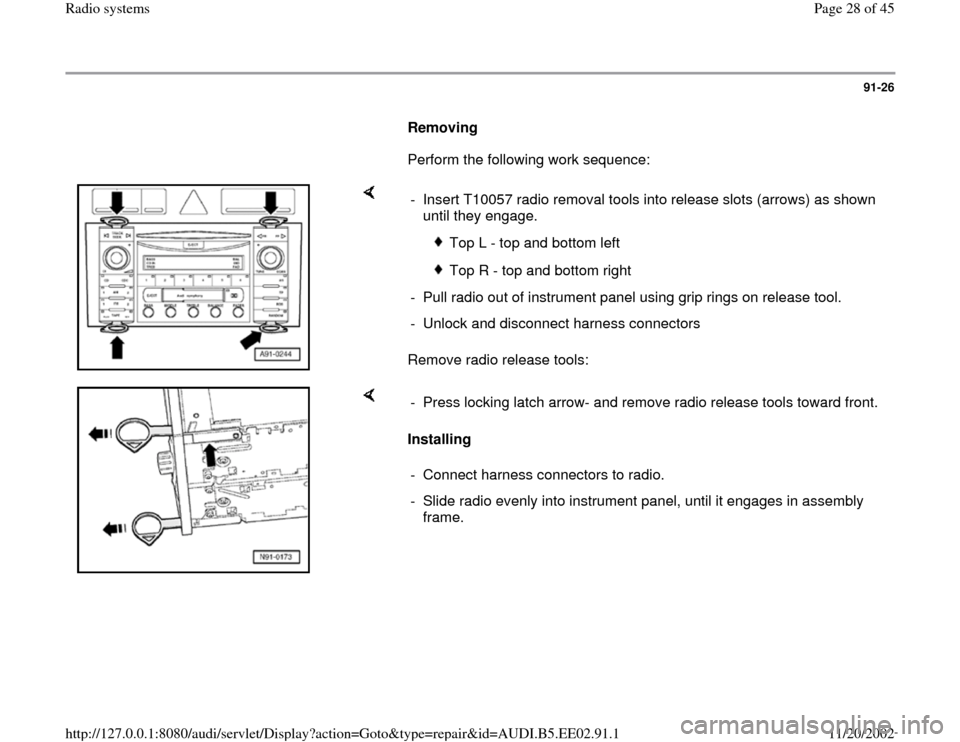

Removing
