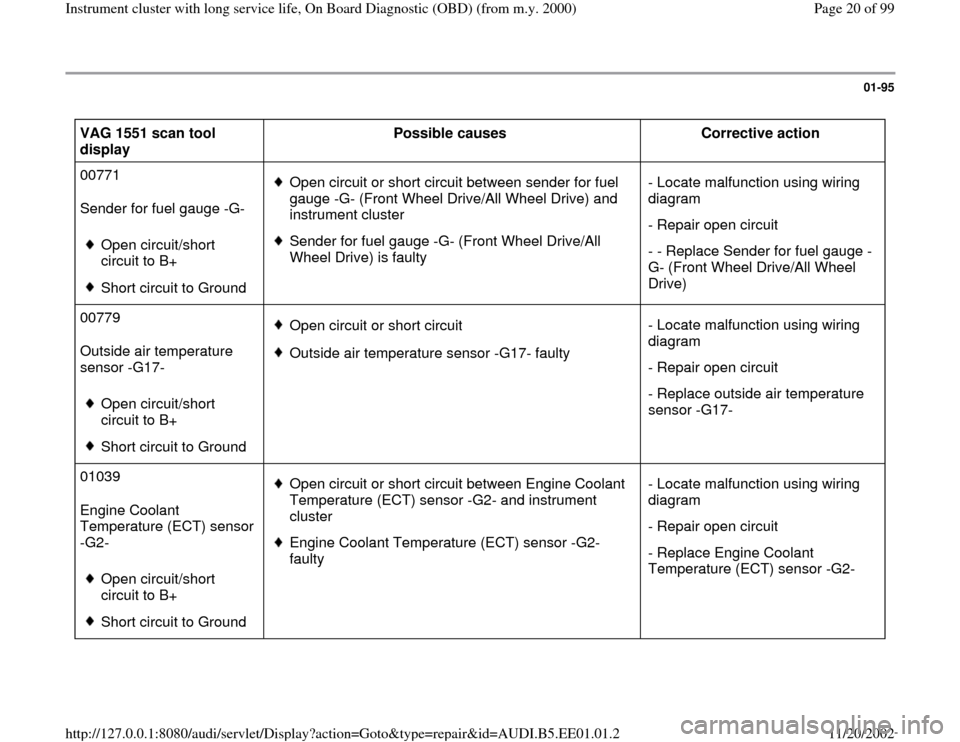

01-95
VAG 1551 scan tool
display Possible causes
Corrective action
00771
Sender for fuel gauge -G-
Open circuit/short
circuit to B+
Short circuit to Ground
Open circuit or short circuit between sender for fuel
gauge -G- (Front Wheel Drive/All Wheel Drive) and
instrument cluster
Sender for fuel gauge -G- (Front Wheel Drive/All
Wheel Drive) is faulty - Locate malfunction using wiring
diagram
- Repair open circuit
- - Replace Sender for fuel gauge -
G- (Front Wheel Drive/All Wheel
Drive)
00779
Outside air temperature
sensor -G17-
Open circuit/short
circuit to B+
Short circuit to Ground
Open circuit or short circuit
Outside air temperature sensor -G17- faulty - Locate malfunction using wiring
diagram
- Repair open circuit
- Replace outside air temperature
sensor -G17-
01039
Engine Coolant
Temperature (ECT) sensor
-G2-
Open circuit/short
circuit to B+
Short circuit to Ground
Open circuit or short circuit between Engine Coolant
Temperature (ECT) sensor -G2- and instrument
cluster
Engine Coolant Temperature (ECT) sensor -G2-
faulty - Locate malfunction using wiring
diagram
- Repair open circuit
- Replace Engine Coolant
Temperature (ECT) sensor -G2-
