2000 AUDI A4 buttons

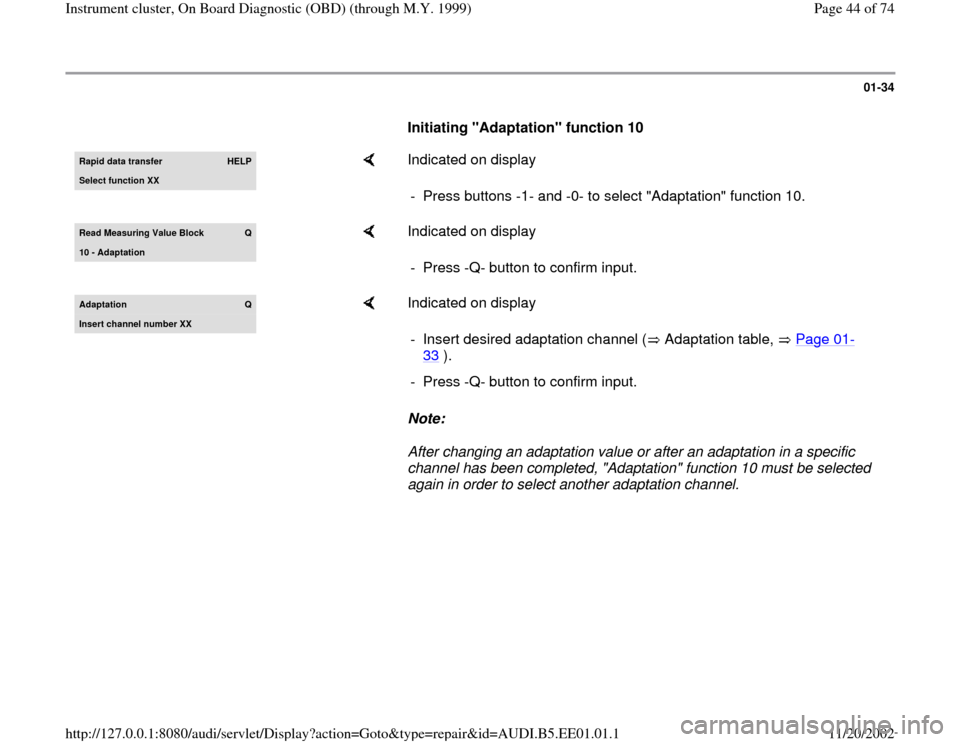

01-34

Initiating "Adaptation" function 10 Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10.
Read Measurin
g Value Block
Q
10 - Adaptation

Indicated on display
- Press -Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
Note:
After changing an adaptation value or after an adaptation in a specific
channel has been completed, "Adaptation" function 10 must be selected
again in order to select another adaptation channel. - Insert desired adaptation channel ( Adaptation table, Page 01
-
33
).
- Press -Q- button to confirm input.
Pa
ge 44 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

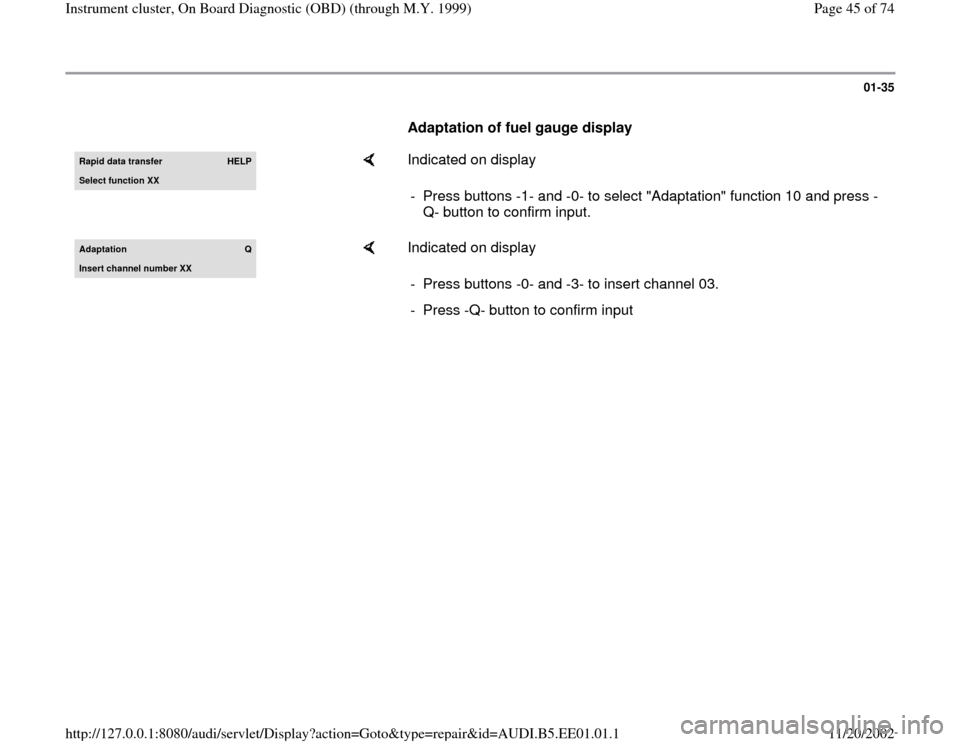

01-35

Adaptation of fuel gauge display Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -3- to insert channel 03.
- Press -Q- button to confirm input
Pa
ge 45 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-37

Note:

The fuel gauge reading is correct if the needle remains on the red section
at the right side of the reserve zone (see illustration).
- Press buttons -0- and -1-.
- Press -Q- button to confirm input
Channel 1 Adaptation 128
- 1 3-

The new adaptation value can be entered in two ways: step-by-step or
directly.
Note:
If a value over 255 is entered, the "adaptation" function will be cancelled
and the procedure will have to be started again. - Indicated on display
Pa
ge 47 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-39

Adapting fuel consumption display (direct
input method) Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
Notes: - Press buttons -0- and -3- to insert channel 03.
- Press -Q- button to confirm input
The value entered must be between 85% and 115%.Input is in steps of 5%.
Channel 3 Adaptation 100
-1 3-

Indicated on display
-
Press button.
Pa
ge 49 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-41

Rapid data transfer
HELP
Insert address word XX

Indicated on display
Note:
If an incorrect entry is made, the VAG1551 will switch to the following
display: - Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Function is unknown or cannot be carried out at the moment.

Indicated on display
-
Press button.- Select "Adaptation" function 10 and adaptation channel 03 again.
- Repeat adaptation of fuel consumption display and press -Q- button to
confirm input.
Pa
ge 51 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-42

Adapting multi-function display language
versions

Note:
Adaptation is only carried out on vehicles
equipped with on board computer. Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -4-.
- Press -Q- button to confirm input
Channel 4 Adaptation 1
-1 3-

Indicated on display
Notes:
The display shows only the last digit of the five-digit language code,
e.g. 1 for German. Input of incorrect values will end the adaptation function. "Adaptation"
function 10 must be selected again. When using the VAG1551 keypad, only the direct input method can be
used.
Pa
ge 52 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-45

Resetting SRI after servicing Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
Notes: - Press buttons -0- and -2- to insert channel 02.
- Press -Q- button to confirm input.
It is possible to reset the SRI without using the VAG1551/1552
Page 01
-77
.
Adaptation channel 2 can only be used for instrument clusters with
data version D05 and newer.
Pa
ge 56 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-48

Adapting SRI for oil change service interval
(distance in km)
This function is used to enter the distance (in km)
until the next oil change service is due (see
service schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -5- to insert channel 05.
- Press -Q- button to confirm input.
Pa
ge 59 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1
