1999 TOYOTA SIENNA engine

name. SIENNA (45403U)
129
SETTING AT A DESIRED SPEED
On vehicles with automatic transmission,
the transmission must be in ”D” before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push the lever down in the ”SET/COAST”
direction and release it. This sets the ve-
hicle at that speed. If the speed is not
satisfactory, tap the lever up for a faster
speed, or tap it down for a slower speed.
Each tap changes the set speed by 1.6
km/h (1.0 mph). You can now take your
foot off the accelerator pedal.If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the ”CANCEL”
direction and releasing it.
b. Depressing the brake pedal.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed,the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.RESETTING AT A FASTER SPEED
Push the lever up in the ”RES/ACC” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held up, the vehicle will gradually
gain speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the ”SET/COAST” direction.
RESETTING AT A SLOWER SPEED
Push the lever down in the ”SET/COAST”
direction and hold it. Release the lever
when the desired speed is attained. While
the lever is held down, the vehicle speed
will gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the ”SET/COAST” direction.
Even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.
ProCarManuals.com

name. SIENNA (45403U)
169
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLS—
Chapter 1−8
Other equipment
Clock
Cigarette lighter and ashtray
P ower out let s
G lov e box
Garage door opener box
Auxiliary boxes
Cup holder
First−aid kit and war ning
reflector holder
Tire pressure warning system
Floor mat
Clock
The digital clock indicates the time.
The key must be in the ”ACC” or ”ON”
position.
To reset the hour: Push the ”H” button.
To reset the minutes: Push the ”M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
Cigarette lighter and ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
When it becomes heated, it automatical-
ly pops out ready for use.
If the engine is not running, the key must
be in the ”ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ProCarManuals.com

name. SIENNA (45403U)
170
ASHTRAY
To use the ashtray, open out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always push the ash-
tray back in completely after using.
Power outlets
Front
Rear
The power outlets are designed for
power supply for car accessories.
The key must be in the ”ACC” or ”ON”
position for the power outlets to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W (front and rear outlets to-
gether).
To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Close the power outlet lids when
the power outlets are not in use.
Inserting a foreign object other than
the appropriate plug that fits the
outlet, or allowing any liquid into
the outlet may cause electrical fail-
ure or short circuits.
ProCarManuals.com

name. SIENNA (45403U)
181
Part 2
INFORMATION
BEFORE DRIVING
YOUR TOYOTA
Break−in period
Fuel
Operation in foreign countries
Three−way catalytic converter
Engine exhaust cautions
Facts about engine oil
consumption
Twin ground electrode
platinum−tipped spark plugs
Brake system
Brake pad wear limit indicators
Luggage stowage precautions
Roof luggage carrier
Your Toyota’s identification
Theft prevention labels
Suspension and chassis
Types of tires
Break−in period
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break−in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Do not drive over 88 km/h (55 mph).
Run the engine at moderate speed be-
tween 2000 and 4000 rpm.
Avoid full−throttle starts.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive for a long time at any
single speed, either fast or slow.
Do not tow a trailer during the first 800
km (500 miles).
Fuel
FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix−ups, your
Toyota has a new smaller fuel tank open-
ing. The special nozzle on pumps with
unleaded fuel will fit it, but the larger
standard nozzle on pumps with leaded gas
will not.
At a minimum, the gasoline you use
should meet the specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5−M93
in Canada.
NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three−
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
ProCarManuals.com

name. SIENNA (45403U)
182
OCTANE RATING
Select Octane Rating 87 (Research
Octane Number 91) or higher. For
improved vehicle performance, the use
of premium unleaded gasoline with an
Octane Rating of 91 (Research Octane
Number 96) or higher is recommended.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, now and then, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is no need
of concern.GASOLINES CONTAINING DETERGENT
ADDITIVES
Toyota recommends use of gasolines
that contain detergent additives to
avoid build−up of engine deposits.
For further details, ask your Toyota dealer
or a local gasoline retailer.
IMPROVED GASOLINES
The American Automobile Manufacturers
Association (AAMA) has developed a
specification of improved gasolines. The
AAMA specification offers optimal fuel
information for better vehicle perfor-
mance and better protection of your en-
gine.
Toyota recommends the use of gasolines
that meet the AAMA specification, if avail-
able, for improved driveability and emis-
sion control system.
GASOLINES CONTAINING MTBE
Gasolines that contain MTBE (Methyl
Tertiary−Butyl Ether) are available in the
market. If you use a gasoline mixed
with MTBE, make certain that it does
not contain more than 15% of MTBE.GASOLINES CONTAINING MMT
Some gasolines contain an octane−en-
hancing additive called MMT (methylcy-
clopentadienyl manganese tricarbonyl).
Toyota does not recommend the use of
gasolines that contain MMT. If fuels con-
taining MMT are used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
GASOLINES CONTAINING ALCOHOL
If you use gasohol in your Toyota, be
sure that it is unleaded, has an octane
rating no lower than 87 and does not
contain more than 10% ethanol.
Gasohol is a mixture of gasoline and etha-
nol.
Toyota does not recommend the use of
gasolines containing methanol. If you use
gasoline containing methanol, use only
gasoline meeting the requirements above
and also containing less than 5% metha-
nol with cosolvents and corrosion inhibi-
tors for methanol.
ProCarManuals.com

name. SIENNA (45403U)
183
GASOLINES QUALITY
In a very few cases, you may experience
driveability problems caused by the partic-
ular gasoline that you are using. If you
continue to have unacceptable driveability,
try changing gasoline brands. If that does
not rectify your problem, then consult your
Toyota dealer.
NOTICE
Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
If driveability problems occur (poor
hot starting, vaporizing, engine
knock, etc.), discontinue the use.
Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
79 L (21 gal., 17.5 lmp. gal.)
Operation in foreign countries
If you plan to drive your Toyota in
another country...
First, comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
Three−way catalytic converter
Ty p e A
Ty p e B
ProCarManuals.com

name. SIENNA (45403U)
184
The three−way catalytic converter is an
emission control device installed in the
exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.
CAUTION
Keep people and combustible mate-
rials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.
Do not drive, idle or park your ve-
hicle over anything that might burn
easily such as grass, leaves, paper
or rags.
NOTICE
A large amount of unburned gases
flowing into the three−way catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
Use only unleaded gasoline.
Do not drive with an extremely low
fuel level; running out of fuel could
cause the engine to misfire, creat-
ing an excessive load on the three−
way catalytic converter.
Do not allow the engine to run at
idle speed for more than 20 min-
utes.
Avoid racing the engine.
Do not push−start or pull−start your
vehicle.
Do not turn off the ignition while
the vehicle is moving.
Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel system could cause an ex-
tremely high three−way catalytic
converter temperature.
If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a check−up as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
three−way catalytic converter sys-
tem best.To ensure that the three−way cata-
lytic converter and the entire emis-
sion control system operate proper-
ly, your vehicle must receive the
periodic inspections required by the
Toyota Maintenance Schedule. For
scheduled maintenance information,
refer to the separate ”Scheduled
Maintenance Guide” or ”Owner’s
Manual Supplement”.
ProCarManuals.com

name. SIENNA (45403U)
185

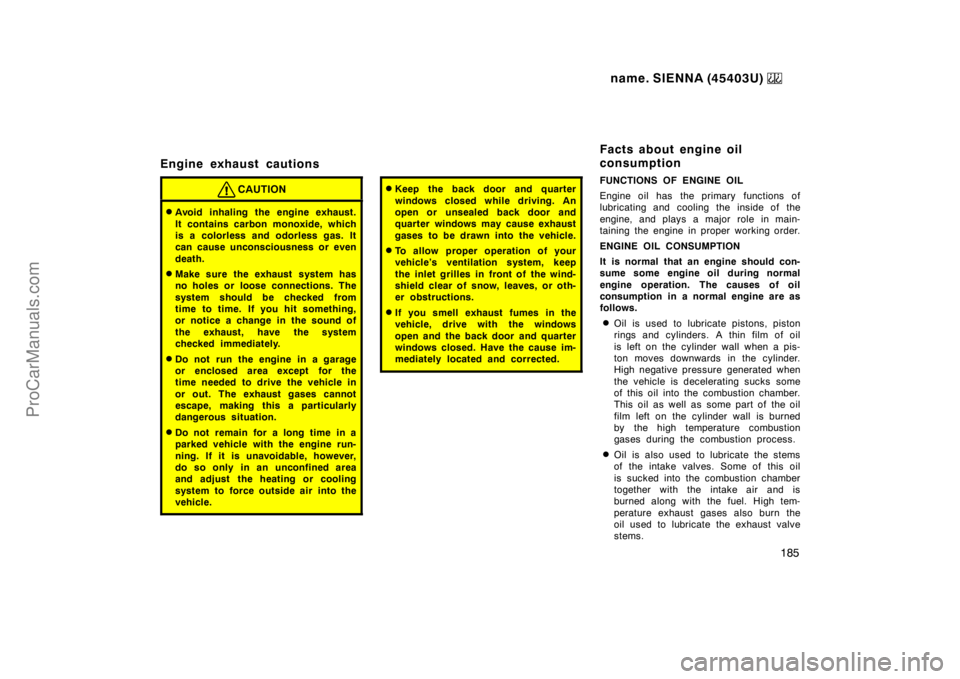

Engine exhaust cautions
CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.
Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
Keep the back door and quarter
windows closed while driving. An
open or unsealed back door and
quarter windows may cause exhaust
gases to be drawn into the vehicle.
To allow proper operation of your
vehicle’s ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, drive with the windows
open and the back door and quarter
windows closed. Have the cause im-
mediately located and corrected.
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of
lubricating and cooling the inside of the
engine, and plays a major role in main-
taining the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are as
follows.
Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil
is left on the cylinder wall when a pis-
ton moves downwards in the cylinder.
High negative pressure generated when
the vehicle is decelerating sucks some
of this oil into the combustion chamber.
This oil as well as some part of the oil
film left on the cylinder wall is burned
by the high temperature combustion
gases during the combustion process.
Oil is also used to lubricate the stems
of the intake valves. Some of this oil
is sucked into the combustion chamber
together with the intake air and is
burned along with the fuel. High tem-
perature exhaust gases also burn the
oil used to lubricate the exhaust valve
stems.
Facts about engine oil
consumption
ProCarManuals.com
