1999 TOYOTA SIENNA engine

name. SIENNA (45403U)
120
(e) Malfunction Indicator Lamp
This lamp comes on in the following
cases.
a. The fuel tank is completely empty. (See
”Fuel gauge” in Chapter 1−5 for instruc-
tions.)
b. The fuel tank cap is not tightened se-
curely. (See ”Fuel tank cap” in Chapter
1−2 for instructions.)
c. There is a problem somewhere in your
engine or automatic transmission electrical
system.
If it comes on while you are driving in
case c, have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible.
(f) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.(g) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(h) ”ABS” Warning Light
This light warns that there is a problem
somewhere in your anti−lock brake sys-
tem.
If the light comes on while you are driv-
ing, have your vehicle checked by your
Toyota dealer as soon as possible.
The light will come on when the ignition
key is turned to the ”ON” position. After
a few seconds, the light will go off.
When the ”ABS” warning light is on (and
the brake system warning light is off), the
brake system operates conventionally but
anti−lock brake system is not assisting
brake performance so that the wheels can
lock−up during sudden braking or braking
on slippery road surfaces.
(i) Open Door Warning Light
This light remains on until all the doors
and back door are completely closed.
When the ignition switch is ”OFF” and this
light stays lighting on, the light will turn off
automatically after 30 minutes with the light
flashing five times. See ”Personal lights” and
”Interior light” for details in Chapter 1−4.
ProCarManuals.com

name. SIENNA (45403U)
122
CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level warning
light and low windshield washer fluid
level warning light)
1. Apply the parking brake.
2. Open one of the doors.
The open door warning light should
come on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to ”ACC”.
The SRS airbag warning light should
come on. It goes off after about 6 se-
conds.
5. Turn the ignition key to ”ON”, but do
not start the engine.
All the service reminder indicators ex-
cept the open door warning light, open
power sliding door warning light and
SRS airbag warning light should come
on. The ”ABS” warning light and low
tire pressure warning light go off after
a few seconds.6. Vehicles with a power sliding door:
Open the right side sliding door.
The open power sliding door warning
light should come on.
Close the right side sliding door.
The open power sliding door warning
light should go off.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, either the bulb is burned out or the
circuit is in need of repair. Have it
checked by your Toyota dealer as soon as
possible.
ProCarManuals.com

name. SIENNA (45403U)
123
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLS—
Chapter 1−6
Ignition switch,
Transmission and
Parking brake
Ignition switch with steering lock
Automatic transmission
P ar k ing br ak e
Cruise control”START”—Starter motor on. The key
will return to the ”ON” position when
released.
For starting tips, see Part 3.
”ON”—Engine on and all accessories
on.
This is the normal driving position.
”ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the ”ACC” or
”LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
”LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.You must push in the key to turn the key
from ”ACC” to the ”LOCK” position. The
selector lever must be put in the ”P” posi-
tion before pushing the key.
Vehicles with engine immobiliser system—
Once you remove the key, the engine im-
mobiliser system is automatically set. (See
”Engine immobiliser system” in Chapter
1−2.)
When starting the engine, the key may
seem stuck at the ”LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the ”ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock
ProCarManuals.com

name. SIENNA (45403U)
124

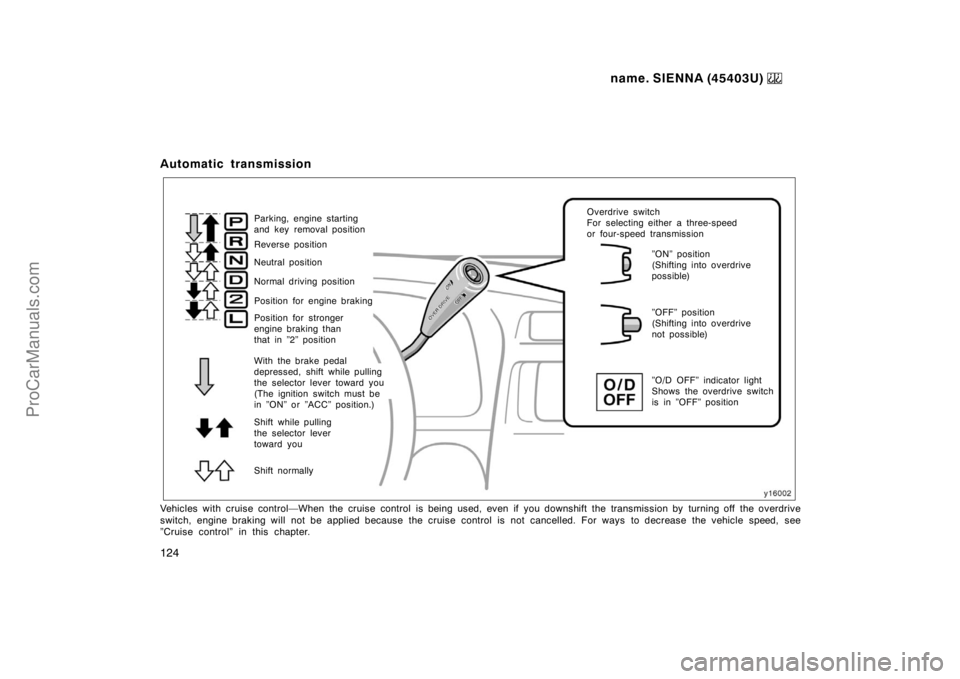

Automatic transmission
Parking, engine starting
and key removal position
Reverse position
Position for engine braking Normal driving position Neutral position
Position for stronger
engine braking than
that in ”2” positionOverdrive switch
For selecting either a three-speed
or four-speed transmission
Shift while pulling
the selector lever
toward you
With the brake pedal
depressed, shift while pulling
the selector lever toward you
(The ignition switch must be
in ”ON” or ”ACC” position.)”ON” position
(Shifting into overdrive
possible)
”OFF” position
(Shifting into overdrive
not possible)
Shift normally”O/D OFF” indicator light
Shows the overdrive switch
is in ”OFF” position
Vehicles with cruise control—When the cruise control is being used, even if you downshift the transmission by turning off the overdrive
switch, engine braking will not be applied because the cruise control is not cancelled. For ways to decrease the vehicle speed, see
”Cruise control” in this chapter.
ProCarManuals.com

name. SIENNA (45403U)
125
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of ”P” position when the
brake pedal is depressed (with the ignition
switch in ”ON” or ”ACC” position and the
selector lever pulled toward you).
(a) Normal driving
1. Start the engine as instructed in ”How
to start the engine” in Part 3. The
transmission must be in ”P” or ”N”.
2. With your foot holding down the brake
pedal, shift the selector lever to ”D”.
In ”D” position, the automatic transmission
system will select the most suitable gear
for the running conditions such as normal
cruising, hill climbing, hard towing, etc.
Always turn the overdrive switch on for
better fuel economy and quieter driving. If
the engine coolant temperature is low, the
transmission will not shift into overdrive
gear even with the overdrive switch on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
(b) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Turn off the overdrive switch. The ”O/D
OFF” indicator light will come on and
the transmission will downshift to the
third gear.
Shift into the ”2” position. The trans-
mission will downshift to the second
gear when the vehicle speed drops
down to or lower than 131 km/h (81
mph), and more powerful engine brak-
ing will be obtained.
Shift into the ”L” position. The trans-
mission will downshift to the first gear
when the vehicle speed drops down to
or lower than 59 km/h (36 mph), and
maximum engine braking will be ap-
plied.
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by turning off
the overdrive switch, engine braking is not
applied because the cruise control is not
cancelled.For ways to decrease the vehicle speed,
see ”Cruise control” in this chapter.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(c) Using ”2” and ”L” positions
The ”2” and ”L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in ”2” or ”L”, you
can start the vehicle in motion as with the
lever in ”D”.
With the selector lever in ”2”, the vehicle
will start in the first gear and automatical-
ly shift to the second gear.
With the selector lever in ”L”, the trans-
mission is engaged in the first gear.
ProCarManuals.com

name. SIENNA (45403U)
126
NOTICE
Be careful not to overrev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
”2”.................120 km/h (74 mph)
”L”..................64 km/h (40 mph)
Do not continue hill climbing or
hard towing for a long time in the
”2” or ”L” position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, ”D” position should
be used in hill climbing or hard
towing.
(d) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
”R” position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(e) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down,
fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down,
shift the selector lever to the ”P” posi-
tion.
CAUTION
While the vehicle is moving, never
attempt to move the selector lever
into ”P” position under any circum-
stances. Serious mechanical damage
and loss of vehicle control may re-
sult.
(f) Good driving practice
If the transmission is repeatedly up-
shifted and downshifted between ”D”
and overdrive when climbing a gentle
slope, the overdrive switch should be
turned off. Be sure to turn the switch
on immediately afterward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-
grade with the accelerator pedal. It
can cause the transmission to over-
heat. Always use the brake pedal or
parking brake.
ProCarManuals.com

name. SIENNA (45403U)
127
(g) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
Do not race the engine and avoid
spinning the wheels.
If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
Parking brake
Ty p e A
Ty p e B
ProCarManuals.com

name. SIENNA (45403U)
128
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
Cruise control
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snow−covered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
TURNING ON THE SYSTEM
To operate the cruise control, press the
”CRUISE ON−OFF” button. This turns the
system on. The indicator light in the
instrument panel shows that you can now
set the vehicle at a desired cruising
speed. Another press will turn the system
completely off.
CAUTION
To avoid accidental cruise control en-
gagement, keep the ”CRUISE ON−
OFF” switch off when not using the
cruise control.
ProCarManuals.com
