1999 TOYOTA LAND CRUISER lock

New L/C100(U)
36

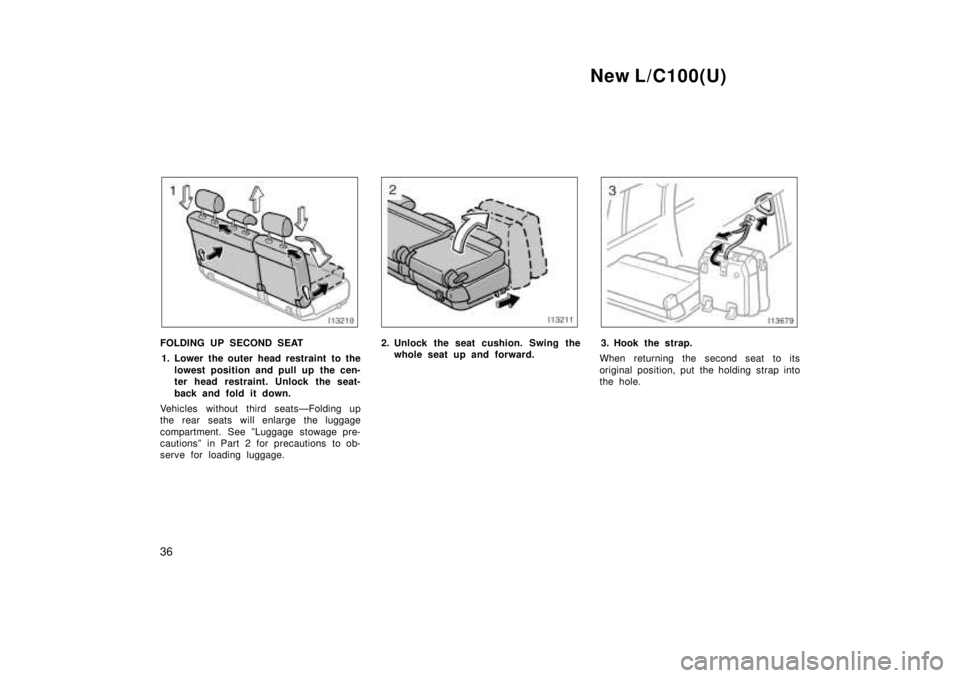

FOLDING UP SECOND SEAT 1. Lower the outer head restraint to the lowest position and pull up the cen-
ter head restraint. Unlock the seat-
back and fold it down.
Vehicles without third seatsÐFolding up
the rear seats will enlarge the luggage
compartment. See ºLuggage stowage pre-
cautionsº in Part 2 for precautions to ob-
serve for loading luggage.2. Unlock the seat cushion. Swing the whole seat up and forward.3. Hook the strap.
When returning the second seat to its
original position, put the holding strap into
the hole.

New L/C100(U)37
4. Remove the seat striker covers fromthe back of the seat cushion, and
install them over the seat strikers.
When returning the second seat to its
original position, remove the seat striker
covers from the floor and install them in
the back of the seat cushion.WHEN RETURNING THE SECOND SEAT
If you cannot raise the seatback be-
cause of the locked seat belt, do not
try it hard. Release the lock of the seat
belt in the following way. Push in the
lower front edge of the seatback cush-
ion to slacken the seat belt (1) and let
the seat belt retract a little (2).
CAUTION
When returning seats to their original
position: Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Make sure that the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent seat belt from proper
operation.

New L/C100(U)
38
ÐAdjusting third seats
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever toward
you. Then lean back to the desired
angle and release the lever.
CAUTION

To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen.
Therefore, in the event of a frontal
collision, the risk of personal injury
may increase with increasing recline
of the seatback.
Adjustments should not be made
while the vehicle is moving.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
ÐFolding up third seats
BEFORE FOLDING UP THIRD SEAT
1. Stow the third seat belt and buckles as shown in the illustration.
This prevents the seat belt and buckles
from falling out when you fold up the third
seat.
NOTICE
The seat belt and buckles must be stowed before you fold up the thirdseat.

New L/C100(U)39
2. Make sure the shoulder belt passesthrough the hanger when folding the
third seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in use.
FOLDING UP THIRD SEAT 1. Lower the head restraint to the low- est position. Unlock the seatback
and fold it down.
Folding up the third seats will enlarge the
luggage compartment. See ºLuggage stow-
age precautionsº in Part 2 for precautions
to observe for loading luggage.2. Unlock the seat cushion and slide the whole seat to the rear- most
position while pulling up the handle.

New L/C100(U)41
CAUTION
When returning seats to their original
position: Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Make sure that the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Be certain to re-
place head restraint. Failure to do
so will prevent seat belt from prop-
er operation.
ÐRemoving third seats
After folding up the third seat, open the
cover, hold the whole seat and pull it
up while pulling the handle toward you.
Removing the third seat will enlarge the
luggage compartment. See ºLuggage stow-
age precautionsº in Part 2 for precautions
to observe for loading luggage.Remove the seat striker covers from
the back of the seat cushion, and
install them over the seat strikers.
When returning the third seat to its origi-
nal position, remove the seat striker cov-
ers from the floor and install them in the
back of the seat cushion.

New L/C100(U)
42
CAUTION
When removing or reinstalling the
seat, observe the following to prevent
personal injury: Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
After folding or installing the seat,
push it forward and backward to
make sure it is locked in position.
To prevent personal injury in a colli-
sion or sudden stop: Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
When reinstalling the seat, be care-
ful not to hit the seat against you
or inside of the vehicle.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent third
seat occupants from using seat
belts properly.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of theseat legs may be damaged and the seat cannot be reinstalled.
Head restraints
Front
Rear

New L/C100(U)43
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraint onlyÐYou can also
move the head restraint forward or back-
ward. If such adjustment is desired, pull
or push the head restraint.
Rear center head restraintÐWhen an oc-
cupant sits on the rear center seat, al-
ways pull up the rear center head re-
straint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION

Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Seat heaters
Left side
front seat Right side
front seat
To turn on the seat heater, push the
switch to ºHIº (high heating tempera-
ture) or ºLOº (low heating temperature).
The key must be in the ºONº position.
Pushing lightly on the opposite side will
turn it off.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for; Baby, small child, elderly person,
sick person or handicapped person
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.

New L/C100(U)45
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following: Use the belt for only one person at
a time. Do not use a single belt for
two or more peopleÐeven children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ersÐthey may severely weaken the
belts. (See ºCleaning the interiorº
in Part 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow easy motion will allow the belt to
extend, and you can move around freely.Ð3- point seat belts
