1999 TOYOTA LAND CRUISER heater

New L/C100(U)131

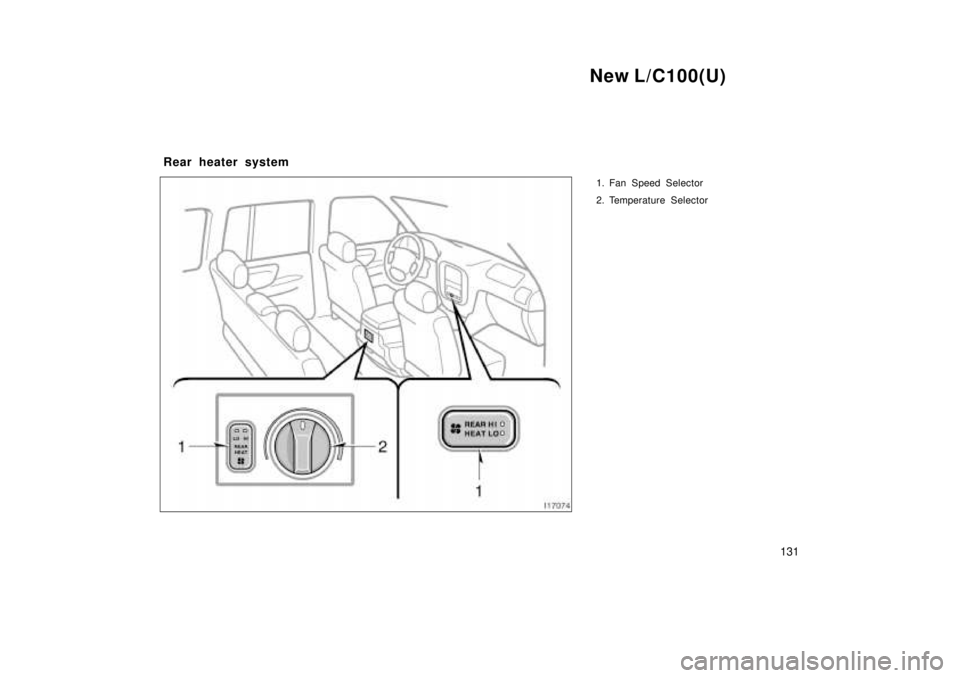

1. Fan Speed Selector
2. Temperature Selector
Rear heater system

New L/C100(U)
132
Fan speed selector
This button is used to turn the rear heater
system on and off, and adjust the fan
speed.
Pressing the button once adjusts the fan
speed to the ºLOº mode and twice
successionally adjusts the fan speed to
the ºHIº mode.
Temperature selector
Turn the knob to adjust the tempera-
tureÐto the right to warm, to the left to
cool.

New L/C100(U)
204
Cleaning the interior
CAUTION
Do not wash the vehicle floor with
water, or allow water to get onto the
floor when cleaning the vehicle interi-
or or exterior. Water may get into
audio components or other electrical
components above or under the floor
carpet (or mat) and cause a malfunc-
tion; and it may cause body corro-
sion.
Vinyl interior
The vinyl upholstery may be easily
cleaned with a mild soap or detergent
and water.
First vacuum over the upholstery to re-
move loose dirt. Then, using a sponge or
soft cloth, apply the soap solution to the
vinyl. After allowing it to soak in for a few
minutes to loosen the dirt, remove the dirt
and wipe off the soap with a clean damp
cloth. If all the dirt do not come off, re-
peat the procedure. Commercial foaming-
type vinyl cleaners are also available
which work well. Follow the manufacturer 's
instructions.
NOTICE
Do not use solvent, thinner, gasoline
or window cleaner on the interior.
Carpets
Use a good foam- type shampoo to
clean the carpets.
Begin by vacuuming thoroughly to remove
as much dirt as possible. Several types of
foam cleaners are available; some are in
aerosol cans and others are powders or
liquids which you mix with water to pro-
duce a foam. To shampoo the carpets,
use a sponge or brush to apply the foam.
Rub in overlapping circles.
Do not apply waterÐthe best results are
obtained by keeping the carpet as dry as
possible. Read the shampoo instructions
and follow them closely.
Seat belts
The seat belts may be cleaned with
mild soap and water or with lukewarm
water.
Use a cloth or sponge. As you are clean-
ing, check the belts for excessive wear,
fraying, or cuts.
NOTICE
Do not use dye or bleach on thebeltsÐit may weaken then
Do not use the belts until they be-come dry.
Windows
The windows may be cleaned with any
household window cleaner.
NOTICE
When cleaning the inside of the win-
dows, be careful not to scratch ordamage the heater wires on the rear window.
Air conditioning control panel, car au-
dio, instrument panel, console panel,
and switches
Use a soft damp cloth for cleaning.
Soak a clean soft cloth in water or luke-
warm water then lightly wipe off dirt.

New L/C100(U)
242
Fuel
Fuel type:
Premium unleaded gasoline, Octane Rat-
ing 91 (Research Octane Number 96) or
higher for optimum engine performance.
However, if such premium type cannot
be obtained, you may temporarily use
unleaded gasoline with an Octane Rat-
ing as low as 87 (Research Octane
Number 91).
Fuel tank capacity, L (gal., Imp. gal.): 96 (25.4, 21.1) Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15Ð0.25 (0.006Ð0.010)
Exhaust 0.25Ð0.35 (0.010Ð0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and ref ill), L (qt., Imp.
qt.)
With filter 6.8 (7.2, 6.0)
Without filter 6.4 (6.8, 5.6)
Oil grade: API grade SJ, ºEnergy- Conservingº mul-
tigrade engine oil or ILSAC multigrade
engine oil is recommended.
Recommended oil viscosity (SAE):
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.) Without rear heater 14.8 (15.6, 13.0)
With rear heater 15.3 (16.2, 13.5)
Coolant type:
ºToyota Long Life Coolantº or equivalent
With ethylene- glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or plain
water alone.
BATTERY
Open voltage *
at 20 C (68 F):
12.6Ð12.8 V Fully charged
12.2Ð12.4 V Half charged
11.8Ð12.0 V Discharged
* : Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

New L/C100(U)
244
Tires
Tire size:
P275/70R16 114S
Tire pressure, kPa (kgf/cm 2
or bar, psi):
Normal driving Front 220 (2.2, 32)
Rear 220 (2.2, 32)
Tailer towing Front 220 (2.2, 32)
Rear 240 (2.4, 35)
Wheel size: 16 8JJ
Wheel nut torque, N´m (kgf´m, ft´lbf): 131 (13.4, 96.6) Fuses
Engine compartment
Fuses (type A) 1. ALT- S 7.5 A: Charging system
2. AM1 NO.2 20 A: Starting system, turn
signal lights, emergency flashers, all
components in ºCIGARº, ºECU- IGº,
ºMIRRº, ºSRSº fuses
3. A.C 20 A: Air conditioning system
4. POWER HTR 10 A: No circuit
5. SEAT HTR 15 A: Seat heaters
6. FUEL HTR 20 A: No circuit
7. MIR HTR 15 A: Outside rear view mir-
ror heater
8. HEAD CLNER 20 A: No circuitEngine compartment
9. CDS FAN 20 A: Electric cooling fan
10. EFI or ECD 20 A: Multiport fuel injec-
tion system/sequential multiport fuel in-
jection system, emission control sys-
tem, fuel pump
11. HORN 10 A: Horns
12. THROTTLE 15 A: Electronic throttle
control system
13. RADIO 20 A: Car audio system
14. HAZ- TRN 15 A: Emergency flashers,
turn signal lights
