1999 TOYOTA 4RUNNER tow

4RUNNER ()25
Vehicles with wireless remote control sys-
temÐTo open the back window with the
wireless remote control transmitter, see
ºÐWireless remote controlº in this chap-
ter.
Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
The back door will be controlled by oper-
ating the power door lock switch.When closing the back door, use the
inside strap for easier reach to the
back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See ºLuggage stowage precautionsº in
Part 2 for precautions to observe in load-
ing luggage.

4RUNNER ()
36 1. SEAT POSITION AND SEAT CUSHION
ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats. It might interfere with the seat- lock
mechanism. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat- back.
3. SEAT LUMBAR SUPPORT ADJUST- ING SWITCH
Push the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position. Fold- down rear seats
BEFORE FOLD- DOWN REAR SEAT
Stow the rear seat belt and buckles as
shown in the illustration.
This prevents the belt and buckles from
falling out when you fold the seatback.
NOTICE
The seat belt and buckles must be
stowed before you fold the seatback.

4RUNNER ()37

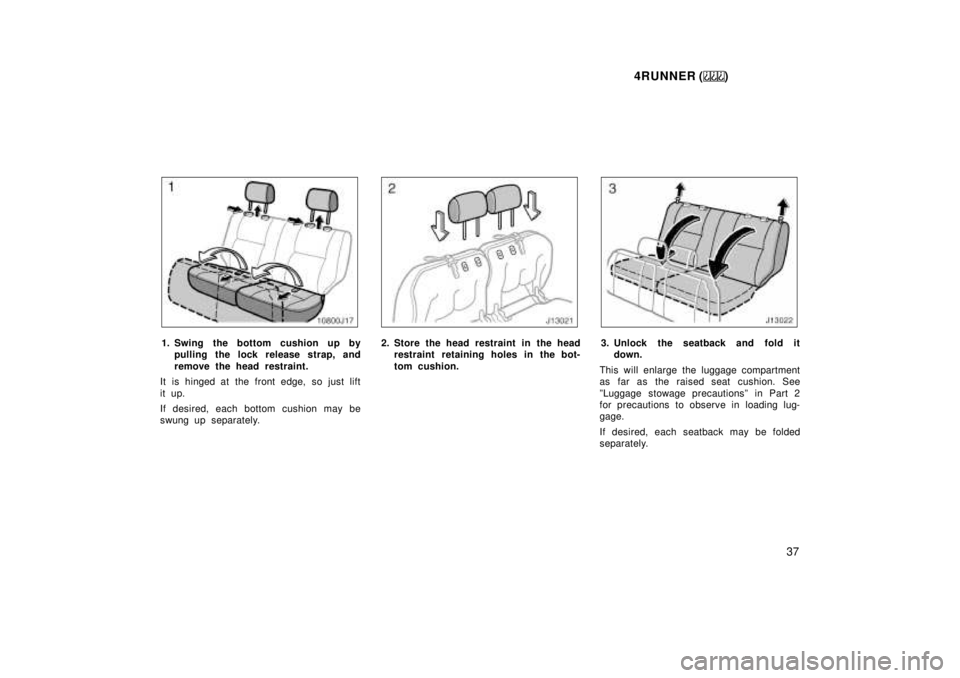

1. Swing the bottom cushion up bypulling the lock rel ease strap, and
remove the head restraint.
It is hinged at the front edge, so just lift
it up.
If desired, each bottom cushion may be
swung up separately.2. Store the head restraint in the head restraint retaining holes in the bot-
tom cushion.3. Unlock the seatback and fold itdown.
This will enlarge the luggage compartment
as far as the raised seat cushion. See
ºLuggage stowage precautionsº in Part 2
for precautions to observe in loading lug-gage.
If desired, each seatback may be folded
separately.

4RUNNER ()
44
The rear seat belt and buckles can be
stowed when not in use.
Seat belt and buckles must be stowed
before you fold the seat back. (See ºRear
seatsÐFold down rear seatº in this chap-
ter.) ÐSeat belt extender
If your seat belt cannot be fastened se-
curely because it is not long enough, a
personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer so
that the dealer can order the proper re-
quired length for the extender. Bring the
heaviest coat you expect to wear for prop-
er measurement and selection of length.
Additional ordering information is available
at your Toyota dealer.
CAUTION
When using the seat belt extender,
observe the following. Failure to fol-
low these instructions could result in
less effectiveness of the seat belt re-
straint system in case of vehicle acci-
dent, increasing the chance of per-
sonal injury.
Never use the seat belt extender if
you can fasten the seat belt withoutit.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, or for
another person or at a different
seating position than the one origi-
nally intended for.
ÐStowing rear seat belt
and buckles

4RUNNER ()
72
Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
turn the lever to its original position.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION

Do not adjust the steering wheel
while the vehicle is moving.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrorsÐ
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger 's side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. To turn on the
back window defogger, see ºBack window
and outside rear view mirror defoggersº in
Chapter 1- 4.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.

4RUNNER ()81
Ignition switch light
For easy access to the ignition switch,
the ignition switch light comes on when
the driver's door is opened.
The light remains on for some time after
driver 's door is closed.To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ºONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
The ºINT TIMEº band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it. To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see ºAdding washer fluidº in Chapter 7- 3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch theglass.
Windshield wipers and
washer (intermittent type)

4RUNNER ()
82
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ºONº position. Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
To squirt washer fluid, pull the lever
toward you.
For instructions on adding washer fluid,
see ºAdding washer fluidº in Chapter 7- 3. In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the glass.
Back window wiper and washer
To turn on the back window wiper, twist
the lever knob upward.
The key must be in the ºONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the back window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see ºAdding washer fluidº in Chapter 7- 3.
Windshield wipers and
washer (mist type)

4RUNNER ()
86
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as: Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop- and- go traffic.
Towing a trailer
NOTICE
Do not remove the thermostat in
the engine cooling system as thismay cause the engine to overheat.The thermostat is designed to con-
trol the flow of coolant to keep thetemperature of the engine withinthe specified operating range.
Do not continue driving with anoverheated engine. See ºIf your ve-hicle overheatsº in Part 4.
Tachometer
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may causesevere engine damage.
Engine coolant temperature
gauge
