1999 GMC YUKON seat adjustment

yellowblue
1-2
Seats and Seat Controls
This section tells you about the seats -- how to adjust
them and fold them up and down. It also tells you about
reclining front seatbacks and head restraints.
Power Seats
You can adjust the front seats with the controls located
on the side of the seat, next to the door.You can use the round center knob to move the seat to
where you want it. To raise the seat, move the knob up.
To lower the seat, move the knob down. To move the
seat forward, move the knob toward the front of the
vehicle. To move the seat rearward, move the knob
toward the rear of the vehicle.
You can also raise and lower the front and rear of the
seat. To raise the front of the seat, move the front lever
up. To lower the front of the seat, move the front lever
down. To raise the rear of the seat, move the rear lever
up. To lower the rear of the seat, move the rear
lever down.
The switch located at the front of this control panel
is for the power lumbar adjustment, which is
explained next.

yellowblue

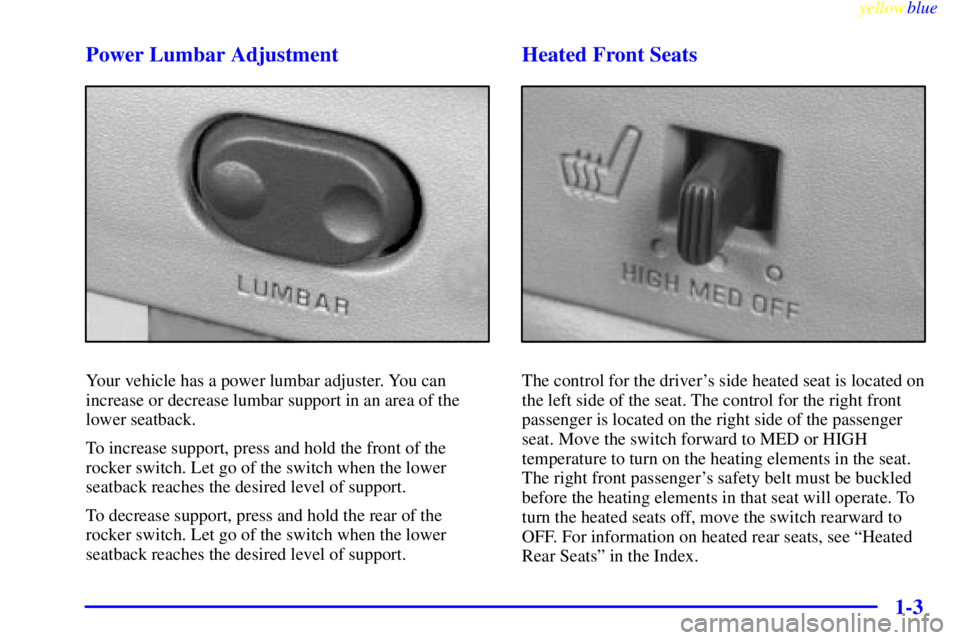

1-3 Power Lumbar Adjustment
Your vehicle has a power lumbar adjuster. You can
increase or decrease lumbar support in an area of the
lower seatback.
To increase support, press and hold the front of the
rocker switch. Let go of the switch when the lower
seatback reaches the desired level of support.
To decrease support, press and hold the rear of the
rocker switch. Let go of the switch when the lower
seatback reaches the desired level of support.
Heated Front Seats
The control for the driver's side heated seat is located on
the left side of the seat. The control for the right front
passenger is located on the right side of the passenger
seat. Move the switch forward to MED or HIGH
temperature to turn on the heating elements in the seat.
The right front passenger's safety belt must be buckled
before the heating elements in that seat will operate. To
turn the heated seats off, move the switch rearward to
OFF. For information on heated rear seats, see ªHeated
Rear Seatsº in the Index.

yellowblue
9-7
Mirrors 2-51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Convex Outside 2
-55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrochromic Day/Night Rearview with
Compass/Temperature Display/Headlamp Delay 2
-51 . . . . .
Electrochromic Heated Outside Rearview 2-54, 3-7 . . . . . .
Inside Rearview 2-51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Remote Control 2-54 . . . . . . . . . . . . . . . . . . . . . . . . .
MMT 6-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Model Reference vi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mountain Roads 4
-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multifunction Lever 2-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Net, Convenience 2-58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Neutral, Automatic Transmission 2-26 . . . . . . . . . . . . . . . . . .
New Vehicle Break-In 2-20 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Night Vision 4-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Normal Maintenance Replacement Parts 6-65 . . . . . . . . . . . . .
Odometer 2-71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer, Trip 2-71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Off-Road Driving 4-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Off-Road Recovery 4-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil, Engine 6-11, 6-65, 7-41 . . . . . . . . . . . . . . . . . . . . . . . . . .
OnStar
System 2-67 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overdrive, Automatic Transmission 2-27 . . . . . . . . . . . . . . . .
Overheating Engine 5-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Owner Checks and Services 7-35 . . . . . . . . . . . . . . . . . . . . . . .
Owner Publications, Ordering 8-12, 8-13 . . . . . . . . . . . . . . . .
Paint Spotting, Chemical 6-53 . . . . . . . . . . . . . . . . . . . . . . . .
Park
Automatic Transmission 2
-25 . . . . . . . . . . . . . . . . . . . . . . .
Shifting Into 2-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shifting Out of 2-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking
At Night 2
-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake 2-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake Mechanism Check 7-38 . . . . . . . . . . . . . . . . . . . . . . .
Lots 2-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Over Things That Burn 2-36 . . . . . . . . . . . . . . . . . . . . . . . .
With a Trailer 4-52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passenger Position 1-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passing 4-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passlock
2-20, 2-80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Periodic Maintenance Inspections 7-39 . . . . . . . . . . . . . . . . . .
Power
Auxiliary Outlet 2
-62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Locks 2-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lumbar Adjustment 1-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Option Fuses 6-56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote Control Mirror 2-54 . . . . . . . . . . . . . . . . . . . . . . . .
Seat 1-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering 4-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering Fluid 6-27, 7-41 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows 2-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Lumbar Adjustment 1-3 . . . . . . . . . . . . . . . . . . . . . . . .
Pregnancy, Use of Safety Belts 1-22 . . . . . . . . . . . . . . . . . . . .
Problems on the Road 5-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protecting Exterior Bright Metal Parts 6-52 . . . . . . . . . . . . . . .
Publications, Service and Owner 8-12, 8-13 . . . . . . . . . . . . . .

yellowblue
9-9
Driver Position 1-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Extender 1-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to Wear Properly 1-14 . . . . . . . . . . . . . . . . . . . . . . . . .
Incorrect Usage 1-17, 1-55, 1-56 . . . . . . . . . . . . . . . . . . . .
Lap Belt 1-37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lap-Shoulder 1-14, 1-31 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Larger Children 1-54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passenger Position 1-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Questions and Answers 1-13 . . . . . . . . . . . . . . . . . . . . . . . .
Rear Comfort Guides 1-34 . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Seat Outside Passenger Positions 1-30 . . . . . . . . . . . .
Rear Seat Passengers 1-30 . . . . . . . . . . . . . . . . . . . . . . . . . .
Reminder Light 1-10, 2-72 . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing After a Crash 1-57 . . . . . . . . . . . . . . . . . . . . . . . .
Right Front Passenger Position 1-23 . . . . . . . . . . . . . . . . . .
Shoulder Belt Height Adjuster 1-16, 1-32 . . . . . . . . . . . . . .
Smaller Children and Babies 1-38 . . . . . . . . . . . . . . . . . . . .
Use During Pregnancy 1-22 . . . . . . . . . . . . . . . . . . . . . . . . .
Why They Work 1-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Chains 4-48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Defects, Reporting 8-10 . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings and Symbols iii. . . . . . . . . . . . . . . . . . . . . . .
Scheduled Maintenance Services 7
-4 . . . . . . . . . . . . . . . . . . . .
Seatback, Reclining Front 1-4 . . . . . . . . . . . . . . . . . . . . . . . . . Seats
Folding the Rear 1
-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heated Front 1-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heated Rear 1-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lumbar Adjustment 1-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power 1-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear 1-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restraint Systems 1-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat Controls 1-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Securing a Child Restraint 1-48, 1-50, 1-52 . . . . . . . . . . . .
Second Gear, Automatic Transmission 2-27 . . . . . . . . . . . . . .
Security Light 2-80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security Shade 2-58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 6-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulletins, Ordering 8-12, 8-13 . . . . . . . . . . . . . . . . . . . . . . .
Engine Soon Light 2-76 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manuals, Ordering 8-12, 8-13 . . . . . . . . . . . . . . . . . . . . . . .
Parts Identification Label 6-55 . . . . . . . . . . . . . . . . . . . . . . .
Publications, Ordering 8-12, 8-13 . . . . . . . . . . . . . . . . . . . .
Work, Doing Your Own 6-2 . . . . . . . . . . . . . . . . . . . . . . . . .
Service and Appearance Care 6-1 . . . . . . . . . . . . . . . . . . . . . .
Service and Owner Publications 8-12, 8-13 . . . . . . . . . . . . . .
Service Four-Wheel Drive Warning Light 2-80 . . . . . . . . . . . .
Service Publications 8-12, 8-13 . . . . . . . . . . . . . . . . . . . . . . . .
