1999 GMC YUKON Owner's Manual

yellowblue
1-3 Power Lumbar Adjustment
Your vehicle has a power lumbar adjuster. You can
increase or decrease lumbar support in an area of the
lower seatback.
To increase support, press and hold the front of the
rocker switch. Let go of the switch when the lower
seatback reaches the desired level of support.
To decrease support, press and hold the rear of the
rocker switch. Let go of the switch when the lower
seatback reaches the desired level of support.
Heated Front Seats
The control for the driver's side heated seat is located on
the left side of the seat. The control for the right front
passenger is located on the right side of the passenger
seat. Move the switch forward to MED or HIGH
temperature to turn on the heating elements in the seat.
The right front passenger's safety belt must be buckled
before the heating elements in that seat will operate. To
turn the heated seats off, move the switch rearward to
OFF. For information on heated rear seats, see ªHeated
Rear Seatsº in the Index.

yellowblue
1-4 Reclining Front Seatbacks
To adjust the seatback,
move the lever rearward.
Release the lever to lock the seatback where you want it.
Move the lever again rearward and the seatback will go
to an upright position.
But don't have a seatback reclined if your vehicle
is moving.

yellowblue
1-5
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be in
front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
The head restraints tilt forward and rearward also.
Pull firmly on the top of the head restraint to position it
to your liking.

yellowblue
1-6 Rear Seats
CAUTION:
If a head restraint is not installed on the seatback
or stored in the vehicle properly, it could be
thrown about the vehicle in a crash or sudden
maneuver. People in the vehicle could be injured.
Remove the head restraints only when you need
to fold the seat, and be sure that the head
restraints are stored securely in the appropriate
holes at the rear of the lower seat cushion. When
the seat is returned to the passenger position, be
sure the head restraints are installed properly.
Folding the Rear Seat
Your vehicle has a 60/40 rear seat, either side may be
folded down to give you more cargo space.
Before folding, place the latch portion of the center
safety belt in the center armrest. That way, the center
safety belt will be out of the way when the seat is folded
and also will be easily available for passengers to use
when the seat is returned to the passenger position. Also,
make sure that nothing is under or in front of the seat.
When the seat is folded, it will lay flat on the floor.
To fold the seat, pull up on
the strap loop at the rear of
the seat cushion.
Then, pull the seat cushion up and fold it forward.

yellowblue
1-7
Fold the seatback forward
enough to allow removal of
the head restraints. Push and
hold the release buttons at
the bottom of each head
restraint height
-adjust post
and slide the head
restraint out of the
height
-adjust tubes.
Set the head restraints aside for now. You will stow them
in their proper position after you are done folding
the seat.
Pull the seatback forward and fold the seatback down
until it is flat.
Then, stow the head
restraints by sliding them
into the rear of the seat
cushion. Make sure the
posts go in all the way.
To return the seat to the passenger position, first remove
the head restraints by sliding them out of the seat
cushion. Lift the seatback up enough to install the head
restraints. Push the seatback rearward all the way. Then,
lower the seat cushion until it latches in position.
After returning the seat to the passenger position, return
the head restraints to the top of the seatback. Pull
forward on the seatback and up on the seat cushion to
make sure that the seat is securely in place.
If the latch plate portion of the center safety belt was put
in the center armrest when the seat was folded, take the
latch plate portion out and place it on the seat. That way,
the center position safety belt will be available for the
center rear seat passenger to use.

yellowblue
1-8
Heated Rear Seats
The controls for the heated
rear seats are located on the
rear of the center floor
console, below the rear seat
audio controls.Press the top of the switch to HI or the bottom of the
switch to LO to turn on the heating elements in the
outside rear seat positions. The text HI or LO on the
switch will illuminate to indicate that the heated seat
elements are operating. The switch on the left side
operates the left seat and the switch on the right side
operates the right seat. The rear seat outside passenger's
safety belt must be attached before the heating element
in that seat will operate. To turn the heated seats off,
move the switch to the center. For more information on
heated front seats, see ªHeated Front Seatsº in
the Index.

yellowblue
1-9

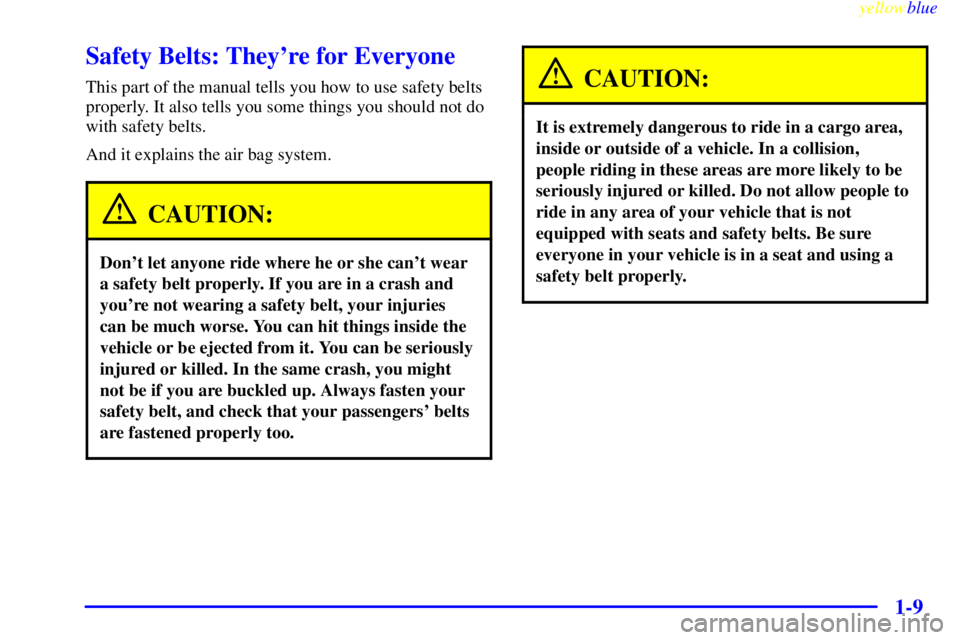

Safety Belts: They're for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the air bag system.
CAUTION:
Don't let anyone ride where he or she can't wear
a safety belt properly. If you are in a crash and
you're not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers' belts
are fastened properly too.
CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.

yellowblue
1-10
Your vehicle has a light that
comes on as a reminder to
buckle up. (See ªSafety Belt
Reminder Lightº in
the Index.)
In most states and Canadian provinces, the law says to
wear safety belts. Here's why: They work.
You never know if you'll be in a crash. If you do have a
crash, you don't know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn't survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter ... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it's just a seat
on wheels.
