1999 DODGE RAM engine

* Check oxygen sensor switching
* Check Idle Air Control (IAC) motor operation
* Check evaporative system.
LACK OF POWER
Check the following:
* Check secondary ignition system
* Check PCM power and ground circuits
* Check fuel pressure
* Check Engine Coolant Temperature (ECT) sensor calibration
* Check Throttle Position (TP) sensor calibration
* Check Manifold Absolute Pressure (MAP) calibration
* Check minimum idle airflow
* Check oxygen sensor switching
* Check Idle Air Control (IAC) motor operation
* Check EGR system.
KNOCKING
Check the following:
* Check secondary ignition system
* Check PCM power and ground circuits
* Check fuel pressure
* Check Engine Coolant Temperature (ECT) sensor calibration
* Check Throttle Position (TP) sensor calibration
* Check Manifold Absolute Pressure (MAP) calibration
* Check minimum idle airflow
* Check oxygen sensor switching
* Check Idle Air Control (IAC) motor operation
* Check evaporative system.
ENGINE MISFIRE
Check the following:
* Check secondary ignition system
* Check PCM power and ground circuits
* Check fuel pressure
* Check minimum idle airflow
* Check oxygen sensor switching
* Check Idle Air Control (IAC) motor operation
* Check EGR system.
BACKFIRE
Check the following:
* Check secondary ignition system
* Check PCM power and ground circuits
* Check fuel pressure
* Check Manifold Absolute Pressure (MAP) calibration
* Check minimum idle airflow
* Check oxygen sensor switching
* Check EGR system.
ROUGH OR ERRATIC IDLE
Check the following:

* Check secondary ignition system
* Check PCM power and ground circuits
* Check engine vacuum
* Check fuel pressure
* Check Engine Coolant Temperature (ECT) sensor calibration
* Check Throttle Position (TP) sensor calibration
* Check Manifold Absolute Pressure (MAP) calibration
* Check minimum idle airflow
* Check oxygen sensor switching
* Check oxygen sensor heater
* Check Idle Air Control (IAC) motor operation
* Check engine mechanical condition
* Check evaporative system
* Check EGR system
* Check Intake Air Temperature (IAT) motor operation
* Check Park/Neutral Position (PNP) switch.
POOR FUEL ECONOMY
Check the following:
* Check secondary ignition system
* Check PCM power and ground circuits
* Check engine vacuum
* Check fuel pressure
* Check Engine Coolant Temperature (ECT) sensor calibration
* Check Throttle Position (TP) sensor calibration
* Check Manifold Absolute Pressure (MAP) calibration
* Check minimum idle airflow
* Check oxygen sensor switching
* Check oxygen sensor heater
* Check Idle Air Control (IAC) motor operation
* Check engine mechanical condition
* Check evaporative system
* Check EGR system
* Check Intake Air Temperature (IAT) motor operation
* Check Park/Neutral Position (PNP) switch.
INTERMITTENTS
INTERMITTENT PROBLEM DIAGNOSIS
Intermittent fault testing requires duplicating circuit or
component failure to identify the problem. These procedures may lead
to PCM setting a Diagnostic Trouble Code (FTC) which may help in
diagnosis.
If problem vehicle does not produce FTC, monitor voltage or
resistance values using a DVOM while attempting to reproduce
conditions causing intermittent fault. A status change on DVOM
indicates a fault has been located.
Use a DVOM to pinpoint faults. When monitoring voltage,
ensure ignition switch is in ON position or engine is running. Ensure
ignition switch is in OFF position or negative battery cable is
disconnected when monitoring circuit resistance. Status changes on
DVOM during test procedures indicate area of fault.
TEST PROCEDURES
Intermittent Simulation
To reproduce the conditions creating an intermittent fault,
use the following methods:

* Lightly vibrate component
* Heat component
* Wiggle or bend wiring harness
* Spray component with water
* Remove/apply vacuum source.
Monitor circuit/component voltage or resistance while
simulating intermittent. If engine is running, monitor for DTCs. Use
test results to identify a faulty component or circuit.


E - T H EO RY/O PER ATIO N - D IE SEL

1999 D odge P ic ku p R 1500
1999 ENGINE PERFORMANCE
CHRY - Theory & Operation - Trucks - Diesel
Ram Pickup
INTRODUCTION
This article covers basic description and operation of engine
performance-related systems and components. Read this article before
diagnosing vehicles or systems with which you are not completely
familiar.
AIR INDUCTION SYSTEM
INTERCOOLER
NOTE: Intercooler may also be referred to as a charge air cooler.
Intercooler is a heat exchanger used to reduce intake air
temperature from turbocharger. Cooling of intake air results in an
increased air density for producing greater power and efficiency.
Intercooler is located in front of radiator. See Fig. 1.
Fig. 1: Exploded View Of Intercooler Assembly
Courtesy of Chrysler Corp.
TURBOCHARGER

NOTE: Turbocharger is not serviceable and must be replaced as a
complete assembly. Turbocharger overhaul procedures should
only be performed by an authorized facility.
Turbocharger is mounted on exhaust manifold. See Fig. 1.
Exhaust gases rotate turbine wheel along with the shaft and compressor
wheel. Rotating of compressor wheel forces an increased amount of
airflow (boost pressure) through intercooler and then into intake
manifold where the air is distributed into each cylinder. Supplying
increased airflow provides improved engine performance, lower exhaust
smoke density, altitude compensation and reduced engine noise.
Turbocharger contains a wastegate which is used for controlling boost
pressure at high speeds. Turbocharger is lubricated by pressurized
engine oil from engine oiling system. Excess engine oil is returned
through turbocharger oil return line into the cylinder block.

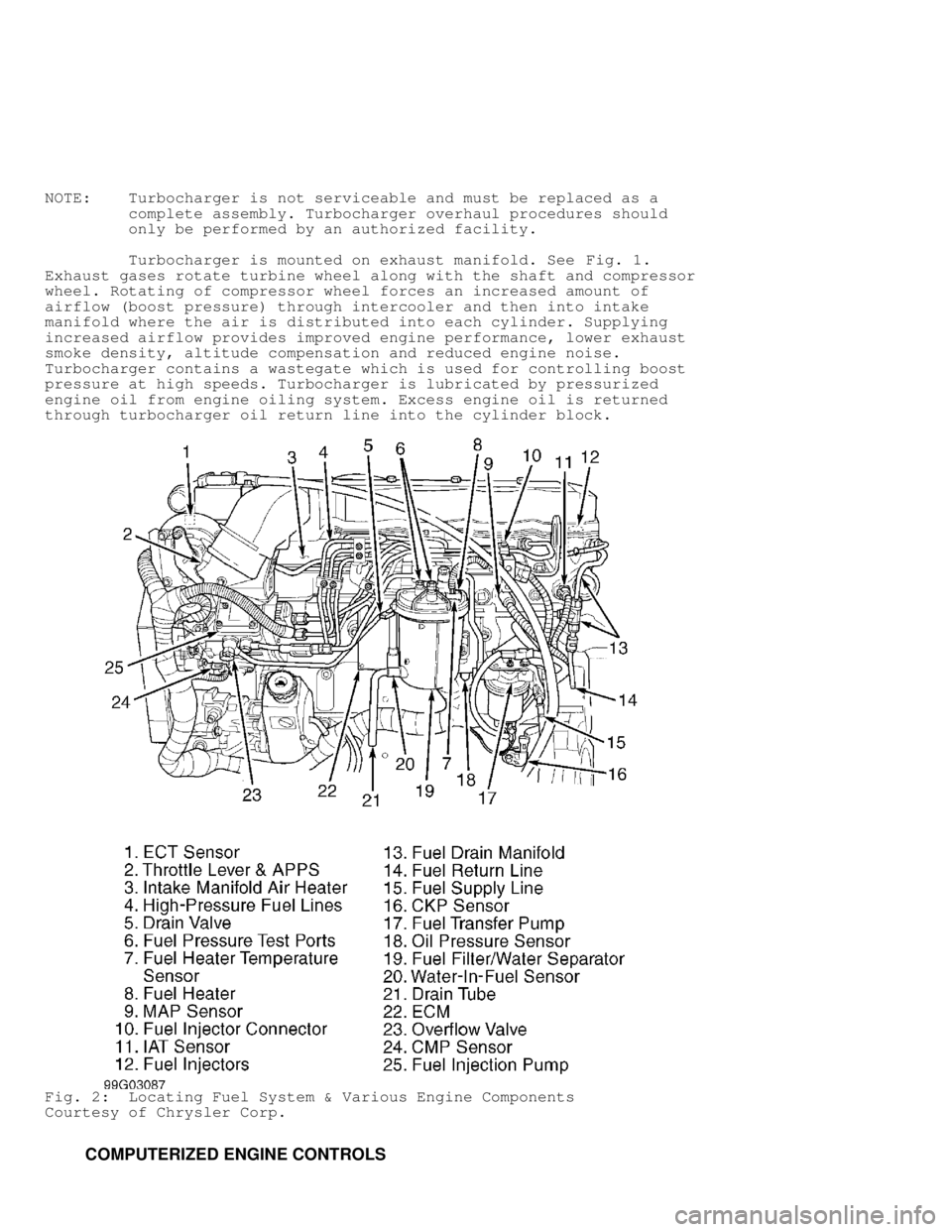

Fig. 2: Locating Fuel System & Various Engine Components
Courtesy of Chrysler Corp.
COMPUTERIZED ENGINE CONTROLS

Two different module systems are used for powertrain control
of diesel engine. The Engine Control Module (ECM), located on left
side of engine, is used to control the fuel system. See Fig. 2. The
Fuel Pump Control Module (FPCM) located on pump, is a separate
component of ECM.
The Powertrain Control Module (PCM), located at right rear of\
engine compartment, is used for charging system, transmission and
speed control functions. See Fig. 3. CCD Bus circuits connect the
various vehicle control modules. These circuits are connected between
ECM and PCM to allow communication between modules. Inputs and outputs
are at each module.

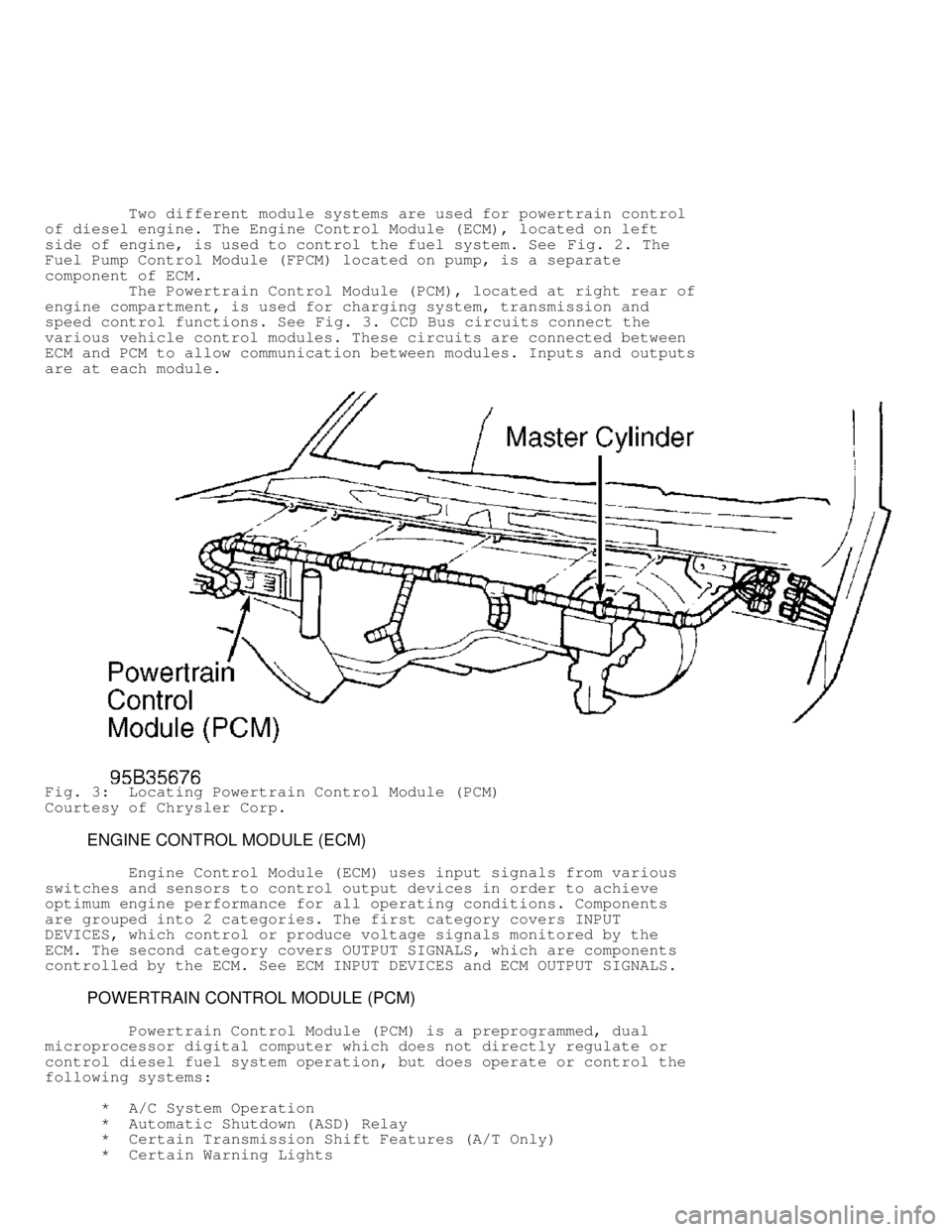

Fig. 3: Locating Powertrain Control Module (PCM)
Courtesy of Chrysler Corp.
ENGINE CONTROL MODULE (ECM)
Engine Control Module (ECM) uses input signals from various
switches and sensors to control output devices in order to achieve
optimum engine performance for all operating conditions. Components
are grouped into 2 categories. The first category covers INPUT
DEVICES, which control or produce voltage signals monitored by the
ECM. The second category covers OUTPUT SIGNALS, which are components
controlled by the ECM. See ECM INPUT DEVICES and ECM OUTPUT SIGNALS.
POWERTRAIN CONTROL MODULE (PCM)
Powertrain Control Module (PCM) is a preprogrammed, dual
microprocessor digital computer which does not directly regulate or
control diesel fuel system operation, but does operate or control the
following systems:
* A/C System Operation
* Automatic Shutdown (ASD) Relay
* Certain Transmission Shift Features (A/T Only)
* Certain Warning Lights

* Charging System
* Cruise Control System
* Intake Manifold Air Heater
* Tachometer
* Torque Convertor Clutch Engagement (A/T Only)
* Transmission Overdrive Solenoid (A/T Only) Components are
grouped into 2 categories. The first category covers INPUT
DEVICES, which control or produce voltage signals monitored
by the PCM. The second category covers OUTPUT SIGNALS, which
are components controlled by the PCM. See PCM INPUT SIGNALS
and ECM/PCM OUTPUT SIGNALS.
ECM INPUT SIGNALS
Accelerator Pedal Position Sensor (APPS)
APPS sensor is mounted on top left of engine. See Fig. 2.
Sensor provides DC voltage input signal to Engine Control Module (ECM)\
to indicate throttle position. On previous engines, there were
linkages between accelerator pedal, throttle position sensor and
injection pump. On this engine, no linkage exists between accelerator
pedal and injection pump. ECM uses input signals from APPS sensor to
determine proper fuel delivery. ECM also outputs this signal to PCM.
Battery Voltage
Battery voltage input signal provides operating voltage to
Engine Control Module (ECM). This input signal keeps ECM memory alive
and informs ECM what generator output voltage is when engine is
running. ECM memory is used to store Diagnostic Trouble Codes (DTCs),
store APPS sensor voltages from previous key cycles and provide a
speed control adaptive memory.
Camshaft Position Sensor (CMP)
Camshaft Position (CMP) sensor is a hall effect sensor (0-5
volts switched), located below injection pump in rear face of timing
gear cover. Sensor is not used for fuel control. Sensor is used only
for diagnostic purposes.
CCD Bus Circuits
These circuits are connected between Engine Control Module
(ECM) and Powertrain Control Module (PCM) to allow communication
between modules.
Crankshaft Position Sensor (CKP)
Crankshaft Position (CKP) sensor delivers input signal (35
tooth wheel with gap) to Engine Control Module (ECM) to indicate
engine speed and crankshaft position. ECM uses CKP signal along with
other input signals for controlling injector firing sequence and
timing. Sensor is located below fuel transfer pump, on side of engine
block. See Fig. 2.
Data Link Connector (DLC)
Data Link Connector (DLC) provides an input signal to Engine
Control Module (ECM) when using scan tool to retrieve Diagnostic
Trouble Codes (DTCs) from ECM. Input signal may also be used when
performing various tests on the ECM and electronic control system.
Data link connector is a 16-pin connector located at lower edge of
driver's side of instrument panel, just above accelerator pedal.
Engine Coolant Temperature (ECT) Sensor
Engine coolant temperature sensor delivers input signal to
Engine Control Module (ECM) to indicate engine coolant temperature.
ECM uses input signal for controlling fuel control and timing. Engine
coolant temperature sensor is located on front of head, near

thermostat housing. See Fig. 2.
Fuel Injection Pump Control Module (FPCM)
Fuel Pump Control Module (FPCM) controls fuel pump using
inputs from Engine Control Module (ECM). FPCM is integral to top of
fuel pump. ECM and FPCM are interconnected together for fuel injection
control.
Fuel Temperature Sensors
There are 2 fuel temperature sensors. One sensor is located
inside injection pump, and will set FTC under high temperature
conditions. Engine Control Module (ECM) will lower engine power if FTC\
is set. Other sensor is an integral part of fuel heater. See FUEL
HEATER.

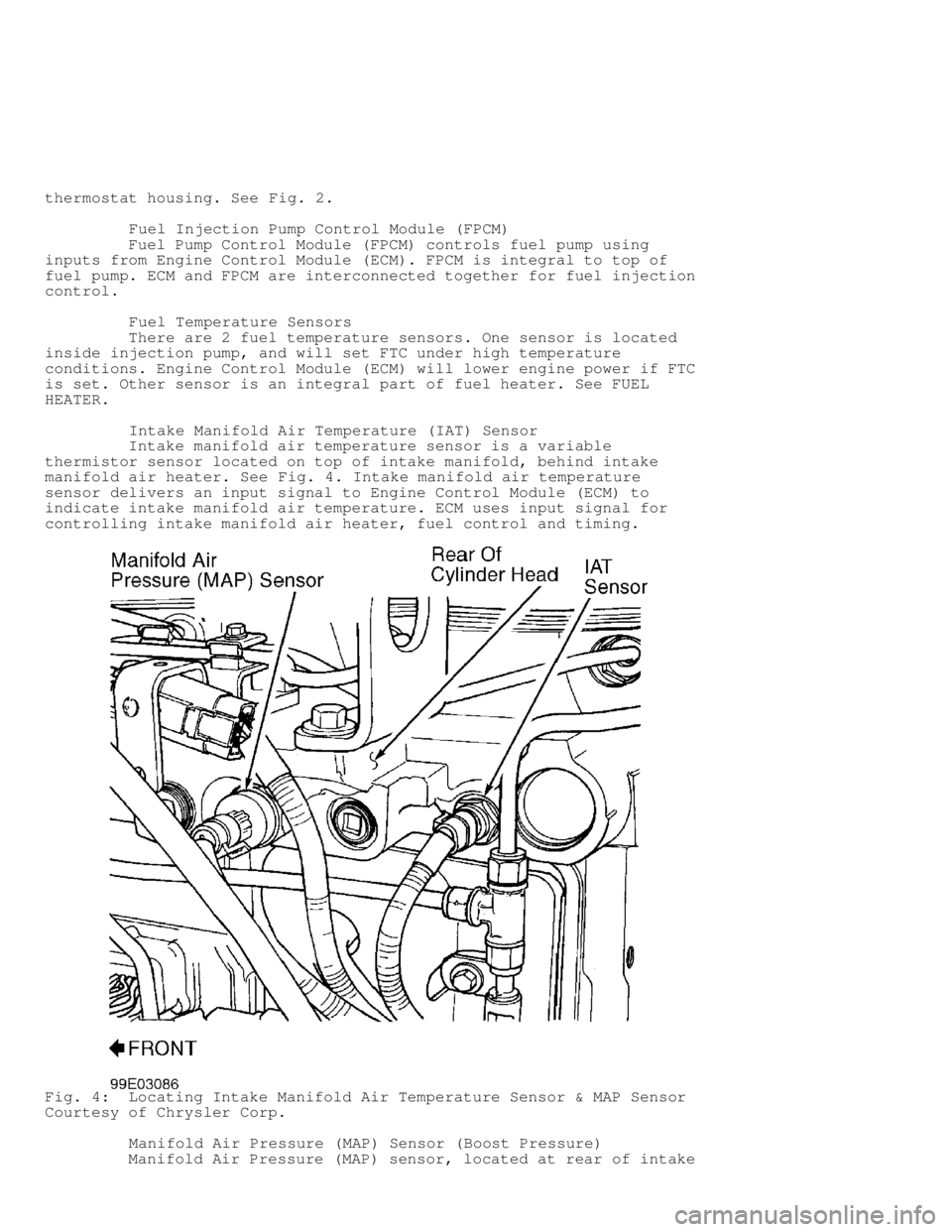

Intake Manifold Air Temperature (IAT) Sensor
Intake manifold air temperature sensor is a variable
thermistor sensor located on top of intake manifold, behind intake
manifold air heater. See Fig. 4. Intake manifold air temperature
sensor delivers an input signal to Engine Control Module (ECM) to
indicate intake manifold air temperature. ECM uses input signal for
controlling intake manifold air heater, fuel control and timing.
Fig. 4: Locating Intake Manifold Air Temperature Sensor & MAP Sensor
Courtesy of Chrysler Corp.
Manifold Air Pressure (MAP) Sensor (Boost Pressure)
Manifold Air Pressure (MAP) sensor, located at rear of intake\
