Fig. 25: Timing Belt Sprocket Alignment - Typical
This Graphic For General Information Only
TENSION ADJUSTMENTS
If guide rails are used with spring loaded tensioners,
ensure at least half of original rail thickness remains. Spring
loaded tensioner should be inspected for damage.
Ensure all timing marks are aligned. Adjust belt tension
using manufacturer's recommendations. Belt tension may require
checking using tension gauge. See Fig. 26.

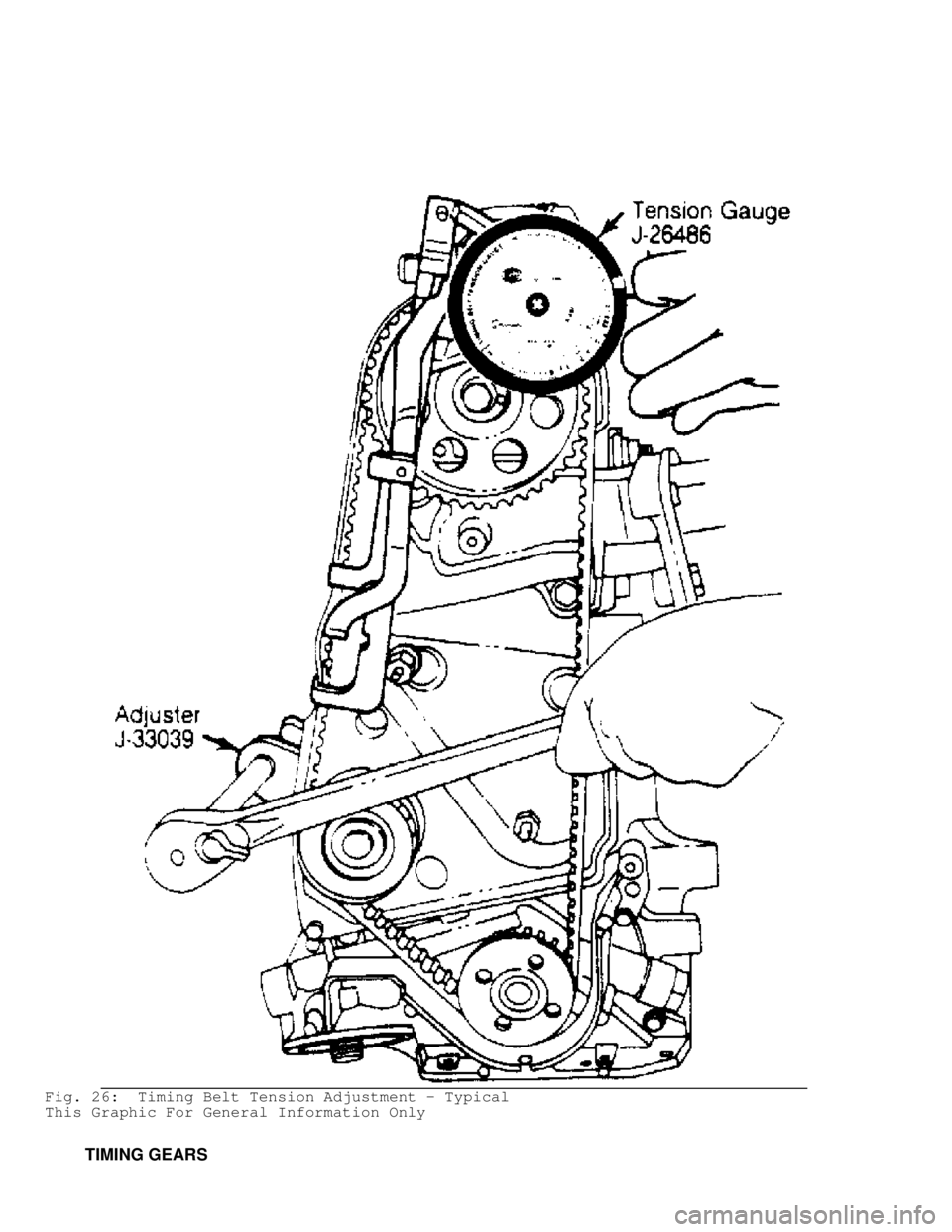

Fig. 26: Timing Belt Tension Adjustment - Typical
This Graphic For General Information Only
TIMING GEARS


* E N G IN E S YSTE M S U NIF O RM IN SPEC TIO N G UID ELIN ES *

1 999 D odge P ic ku p R 1500
GENERAL INFORMATION
Engine Performance and Maintenance Motorist Assurance Program
Standards For Automotive Repair
All Makes and Models
INTRODUCTION TO MOTORIST ASSURANCE PROGRAM (MAP)
CONTENTS
Motorist Assurance Program (MAP)
OVERVIEW OF MOTORIST ASSURANCE PROGRAM
OVERVIEW OF SERVICE REQUIREMENTS AND SUGGESTIONS
Engine Assemblies
CYLINDER HEAD ASSEMBLIES
LONG BLOCK ASSEMBLIES
SHORT BLOCK ASSEMBLIES
Engine Components
ACCELERATOR PEDAL POSITION SENSORS
ACCESSORY BELTS
ACCESSORY PULLEYS
ACTUATORS
AIR CONDITIONING CYCLING SWITCHES
AIR CONDITIONING PRESSURE SENSORS
AIR DUCTS AND TUBES
AIR FILTER ELEMENTS
AIR FILTER GASKETS
AIR FILTER HOUSINGS AND GASKETS
AIR FUEL RATIO SENSORS
AIR INJECTION CONTROL SOLENOIDS
AIR PLENUMS
AIR PUMP BELTS
AIR PUMPS (ELECTRIC-DRIVEN)
AIR TUBES
ASPIRATOR, CHECK AND DECEL VALVES
BAFFLES
BALLAST PRIMARY SUPPLY RESISTOR WIRES
BALLAST RESISTORS AND PRIMARY SUPPLY RESISTOR WIRES
BAROMETRIC PRESSURE SENSORS
BATTERIES
BATTERY CABLES, WIRES AND CONNECTORS
BATTERY CONNECTORS
BATTERY TRAYS AND HOLD DOWN HARDWARE
BATTERY WIRES
BELT-DRIVEN AIR PUMPS
BELT IDLER ASSEMBLIES (ACCESSORY AND CAM BELTS)
BELT TENSIONERS (ACCESSORY AND CAM BELTS)
BOOST CONTROL MECHANISMS
CAMSHAFT POSITION SENSORS
CARBURETORS AND CHOKES
CASTING CORE PLUGS AND EXPANSION PLUGS
CHARGE AIR COOLERS "INTERCOOLERS" (CAC)
CHECK VALVES
CHOKES

SUPER CHARGERS
SWITCHES
THERMAL VACUUM VALVES
THERMOSTATIC AIR DOOR ASSEMBLIES
THERMOSTATS AND HOUSINGS
THROTTLE BODIES
THROTTLE CABLES
THROTTLE LINKAGES AND CABLES
THROTTLE POSITION SENSORS
THROTTLE POSITION SWITCHES
TIMING BELT SPROCKETS
TIMING BELTS
TORQUE STRUTS
TRANSMISSION RANGE SWITCHES
TUBE CLAMPS
TUBE CONNECTORS
TUBE COUPLERS
TUBES
TURBO CHARGERS
VACUUM CONNECTIONS
VACUUM HOSES, TUBES AND CONNECTIONS (NON-METALLIC)
VACUUM REGULATOR SOLENOIDS
VACUUM TUBES
VEHICLE SPEED SENSORS
VOLUME AIR FLOW SENSORS
WASTE GATE CONTROL SOLENOIDS
WASTE GATES AND BOOST CONTROL MECHANISMS
WATER PUMPS (ELECTRIC)
WATER PUMPS (NON-ELECTRIC)
WIRING HARNESSES AND CONNECTORS
INTRODUCTION TO MOTORIST ASSURANCE PROGRAM (MAP)
OVERVIEW OF MOTORIST ASSURANCE PROGRAM
The Motorist Assurance Program is the consumer outreach
effort of the Automotive Maintenance and Repair Association, Inc.
(AMRA). Participation in the Motorist Assurance Program is drawn from
retailers, suppliers, independent repair facilities, vehicle
manufacturers and industry associations.
Our organization's mission is to strengthen the relationship
between the consumer and the auto repair industry. We produce
materials that give motorists the information and encouragement to
take greater responsibility for their vehicles-through proper,
manufacturer-recommended, maintenance. We encourage participating
service and repair shops (including franchisees and dealers) to adopt
(1) a Pledge of Assurance to their Customers and (2) the Motorist
Assurance Program Standards of Service. All participating service
providers have agreed to subscribe to this Pledge and to adhere to the
promulgated Standards of Service demonstrating to their customers that
they are serious about customer satisfaction.
These Standards of Service require that an inspection of the
vehicle's (problem) system be made and the results communicated to the\
customer according to industry standards. Given that the industry did
not have such standards, the Motorist Assurance Program successfully
promulgated industry inspection communication standards in 1994-95 for
the following systems: Exhaust, Brakes, ABS, Steering and Suspension,
Engine Maintenance and Performance, HVAC, and Electrical Systems.
Further, revisions to all of these inspection communication standards
are continually re-published. In addition to these, standards for
Drive Train and Transmissions have recently been promulgated.
Participating shops utilize these Uniform Inspection & Communication

ENGINE COMPONENTS
ACCELERATOR PEDAL POSITION SENSORS
ACCELERATOR PEDAL POSITION SENSOR INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware
threads damaged ........ A ... Require repair or replacement
of hardware.
Attaching hardware
threads stripped
(threads missing) ...... A ... Require repair or replacement
of hardware.
Connector broken ........ A .. Require repair or replacement.
Connector (Weatherpack
type) leaking .......... A .. Require repair or replacement.
Connector melted ........ A ........... ( 1) Require repair or
replacement.
Connector missing ....... C ............ Require replacement.
Inoperative ............. B ........... ( 2) Require repair or
replacement. Further
inspection required.
Missing ................. C ............ Require replacement.
Resistance out of
specification .......... B .. Require repair or replacement.
Terminal broken ......... A .. Require repair or replacement.
Terminal burned, affecting
performance ............ A ........... ( 1) Require repair or
replacement.
Terminal burned, not
affecting performance .. 2 .. Suggest repair or replacement.
Terminal corroded,
affecting performance .. A .. Require repair or replacement.
Terminal corroded, not
affecting performance .. 2 .. Suggest repair or replacement.
Terminal loose, affecting
performance ............ B .. Require repair or replacement.
Terminal loose, not
affecting performance .. 1 .. Suggest repair or replacement.
Threads stripped (threads
missing) ............... A ............ Require replacement.
Wire lead conductors
exposed ................ B .. Require repair or replacement.
Wire lead corroded ...... A .. Require repair or replacement.
Wire lead open .......... A .. Require repair or replacement.
Wire lead shorted ....... A .. Require repair or replacement.
( 1) - Determine cause and correct prior to repair or
replacement of part.
( 2) - Inoperative includes intermittent operation or out of OEM
specification. Some components may be serviceable; check
for accepted cleaning procedure.









\









\









\









\









\









\









\


ACCESSORY BELTS
ACCESSORY BELT INSPECTION

\









\









\









\









\









\









\


Condition Code Procedure
Alignment incorrect ..... B .......... (1) Further inspection
required.
Cracked ................. 1 ............ Suggest replacement.
Frayed .................. 1 ............ Suggest replacement.
Missing ................. C ............ Require replacement.
Noisy ................... 2 .......... ( 2) Further inspection
required.
Plies separated ......... A ............ Require replacement.
Tension out of
specification .......... B ........... Require adjustment or
replacement.
Worn beyond adjustment
range .................. B ............ Require replacement.
Worn so it contacts
bottom of pulley ....... A ............ Require replacement.
( 1) - Determine cause of incorrect alignment and require repair.
( 2) - Determine cause of noise and suggest repair.









\









\









\









\









\









\









\


ACCESSORY PULLEYS
ACCESSORY PULLEY INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Alignment incorrect ..... B .. Require repair or replacement.
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Bent .................... A ............ Require replacement.
Cracked ................. A ............ Require replacement.
Loose ................... A .. Require repair or replacement.
Missing ................. C ............ Require replacement.
Pulley damaged, affecting
belt life .............. A ............ Require replacement.









\









\









\









\









\









\









\


ACTUATORS
See SENSORS AND ACTUATORS .
AIR CONDITIONING CYCLING SWITCHES
AIR CONDITIONING CYCLING SWITCH INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware
threads damaged ........ A ... Require repair or replacement
of hardware.

AIR PLENUM INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Integrated air or fuel
control components
inoperative ............ A ........... (1) Require repair or
replacement.
Internal air or fuel
components damaged,
affecting performance .. A ... Require repair or replacement
of component.
Internal air or fuel
components damaged, not
affecting performance .. .. ........ No service suggested or
required.
Internal air or fuel
components missing ..... C .......... Require replacement of
component.
Leaking ................. A .. Require repair or replacement.
Restricted .............. A .. Require repair or replacement.
Threads damaged ......... A .. Require repair or replacement.
Threads stripped (threads
missing) ............... A .. Require repair or replacement.
( 1) - Inoperative includes intermittent operation or out of
OEM specification.









\









\









\









\









\









\









\


AIR PUMP BELTS
AIR PUMP BELT INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Alignment incorrect ..... B .......... ( 1) Further inspection
required.
Cracked ................. 1 ............ Suggest replacement.
Frayed .................. 1 ............ Suggest replacement.
Maintenance intervals ... 3 ... Suggest replacement to comply
with vehicle OEM recommended
service intervals.
Missing ................. C ............ Require replacement.
Noisy ................... 2 .......... ( 2) Further inspection
required.
Plies separated ......... A ............ Require replacement.
Tension out of
specification .......... B ........... Require adjustment or
replacement.
Worn beyond adjustment
range .................. B ............ Require replacement.
Worn so it contacts bottom
of pulley .............. A ............ Require replacement.
( 1) - Determine cause of incorrect alignment and require repair.
( 2) - Determine cause of noise and suggest repair.









\









\









\









\









\









\









\


AIR PUMPS (ELECTRIC-DRIVEN)
AIR PUMP (ELECTRIC-DRIVEN) INSPECTION








\









\









\









\









\









\









\

BATTERY TRAY AND HOLD DOWN HARDWARE INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Battery improperly
secured ................ 2 ................. Suggest repair.
Bent, affecting
performance ............ A .. Require repair or replacement.
Bent, not affecting
performance ............ .. ....... No service suggested or
required.
Broken, affecting
performance ............ A .. Require repair or replacement.
Broken, not affecting
performance ............ .. ....... No service suggested or
required.
Corroded, affecting
performance ............ A .. Require repair or replacement.
Corroded, not affecting
performance ............ 2 .. Suggest repair or replacement.
Cracked, affecting
performance ............ A .. Require repair or replacement.
Cracked, not affecting
performance ............ 1 .. Suggest repair or replacement.
Missing ................. C ............ Require replacement.
Threads damaged ......... A .. Require repair or replacement.
Threads stripped (threads
missing) ............... A ............ Require replacement.
Water drain clogged ..... A ................. Require repair.









\









\









\









\









\









\









\


BATTERY WIRES
See BATTERY CABLES, WIRES AND CONNECTORS .
BELT-DRIVEN AIR PUMPS
BELT-DRIVEN AIR PUMP INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Inoperative ............. A ........ ( 1) Require replacement.
Leaking ................. A ............ Require replacement.
Missing ................. C ............ Require replacement.
Noisy ................... 2 ............ Suggest replacement.
Pulley alignment
incorrect .............. B .. Require repair or replacement.
Pulley bent ............. A ............ Require replacement.
Pulley cracked .......... A ............ Require replacement.
Pulley loose ............ A .. Require repair or replacement.
Pulley missing .......... C ............ Require replacement.
Threads damaged ......... A .. Require repair or replacement.
Threads stripped (threads
