1999 CHEVROLET METRO jump start

5-
yellowblue
5-1
Section 5 Problems on the Road
Here you'll find what to do about some problems that can occur on the road.
5
-2 Hazard Warning Flashers
5
-3 Other Warning Devices
5
-3 Jump Starting
5
-8 Towing Your Vehicle
5
-8 Engine Overheating5
-11 Cooling System
5
-18 If a Tire Goes Flat
5
-19 Changing a Flat Tire
5
-30 Compact Spare Tire
5
-31 If You're Stuck: In Sand, Mud, Ice or Snow

yellowblue
5-3

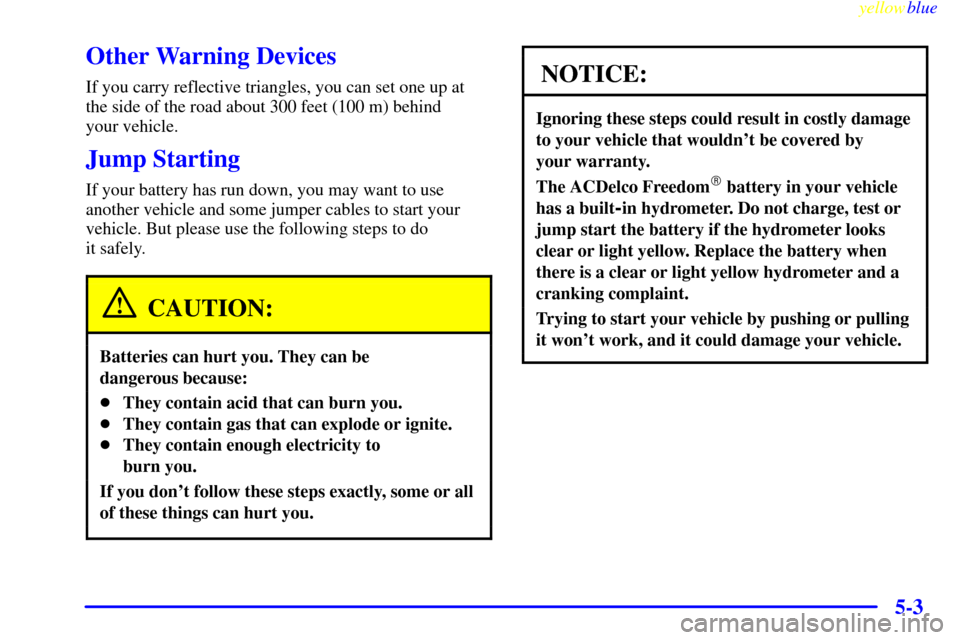

Other Warning Devices
If you carry reflective triangles, you can set one up at
the side of the road about 300 feet (100 m) behind
your vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. But please use the following steps to do
it safely.
CAUTION:
Batteries can hurt you. They can be
dangerous because:

They contain acid that can burn you.

They contain gas that can explode or ignite.

They contain enough electricity to
burn you.
If you don't follow these steps exactly, some or all
of these things can hurt you.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn't be covered by
your warranty.
The ACDelco Freedom battery in your vehicle
has a built
-in hydrometer. Do not charge, test or
jump start the battery if the hydrometer looks
clear or light yellow. Replace the battery when
there is a clear or light yellow hydrometer and a
cranking complaint.
Trying to start your vehicle by pushing or pulling
it won't work, and it could damage your vehicle.

yellowblue
5-4
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
NOTICE:
If the other system isn't a 12-volt system with a
negative ground, both vehicles can be damaged.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren't touching
each other. If they are, it could cause a ground
connection you don't want. You wouldn't be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles involved in
the procedure. Put an automatic transaxle vehicle in
PARK (P) and a manual transaxle vehicle in
NEUTRAL (N).3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter. Turn off all lamps that aren't needed as well
as radios. This will avoid sparks and help save both
batteries. In addition, it could save your radio!
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn't be covered by
your warranty.
4. Open the hoods and locate the batteries.
CAUTION:
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.

yellowblue
6-33 Brake Adjustment
Every time you make a moderate brake stop, your disc
brakes adjust for wear. If you rarely make a moderate or
heavier stop, then your brakes might not adjust correctly.
If you drive in that way, then
-- very carefully -- make
a few moderate brake stops about every 1,000 miles
(1 600 km), so your brakes will adjust properly.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together if
the vehicle is to have really good braking. Your vehicle
was designed and tested with top
-quality GM brake
parts. When you replace parts of your braking
system
-- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure
you get new approved GM replacement parts. If you
don't, your brakes may no longer work properly. For
example, if someone puts in brake linings that are wrong
for your vehicle, the balance between your front and
rear brakes can change
-- for the worse. The braking
performance you've come to expect can change in many
other ways if someone puts in the wrong replacement
brake parts.
Low Maintenance Battery
The battery in your vehicle needs only periodic service.
You never have to add water. But check the battery,
cables and battery bracket for corrosion. Clean off any
corrosion using a brush and a solution of ammonia and
water or baking soda and water. Rinse with clear water.
Vehicle Storage
If you're not going to drive your vehicle for 25 days or
more, remove the black, negative (
-) cable from the
battery. This will help keep your battery from
running down.
CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren't careful. See ªJump Startingº in the Index
for tips on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.

yellowblue
8-6
Chevrolet Roadside Assistance Program
To enhance Chevrolet's strong commitment to customer
satisfaction, Chevrolet is excited to announce the
establishment of the Chevrolet Roadside Assistance
Center. As the owner of a 1999 Chevrolet, membership
in Roadside Assistance is free.
Roadside Assistance is available 24 hours a day,
365 days a year, by calling 1
-800-CHEV-USA (243-8872).
This toll-free number will provide you over
-the-phone
roadside assistance with minor mechanical problems. If your problem cannot be resolved over the
phone, our advisors have access to a nationwide network
of dealer recommended service providers. Roadside
membership is free; however some services may incur costs.
Roadside offers two levels of service to the customer,
Basic Care and Courtesy Care:

Toll
-free number, 1-800-CHEV-USA (243-8872)

Free towing for warranty repairs

Basic over
-the-phone technical advice

Available dealer services at reasonable costs (i.e.,
wrecker services, locksmith/key service, glass
repair, etc.)
ROADSIDE Courtesy Care PROVIDES:

Roadside Basic Care services (as outlined previously)
Plus:

FREE Non
-Warranty Towing (to the closest dealer
from a legal roadway)

FREE Locksmith/Key Service (when keys are lost
on the road or locked inside)

FREE Flat Tire Service (spare installed on the road)

FREE Jump Start (at home or on the road)

FREE Fuel Delivery ($5 of fuel delivered on
the road)

9-
yellowblue
9-1
Section 9 Index
A
dding Equipment to the Outside of Your Vehicle 6-3 . . . . .
Air Bag 1-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How Does it Restrain 1-25 . . . . . . . . . . . . . . . . . . . . . . . . . .
How it Works 1-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Location 1-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Readiness Light 1-22, 2-37 . . . . . . . . . . . . . . . . . . . . . . . . .
Servicing 1-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What Makes it Inflate 1-24 . . . . . . . . . . . . . . . . . . . . . . . . . .
What Will You See After it Inflates 1-25 . . . . . . . . . . . . . . .
When Should it Inflate 1-24 . . . . . . . . . . . . . . . . . . . . . . . . .
Air Cleaner/Filter 6-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Conditioner Controls 3-3 . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Conditioning Refrigerants 6-60, 6-61 . . . . . . . . . . . . . . . .
Alignment and Balance, Tire 6-46 . . . . . . . . . . . . . . . . . . . . . .
Antenna 3-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antifreeze 6-25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-Lock
Brake System Active Light 2-41, 4-9 . . . . . . . . . . . . . . . . .
Brake System Warning Light 2-40, 4-7 . . . . . . . . . . . . . . . .
Brakes 4-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appearance Care 6-48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appearance Care Materials 6-55 . . . . . . . . . . . . . . . . . . . . . . .
Arbitration Program 8-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ashtrays 2-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Systems 3-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Automatic
Starting Your Engine 2
-11 . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaxle 2-11, 2-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaxle Check 7-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaxle Fluid 6-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaxle Operation 2-13 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaxle Park Mechanism Check 7-41 . . . . . . . . . . . . . . . .
Battery 6-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump Starting 5-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warnings 5-3, 5-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BBB Auto Line 8-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before Leaving on a Long Trip 4-22 . . . . . . . . . . . . . . . . . . . .
Better Business Bureau Mediation 8-4 . . . . . . . . . . . . . . . . . . .
Blizzard 4-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake
Adjustment 6
-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid 6-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Master Cylinder 6-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking 2-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedal Travel 6-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing System Parts 6-33 . . . . . . . . . . . . . . . . . . . . . . . .
System Warning Light 2-39 . . . . . . . . . . . . . . . . . . . . . . . . .
Transaxle Shift Interlock 2-21 . . . . . . . . . . . . . . . . . . . . . . .
Transaxle Shift Interlock Check 7-40 . . . . . . . . . . . . . . . . . .
Wear 6-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

yellowblue
9-5
Steering 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Throttle System 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument Panel 2-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brightness Control 2-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning 6-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Block 6-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optional Cluster 2-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Standard Cluster 2-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Lamps 2-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Plastic Components, Cleaning 6-50 . . . . . . . . . . . . . .
Jack, Tire 5-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump Starting 5-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Lock Cylinders Service 7-39 . . . . . . . . . . . . . . . . . . . . .
Keys 2-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Labels
Certification 4-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Parts Identification 6-56 . . . . . . . . . . . . . . . . . . . . .
Tire-Loading Information 4-33 . . . . . . . . . . . . . . . . . . . . . .
Vehicle Identification Number 6-56 . . . . . . . . . . . . . . . . . . .
Lamps 2-27, 2-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dome 2-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exterior 2-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior 2-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On Reminder 2-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Latches, Seatback 1
-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leaving Your Vehicle 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leaving Your Vehicle With the Engine Running 2-20 . . . . . . .
Lid Release, Hatchback 2-8 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lid Release, Remote 2-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lighter 2-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights
Air Bag Readiness 1
-22, 2-37 . . . . . . . . . . . . . . . . . . . . . . .
Anti-Lock Brake System Active 2-41, 4-9 . . . . . . . . . . . . .
Anti-Lock Brake System Warning 2-40, 4-7 . . . . . . . . . . . .
Brake System Warning 2-39 . . . . . . . . . . . . . . . . . . . . . . . . .
Charging System 2-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daytime Running Lamps Indicator 2-45 . . . . . . . . . . . . . . .
Engine Oil Pressure Light 2-44, 6-13 . . . . . . . . . . . . . . . . .
Interior 2-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Belt Reminder 1-9, 2-37 . . . . . . . . . . . . . . . . . . . . . .
Service Engine Soon 2-42 . . . . . . . . . . . . . . . . . . . . . . . . . .
Shift 2-17, 2-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Your Vehicle 4-33 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Locks 2-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinders 7-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door 2-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Automatic Transaxle Check 7-41 . . . . . . . . . . . . . .
Key Lock Cylinder Service 7-39 . . . . . . . . . . . . . . . . . . . . .
Power Door 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Security 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Long Trip, Before Leaving 4-22 . . . . . . . . . . . . . . . . . . . . . . .
Low Gear, Automatic Transaxle 2-15 . . . . . . . . . . . . . . . . . . .
Lubricants and Fluids 7-44 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lubrication Service, Body 7-39 . . . . . . . . . . . . . . . . . . . . . . . .
