Turn Signal/Multifunction Lever
The multifunction lever on the left-hand side of the
steering column includes your:

Turn Signal and Lane Change Control

Headlamp High/Low
-Beam Changer

Cruise Control

Headlamps Switch

Flash
-to-Pass
Turn and Lane Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the multifunction lever all the
way up or down. When the turn is finished, the lever
will return automatically.
An arrow on the instrument
cluster will flash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows flash
faster than normal, a signal bulb may be burned out.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check the fuses and check for burned
-out
bulbs. (See ªFuses and Circuit Breakersº in the Index.)

yellowblue
2-75
The main components of your instrument panel are:
A. HUD Controls (Option)
B. Turn Signal/Multifunction Lever
C. Driver Information Center (DIC)
(Located in the Instrument Cluster)
D. Instrument Panel Cluster
E. Windshield Wiper/Washer Lever
F. Driver Information Center (DIC) Buttons
G. Hazard Warning Flasher Button
H. Center Air Vent
I. Audio System
J. Comfort Controls
K. Fog Lamp Button (Option)
L. Remote Hatch Release Button (Coupe) or Remote
Trunk Release Button (Convertible/Hardtop)M. Ignition Switch
N. Shift Lever (Automatic Shown)
O. Traction Control System (TCS) Switch/Active
Handling Switch (Option)
P. Accessory Power Outlet
(Located in the Center Console)
Q. Selective Real Time Damping (SRTD) (Option)
R. Instrument Panel Cupholder
S. Remote Fuel Door Release Button
(Located in the Center Console)
T. Ashtray and Cigarette Lighter
U. Parking Brake
V. Glove Box
W. Instrument Panel Fuse Block

yellowblue
2-76
Instrument Panel Cluster
Your instrument panel cluster and Driver Information Center (DIC) are designed to let you know at a glance how the
vehicle is running. You'll know how fast you're going, about how much fuel you have left and many other things
you'll need to know to drive safely and economically. The instrument panel cluster indicator warning lights, gages
and DIC messages are explained on the following pages.

yellowblue
2-77 Speedometer and Odometer
Your speedometer lets you see your speed in either miles
per hour (mph) or kilometers per hour (km/h).
You may note that there are not two separate scales for
mph and km/h. When you press the E/M
(English/Metric) button on the Driver Information
Center (DIC), the cluster will calculate the proper speed
and move the needle to the correct position. Either the
MPH or the km/h telltale will illuminate, depending on
which measurement you choose.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total of the old odometer, then that will be done.
If it can't, then a new instrument cluster is replaced in
the vehicle and a label must be put on the driver's door
to show the old mileage reading when the new odometer
was installed. See your dealer if a new odometer must
be replaced in your vehicle.
Tachometer
The tachometer displays the engine speed in thousands
of revolutions per minute (rpm).
Fuel will shut off at about 6200 rpm.
If you continue to drive your vehicle at the fuel shut off
rpm, you could damage your engine. Be sure to operate
your vehicle below the fuel shut off rpm or reduce your
rpm quickly when the fuel shuts off.
Warning Lights, Gages and Messages
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle's functions. As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they're working. If you are
familiar with this section, you should not be alarmed
when this happens.

yellowblue
2-82
When the system is working, you will see the ACTIVE
HANDLING message displayed in the DIC. You may
also feel or hear the system working. This is normal.
If the driver turns off the Active Handling System by
pressing the button on the console, the Active Handling
System light will come on, a chime will sound, and the
TRAC/ACT HNDLG OFF message will be displayed in
the DIC. The Traction Control System will also be
turned off. See ªDriver Information Center Messagesº in
the Index for more information.
If the Active Handling System and the Traction Control
System are off, pressing the console button momentarily
will turn both systems on. The DIC will display the
TRAC/ACT HNDLG ON message, the instrument
cluster light will be off, and a chime will sound. See
ªDriver Information Center Messagesº in the Index
for more information.Engine Coolant Temperature Gage
This gage shows the engine
coolant temperature. If the
gage pointer moves into the
shaded area, your engine is
too hot!
This means that your engine coolant has overheated.
If you have been operating your vehicle under normal
driving conditions, you should pull off the road, stop
your vehicle and turn off the engine as soon as
possible. (The larger tic marks are in increments of
30
below 220
F (104
C) and in increments of
10
above 220
F (104
C).)
In ªProblems on the Road,º this manual shows what to
do. See ªEngine Overheatingº in the Index.

yellowblue
2-88
You can use the Driver Information Center (DIC) to
display more detailed fuel information. Each time you
press FUEL, one of the following will appear in the
Driver Information Center (DIC).

AVERAGE: The fuel economy calculated for the
current tank of fuel, or since you last reset
the display.

INST: The fuel economy calculated for your current
driving conditions.

RANGE: The distance you can drive
before refueling.

BLANK: The fuel gage is displayed alone.
You should reset the fuel information display every time
you refuel. To reset the display, press FUEL until
AVERAGE appears. Then, press RESET on the Driver

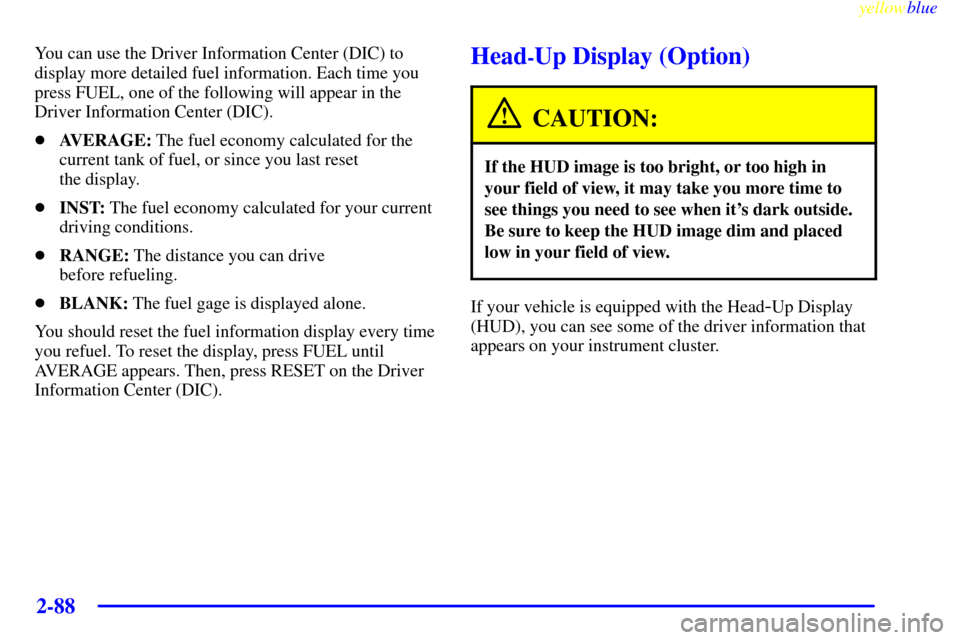

Information Center (DIC).Head-Up Display (Option)
CAUTION:
If the HUD image is too bright, or too high in
your field of view, it may take you more time to
see things you need to see when it's dark outside.
Be sure to keep the HUD image dim and placed
low in your field of view.
If your vehicle is equipped with the Head-Up Display
(HUD), you can see some of the driver information that
appears on your instrument cluster.

yellowblue
2-92
Driver Information Center (DIC)
The Driver Information Center (DIC) will display
information about how your vehicle is functioning, as well
as warning messages if a system problem is detected. The
DIC display area is located in the instrument cluster below
the speedometer and tachometer, directly above the
steering column.
The following buttons are on the DIC control panel which
is located to the right of the instrument panel cluster.
1 FUEL: Press this button to display fuel information
such as fuel economy and range.
2 GAGES: Use this button to display gage information
like oil pressure and temperature, coolant temperature,
transmission fluid temperature, battery voltage and
front/rear tire pressures.
3 TRIP: Use this button to display your total and trip
miles, the elapsed time function, your average speed and
the engine oil life.
4 OPTIONS: This button allows you to choose personal
options that are available on your vehicle, depending on
the options your vehicle is equipped with, such as
security, door locks, easy entry seats and language.
5 E/M: Use this button to change the display between
English and metric units.
RESET: This button, used along with the other buttons,
will reset system functions and turn off or acknowledge
messages on the Driver Information Center (DIC).
At the top of the DIC control buttons is a light sensor.
Be sure not to block the sensor or your lighting
functions may be disrupted.

yellowblue
2-102
DIC Warnings and Messages
The following messages and warnings may appear in the
DIC display. The DIC display area is located in the
instrument cluster below the speedometer and
tachometer, directly above the steering column.
You may receive more than one message at a time.
Messages will appear one behind the other. To
acknowledge a message and remove it from the display,
press RESET. You may scroll through the messages
that may have been sent at the same time. The message
center is continuously updated with the vehicle
performance status.
ABS ACTIVE (Anti
-Lock Brake System Active):
When your anti
-lock system is adjusting brake pressure
to help avoid a braking skid, the ABS ACTIVE message
will be displayed.
Slippery road conditions may exist if this message is
displayed, so adjust your driving accordingly. The
message will stay on for a few seconds after the system
stops adjusting brake pressure.ACT HNDLING WARMING UP: When you first start
you vehicle (especially in during cold winter weather),
and begin to drive away (up to 6 mph (10 km/h)), the
message ACT HNDLING WARMING UP may be
displayed in the DIC, the instrument cluster light will be
on, and a chime will sound. This is normal. You can
acknowledge this message by pressing the RESET
button. The Active Handling system performance is
affected until the next message WARM UP
COMPLETE is displayed in the DIC.
WARM UP COMPLETE : If you receive this message
and hear a chime, the system has completed the
functional check of the Active Handling System.
TRAC/ACT HNDLG - ON: If the Traction Control
and Active Handling Systems are off, depressing the
Active Handling System console button momentarily
will turn both systems on. The message TRAC/ACT
HNDLG
- ON will be displayed temporarily in the DIC,
the instrument cluster light will be off and a chime
will sound.
