Engine Fan Noise
Your vehicle has a clutched engine cooling fan. When
the clutch is engaged, the fan spins faster to provide
more air to cool the engine. In most everyday driving
conditions, the fan is spinning slower and the clutch is
not fully engaged. This improves fuel economy and
reduces fan noise. Under heavy vehicle loading, trailer
towing and/or high outside temperatures, the fan speed
increases as the clutch more fully engages. So you may
hear an increase in fan noise. This is normal and should
not be mistaken as the transmission slipping or making
extra shifts. It is merely the cooling system functioning
properly. The fan will slow down when additional
cooling is not required and the clutch disengages.
You may also hear this fan noise when you start
the engine. It will go away as the fan clutch
partially disengages.
If a Tire Goes Flat
It's unusual for a tire to ªblow outº while you're driving,
especially if you maintain your tires properly. If air goes
out of a tire, it's much more likely to leak out slowly.
But if you should ever have a ªblowout,º here are a few
tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, and then gently brake to
a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you'd use in a
skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop
-- well off the road if possible.
If a tire goes flat, the next part shows how to use your
jacking equipment to change a flat tire safely.

yellowblue
5-20
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
CAUTION:
Changing a tire can cause an injury. The vehicle
can slip off the jack and roll over you or other
people. You and they could be badly injured.
Find a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put an automatic transmission shift
lever in PARK (P) or shift a manual
transmission to FIRST (1) or
REVERSE (R).
3. If you have a four
-wheel-drive vehicle,
be sure the transfer case is in a drive
gear
-- not in NEUTRAL (N).
4. Turn off the engine.
CAUTION: (Continued)
CAUTION: (Continued)
To be even more certain the vehicle won't move,
you can put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side of the
vehicle, at the opposite end.
The following steps will tell you how to use the jack and
change a tire.

yellowblue
5-21 Removing the Spare Tire and Tools
2 and 4-Door Models
Extended Cab Models
The equipment you'll need is behind the passenger's seat.
Turn the wing nut counterclockwise and remove the jack
cover, if there is one. Remove the jacking equipment.
If you have a chassis cab, refer to the information
from the body supplier/installer for the location of your
spare tire.
You'll use the jack handle and the ratchet to remove an
underbody
-mounted spare tire.

yellowblue
5-22
A. Hoist Assembly
B. Ratchet
C. Jack Handle
D. Hoist ShaftE. Valve Stem,
Pointed Down
F. Spare Tire
G. Retainer
H. Hoist CableFollow these instructions to lower the spare tire:
1. One side of the ratchet has an UP marking. The other
side has a DOWN marking. Assemble the ratchet to
the hook near the end of the jack handle (as
illustrated) with the DOWN marking facing you.
Insert the other end through the hole in the rear
bumper and into the hoist shaft.
2. Turn the ratchet to lower the spare tire to the ground.
Continue to turn the ratchet until the spare tire can be
pulled out from under the vehicle.
3. When the tire has been lowered, tilt the retainer at
the end of the cable so it can be pulled up through
the wheel opening.
4. Put the spare tire near the flat tire.

yellowblue
5-23

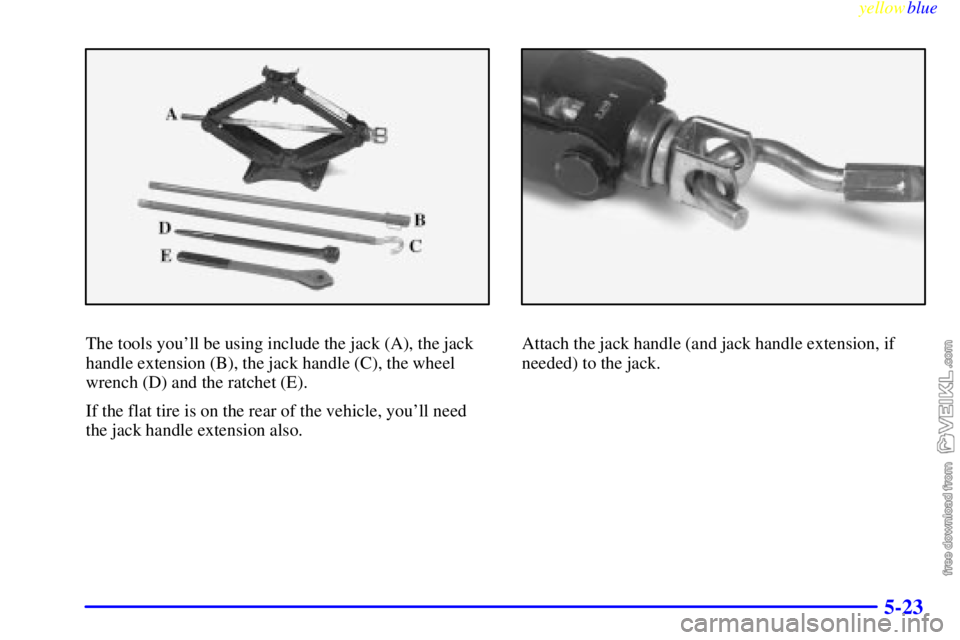

The tools you'll be using include the jack (A), the jack
handle extension (B), the jack handle (C), the wheel
wrench (D) and the ratchet (E).
If the flat tire is on the rear of the vehicle, you'll need
the jack handle extension also.Attach the jack handle (and jack handle extension, if
needed) to the jack.

yellowblue
5-24

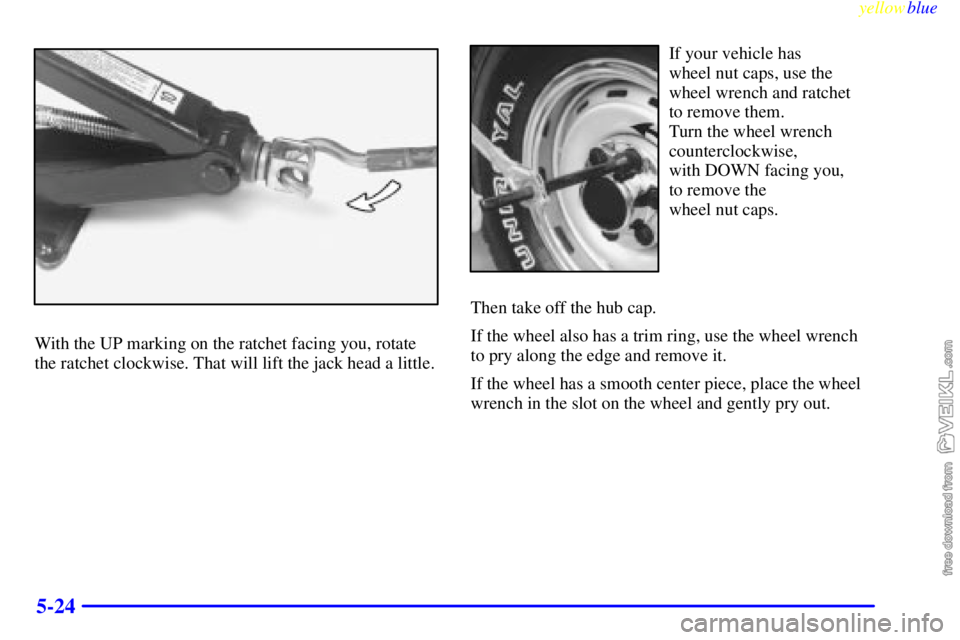

With the UP marking on the ratchet facing you, rotate
the ratchet clockwise. That will lift the jack head a little.
If your vehicle has
wheel nut caps, use the
wheel wrench and ratchet
to remove them.
Turn the wheel wrench
counterclockwise,
with DOWN facing you,
to remove the
wheel nut caps.
Then take off the hub cap.
If the wheel also has a trim ring, use the wheel wrench
to pry along the edge and remove it.
If the wheel has a smooth center piece, place the wheel
wrench in the slot on the wheel and gently pry out.

yellowblue
5-25 Removing the Flat Tire and Installing
the Spare Tire

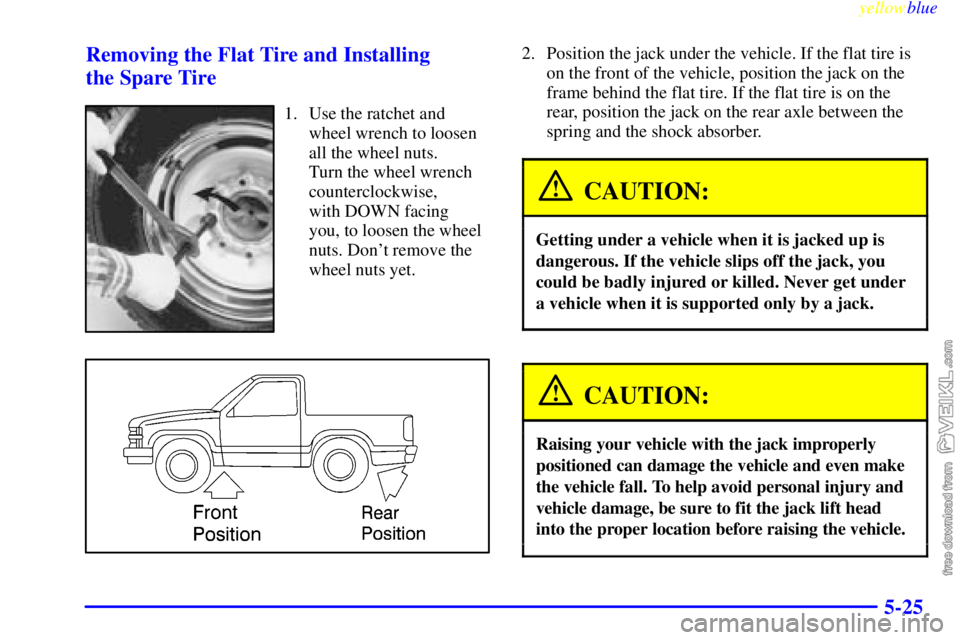

1. Use the ratchet and
wheel wrench to loosen
all the wheel nuts.
Turn the wheel wrench
counterclockwise,
with DOWN facing
you, to loosen the wheel
nuts. Don't remove the
wheel nuts yet.
2. Position the jack under the vehicle. If the flat tire is
on the front of the vehicle, position the jack on the
frame behind the flat tire. If the flat tire is on the
rear, position the jack on the rear axle between the
spring and the shock absorber.
CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to fit the jack lift head
into the proper location before raising the vehicle.

yellowblue
5-26
Front Position Rear Position
3. With UP on the ratchet facing you, raise the vehicle
by rotating the ratchet and wheel wrench clockwise.
Raise the vehicle far enough off the ground so there
is enough room for the spare tire to fit.
4. Remove all the wheel
nuts and take off the
flat tire.
5. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
