13-8


22 -
Brace
For intake manifold
23 -
Bolt 20 Nm (15 ft lb)
24 -
Bolt 40 Nm (30 ft lb)
25 -
Bolt 25 Nm (18 ft lb)
26 -
Bolt 25 Nm (18 ft lb)
27 -
Bracket For generator, power steering pump and
viscous fan Removing and installing Page 13
-22
Different length boltsArrangement and tightening sequence
Page 19
-16

28 -
Power steering pump
Removing and installing Repair Manual, Suspension, Wheels, Steering, Repair Group 48

29 -
Bolt
Pa
ge 9 of 38 En
gine, disassemblin
g and assemblin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.13.1

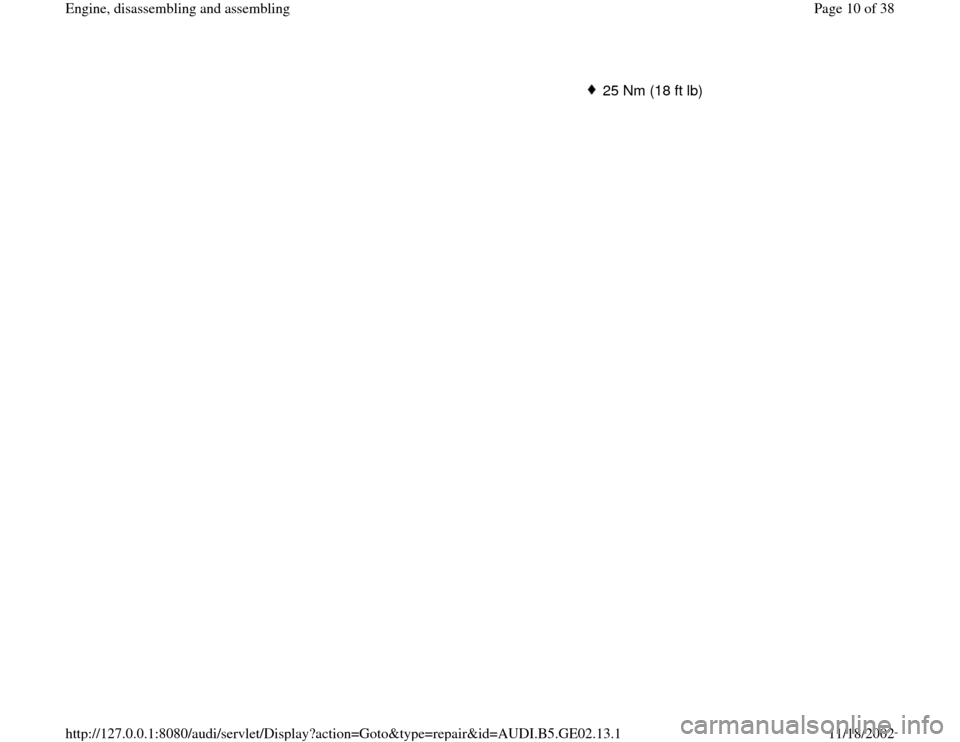

25 Nm (18 ft lb)
Pa
ge 10 of 38 En
gine, disassemblin
g and assemblin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.13.1

13-9

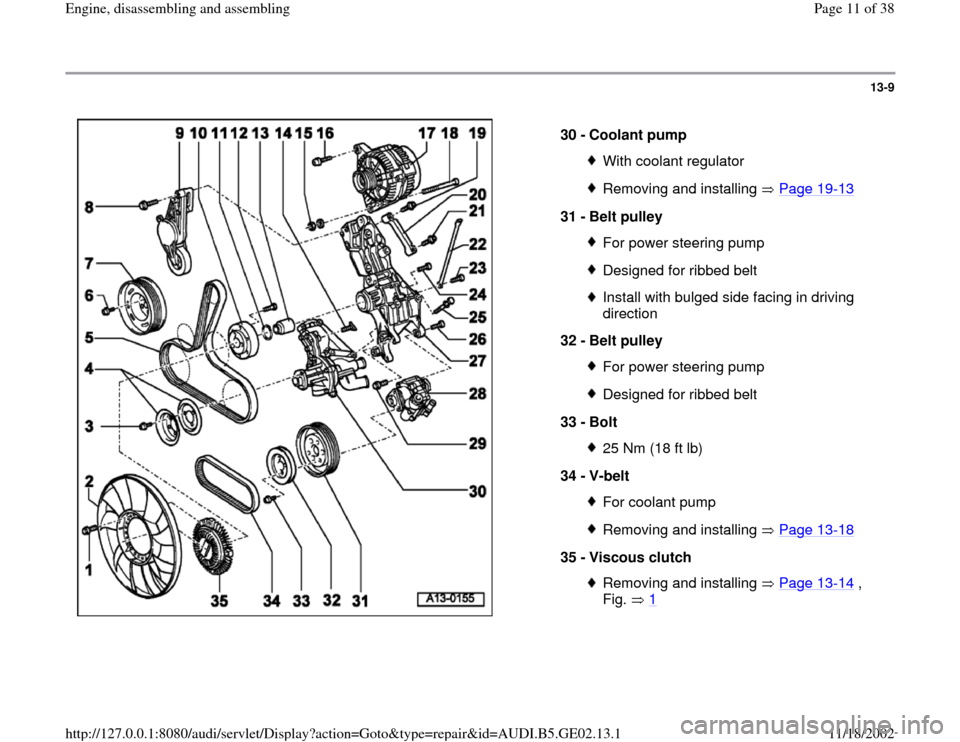

30 -
Coolant pump
With coolant regulatorRemoving and installing Page 19
-13
31 -
Belt pulley
For power steering pumpDesigned for ribbed beltInstall with bulged side facing in driving
direction
32 -
Belt pulley For power steering pumpDesigned for ribbed belt
33 -
Bolt 25 Nm (18 ft lb)
34 -
V-belt For coolant pumpRemoving and installing Page 13
-18
35 -
Viscous clutch
Removing and installing Page 13
-14
,
Fig. 1

Pa
ge 11 of 38 En
gine, disassemblin
g and assemblin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.13.1

13-10

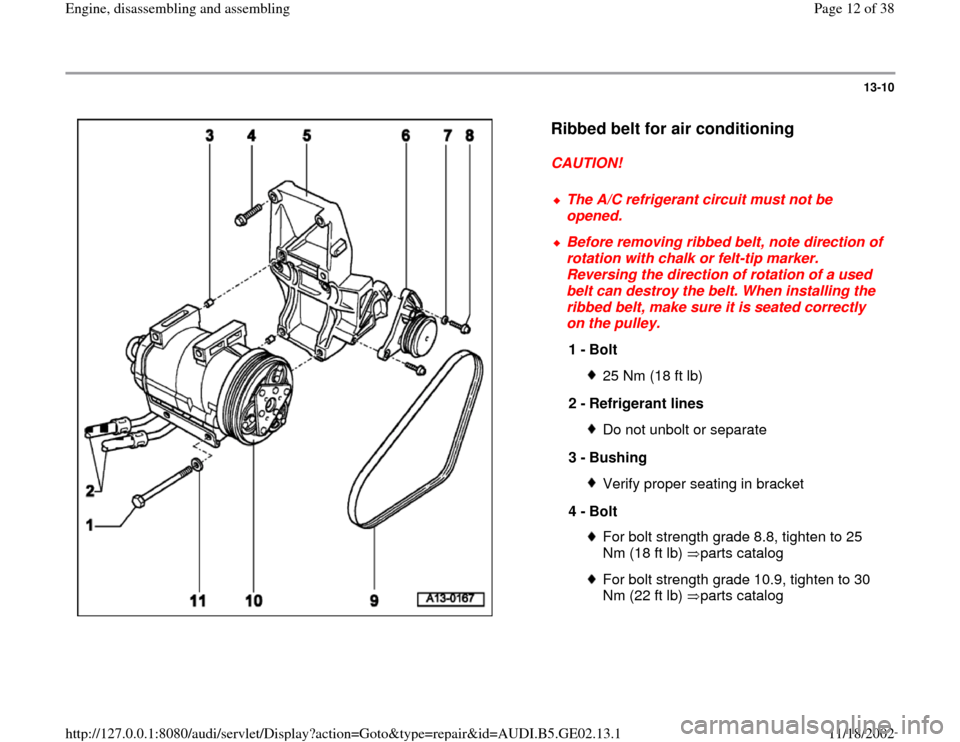

Ribbed belt for air conditioning

CAUTION!

The A/C refrigerant circuit must not be
opened.
Before removing ribbed belt, note direction of
rotation with chalk or felt-tip marker.
Reversing the direction of rotation of a used
belt can destroy the belt. When installing the
ribbed belt, make sure it is seated correctly
on the pulley.
1 -
Bolt
25 Nm (18 ft lb)
2 -
Refrigerant lines Do not unbolt or separate
3 -
Bushing Verify proper seating in bracket
4 -
Bolt For bolt strength grade 8.8, tighten to 25
Nm (18 ft lb) parts catalog For bolt strength grade 10.9, tighten to 30
Nm (22 ft lb) parts catalog
Pa
ge 12 of 38 En
gine, disassemblin
g and assemblin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.13.1

13-11

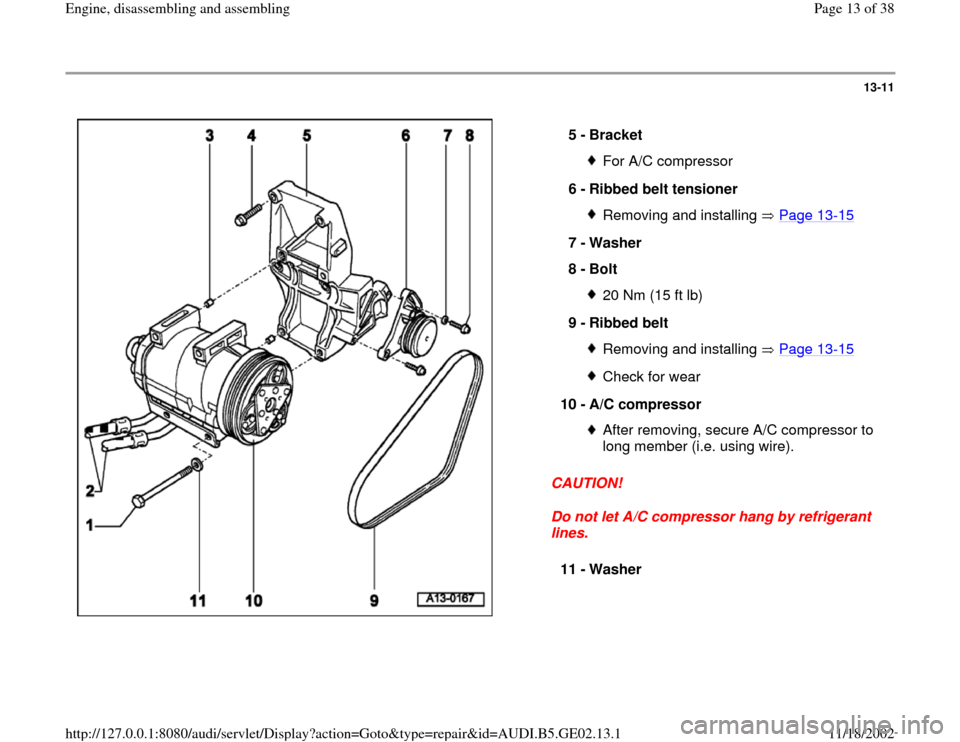

CAUTION!
Do not let A/C compressor hang by refrigerant
lines. 5 -
Bracket
For A/C compressor
6 -
Ribbed belt tensioner Removing and installing Page 13
-15
7 -
Washer
8 -
Bolt
20 Nm (15 ft lb)
9 -
Ribbed belt Removing and installing Page 13
-15
Check for wear
10 -
A/C compressor After removing, secure A/C compressor to
long member (i.e. using wire).
11 -
Washer
Pa
ge 13 of 38 En
gine, disassemblin
g and assemblin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.13.1

13-12

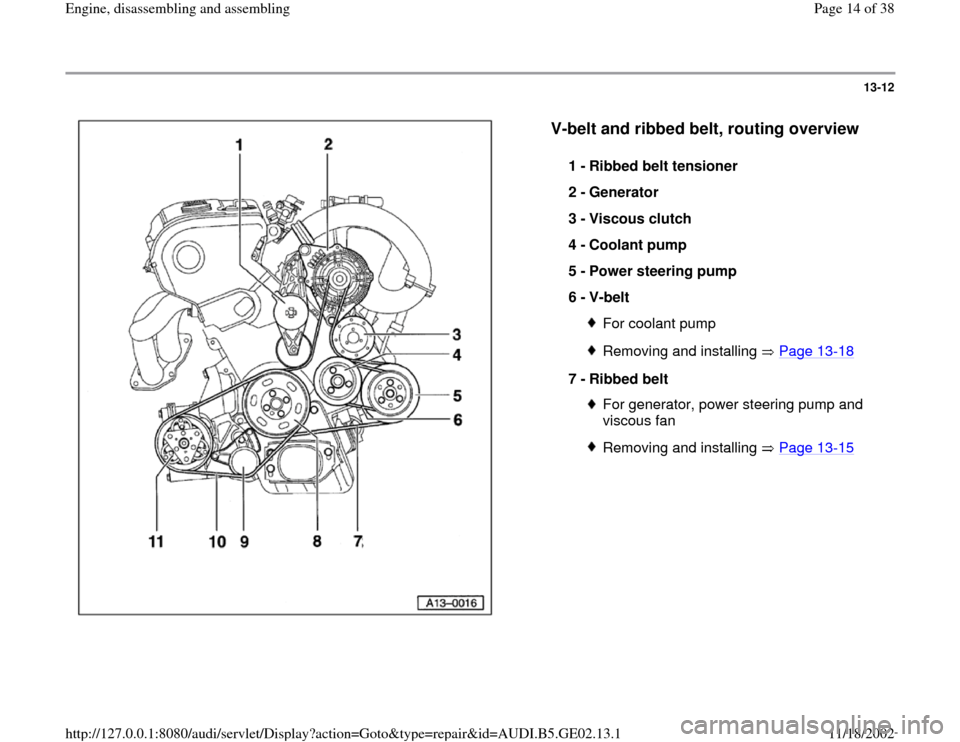

V-belt and ribbed belt, routing overview

1 -
Ribbed belt tensioner
2 -
Generator
3 -
Viscous clutch
4 -
Coolant pump
5 -
Power steering pump
6 -
V-belt
For coolant pumpRemoving and installing Page 13
-18
7 -
Ribbed belt
For generator, power steering pump and
viscous fan Removing and installing Page 13
-15
Pa
ge 14 of 38 En
gine, disassemblin
g and assemblin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.13.1

13-13

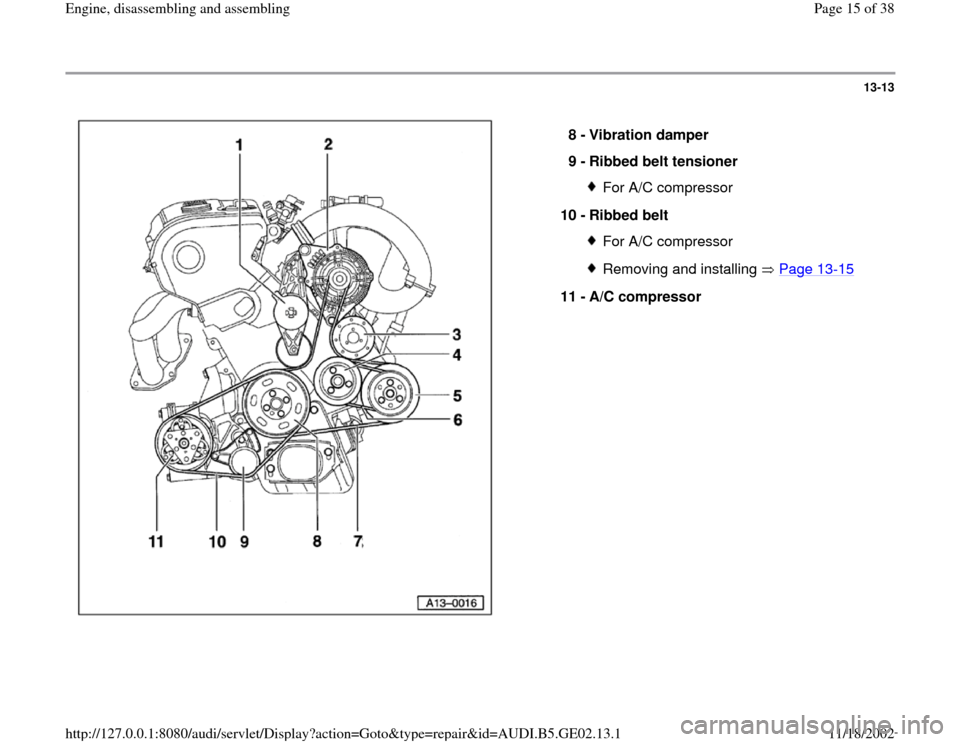

8 -
Vibration damper
9 -
Ribbed belt tensioner
For A/C compressor
10 -
Ribbed belt For A/C compressor Removing and installing Page 13
-15
11 -
A/C compressor
Pa
ge 15 of 38 En
gine, disassemblin
g and assemblin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.13.1

13-14

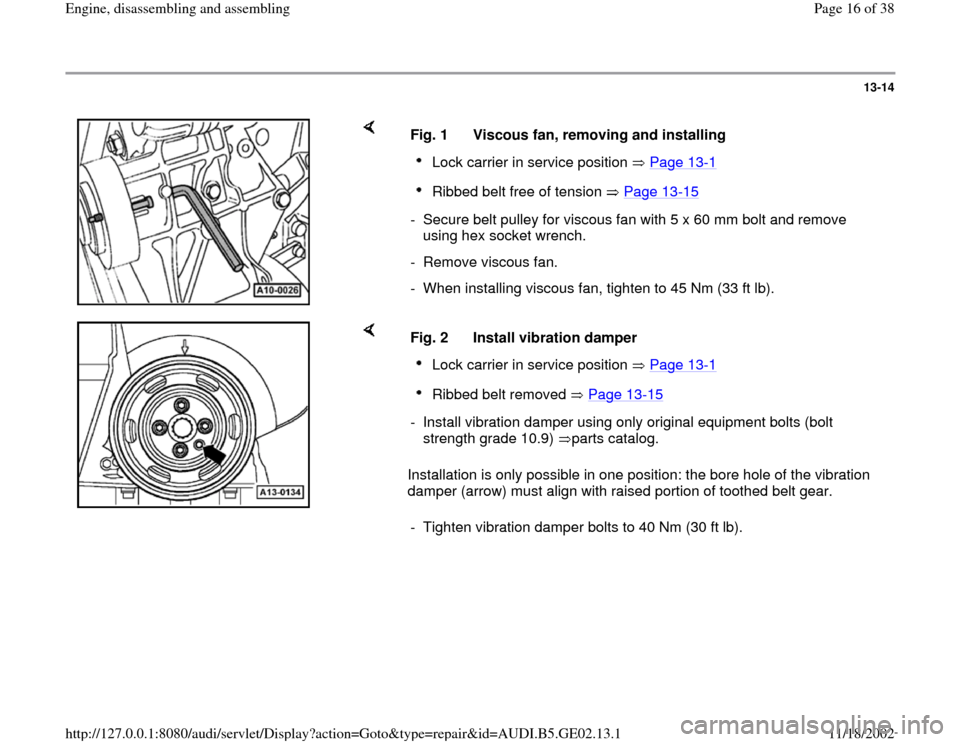

Fig. 1 Viscous fan, removing and installing
Lock carrier in service position Page 13
-1
Ribbed belt free of tension Page 13
-15

- Secure belt pulley for viscous fan with 5 x 60 mm bolt and remove
using hex socket wrench.
- Remove viscous fan.
- When installing viscous fan, tighten to 45 Nm (33 ft lb).

Installation is only possible in one position: the bore hole of the vibration
damper (arrow) must align with raised portion of toothed belt gear. Fig. 2 Install vibration damper
Lock carrier in service position Page 13
-1
Ribbed belt removed Page 13
-15

- Install vibration damper using only original equipment bolts (bolt
strength grade 10.9) parts catalog. - Tighten vibration damper bolts to 40 Nm (30 ft lb).
