1999 AUDI A4 Recaro Seats Workshop Manual

72-55


Seat frame, removing and installing

WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
Note:
Always replace bolts -3-.
1 -
Seat frame
Removing:
- Remove seat page 72
-25
.
- Place seat so underside of seat cushion
is easily accessible.
- Disconnect tie wraps that are attached to
seat frame.
- Unbolt bracket for harness connecter
(two bolts).
- Unbolt both relays (2x).
- Unbolt bolts -3- (4x) on seat frame -1-.
- Remove seat frame -1- from seat -2-.
Installing:
- Place new seat frame -1- on seat -2-.
Pa
ge 33 of 35 Recaro seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.2

- Tighten bolts -3- (4x) to 23 Nm (17 ft lb).
Pa
ge 34 of 35 Recaro seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.2

72-56

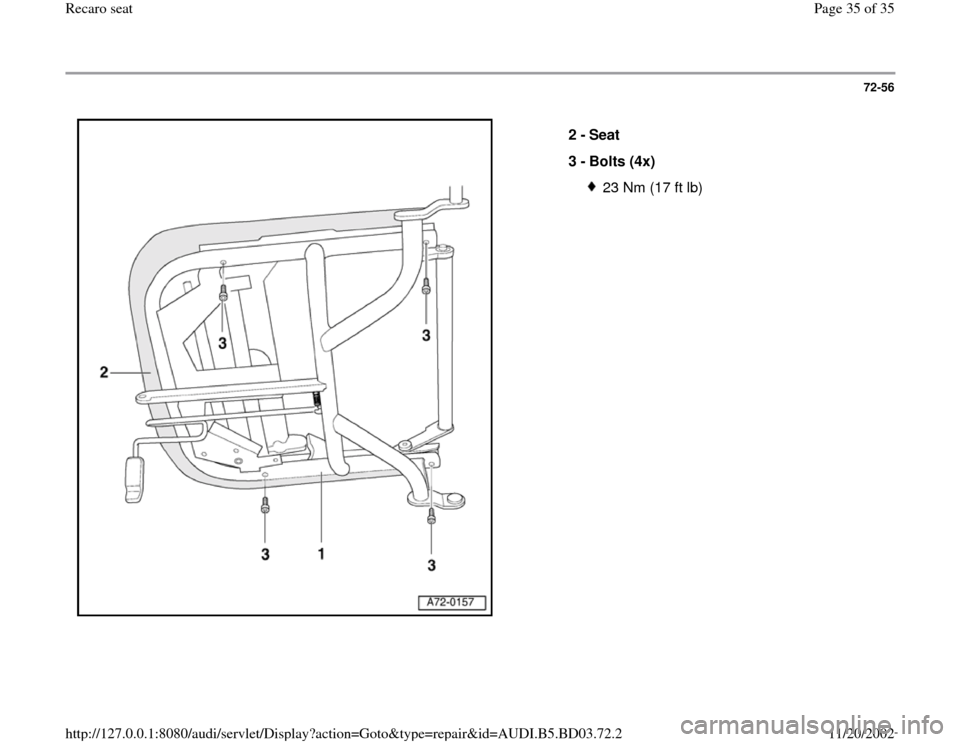

2 -
Seat
3 -
Bolts (4x)
23 Nm (17 ft lb)
