1999 AUDI A4 display

01-110

Ultrasonic interior monitoring On Board
Diagnostic (OBD), initiating


Requirements

Fuse OK according to wiring diagram
VAG1551 Scan Tool (ST) connected page 01
-1

Anti-theft system not armed

Notes:
If the display remains blank, check VAG1551
voltage supply according to wiring diagram.
The scan tool HELP button can provide
additional operating instructions.
The button is used to advance through the
program sequence.

If an incorrect entry is made, press the -C-
button to escape.
Pa
ge 5 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-111

- Switch ignition on.

- Switch printer on by pressing PRINT button
(indicator lamp in button lights up).

- Press button -1- to select "Rapid data transfer"
operating mode 1. Rapid data transfer
HELP
Insert address word XX

Indicated on display
Address word for interior monitoring: 45
- Press buttons -4- and -5- to insert "Int. Monitoring" address word 45.
Rapid data transfer
Q
45 - Int. Monitoring

Indicated on display
- Press -Q- button to confirm input.
4B0951173 Int. Monitoring
D00
Coding 00101
WSC 06812

Indicated on display after about 5 seconds
Note:
A list of available functions is printed out when the HELP button is
pressed. -
Press button.
Pa
ge 6 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-113

Check DTC Memory (scan tool function
02)


Note:
The DTC display information is updated only
when initiating the On Board Diagnostic (OBD) or
"Erase DTC Memory" function 05.

- Switch printer on by pressing PRINT button
(indicator lamp in button lights up).

Carrying out "Check DTC Memory" function
02
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -2- to select "Check DTC Memory" function 02.
Rapid data transfer
Q
02 - Check DTC Memor
y

Indicated on display
- Press -Q- button to confirm input.
X DTC recognized

Display indicates the number of stored malfunctions.
The stored malfunctions are shown and then printed in series.
- Using malfunction print-out, refer to DTC table and repair malfunctions
page 01
-115
.
Pa
ge 8 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-114

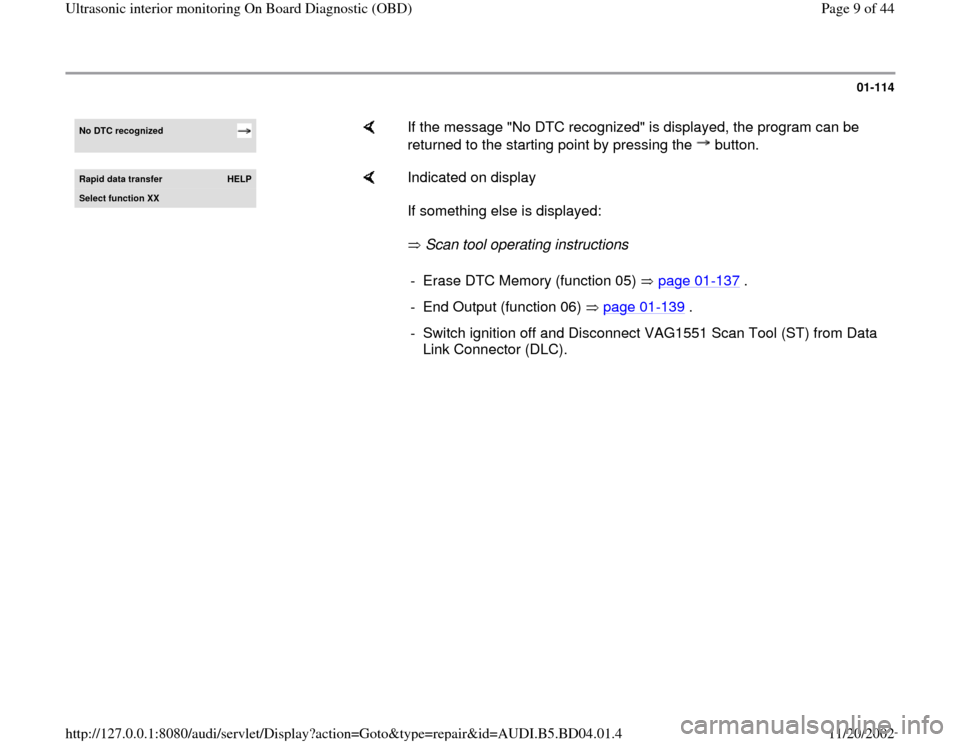

No DTC recognized

If the message "No DTC recognized" is displayed, the program can be
returned to the starting point by pressing the button.
Rapid data transfer
HELP
Select function XX

Indicated on display
If something else is displayed:
Scan tool operating instructions - Erase DTC Memory (function 05) page 01
-137
.
- End Output (function 06) page 01
-139
.
- Switch ignition off and Disconnect VAG1551 Scan Tool (ST) from Data
Link Connector (DLC).
Pa
ge 9 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-115

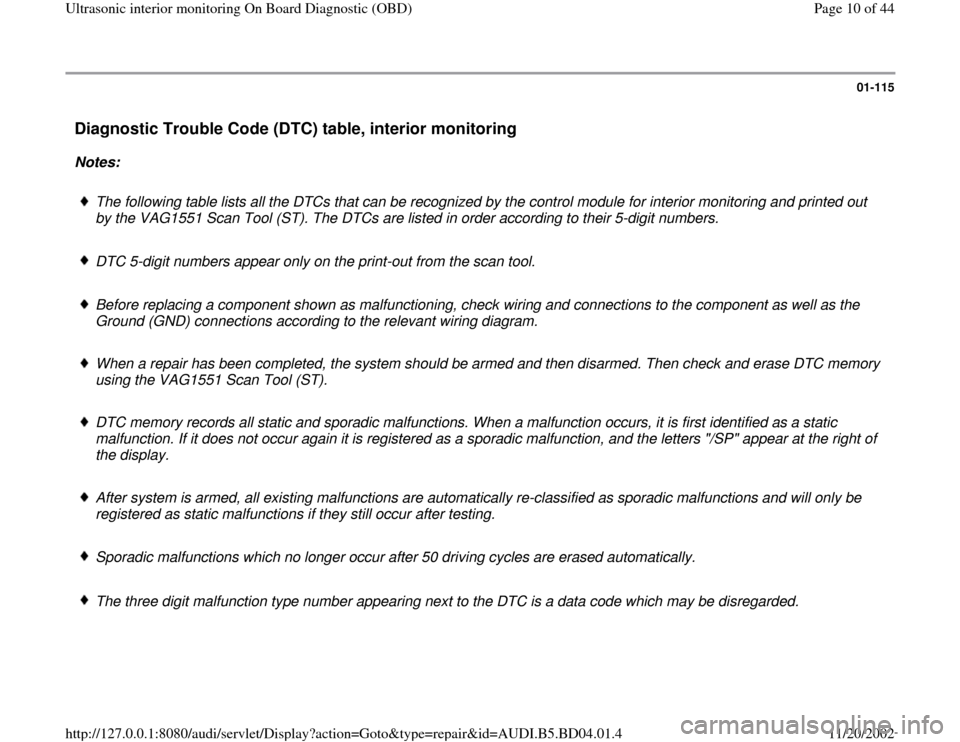

Diagnostic Trouble Code (DTC) table, interior monitoring

Notes:

The following table lists all the DTCs that can be recognized by the control module for interior monitoring and printed out
by the VAG1551 Scan Tool (ST). The DTCs are listed in order according to their 5-digit numbers.
DTC 5-digit numbers appear only on the print-out from the scan tool.
Before replacing a component shown as malfunctioning, check wiring and connections to the component as well as the
Ground (GND) connections according to the relevant wiring diagram.
When a repair has been completed, the system should be armed and then disarmed. Then check and erase DTC memory
using the VAG1551 Scan Tool (ST).
DTC memory records all static and sporadic malfunctions. When a malfunction occurs, it is first identified as a static
malfunction. If it does not occur again it is registered as a sporadic malfunction, and the letters "/SP" appear at the right of
the display.
After system is armed, all existing malfunctions are automatically re-classified as sporadic malfunctions and will only be
registered as static malfunctions if they still occur after testing.
Sporadic malfunctions which no longer occur after 50 driving cycles are erased automatically.
The three digit malfunction type number appearing next to the DTC is a data code which may be disregarded.
Pa
ge 10 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-116

DTC


VAG 1551 scan tool
display Possible cause
Corrective action
01377
Left Ultra-Sonic Sensor for
ATW-G170

Short circuit to B+

Short circuit between -G170- and
control module -J347-
-G170- faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder
Repair Manual, Body Interior, Repair Group 70

- Repair wiring according to wiring diagram.
- Replace -G170-.
Open circuit/Short
circuit to Ground
Open circuit in wiring between -G170-
and control module -J347-
-G170- faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder
Repair Manual, Body Interior, Repair Group 70

- Repair wiring according to wiring diagram.
- Replace -G170-.
Incorrect Signal

Malfunctions during activation of
ultrasonic interior monitoring - Perform function test page 01
-128
.Pa
ge 11 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-117

DTC


VAG 1551 scan tool
display Possible cause
Corrective action
01378
Right Ultra-Sonic Sensor
for ATW-G171

Short circuit to B+

Short circuit between -G171- and control
module for ultra-sound sensors -J347-
-G171- faulty Electrical Wiring Diagrams,
Troubleshooting & Component Locations
binder
Repair Manual, Body Interior, Repair
Group 70
- Repair wiring according to wiring diagram.
- Replace -G171-.
Open circuit/Short
circuit to Ground
Open circuit in wiring between -G171- and
control module for ultra-sound sensors -J347-
-G171- faulty Electrical Wiring Diagrams,
Troubleshooting & Component Locations
binder
Repair Manual, Body Interior, Repair
Group 70
- Repair wiring according to wiring diagram.
- Replace -G171-.
Pa
ge 12 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-118

DTC


VAG 1551 scan
tool display Possible cause
Corrective action
01379
Interior Monitor
Switch-E183
Wiring malfunction between switch for passenger
compartment monitoring -E183- and control module for
ultra-sound sensors -J347-
-E183- faulty Electrical Wiring Diagrams,
Troubleshooting & Component
Locations binder - Repair wiring according to wiring
diagram.
Short circuit to
Ground 1)
Repair Manual, Body Interior, Repair
Group 68
- Replace -E183-.
01380
Alarm Via ATW
Sensor rl
Break in attempt at left-rear side window or after a function
test
False alarm- Erase DTC memory.
- Perform function test page 01
-128
.
- Adapt sensitivity of sensors page 01
-135
.
01381
Alarm Via ATW
Sensor rr
Break in attempt at right-rear side window or after a
function test
False alarm- Erase DTC memory.
- Perform function test page 01
-128
.
- Adapt sensitivity of sensors page
