Rear shelf (Sedan), removing and
installing
1 -
Rear shelf
Removing:
- Remove left and right-rear lower seat
belt mounting page 69
-15
.
- Remove left and right-rear side cover
page 72
-75
.
- Unclip cover -5- and guide -4- of left and
right-rear three-point seat belts page
70
-85
.
- For vehicles with third brake light,
disconnect harness connector to third
brake light in trunk.
- Unclip clips -3- (3x) by carefully lifting
rear shelf.
- Pull rear shelf forward and remove.
Installing:

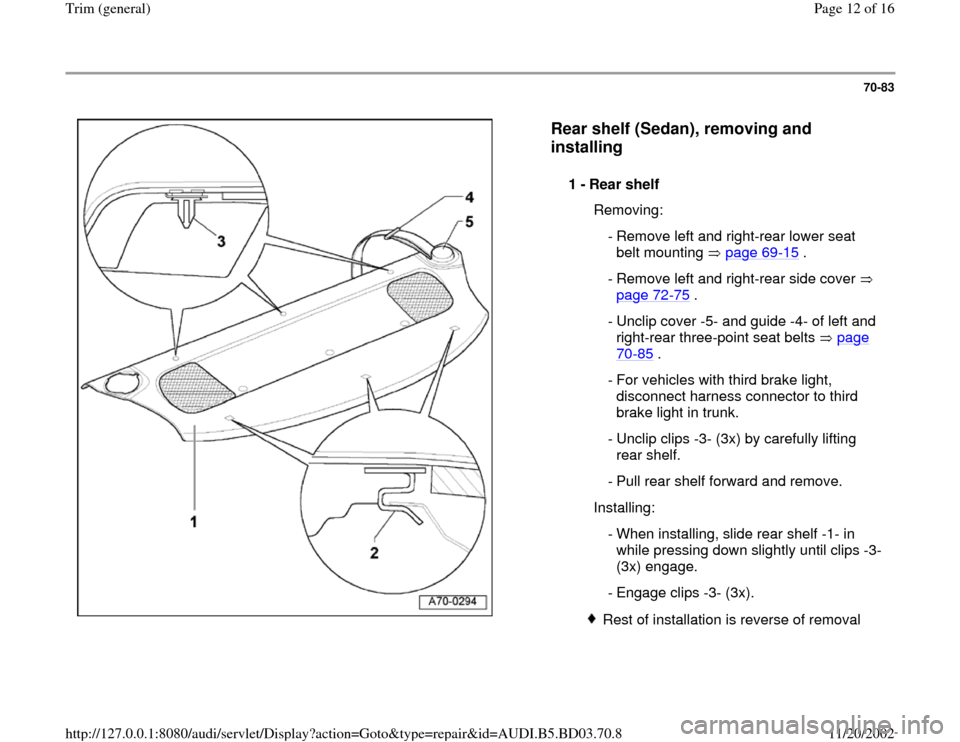

- When installing, slide rear shelf -1- in
while pressing down slightly until clips -3-
(3x) engage.
- Engage clips -3- (3x).
Rest of installation is reverse of removal
Pa
ge 12 of 16 Trim
(g
eneral
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.8
70-87
Left and right-side trunk trim, removing
and installing
Foldable rear backrest
- Remove side cover page 72
-75
.
Split-foldable rear seat, removing and installing
page 72
-60
- Remove on-board tool kit and jack.
- Remove cover -1- for latch bracket and remove trim -2-.
- Remove plastic clips -5- (2x) at tail light.
- Remove screws -3- for loading edge cover -4-.
Tightening torque: 1.5 Nm (13 in. lb)
- Unclip clip -6- at left side reinforcement.
- Raise loading edge trim -4- slightly and pull out trim -2-.
- Tilt trim toward center of vehicle and remove.
