1999 AUDI A4 Front Door Trim Workshop Manual

70-17

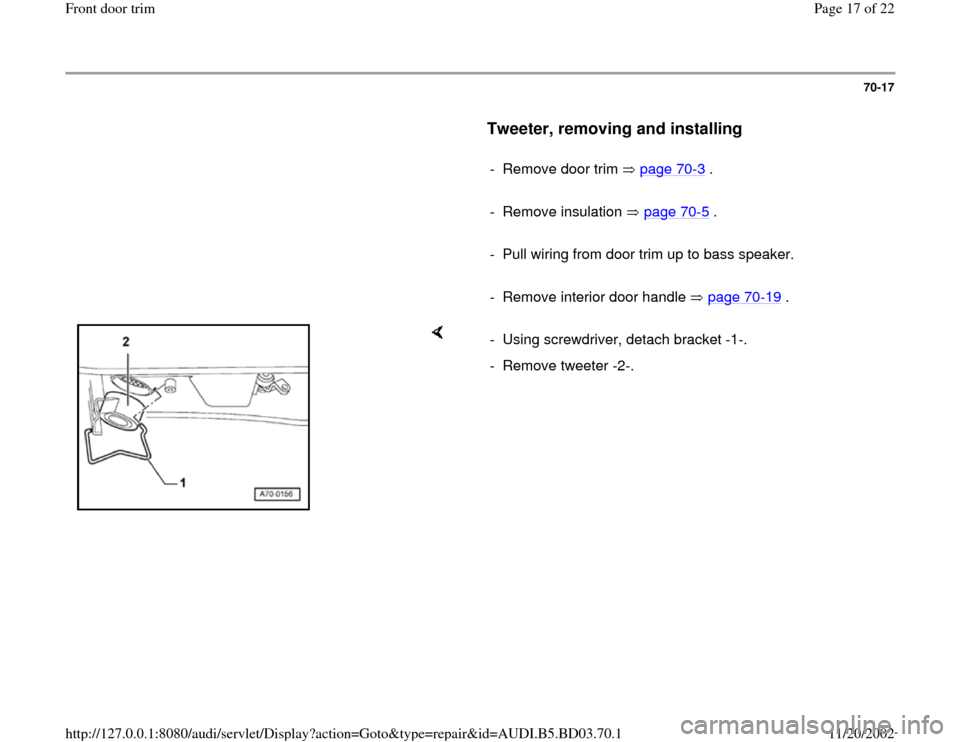

Tweeter, removing and installing


- Remove door trim page 70
-3 .

- Remove insulation page 70
-5 .

- Pull wiring from door trim up to bass speaker.

- Remove interior door handle page 70
-19
.

- Using screwdriver, detach bracket -1-.
- Remove tweeter -2-.
Pa
ge 17 of 22 Front door tri
m
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.1

70-18

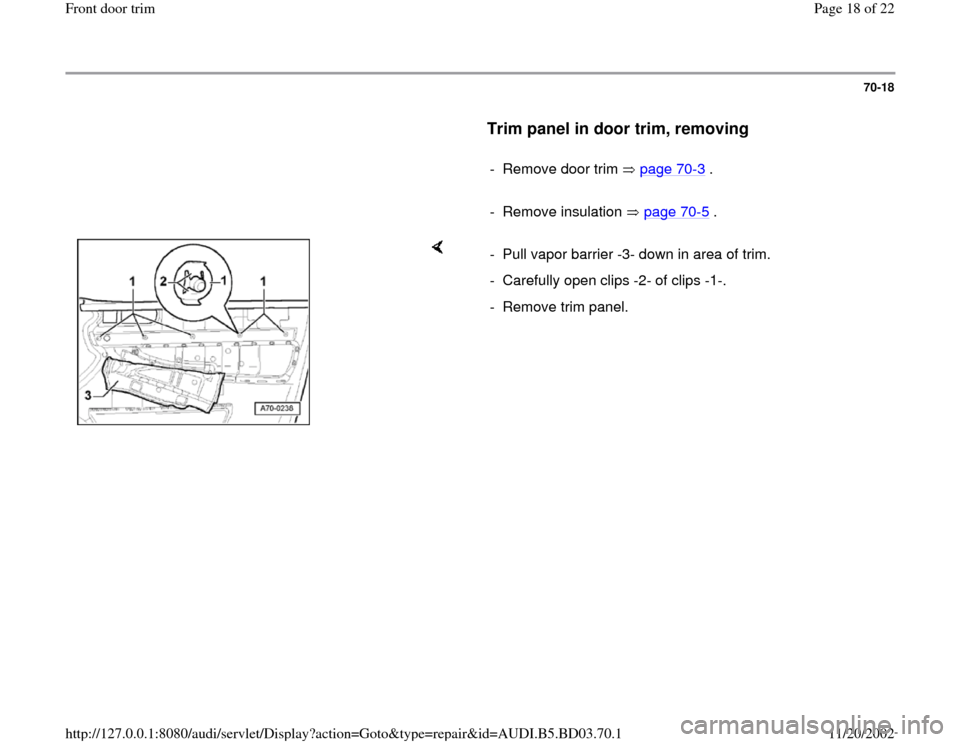

Trim panel in door trim, removing


- Remove door trim page 70
-3 .

- Remove insulation page 70
-5 .

- Pull vapor barrier -3- down in area of trim.
- Carefully open clips -2- of clips -1-.
- Remove trim panel.
Pa
ge 18 of 22 Front door tri
m
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.1

70-19

Interior door handle, removing


- Remove door trim page 70
-3 .

- Remove tweeter page 70
-17
.

- Remove central door locking switch (driver-side
only) page 70
-15
.

- Remove bolt -1-.
- Press retaining tabs -2- (2x) and remove interior door handle toward
front.
Pa
ge 19 of 22 Front door tri
m
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.1

70-20

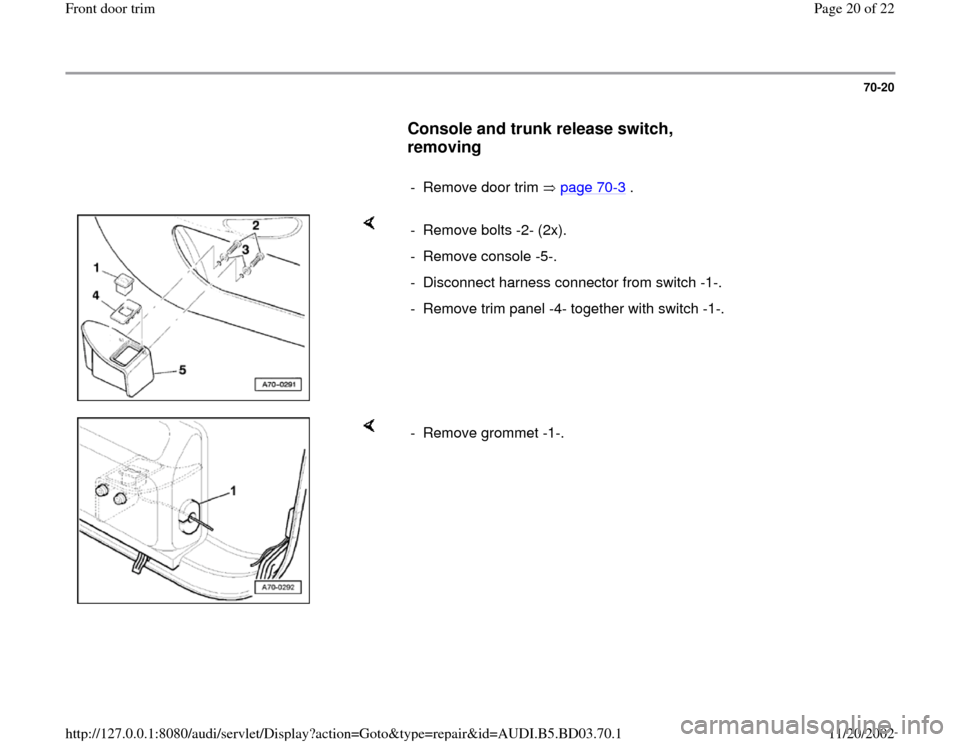

Console and trunk release switch,
removing


- Remove door trim page 70
-3 .

- Remove bolts -2- (2x).
- Remove console -5-.
- Disconnect harness connector from switch -1-.
- Remove trim panel -4- together with switch -1-.

- Remove grommet -1-.
Pa
ge 20 of 22 Front door tri
m
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.1

70-21

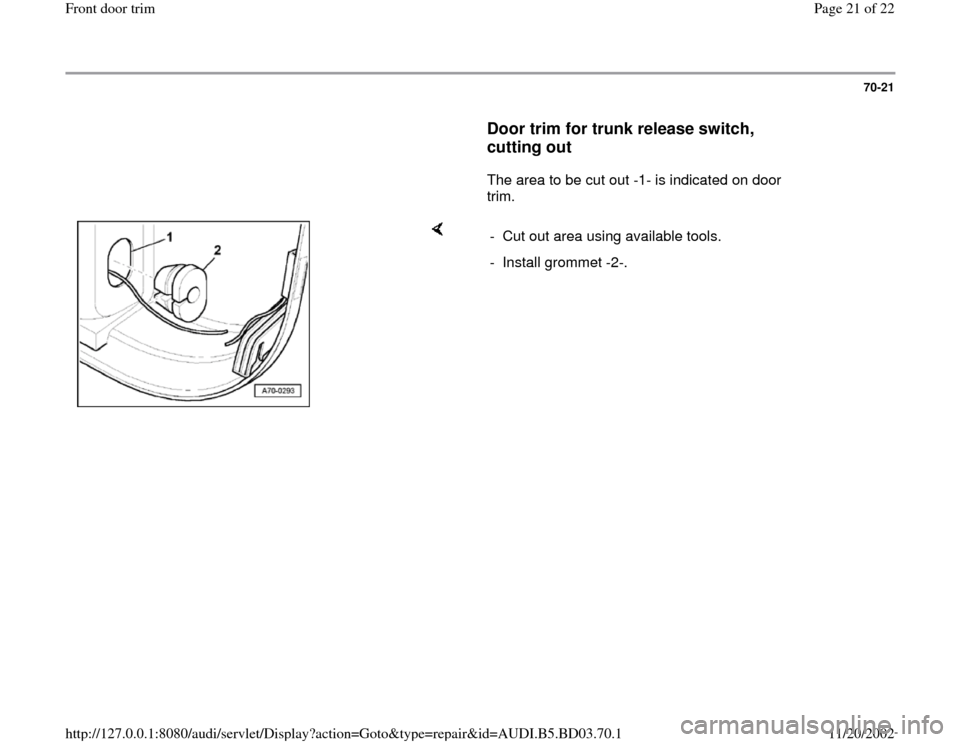

Door trim for trunk release switch,
cutting out

The area to be cut out -1- is indicated on door
trim.

- Cut out area using available tools.
- Install grommet -2-.
Pa
ge 21 of 22 Front door tri
m
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.1

70-22

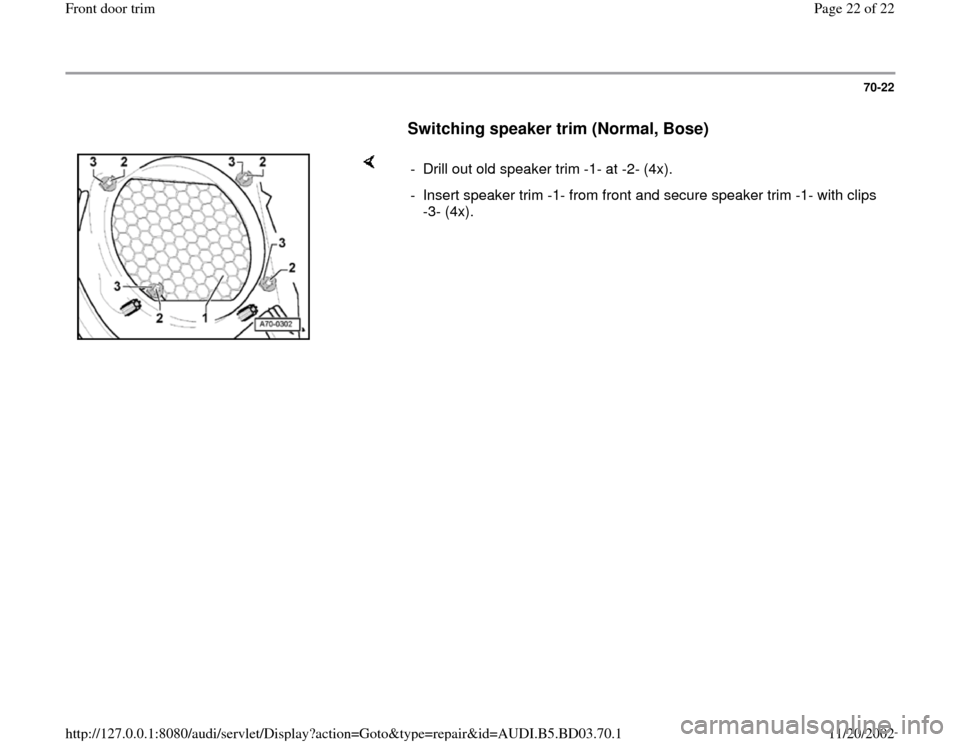

Switching speaker trim (Normal, Bose)


- Drill out old speaker trim -1- at -2- (4x).
- Insert speaker trim -1- from front and secure speaker trim -1- with clips
-3- (4x).
Pa
ge 22 of 22 Front door tri
m
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.1
