1999 AUDI A4 engine

20-151

Checking voltage supply (all vehicles)

Note:
Voltage supply to the LDP is via the fuel pump
relay.

Test condition:

Fuse for LDP is OK

- Disconnect connector from LDP.

- Connect voltage tester VAG1527 B as follows:Connector terminal
Measure
3 Engine Ground (GND)
- Briefly operate starter motor.
LED must light up.
Pa
ge 26 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5

20-153

Checking output wiring (vehicles with
mechanical throttle activator)

- Remove weatherstrip at plenum chamber -arrows-.
- Remove cover for plenum chamber -1- toward front.
- Remove cover for E-box in plenum chamber.

Note:
Disconnect or connect the Engine Control Module (ECM) connector only
with ignition switched off. - Carefully lever off clamp -arrow- with screwdriver.
- Unlatch clip and disconnect connector for Engine Control Module
(ECM).
Pa
ge 28 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5

20-155
If you did not find any malfunction, however the
Leak Detection Pump (LDP) did not function
during the output Diagnostic Test Mode (DTM):

- Replace Leak Detection Pump (LDP) -V144
Page 20
-162
.
If the LED does not blink, although wiring is OK:

- Replace Engine Control Module (ECM):

Repair Manual, Fuel Injection & Ignition,
Repair Group 24
- Generate readiness code:

Repair Manual, Fuel Injection & Ignition,
Repair Group 24
Pa
ge 30 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5

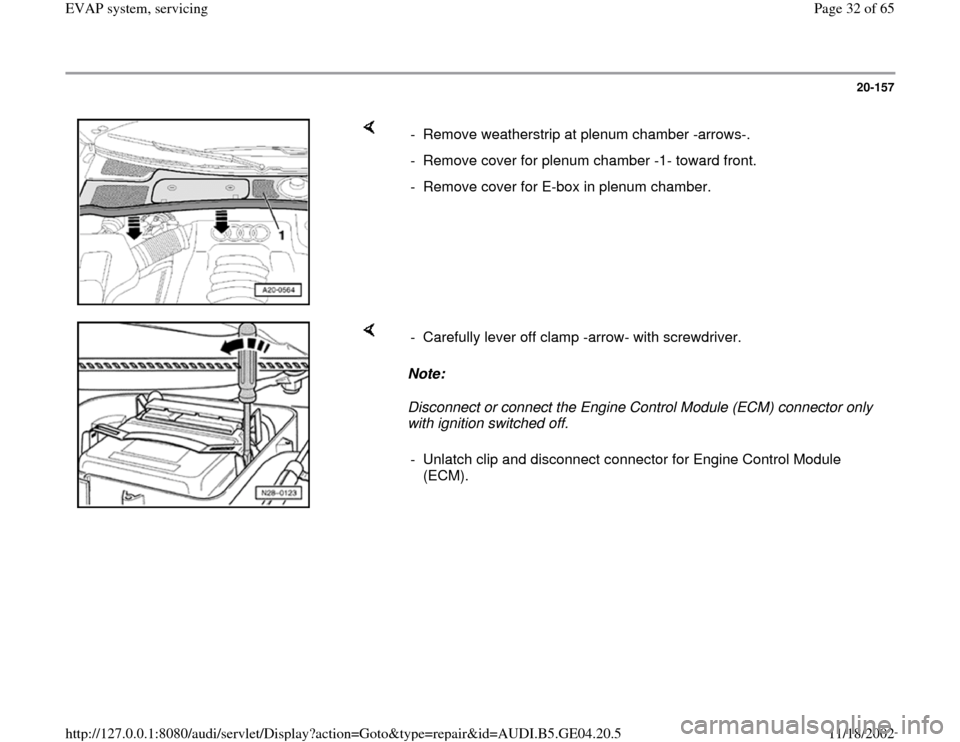

20-157


- Remove weatherstrip at plenum chamber -arrows-.
- Remove cover for plenum chamber -1- toward front.
- Remove cover for E-box in plenum chamber.

Note:
Disconnect or connect the Engine Control Module (ECM) connector only
with ignition switched off. - Carefully lever off clamp -arrow- with screwdriver.
- Unlatch clip and disconnect connector for Engine Control Module
(ECM).
Pa
ge 32 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5

20-159
If you did not find any malfunction, however the
Leak Detection Pump (LDP) did not function
during the Output Diagnostic Test Mode (DTM):

- Replace LDP Page 20
-162
If the LED does not blink, although wiring is OK:

- Replace the Engine Control Module (ECM)

Repair Manual, Fuel Injection & Ignition,
Repair Group 24
- Generate readiness code:

Repair Manual, Fuel Injection & Ignition,
Repair Group 24
Pa
ge 34 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5

20-172


Note:
Fuel system pressurization depends on volume of fuel system and
amount of fuel in tank.
If fuel system pressurization does not stabilize:
CAUTION!
Clamp only soft rubber lines when isolating a leak. To avoid risk of
damage, never clamp hard plastic lines!
Note:
Any flow shown on flow meter indicates a leak. Flow before flow meter
flag set at vehicle leak standard may indicate a sporadic DTC.
If flow meter on tester registers flow near or above preset pressure: - Attach fuel cap adapter to filler neck (arrow) and test hose to adapter.
- Turn control valve from "Hold" to "Test".
- Allow fuel system to pressurize.
- Verify all fuel system outlets have been sealed before continuing.

- Clamp off hose (arrow) leading from EVAP purge regulator valve -N80-
to intake manifold (pictured: AHA engine in A6).
Pa
ge 51 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5

20-176


EVAP system leak detection circuit,
schematic diagram (vehicles with 1.8 ltr.
turbo engine)

Repair Manual, 1.8 Liter 4-Cyl. 5V Turbo Fuel
Injection & Ignition, Repair Group 24 1 -
Check valve
Location (light/dark side): as shown in
illustration
2 -
EVAP canister purge regulator valve -N80-Location: in engine compartmentChecking
3 -
Bleed line
From EVAP canister purge regulator valve
-N80-
LocationRight side under floor panFront-wheel drive: on floor pan in area of
fuel tank All-wheel drive: on fuel tank in area of fuel
tank
Pa
ge 56 of 65 EVAP s
ystem, servicin
g
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE04.20.5

20-179


T - piece -arrow- is located on left side of engine compartment. Fig. 1 T-piece, location
