1998 VOLKSWAGEN JETTA sensor

Downloaded from www.Manualslib.com manuals search engine 01-69


Note:
For display group number 002 remember:

The reading of measured value blocks in display group number 002 must be undertaken
when driving off slowly. Then the ABS Control Module (w/EDL) -J104- will store the first
usable voltage signals provided by the speed sensors and display these as a fixed value in
the measured value block.
Read measured value block
2 Display group number: 002
3 km/h
1)
6 km/h1)
2 km/h2)
1 km/h2)
Indicated on display: (when driving off slowly)

Wheel speed at right rear speed sensor
(0 to 255 km/h)

Wheel speed at left rear speed sensor

(0 to 255 km/h)

Wheel speed at right front speed sensor
(0 to 255 km/h)

Wheel speed at left front speed sensor

(0 to 255 km/h)
1) If the deviations in display zones 1 and 2 are greater than 6 km/h (approx. 3.75 mph), the
following malfunctions may be present:
2) If the deviations in display zones 3 and 4 are greater than 2 km/h (approx. 1.25 mph), the
following malfunctions may be present:
Note:

Air gap between speed sensor and rotor may be too wide.
- Check that speed sensor is attached correctly to wheel bearing housing.

Speed sensor or rotor exterior damaged.
- Change damaged component.
Стр. 49из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-104



Test requirements

Switch ignition and electrical
consumers off before beginning the
check (headlights, lighting, fan ...).

Fuses S9, S13, S178 and S179 must
be OK (remove fuses from fuse holder
to check).

Removing air cleaner
- Pull connector -2- off mass air flow
sensor.
- Release spring-type clip -1- on air duct
hose with pliers V.A.G 1921 and pull
hose off air cleaner.
- Remove air cleaner bolts -3- and take
out air cleaner -4-.
Стр. 3из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine
01-107


Contact
Wiring connection to component ...
1
Left front ABS wheel s peed sensor -G47-
2
Left front ABS wheel s peed sensor -G47-
3
Coding bridge to contact 14
4
Voltage supply to ignition switch
5
Left rear ABS wheel speed sensor -G46-
6
Left rear ABS wheel speed sensor -G46-
7
Connector T16/7, K wire
8
Ground point left in engi ne compartment and Ground connection in engine
compartment wiring harness
9
Voltage supply fr om battery +
10
Data bus wire Wiring diagrams
11 Data bus wire Wiring diagrams
12 Vehicles with navi gation system only
Стр. 6из 31
ABS, ABS/EDL and ABS/EDL/ASR I TT Mark 20 IE, electrical check
Volkswagen Technical Site: http://v olkswagen.msk.ru http://vwts.info http://vwts.ru
огромный архив документации по автомобилям Volkswagen, Skoda, Seat, Audi

Downloaded from www.Manualslib.com manuals search engine 01-108


Contact
Wiring connection to component ...
13
Longitudinal acceleration sensor -G251-(all-wheel drive vehicles with Haldex
coupling only)
14
Coding bridge to contact 3
15
Longitudinal acceleration sensor -G251-(four-wheel drive vehicles with Haldex
coupling only)
15
ESP Control lamp -K155- activation (vehicles with ABS/EDL/ASR only)
16
ABS warning light -K47- activation
17
Longitudinal acceleration sensor -G251-(four-wheel drive vehicles with Haldex
coupling only)
18
Brake light switch -F-
19
Right front ABS wheel speed sensor -G45-
20
Right front ABS wheel speed sensor -G45-
21
Vehicles with navigation system only
22
Right rear ABS wheel speed sensor -G44-
23
Right rear ABS wheel speed sensor -G44-
24
Ground point left in engine compartment and Ground connection in engine
compartment wiring harness
25
Voltage supply from battery +
Стр. 7из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-109

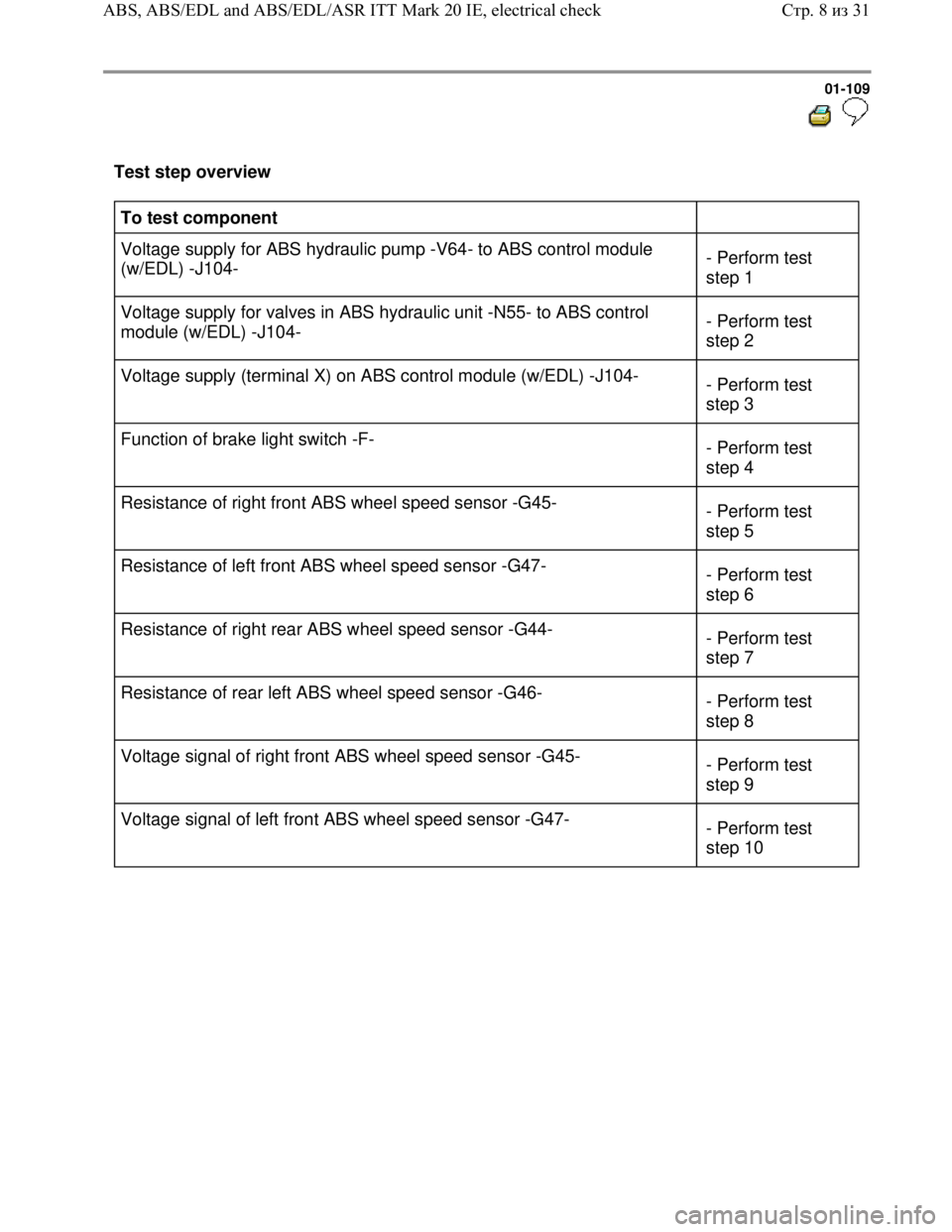

Test step overview
To test component

Voltage supply for ABS hydraulic pump -V64- to ABS control module
(w/EDL) -J104- - Perform test
step 1
Voltage supply for valves in ABS hydraulic unit -N55- to ABS control
module (w/EDL) -J104- - Perform test
step 2
Voltage supply (terminal X) on ABS control module (w/EDL) -J104-
- Perform test
step 3
Function of brake light switch -F-
- Perform test
step 4
Resistance of right front ABS wheel speed sensor -G45-
- Perform test
step 5
Resistance of left front ABS wheel speed sensor -G47-
- Perform test
step 6
Resistance of right rear ABS wheel speed sensor -G44-
- Perform test
step 7
Resistance of rear left ABS wheel speed sensor -G46-
- Perform test
step 8
Voltage signal of right front ABS wheel speed sensor -G45-
- Perform test
step 9
Voltage signal of left front ABS wheel speed sensor -G47-
- Perform test
step 10
Стр. 8из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-110


To test component

Voltage signal of right rear ABS wheel speed sensor -G44-
- Perform test step 11
Voltage signal of rear left ABS wheel speed sensor -G46-
- Perform test step 12
Coding bridge
- Perform test step 13
Voltage supply for V.A.G 1551, T16 connector
- Perform test step 14
Resistance of K wire for On Board Diagnostic (OBD), T16 connector
- Perform test step 15
Function of ABS warning light -K47-
- Perform test step 16
Function of warning light for brake system -K118-
- Perform test step 17
Function of ABS hydraulic pump -V64-
- Perform test step 18
Check of data bus wiring
- Perform test step 19
Activation of longitudinal acceleration sensor -G251-
1)
- Perform test step 20
Function of ESP Control lamp -K155-
- Perform test step 21
1) All-wheel drive vehicles with Haldex coupling only.
Стр. 9из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-114


Switch to measuring range:
Resistance measurement (2 k )
Test
step V.A.G
1598
sockets Item tested Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
5 19 + 20 Resistance of
right front ABS
wheel speed
sensor -G45-
Ignition
switched
off 1.0 to 1.3 k
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
If no malfunction can be
located in the wiring:
Repair Manual, Brake
System, Repair Group
45; Removing and
installing parts of ABS
system on front and rear
axles - Separate connector on
right front ABS wheel
speed sensor -G45-
- Check wiring using
wiring diagram
- Wiggle wiring during
test
- Replace right front
ABS wheel speed
sensor -G45-
Стр. 13из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-115


Switch to measuring range:
Resistance measurement (2 k )
Test
step V.A.G
1598
sockets Item tested Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
6 1 + 2 Resistance of
left front ABS
wheel speed
sensor -G47-
Ignition
switched
off 1.0 to 1.3 k
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
If no malfunction can be
located in the wiring:
Repair Manual, Brake
SystemRepair Group 45;
Removing and installing
parts of ABS system on
front and rear axles - Separate connector on
left front ABS wheel
speed sensor -G47-
- Check wiring using
wiring diagram
- Wiggle wiring during
test
- Replace left front ABS
wheel speed sensor -
G47-
Стр. 14из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check
