1998 VOLKSWAGEN JETTA sensor

Downloaded from www.Manualslib.com manuals search engine 01-314


Continuation of test step 17
Test
step V.A.G
1598
sockets Item
tested
Test conditions
- Additional
operations Specification
Measures for
deviations from
specification
17 - Voltage
supply for
steering
angle
sensor -
G85- - Ignition switched on
- Check wiring
between contact
T6a/5 and connector
contact T6a/1 of
steering angle
sensor -G85- 10.0 - 14.5 V
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder - Check wiring using
wiring diagram
Test step 17a: On next page.
Стр. 27из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-315


Continuation of test step 17a
Switch to measuring range:
Resistance measurement (200 /20 M )
Test
step V.A.G
1598
sockets Item
tested Test conditions
- Additional operationsSpecification
Measures for
deviations from
specification
17a - Wiring for
steering
angle
sensor -
G85-
Measuring range
set to 200
Ignition switched
off
- Connect test box
V.A.G 1598/36

- Check wiring for
open circuit between
steering angle sensor -
G85- and ABS control
module (w/EDL) -
J104- multi-pin
connector Max. 1.5
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder - Check wiring using
wiring diagram
Test step 17a: On next page.
Стр. 28из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-316


Continuation of test step 17a
Test
step V.A.G
1598
sockets Item
tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
17a Wiring for
steering
angle
sensor -
G85- - Set measuring
range to 20 M
- Remove fuse S9

- Check wiring for
short circuit to
positive or
Ground




Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder - Check wiring using
wiring diagram
Стр. 29из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-317


Switch to measuring range:
Resistance measurement (200 /20 M )
Test
step V.A.G
1598
sockets Item tested Test conditions
- Additional
operations Specification
Measures for
deviations from
specification
18 -
Wiring for
sensor for
transverse
acceleration -
G200- and
sender for
rotation rate -
G202-
Ignition switched
off
Measuring range
set to 200


- Connect test box
V.A.G1598/36

- Check wiring for
open circuit between
multi-pin connector of
sensor for transverse
acceleration -G200-,
sender for rotation
rate -G202- and
multi-pin connector of
ABS control module
(w/EDL) -J104-: Max. 1.5
Electrical
Wiring Diagrams,
Troubleshooting &
Component
Locations binder - Check wiring
using wiring
diagram
Test step 18: Continued on next
page.
Стр. 30из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-326


Definitions
These explanations refer only to this assembly
group: ABS On Board Diagnostic (OBD). These
definitions are not necessarily generally valid.

ABS
Anti-locking brake system. Further information
on the ABS can be found in the relevant self-
study programs.

Display group number Read measured
value block

ASR
Traction Control System

Data bus
Transportation of data. To do this the electrical
signals are brought into a certain format (BUS).
Further information can be found in Self-study
programs. Also called CAN Bus.

Data bus low (high)
The voltage used to transport the data is low
(high). Further information can be found in Self-
study programs.

Speed sensor
Sends speed signals to control module.
Стр. 1из 6 Definitions

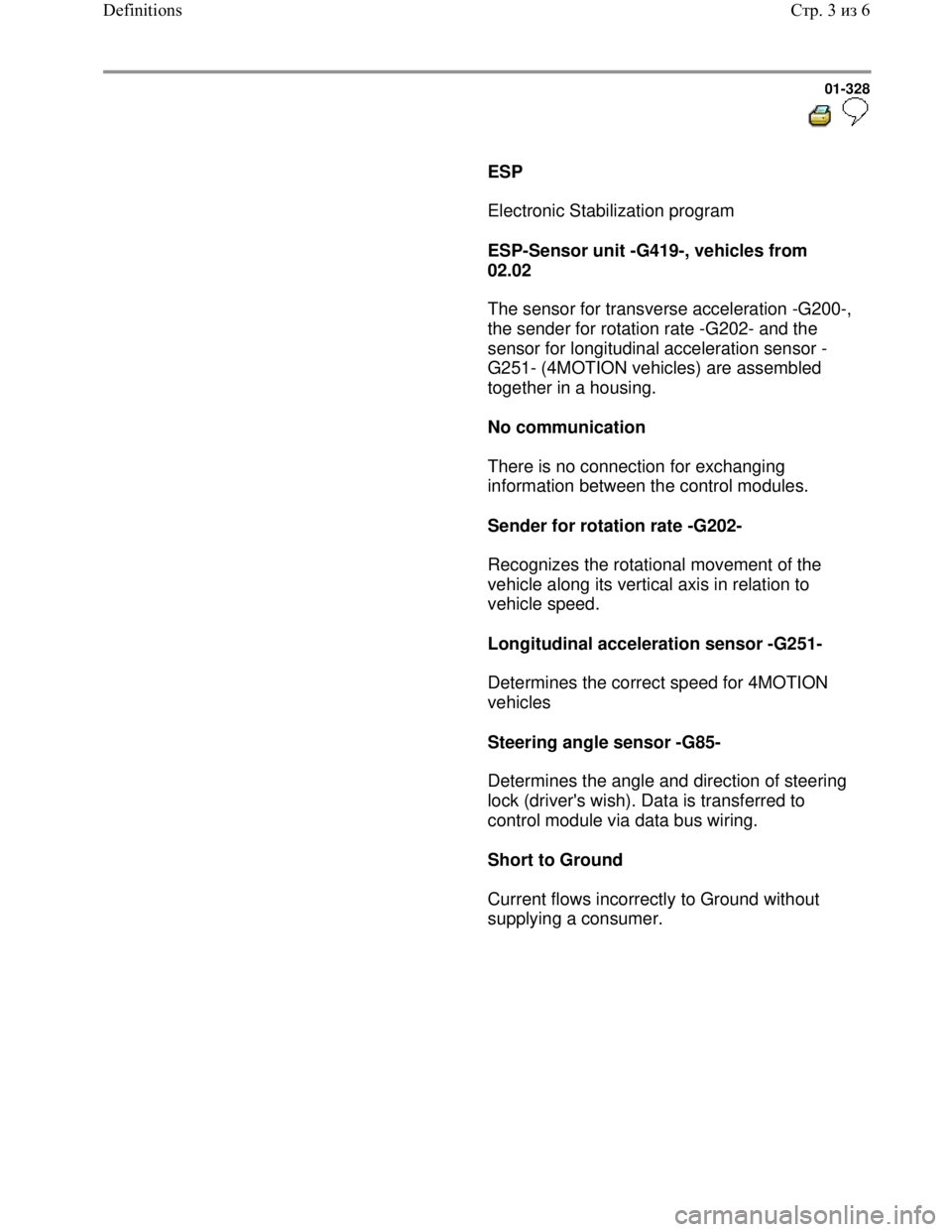

Downloaded from www.Manualslib.com manuals search engine 01-328



ESP
Electronic Stabilization program

ESP-Sensor unit -G419-, vehicles from
02.02
The sensor for transverse acceleration -G200-,
the sender for rotation rate -G202- and the
sensor for longitudinal acceleration sensor -
G251- (4MOTION vehicles) are assembled
together in a housing.

No communication
There is no connection for exchanging
information between the control modules.

Sender for rotation rate -G202-
Recognizes the rotational movement of the
vehicle along its vertical axis in relation to
vehicle speed.

Longitudinal acceleration sensor -G251-
Determines the correct speed for 4MOTION
vehicles

Steering angle sensor -G85-
Determines the angle and direction of steering
lock (driver's wish). Data is transferred to
control module via data bus wiring.

Short to Ground
Current flows incorrectly to Ground without
supplying a consumer.
Стр. 3из 6 Definitions

Downloaded from www.Manualslib.com manuals search engine 01-329



Short to positive
Current flows incorrectly to a live component
without supplying a consumer.

Brake pressure release solenoid -F84-
The trip switch is installed in the brake booster
and is required by the control module to
recognize the braking desired by the driver.

Magnetic coil for brake pressure, in brake
booster, -N247-
The brake pressure solenoid is installed in the
brake booster and ensures that a pre-pressure
of 10 bar is available for the ABS/ESP pump.

Read measured value block
The control module can transfer a considerable
amount of test data. This test data delivers
information on the operational condition of the
system and/or sensors connected to it. In many
cases the transferred test data supports
troubleshooting and malfunction repair. The
test data has been summarized into single
display groups because all the information
cannot be evaluated at the same time. The
information can be selected via display group
numbers.

EBC
Engine braking control
Стр. 4из 6 Definitions

Downloaded from www.Manualslib.com manuals search engine 01-330



Sensor for transverse acceleration -G200-
The lateral acceleration sensor is used to
register the speed through curves/bends on the
road and decides which side of the vehicle the
ESP is to brake.

Sender 1 for brake booster/Sensor -2- for
brake pressure -G201-/-G214-
Recognizes the pressure exerted by the driver
and is required to control the pressure of the
pre-pressure system.

Program card version
Always use the most up-to-date program card.
Further information can be found in the test unit
operating instructions.

Sporadic
Happens occasionally

Infinity
The resistance is infinite, open circuit.

= Ohm
Стр. 5из 6 Definitions
