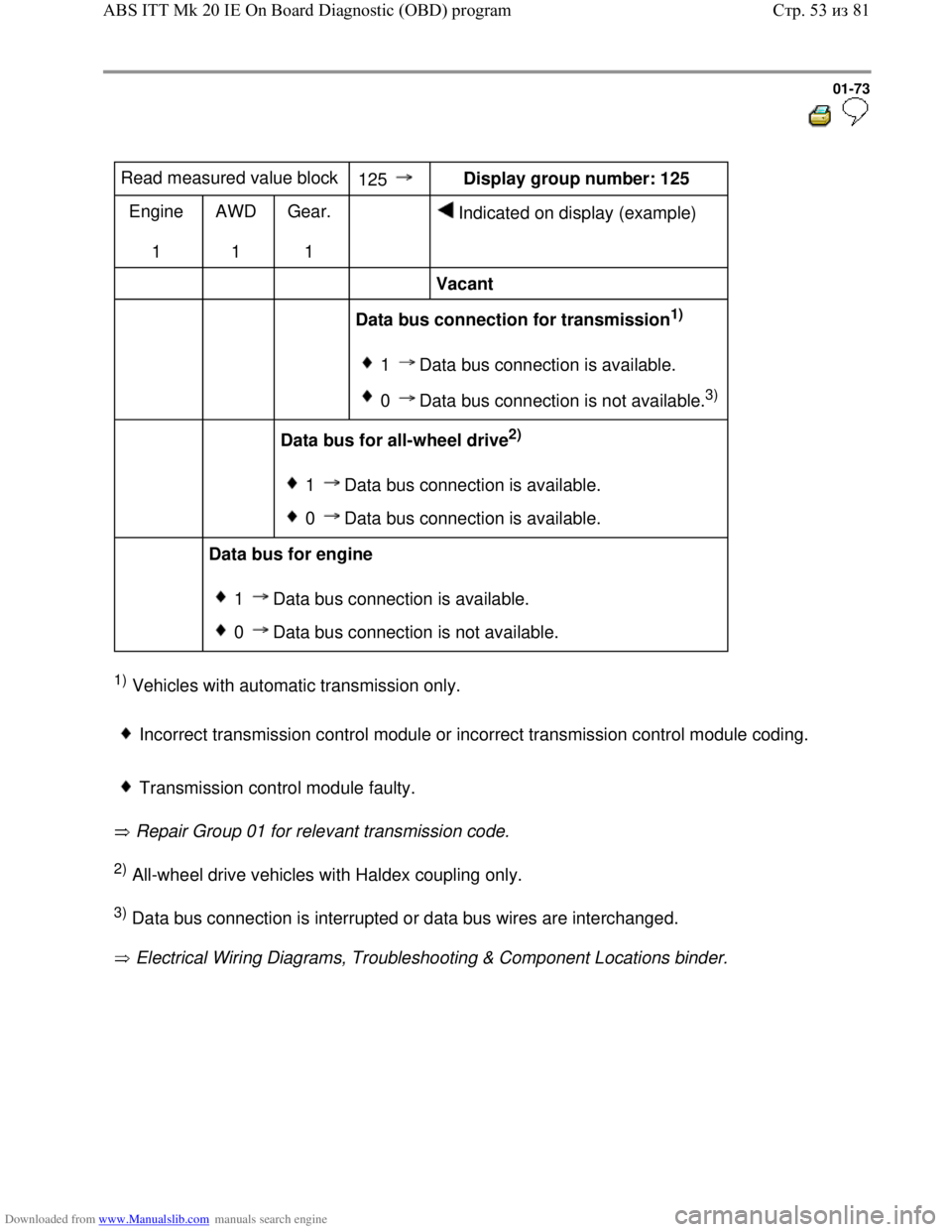

Read measured value block
125 Display group number: 125
Engine
1 AWD
1 Gear.
1
Indicated on display (example)

Vacant

Data bus connection for transmission
1)

1 Data bus connection is available.
0 Data bus connection is not available.3)

Data bus for all-wheel drive2)
1 Data bus connection is available.
0 Data bus connection is available.

Data bus for engine

1 Data bus connection is available.
0 Data bus connection is not available.
1) Vehicles with automatic transmission only.

Incorrect transmission control module or incorrect transmission control module coding.

Transmission control module faulty.
Repair Group 01 for relevant transmission code.
2) All-wheel drive vehicles with Haldex coupling only.
3) Data bus connection is interrupted or data bus wires are interchanged.
Electrical Wiring Diagrams, Troubleshooting & Component Locations binder.
Стр. 53из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-75



Example:
Indicated on V.A.G 1551 display during output
Diagnostic Test Mode (DTM):
(e.g. front left wheel, FL)

Output Diagnostic Test Mode -
IFL: VBAT OFL: 0V Wheel FL locked
IFL = Inlet valve Front Left
VBAT = Voltage Battery; Voltage at valve
OFL = Outlet valve Front Left
0V = 0 Volt; No voltage at valve
Locked/free = Wheel condition; must be
checked by 2nd mechanic if required

Output Diagnostic Test Mode -
EDL valves/Hyd-P: VBAT Wheel FL/FR
locked
Hydr-P = Hydraulic pump
Стр. 55из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-76

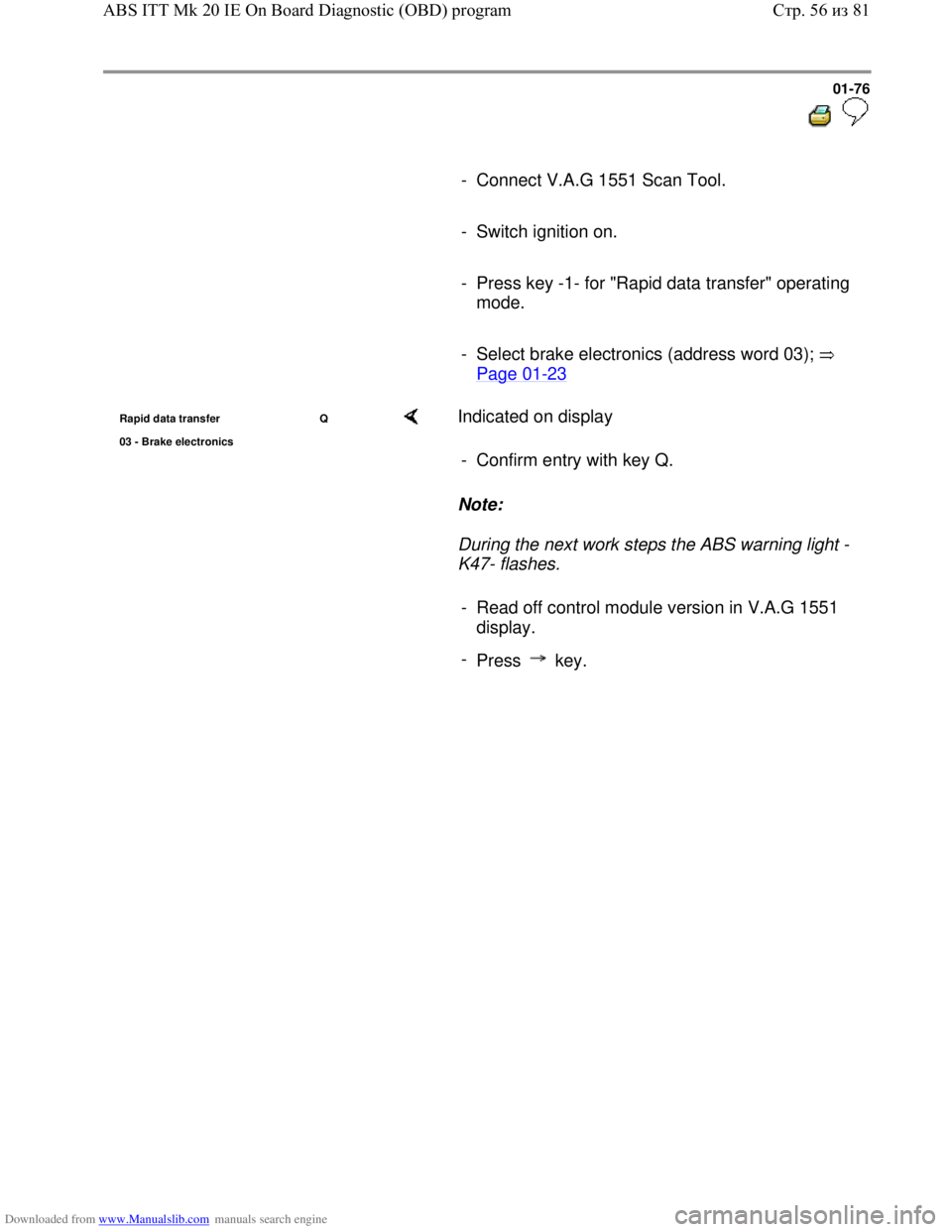

- Connect V.A.G 1551 Scan Tool.

- Switch ignition on.

- Press key -1- for "Rapid data transfer" operating
mode.

- Select brake electronics (address word 03);
Page 01
-23
Rapid data transfer Q
03 - Brake electronics Indicated on display
Note:
During the next work steps the ABS warning light -
K47- flashes. - Confirm entry with key Q.
- Read off control module version in V.A.G 1551
display.
-
Press key.
Стр. 56из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-77

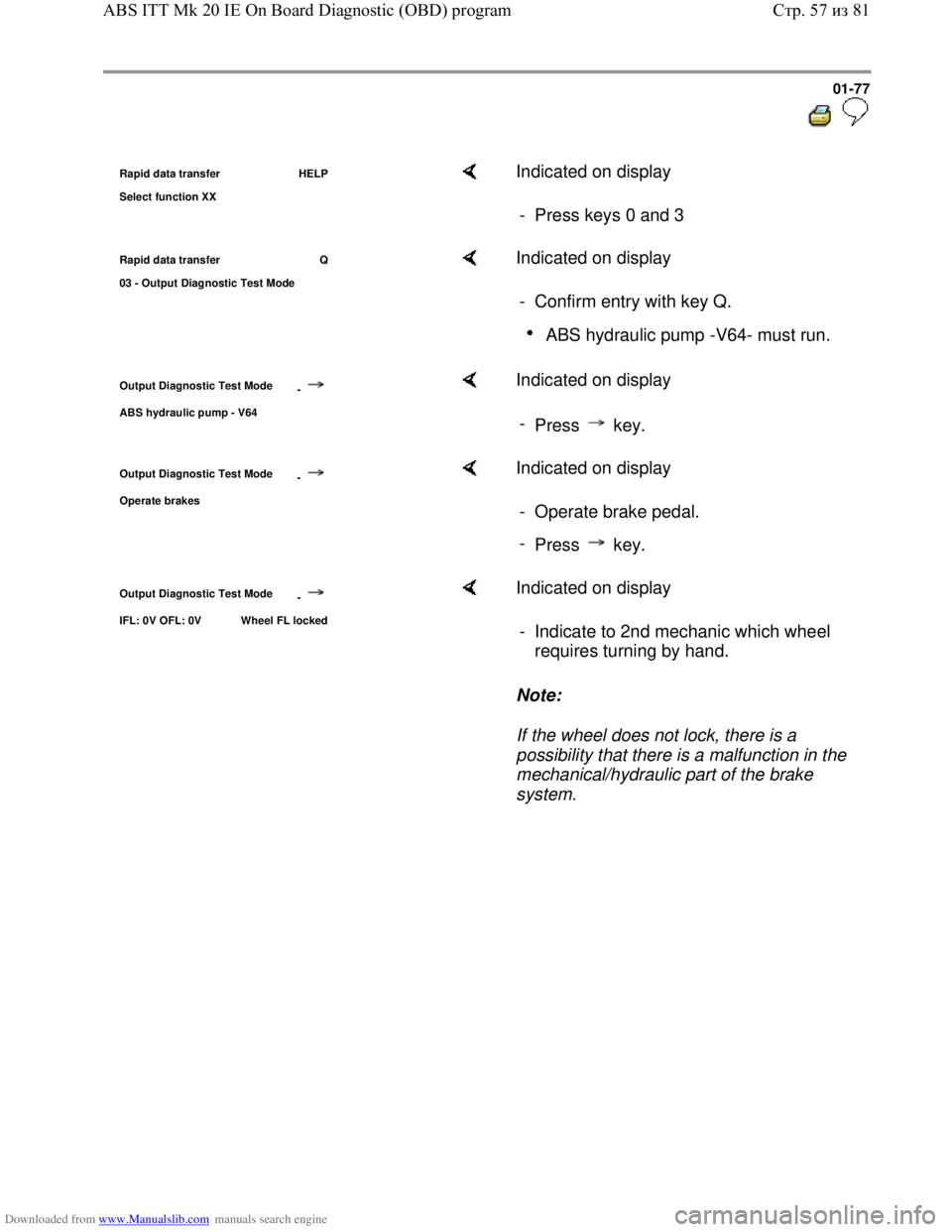

Rapid data transfer HELP
Select function XX Indicated on display
- Press keys 0 and 3
Rapid data transfer Q
03 - Out
put Diagnostic Test Mode
Indicated on display
- Confirm entry with key Q.
ABS hydraulic pump -V64- must run.
Output Diagnostic Test Mode
-
ABS hydraulic pump - V64
Indicated on display
-
Press key.
Output Diagnostic Test Mode
-
Operate brakes
Indicated on display
- Operate brake pedal.
-
Press key.
Output Diagnostic Test Mode
-
IFL: 0V OFL: 0V Wheel FL locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 57из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-78



-
Press key.
Output Diagnostic Test Mode
-
IFL: VBAT OFL: 0V Wheel FL locked
Indicated on display
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
ABS hydraulic pump -V64- must run.
Brake pedal must not give.
Output Diagnostic Test Mode
-
IFL: VBAT OFL: VBAT Wheel FL free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 58из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-79



-

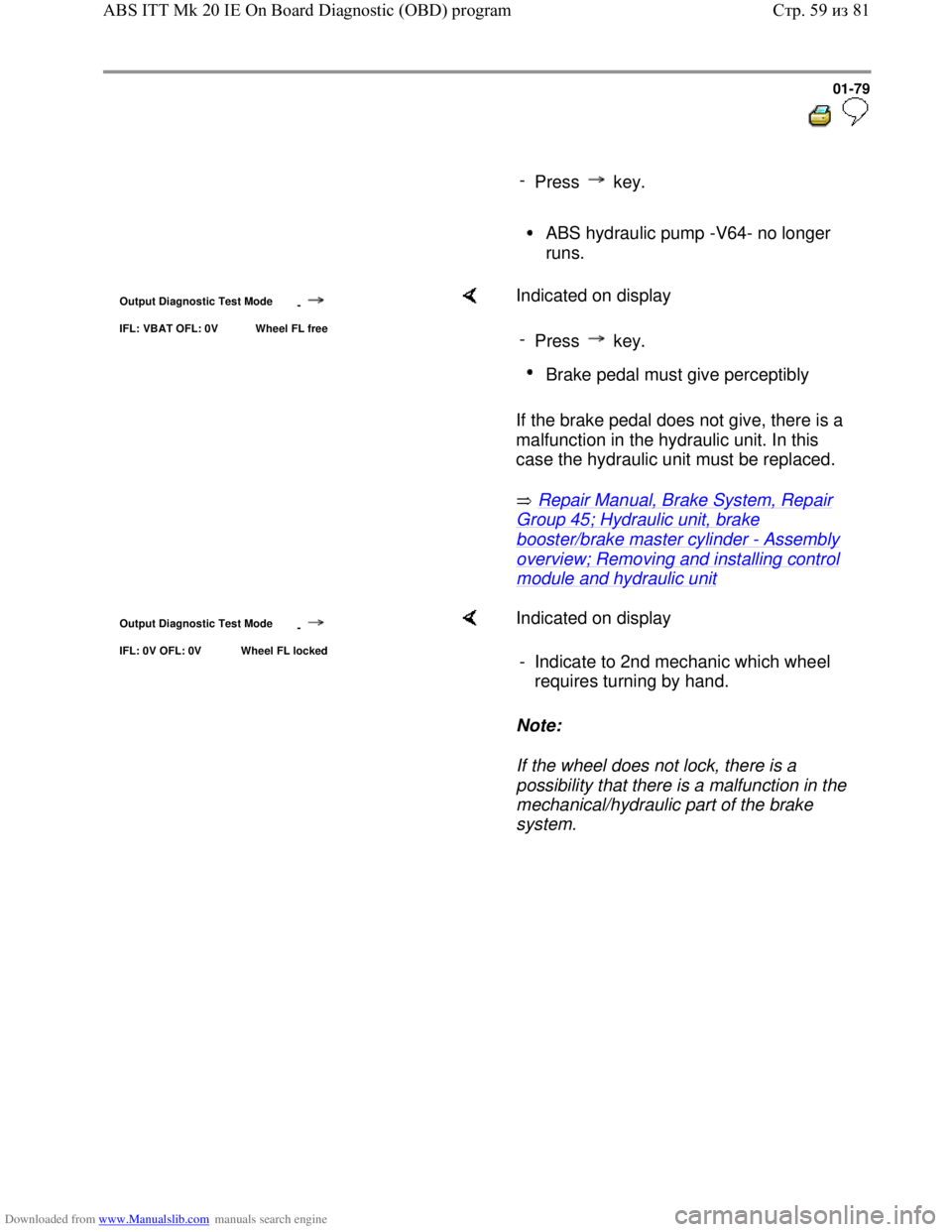

Press key.
ABS hydraulic pump -V64- no longer
runs.
Output Diagnostic Test Mode
-
IFL: VBAT OFL: 0V Wheel FL free
Indicated on display
If the brake pedal does not give, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
Brake pedal must give perceptibly
Output Diagnostic Test Mode
-
IFL: 0V OFL: 0V Wheel FL locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 59из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-80



-

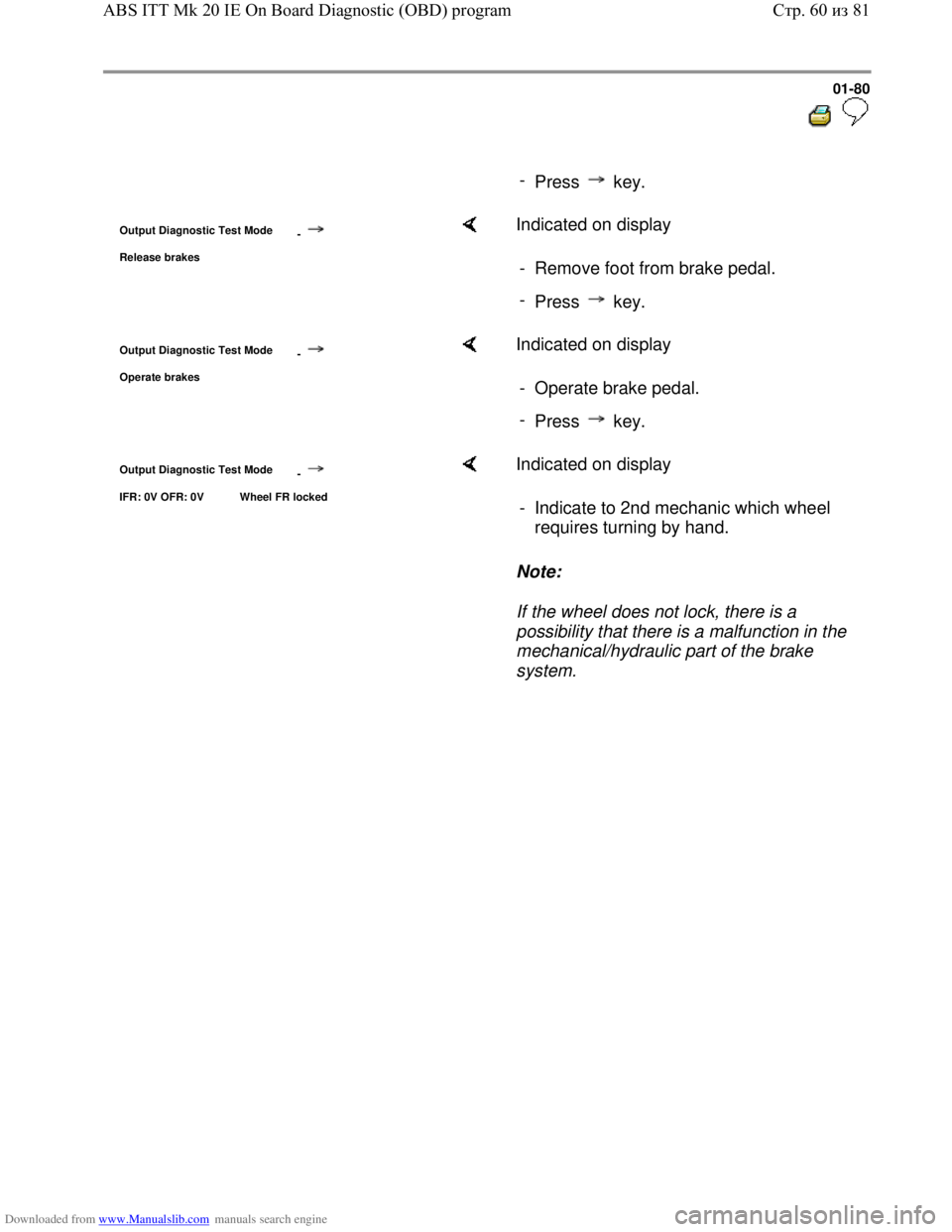

Press key.
Output Diagnostic Test Mode
-
Release brakes
Indicated on display
- Remove foot from brake pedal.
-
Press key.
Output Diagnostic Test Mode
-
Operate brakes
Indicated on display
- Operate brake pedal.
-
Press key.
Output Diagnostic Test Mode
-
IFR: 0V OFR: 0V Wheel FR locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 60из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-81



-

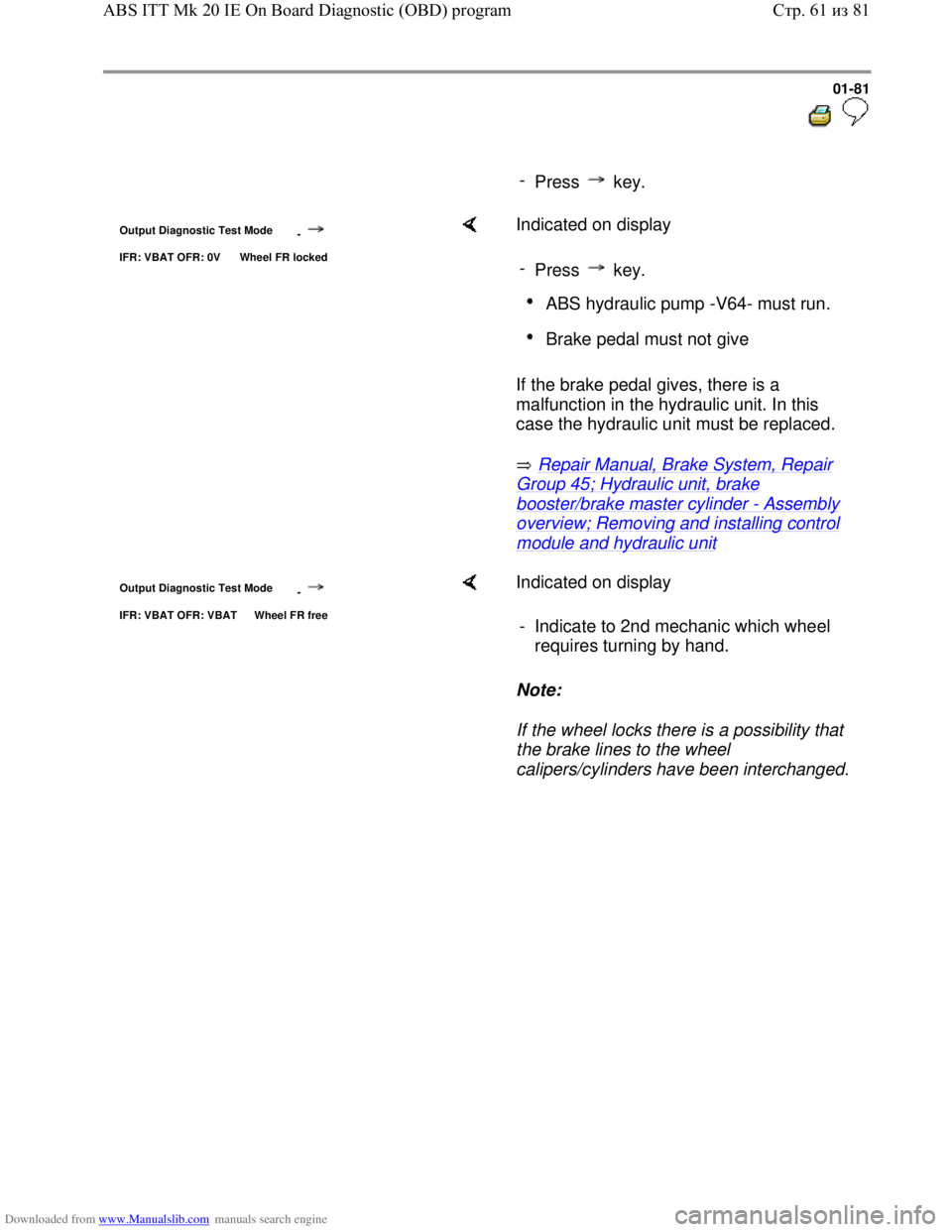

Press key.
Output Diagnostic Test Mode
-
IFR: VBAT OFR: 0V Wheel FR locked
Indicated on display
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
ABS hydraulic pump -V64- must run.
Brake pedal must not give
Output Diagnostic Test Mode
-
IFR: VBAT OFR: VBAT Wheel FR free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
