4D2–3 TRANSFER CASE (TOD)
6. Disconnect the wiring harness connector, transfer
control lever knob and shift lock cable and then
remove the front console.
7 . R e m o v e t h e s e l e c t o r l e v e r a s s e m b ly a n d p u t i t a s i d e .
8. Remove the transfer control lever.
9. Disconnect the breather hose.
10. Remove the left front exhaust pipe fixing bolts and
nuts, and put the exhaust pipe aside.
11. Remove the left seat belt tension rod and put the rear
proper shaft aside.
260RW006
12. Disconnect the transfer harness connector from the
top of the transfer case.
13. Disconnect the speed sensor harness connector.
14. Remove the fuel pipe clip fixing bolt on the transfer
case.
15. Support the transmission with a jack.
16. Remove the seven bolts from the transfer case.
17. Remove the transfer case assembly.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Apply a thin coat of grease (Besco L2) or equivalent to
the input shaft spline.
261RW024
2. Mount the transfer case.

4D2–8
TRANSFER CASE (TOD)

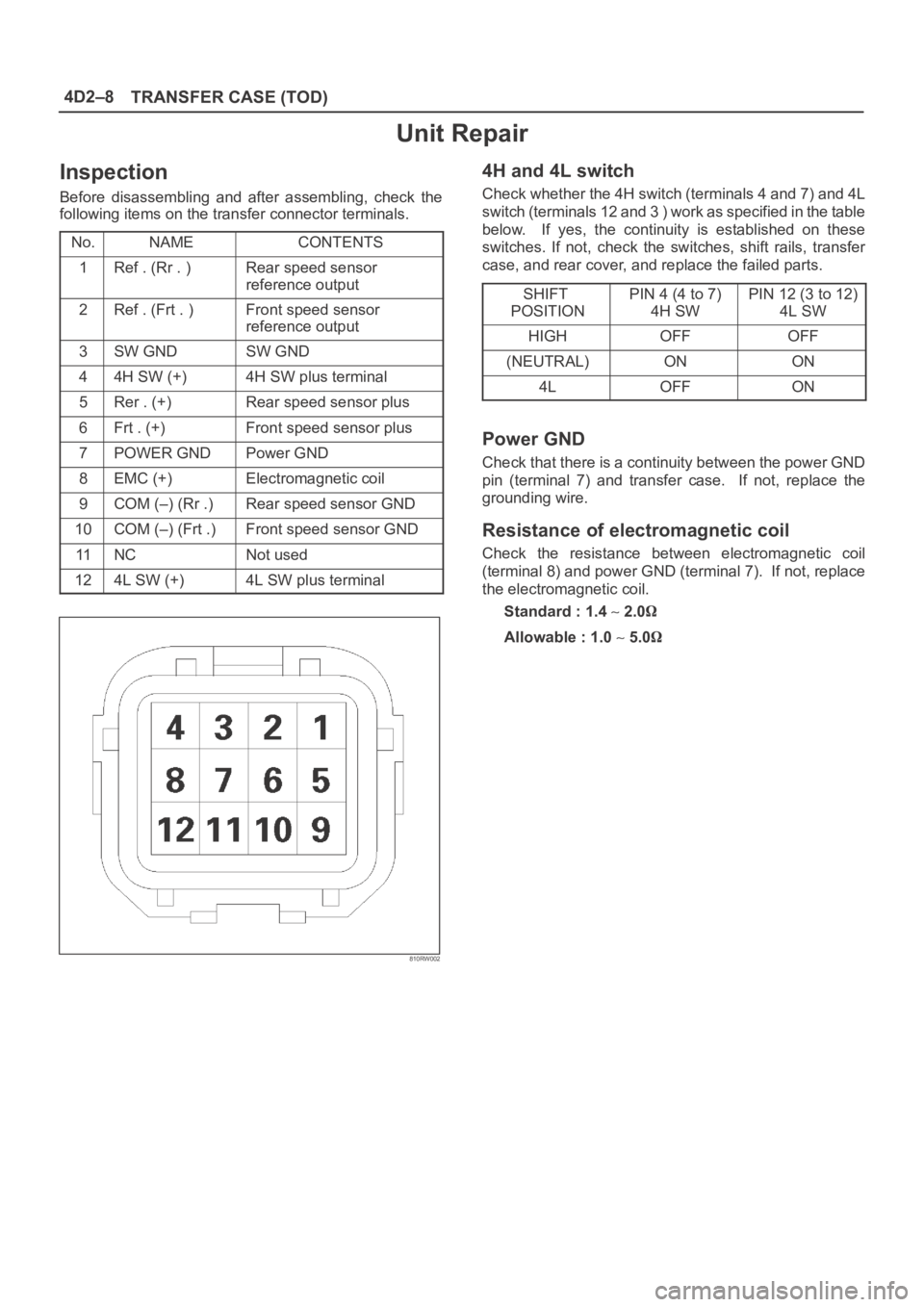

Unit Repair
Inspection
Before disassembling and after assembling, check the
following items on the transfer connector terminals.
No.
NAMECONTENTS
1Ref . (Rr . )Rear speed sensor
reference output
2Ref . (Frt . )Front speed sensor
reference output
3SW GNDSW GND
44H SW (+)4H SW plus terminal
5Rer . (+)Rear speed sensor plus
6Frt . (+)Front speed sensor plus
7POWER GNDPower GND
8EMC (+)Electromagnetic coil
9COM (–) (Rr .)Rear speed sensor GND
10COM (–) (Frt .)Front speed sensor GND
11NCNot used
124L SW (+)4L SW plus terminal
810RW002
4H and 4L switch
Check whether the 4H switch (terminals 4 and 7) and 4L
switch (terminals 12 and 3 ) work as specified in the table
below. If yes, the continuity is established on these
switches. If not, check the switches, shift rails, transfer
case, and rear cover, and replace the failed parts.
SHIFT
POSITION
PIN 4 (4 to 7)
4H SWPIN 12 (3 to 12)
4L SW
HIGHOFFOFF
(NEUTRAL)ONON
4LOFFON
Power GND
Check that there is a continuity between the power GND
pin (terminal 7) and transfer case. If not, replace the
grounding wire.
Resistance of electromagnetic coil
Check the resistance between electromagnetic coil
(terminal 8) and power GND (terminal 7). If not, replace
the electromagnetic coil.
Standard : 1.4
2.0
Allowable : 1.0 5.0

4D2–12
TRANSFER CASE (TOD)

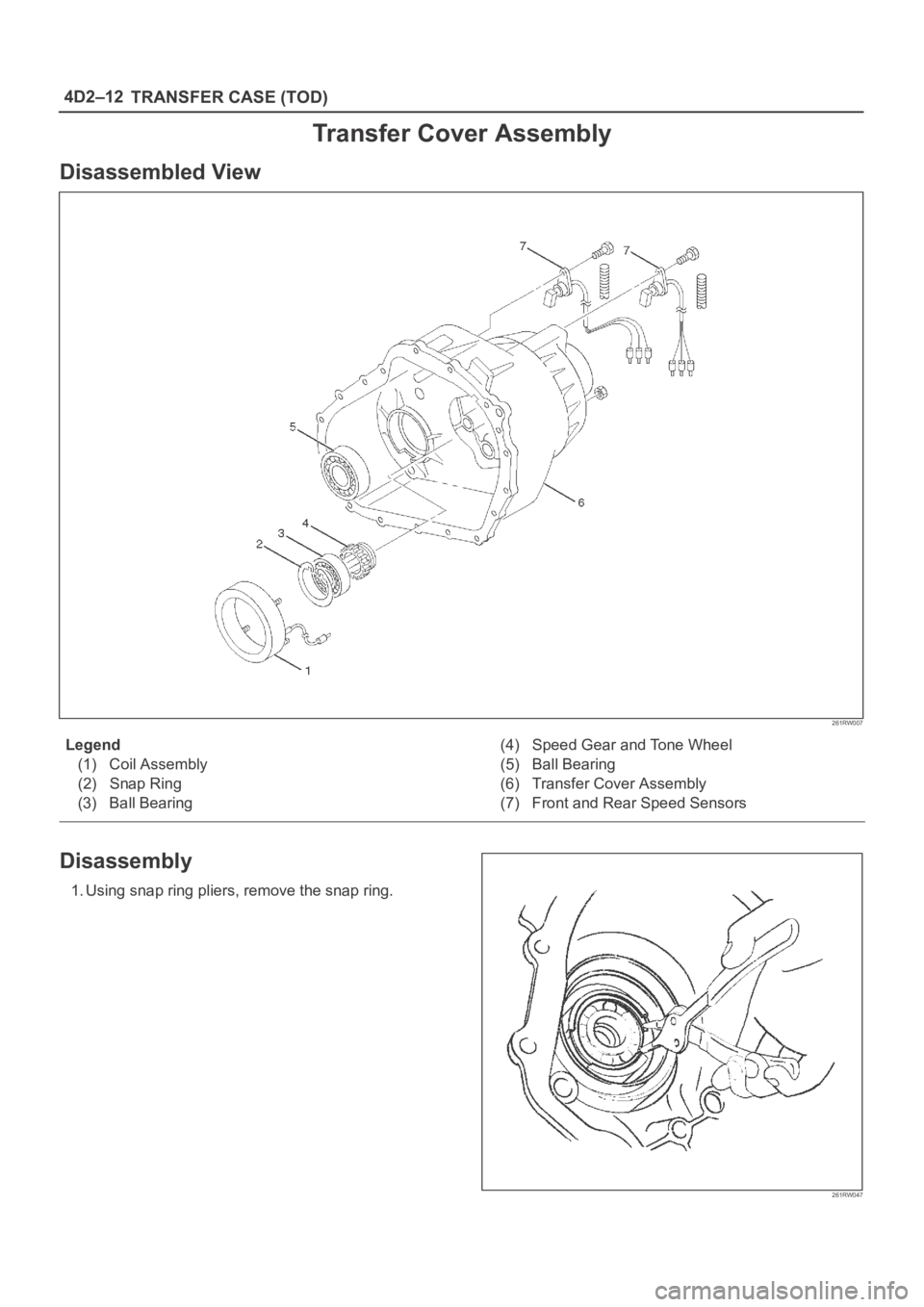

Transfer Cover Assembly
Disassembled View
261RW007
Legend
(1) Coil Assembly
(2) Snap Ring
(3) Ball Bearing(4) Speed Gear and Tone Wheel
(5) Ball Bearing
(6) Transfer Cover Assembly
(7) Front and Rear Speed Sensors
Disassembly
1. Using snap ring pliers, remove the snap ring.
261RW047

4D2–14
TRANSFER CASE (TOD)
6. Using the bearing remover 5-8840-2409-0 (J-42805)
and slide hammer 5-8840-0084-0 (J-2619-01),
remove the ball bearing for the front output shaft.
901RW234
7. Remove the bolts and front and rear speed sensors.
NOTE: Be careful not to damage the speed sensors
during the work.
261RW033
Reassembly
1. Remove the oil seal from the transfer cover assembly.
2. Apply oil to the circumference of the new oil seal and
fill the lip with grease (Besco L2 or equivalent).
3. Using the oil seal installer 5-8840-2412-0 (J-42804),
install the oil seal to the transfer cover assembly.
261RW051
Rear Output Shaft Oil Seal
Distance between the transfer case end and oil seal.
NOTE: When installing the oil seal to the specified
dimension, be careful not to damage it.
Dimension : 9.85 — 10.35mm (0.39 — 0.41 in)
A04RW004

4D2–15 TRANSFER CASE (TOD)
4. Apply a thin coat of grease to the seal ring of each
front and rear speed sensor, and mount the sensors
carefully.
5. Tighten the bolts to the specified torque.
Torque : 5 Nꞏm (0.5 kgꞏm/43 lb in)
NOTE: Pay attention not to mount the front (or rear)
sensor to the rear (or front) sensor position.
6. Install the ball bearing (1) for the front output shaft as
flat as shown in the figure.
261RW008
7. Mount the coil assembly and tighten the nuts to the
specified torque.
Torque : 10 Nꞏm (1.0 kgꞏm/87 lb in)
8. Connect the terminal in the central connector.
NOTE: Be careful not to damage other terminals.
9. Install speed gear and tone wheel.
10. Mount the ball bearing (2) as flat as shown in the
figure.
261RW009–1
11. Using snap ring pliers, install the snap ring to the
transfer cover assembly.NOTE: Securely install the snap ring to the groove of the
transfer cover assembly.
