Page 273 of 326

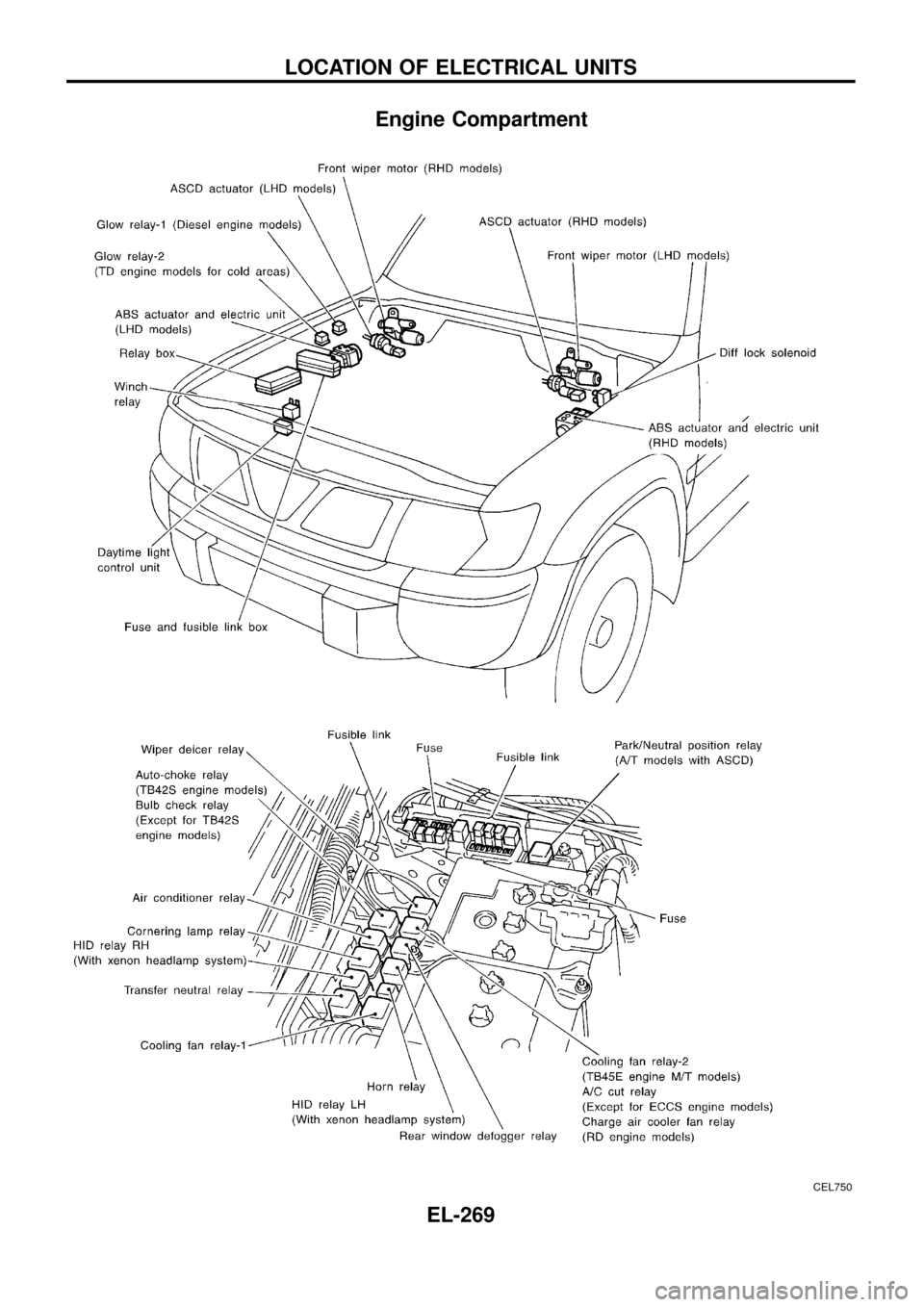

Engine Compartment
CEL750
LOCATION OF ELECTRICAL UNITS
EL-269
Page 274 of 326

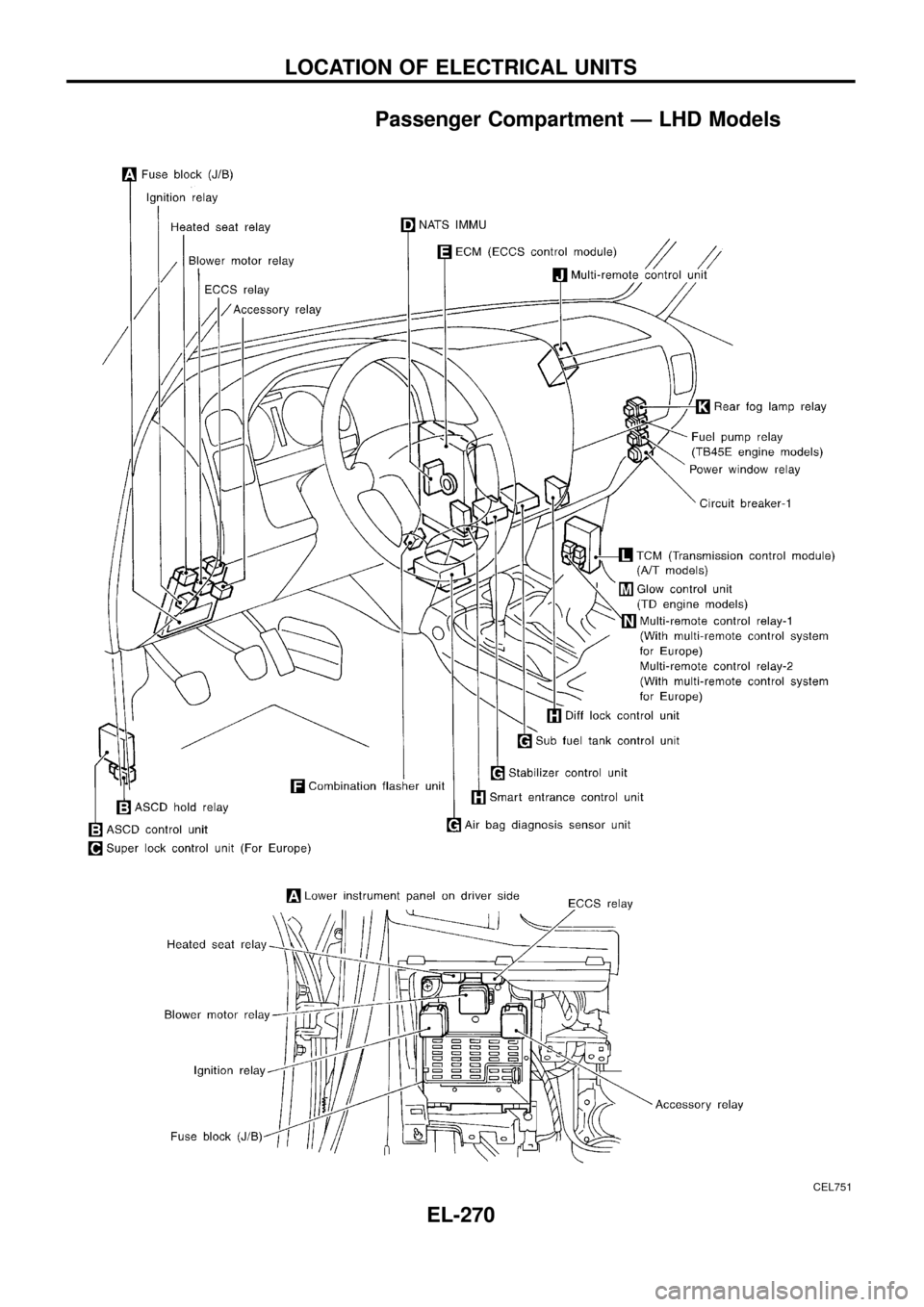

Passenger Compartment Ð LHD Models
CEL751
LOCATION OF ELECTRICAL UNITS
EL-270
Page 275 of 326
CEL752
LOCATION OF ELECTRICAL UNITS

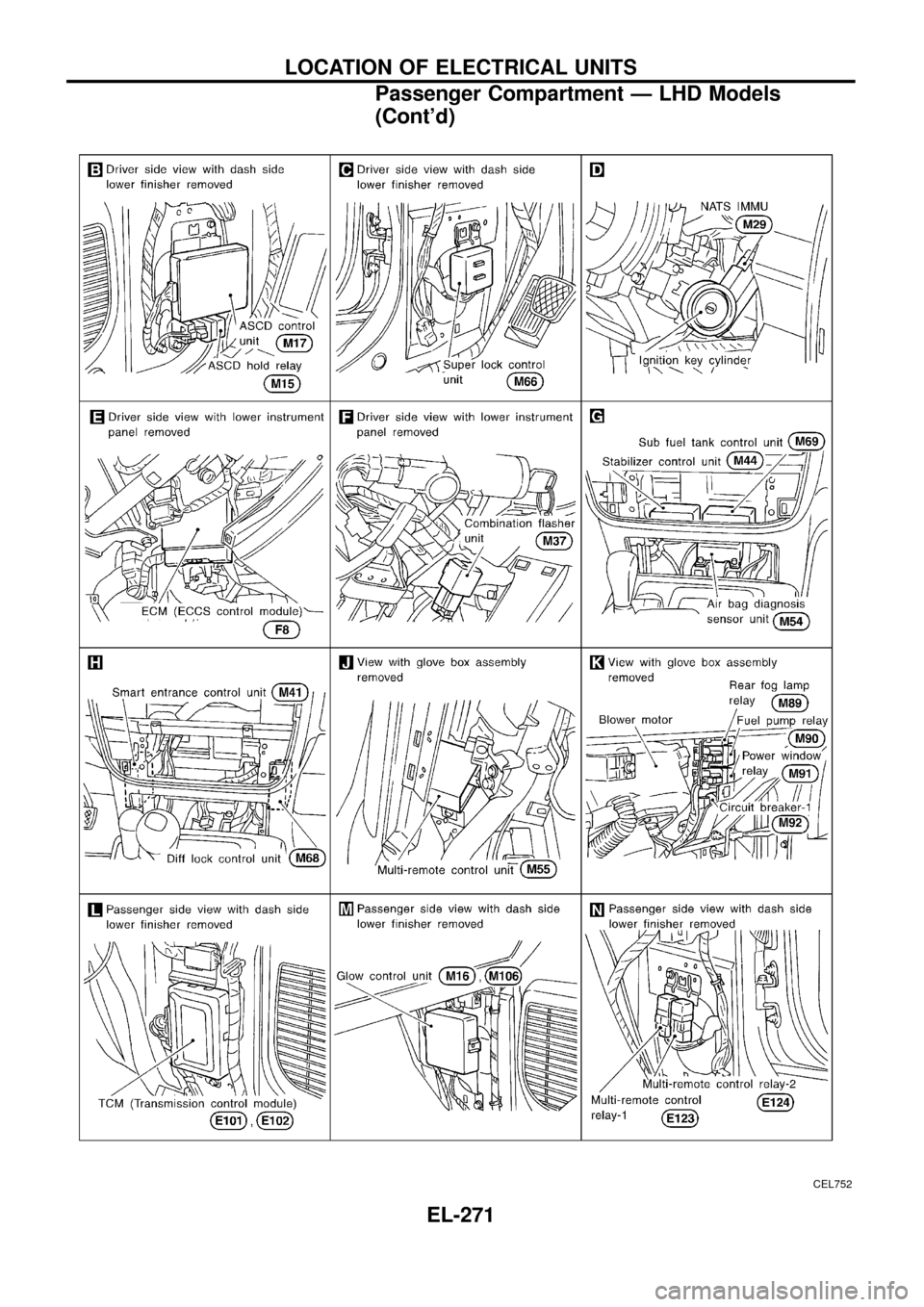

Passenger Compartment Ð LHD Models
(Cont'd)
EL-271
Page 276 of 326

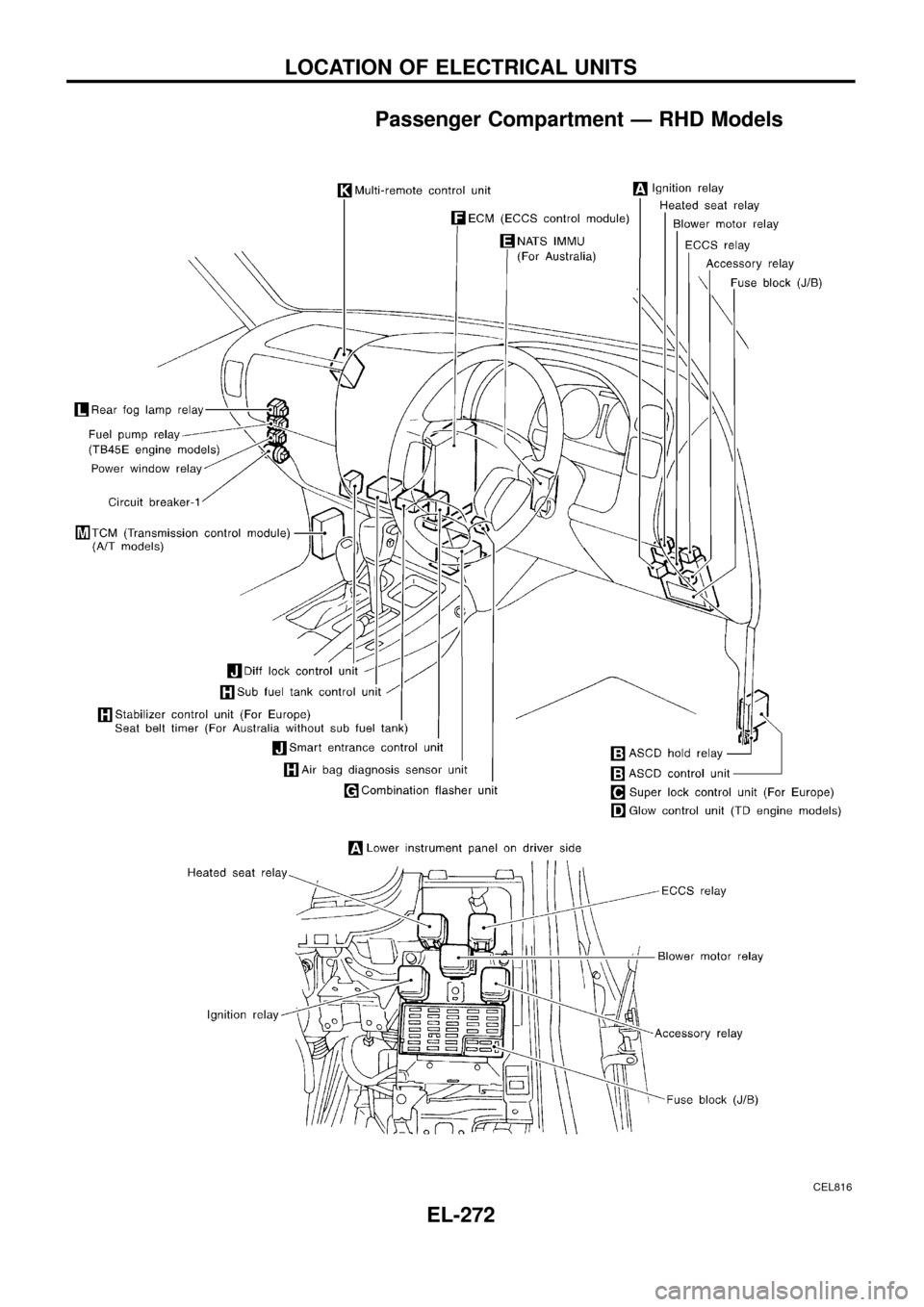

Passenger Compartment Ð RHD Models
CEL816
LOCATION OF ELECTRICAL UNITS
EL-272
Page 277 of 326

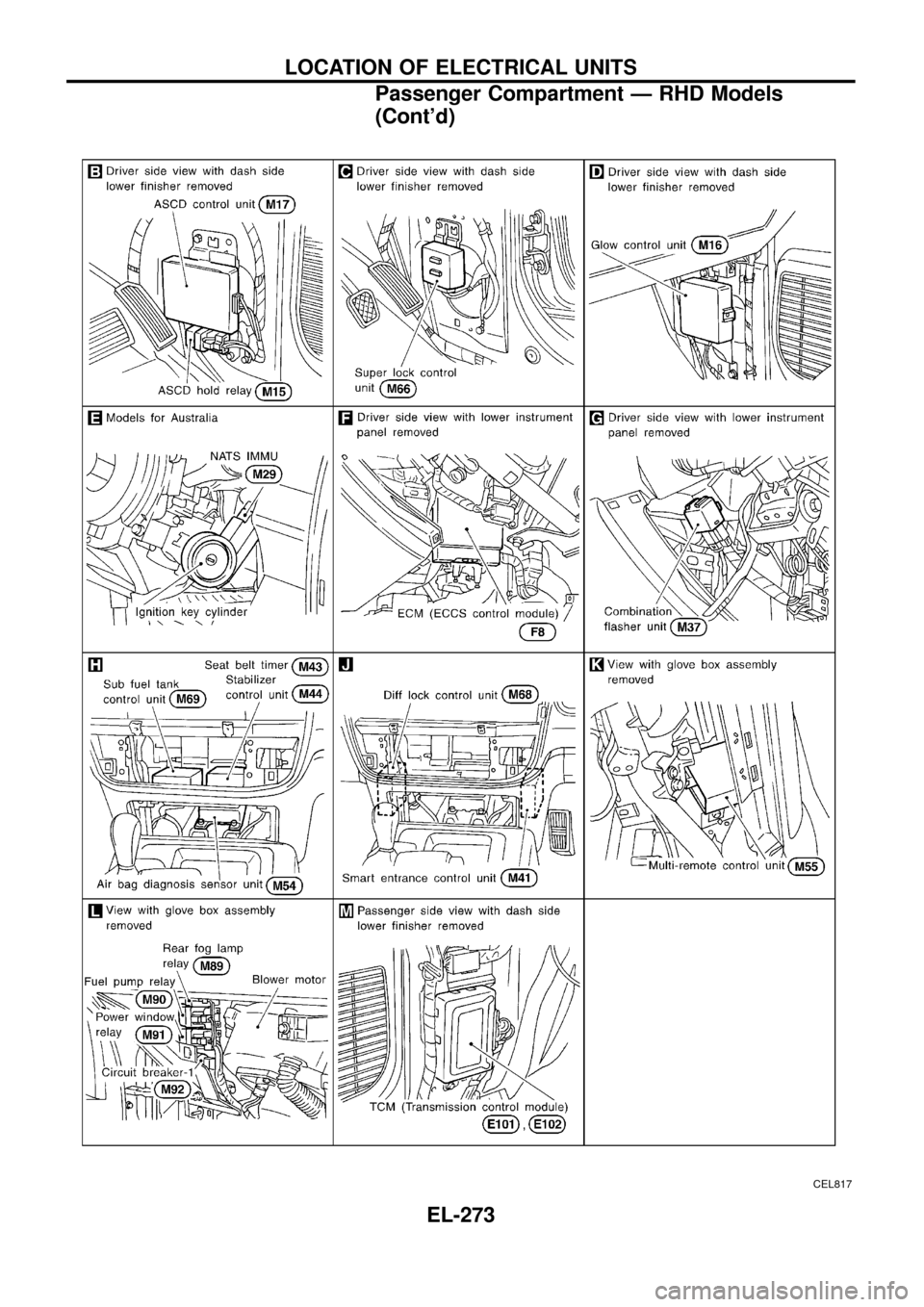

CEL817
LOCATION OF ELECTRICAL UNITS
Passenger Compartment Ð RHD Models
(Cont'd)
EL-273
Page 278 of 326
NOTE
LOCATION OF ELECTRICAL UNITS
EL-274
Page 279 of 326
How to Read Harness Layout
Example:
G2E1B/6: ASCD ACTUATOR
Connector color / Cavity
Connector number
Grid reference
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
+Main Harness
+Engine Room Harness (Engine Compartment)
To use the grid reference
1) Find the desired connector number on the connector list.
2) Find the grid reference.
3) On the drawing, ®nd the crossing of the grid reference letter column and number row.
4) Find the connector number in the crossing zone.
5) Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
Connector typeWater proof type Standard type
Male Female Male Female
+Cavity: Less than 4
+Relay connector
+Cavity: From 5 to 8
+Cavity: More than 9
ÐÐ
+Ground terminal etc.
Ð
HARNESS LAYOUT
EL-275
Page 280 of 326

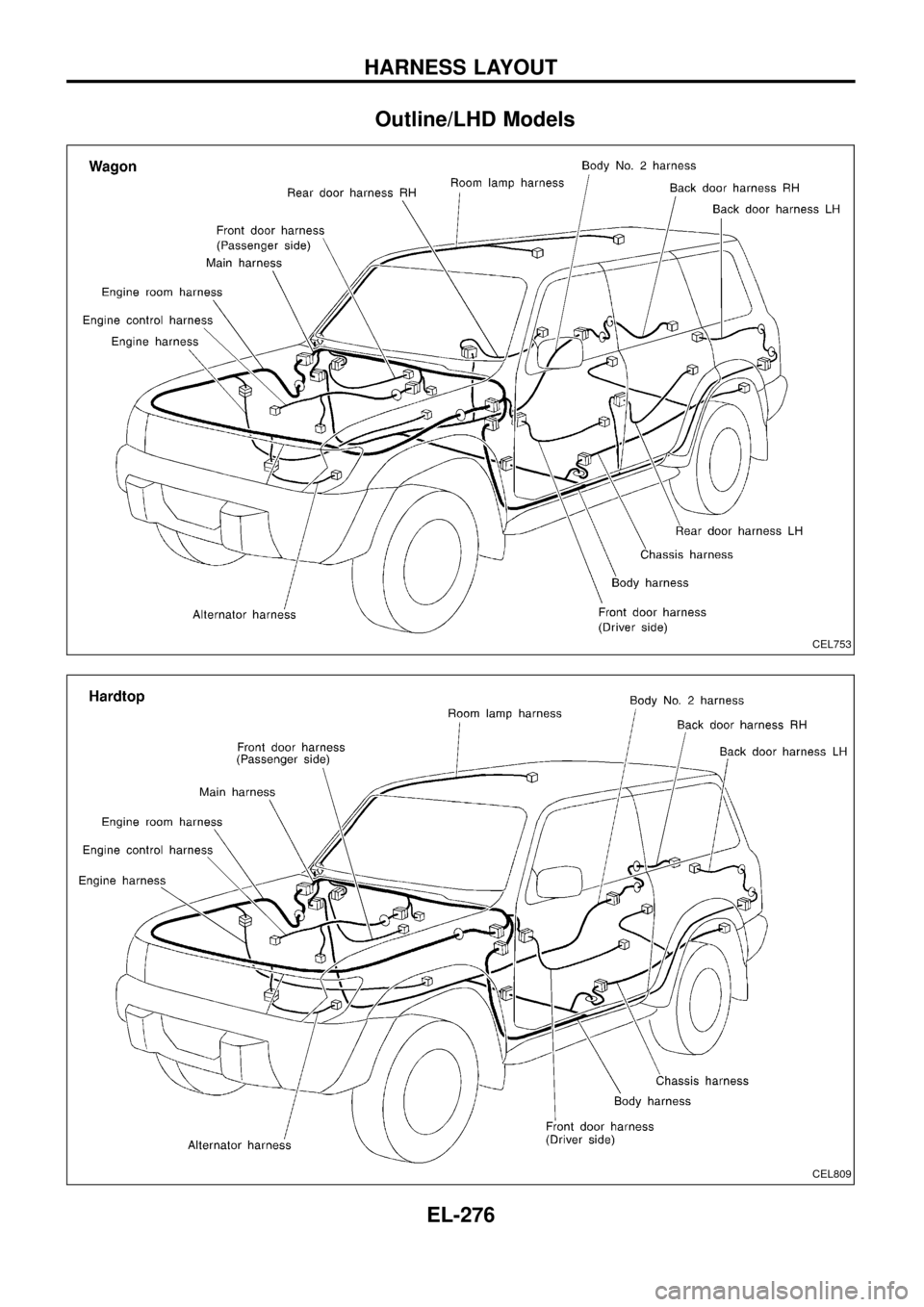

Outline/LHD Models
CEL753
CEL809
HARNESS LAYOUT
EL-276
