1998 MITSUBISHI MONTERO head

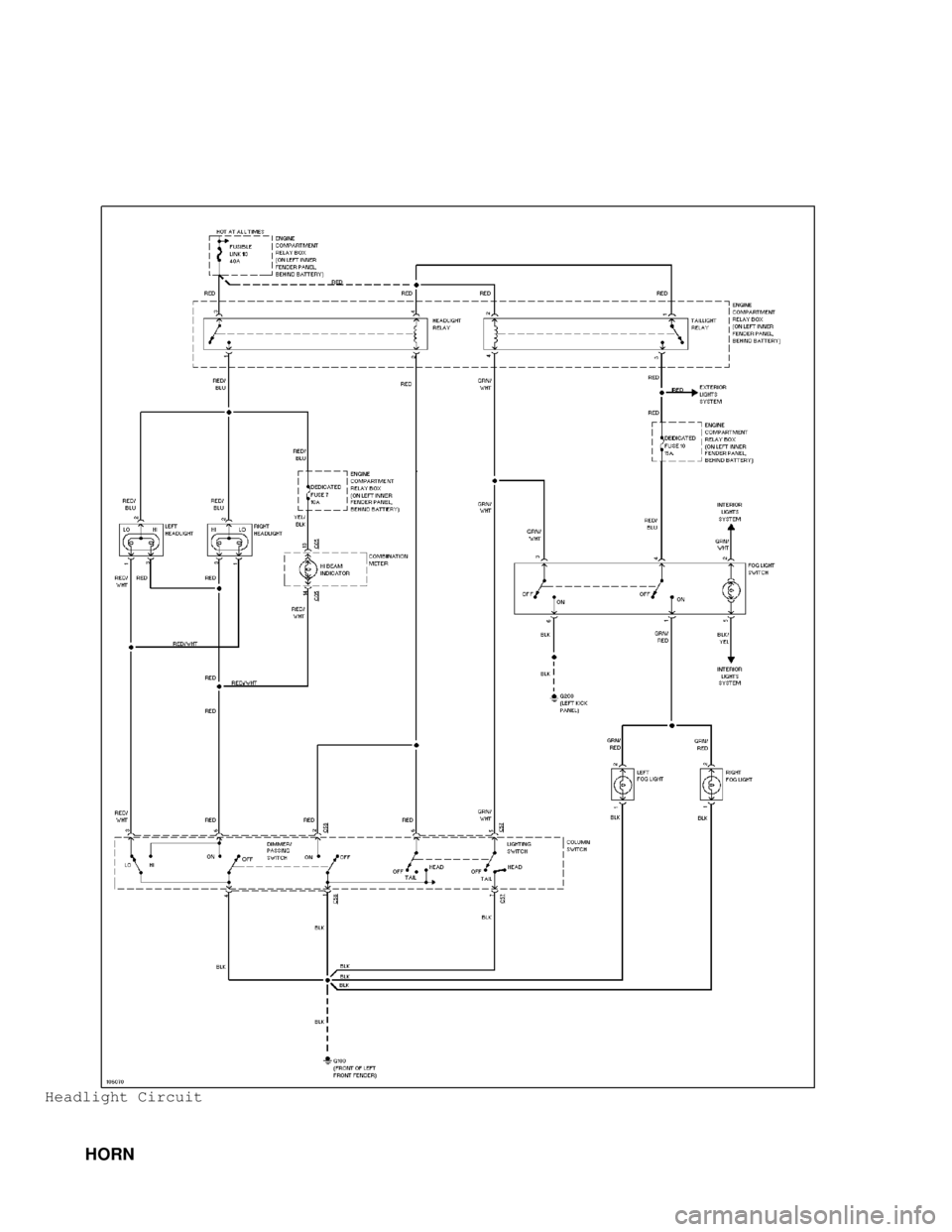

Headlight Circuit
HORN

Headlamp Washer Circuit

Open solenoid pull-in See Testing in STARTER
wire article









\









\









\









\









\









\









\







Starter Does Not Weak battery or dead Charge or replace
Operate and cell battery as necessary
Headlights Dim
Loose or corroded battery Check that battery
connections connections are clean
and tight
Internal ground in See Testing in STARTER
starter windings article
Grounded starter fields See Testing in STARTERS
Armature rubbing on pole See STARTER article
shoes









\









\









\









\









\









\









\







Starter Turns Starter clutch slipping See STARTER article
but Engine
Does Not Rotate
Broken clutch housing See STARTER article
Pinion shaft rusted or See STARTER article
dry
Engine basic timing See Ignition Timing in
incorrect TUNE-UP article
Broken teeth on engine Replace flywheel and
flywheel check for starter pinion
gear damage









\









\









\









\









\









\









\







Starter Will Not Faulty overrunning See STARTER article
Crank Engine clutch
Broken clutch housing See STARTER article
Broken flywheel teeth Replace flywheel and
check for starter pinion
gear damage
Armature shaft sheared See STARTER article
or reduction gear teeth
stripped
Weak battery Charge or replace
battery as necessary
Faulty solenoid See On-Vehicle Tests in
STARTER article
Poor grounds Check all ground
connections for
tight and clean
connections
Ignition switch faulty Adjust or replace
or misadjusted ignition switch as
necessary









\









\









\









\









\









\









\







Starter Cranks Battery weak or Charge or replace
Engine Slowly defective battery as necessary

Water Pump Malfunction Replace Water Pump
Fan Clutch Malfunction Replace Fan Clutch
Retarded Ignition Timing Reset Ignition Timing
Cooling Fan Malfunction Test Cooling Fan/
Circuit
Cooling Fan Motor
Malfunction Test Fan Motor
Cooling Fan Relay
Malfunction Test Fan Relay
Faulty Radiator Cap Replace Radiator Cap
Broken/Slipping Fan Belt Replace Fan Belt
Restricted Exhaust Repair Exhaust System









\









\









\









\









\









\









\







Corrosion Impurities In Coolant Clean/Flush System








\









\









\









\









\









\









\







Coolant Leakage Damaged hose Replace Hose
Leaky Water Pump Replace Water Pump
Damaged Radiator Seam Replace/Repair Radiator
Leaky Thermostat Cover Replace Thermostat
Cover
Cylinder Head Problem Check Head/Head Gasket
Leaky Freeze Plugs Replace Freeze Plugs









\









\









\









\









\









\









\







Recovery System Inoperative
Loose and/or Defective
Radiator Cap Replace Radiator Cap
Overflow Tube Clogged
and/or Leaking Repair Tube
Recovery Bottle Vent
Restricted Clean Vent









\









\









\









\









\









\









\







No Heater Core Flow
Collapsed Heater Hose Replace Heater Hose
Plugged Heater Core Clean/Replace Heater
Core
Faulty Heater Valve Replace Heater Valve









\









\









\









\









\









\









\







GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended
to be specific to any unique situation or individual vehicle
configuration. The purpose of this Trouble Shooting
information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting,
refer to SUBJECT, DIAGNOSTIC, or TESTING articles available

in the section(s) you are accessing.
BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART









\









\









\









\









\









\









\







CONDITION POSSIBLE CAUSE CORRECTION








\









\









\









\









\









\









\







Engine Lopes At Intake manifold-to-head Replace manifold
Idle leaks gasket, See ENGINES
Blown head gasket Replace head gasket,
See ENGINES
Worn timing gears, chain Replace gears, chain or
or sprocket sprocket
Worn camshaft lobes Replace camshaft, See
ENGINES
Overheated engine Check cooling system,
See COOLING
Blocked crankcase vent Remove restriction
valve
Leaking EGR valve Repair leak and/or
replace valve
Faulty fuel pump Replace fuel pump









\









\









\









\









\









\









\







Engine Has Low Leaking fuel pump Repair leak and/or
Power replace fuel pump
Excessive piston-to-bore Install larger pistons,
clearance See ENGINES
Sticking valves or weak Check valve train
valve springs components, See ENGINES
Incorrect valve timing Reset valve timing, See
ENGINES
Worn camshaft lobes Replace camshaft, See
ENGINES
Blown head gasket Replace head gasket.
See ENGINES.
Clutch slipping Adjust pedal and/or
replace components, See
ENGINES
Engine overheating Check cooling system,
See COOLING
Auto. Trans. pressure
regulator valve faulty Replace pressure
regulator valve
Auto. Trans. fluid level Add fluid as necessary
too low
Improper vacuum diverter
valve operation Replace vacuum diverter
valve
Vacuum leaks Inspect vacuum system
and repair as required
Leaking piston rings Replace piston rings,
See ENGINES









\









\









\









\









\









\









\







Faulty High Low fuel pump volume Replace fuel pump
Speed Operation
Leaking valves or worn Replace valves and/or
springs, See ENGINES
Incorrect valve timing Reset valve timing,See
ENGINES
Intake manifold restricted Remove restriction
Worn distributor shaft Replace distributor









\









\









\









\









\









\









\







Faulty Improper fuel pump stroke Remove pump and reset
Acceleration pump stroke

Excessive Oil Worn valve stems or guides Replace stems or
Consumption guides, See ENGINES
Valve "O" ring seals Replace "O" ring seals,
damaged See ENGINES
Plugged oil drain back holes Remove restrictions
Improper PCV valve Replace PCV valve
operation
Engine oil level too high Remove excess oil
Engine oil too thin Replace thicker oil
Valve stem oil deflectors Replace oil deflectors
damaged
Incorrect piston rings Replace piston rings,
See ENGINES
Piston ring gaps not Reinstall piston rings,
staggered See ENGINES
Insufficient piston ring Replace rings, See
tension ENGINES
Piston ring grooves or oil Replace piston rings,
return slots clogged See ENGINES
Piston rings sticking in Replace piston rings,
grooves See ENGINES
Piston ring grooves Replace piston and
excessively worn rings, See ENGINES
Compression rings installed Replace compression
upside down rings correctly, See
ENGINES
Worn or scored cylinder Rebore cylinders or
walls replace block
Mismatched oil ring Replace oil ring
expander and rail expander and rail, See
ENGINES
Intake gasket dowels too Replace intake gasket
long dowels
Excessive main or connecting Replace main or
rod bearing clearance connecting rod
bearings, See ENGINES









\









\









\









\









\









\









\







No Oil Pressure Low oil level Add oil to proper level
Oil pressure sender or Replace sender or gauge
gauge broken
Oil pump malfunction Remove and overhaul oil
pump, See ENGINES
Oil pressure relief valve Remove and reinstall
sticking valve
Oil pump passages blocked Overhaul oil pump, See
ENGINES
Oil pickup screen or tube remove restriction
blocked
Loose oil inlet tube Tighten oil inlet tube
Loose camshaft bearings Replace camshaft
bearings, See ENGINES
Internal leakage at oil Replace block or
passages cylinder head









\









\









\









\









\









\









\







Low Oil Pressure Low engine oil level Add oil to proper level
Engine oil too thin Remove and replace with
thicker oil
Excessive oil pump Reduce oil pump
clearance clearance, See ENGINES
Oil pickup tube or screen Remove restrictions
blocked
Main, rod or cam bearing Replace bearing to
clearance excessive reduce clearance, See

Missing valve lock Install new valve lock
Excessively worn camshaft Replace camshaft, See
lobes ENGINES
Plugged valve lifter oil Eliminate restriction
holes or replace lifter
Faulty valve lifter check Replace lifter check
ball ball, See ENGINES
Rocker arm nut installed Remove and reinstall
upside down correctly
Valve lifter incorrect for Remove and replace
engine valve lifters
Faulty push rod seat or Replace plunger or push
lifter plunger rod









\









\









\









\









\









\









\







Noisy Valves Improper valve lash Re-adjust valve lash,
See ENGINES
Worn or dirty valve lifters Clean and/or replace
lifters
Worn valve guides Replace valve guides,
See ENGINES
Excessive valve seat or Reface seats or valve
face run-out face
Worn camshaft lobes Replace camshaft, See
ENGINES
Loose rocker arm studs Re-tighten rocker arm
studs, See ENGINES
Bent push rods Replace push rods, See
ENGINES
Broken valve springs Replace valve springs,
See ENGINES









\









\









\









\









\









\









\







Burned,Sticking Weak valve springs or Replace valves and/or
or Broken Valves warped valves springs, See ENGINES
Improper lifter clearance Re-adjust clearance or
replace lifters
Worn guides or improper Replace valve guides,
guide clearance See ENGINES
Out-of-round valve seats Re-grind valve seats
or improper seat width
Gum deposits on valve Remove deposits
stems, seats or guides
Improper spark timing Re-adjust spark timing









\









\









\









\









\









\









\







Broken Undersize pistons Replace with larger
Pistons/Rings pistons, See ENGINES
Wrong piston rings Replace with correct
rings, See ENGINES
Out-of-round cylinder bore Re-bore cylinder bore
Improper connecting rod Remove and realign
alignment connecting rods
Excessively worn ring Replace pistons, See
grooves ENGINES
Improperly assembled Re-assemble pin-to
piston pins -piston, See ENGINES
Insufficient ring gap Install new rings, See
clearance ENGINES
Engine overheating Check cooling system
Incorrect ignition timing Re-adjust ignition
timing, See TUNE-UP









\









\









\









\









\









\









\







Excessive Leaks at manifold to Replace manifold or
Exhaust Noise head, or to pipe pipe gasket
Exhaust manifold Replace exhaust

Incorrect injector pump Check pressure, see
housing pressure FUEL SYSTEMS









\









\









\









\









\









\









\







Engine Cooling system leaks Check cooling system
Overheating and repair leaks
Belt slipping or damaged Check tension and/or
replace belt
Thermostat stuck closed Remove and replace
thermostat, see
ENGINE COOLING
Head gasket leaking Replace head gasket









\









\









\









\









\









\









\







Oil Light on at Low oil pump pressure Check oil pump
Idle operation, see ENGINES
Oil cooler or line Remove restriction
restricted and/or replace cooler









\









\









\









\









\









\









\







Engine Won't Injector pump fuel solenoid Remove and check
Shut Off does not return fuel valve solenoid and replace
to OFF position if needed









\









\









\









\









\









\









\







VACUUM PUMP DIAGNOSIS
Excessive Noise Loose pump-to-drive Tighten screws
assembly screws
Loose tube on pump assembly Tighten tube
Valves not functioning Replace valves
properly
Oil Leakage Loose end plug Tighten end plug
Bad seal crimp Remove and re-crimp
seal









\









\









\









\









\









\









\







FUEL INJECTION TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended
to be specific to any unique situation or individual vehicle
configuration. The purpose of this Trouble Shooting
information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting,
refer to SUBJECT, DIAGNOSTIC, or TESTING articles available
in the section(s) you are accessing.
BASIC FUEL INJECTION TROUBLE SHOOTING CHART









\









\









\









\









\









\









\







CONDITION POSSIBLE CAUSE CORRECTION








\









\









\









\









\









\









\







Engine Won't Cold start valve inoperative Test valve and
Start (Cranks circuit
Normally)
Poor connection;vacuum or Check vacuum and
wiring electrical
connections
Contaminated fuel Test fuel for water
or alcohol
Defective fuel pump relay Test relay and
or circuit wiring
Battery too low Charge and test
battery
