7A±41 AUTOMATIC TRANSMISSION (4L30±E)

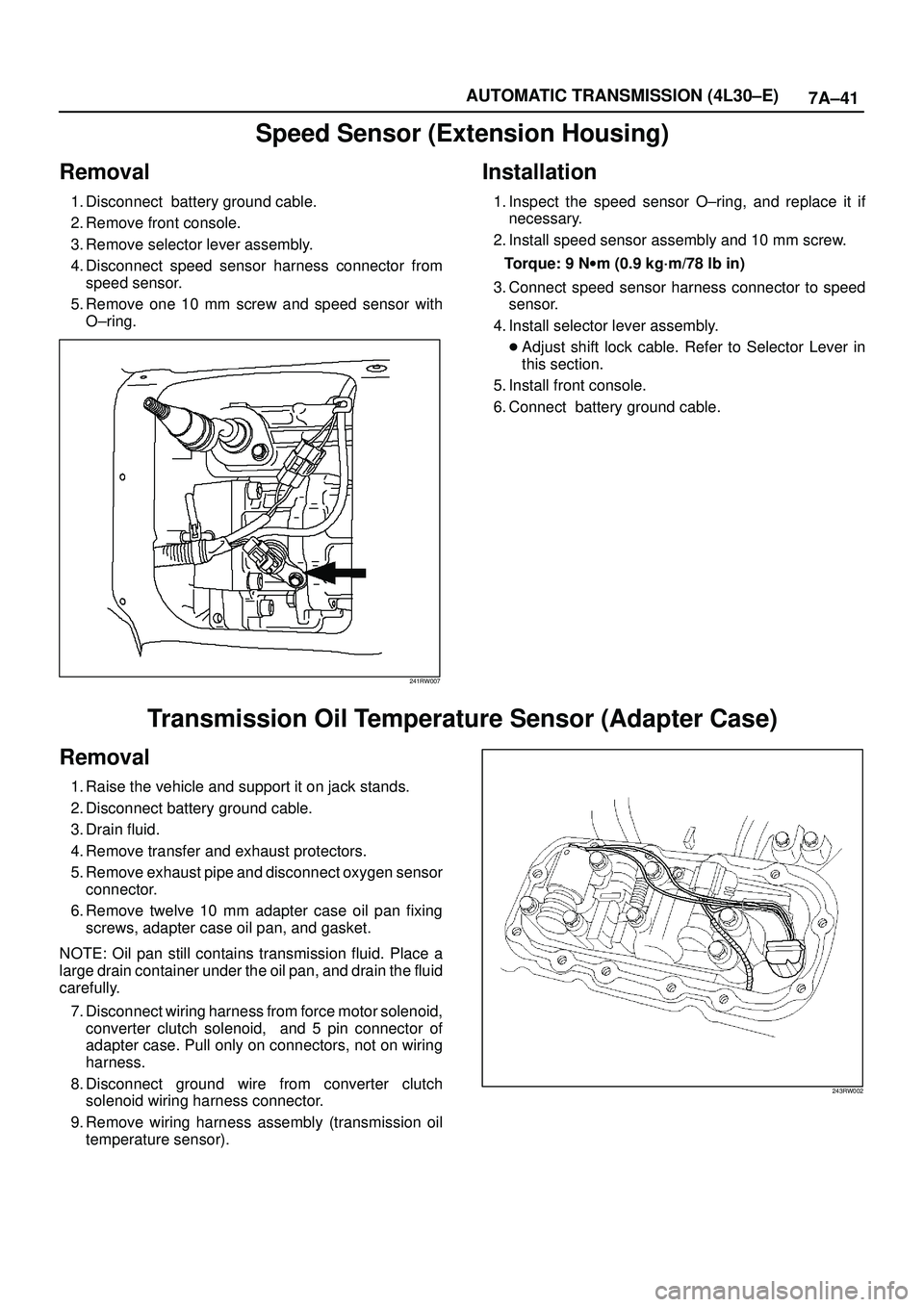

Speed Sensor (Extension Housing)
Removal
1. Disconnect battery ground cable.
2. Remove front console.
3. Remove selector lever assembly.
4. Disconnect speed sensor harness connector from
speed sensor.
5. Remove one 10 mm screw and speed sensor with
O±ring.
241RW007
Installation
1. Inspect the speed sensor O±ring, and replace it if
necessary.
2. Install speed sensor assembly and 10 mm screw.
Torque: 9 Nwm (0.9 kg´m/78 lb in)
3. Connect speed sensor harness connector to speed
sensor.
4. Install selector lever assembly.

Adjust shift lock cable. Refer to Selector Lever in
this section.
5. Install front console.
6. Connect battery ground cable.
Transmission Oil Temperature Sensor (Adapter Case)
Removal
1. Raise the vehicle and support it on jack stands.
2. Disconnect battery ground cable.
3. Drain fluid.
4. Remove transfer and exhaust protectors.
5. Remove exhaust pipe and disconnect oxygen sensor
connector.
6. Remove twelve 10 mm adapter case oil pan fixing
screws, adapter case oil pan, and gasket.
NOTE: Oil pan still contains transmission fluid. Place a
large drain container under the oil pan, and drain the fluid
carefully.
7. Disconnect wiring harness from force motor solenoid,
converter clutch solenoid, and 5 pin connector of
adapter case. Pull only on connectors, not on wiring
harness.
8. Disconnect ground wire from converter clutch
solenoid wiring harness connector.
9. Remove wiring harness assembly (transmission oil
temperature sensor).
243RW002

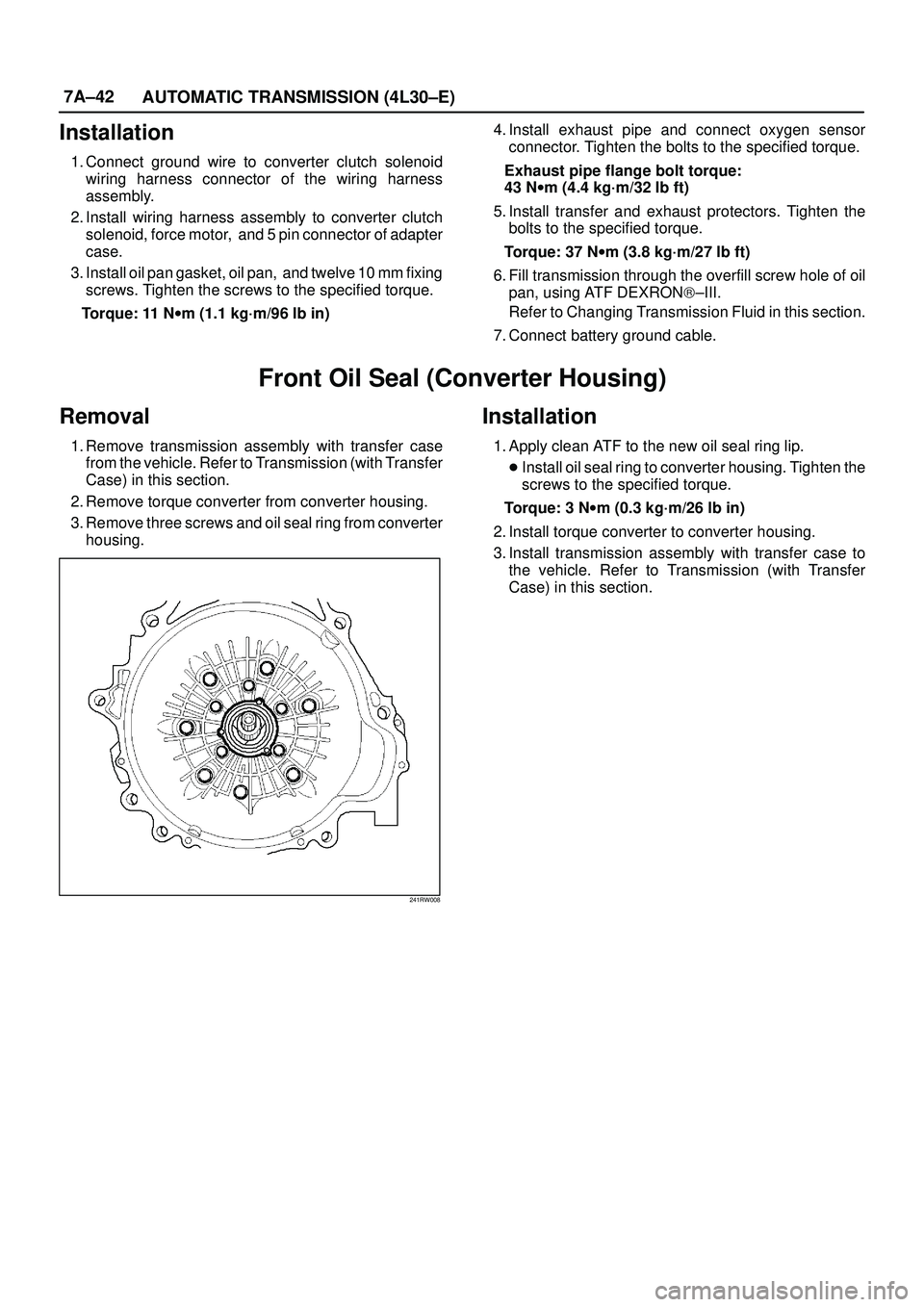

7A±42
AUTOMATIC TRANSMISSION (4L30±E)
Installation
1. Connect ground wire to converter clutch solenoid
wiring harness connector of the wiring harness
assembly.
2. Install wiring harness assembly to converter clutch
solenoid, force motor, and 5 pin connector of adapter
case.
3. Install oil pan gasket, oil pan, and twelve 10 mm fixing
screws. Tighten the screws to the specified torque.
Torque: 11 Nwm (1.1 kg´m/96 lb in)4. Install exhaust pipe and connect oxygen sensor
connector. Tighten the bolts to the specified torque.
Exhaust pipe flange bolt torque:
43 Nwm (4.4 kg´m/32 lb ft)
5. Install transfer and exhaust protectors. Tighten the
bolts to the specified torque.
Torque: 37 Nwm (3.8 kg´m/27 lb ft)
6. Fill transmission through the overfill screw hole of oil
pan, using ATF DEXRON)±III.
Refer to Changing Transmission Fluid in this section.
7. Connect battery ground cable.
Front Oil Seal (Converter Housing)
Removal
1. Remove transmission assembly with transfer case
from the vehicle. Refer to Transmission (with Transfer
Case) in this section.
2. Remove torque converter from converter housing.
3. Remove three screws and oil seal ring from converter
housing.
241RW008
Installation
1. Apply clean ATF to the new oil seal ring lip.

Install oil seal ring to converter housing. Tighten the
screws to the specified torque.
Torque: 3 Nwm (0.3 kg´m/26 lb in)
2. Install torque converter to converter housing.
3. Install transmission assembly with transfer case to
the vehicle. Refer to Transmission (with Transfer
Case) in this section.

7A±45 AUTOMATIC TRANSMISSION (4L30±E)
242RW006

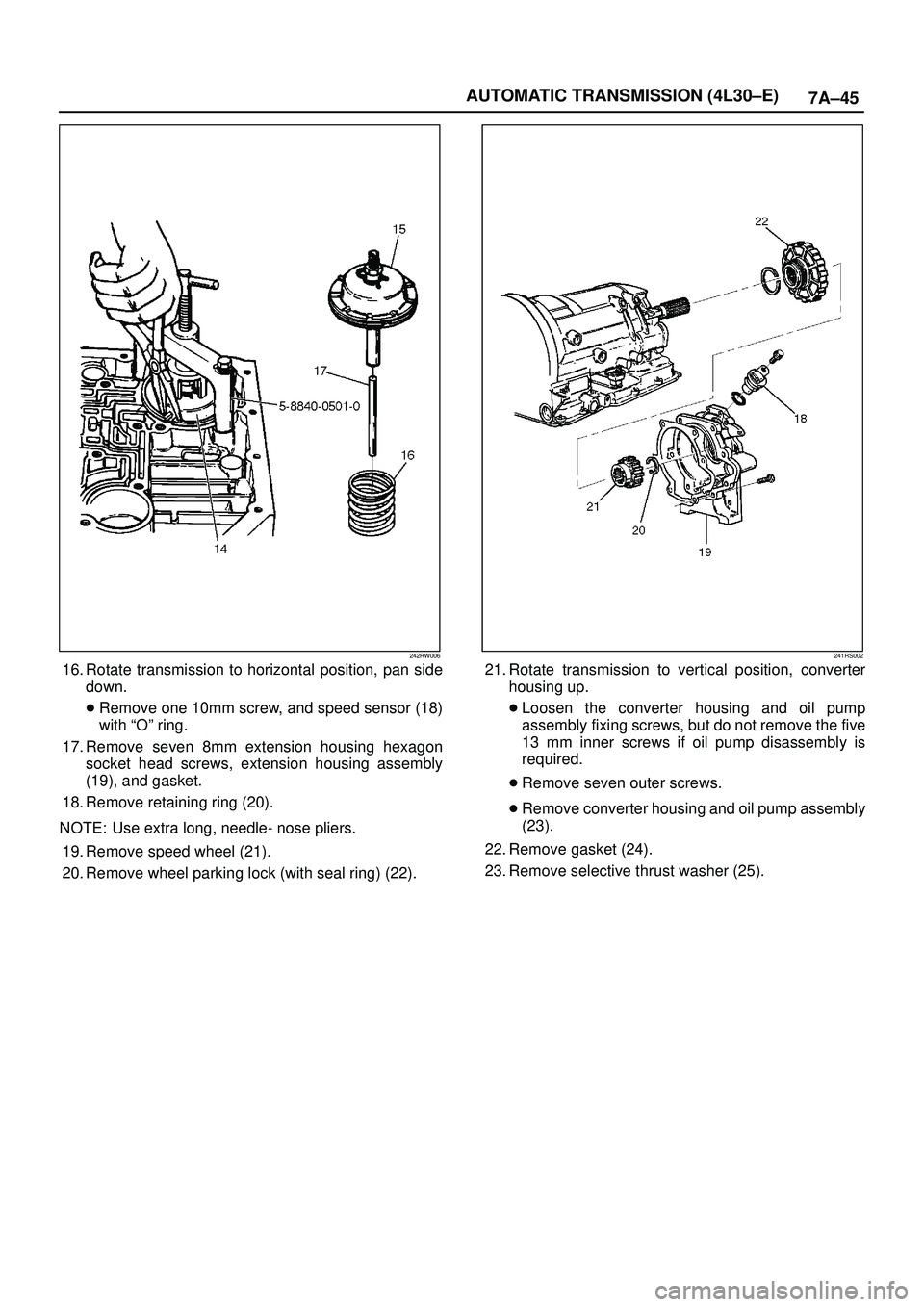

16. Rotate transmission to horizontal position, pan side
down.

Remove one 10mm screw, and speed sensor (18)
with ªOº ring.
17. Remove seven 8mm extension housing hexagon
socket head screws, extension housing assembly
(19), and gasket.
18. Remove retaining ring (20).
NOTE: Use extra long, needle- nose pliers.
19. Remove speed wheel (21).
20. Remove wheel parking lock (with seal ring) (22).
241RS002
21. Rotate transmission to vertical position, converter
housing up.

Loosen the converter housing and oil pump
assembly fixing screws, but do not remove the five
13 mm inner screws if oil pump disassembly is
required.

Remove seven outer screws.

Remove converter housing and oil pump assembly
(23).
22. Remove gasket (24).
23. Remove selective thrust washer (25).

7A±53 AUTOMATIC TRANSMISSION (4L30±E)

Ensure free rotation of pump using 5±8840±2273±0
(J±23082±01) oil pump rotation tool.
241RW010
38. Overdrive clutch end play measurement.
1. Fit 5±8840±2271±0 (J±25022) and
5±8840±0618±0 (J±24773±1) turbine shaft puller
on turbine shaft.
2. Position axial play checking tool on converter
housing mating face.
3. Pull turbine shaft upwards with puller until first
resistance is met. (due to weight of overdrive
assembly).
4. Maintain shaft in this position and set indicator to
zero.
5. Pull turbine shaft further upwards with puller.
Read end play shown on indicator.
End play: 0.1mm ± 0.8mm (0.004 in ± 0.031in)6. Remove axial play checking tool and puller.
NOTE: If end play is not correct, repeat selective washer
selection.
252RW010
39. Inspect extension housing oil seal and replace if
necessary, using 5±8840±2282±0 (J±36797)
extension housing oil seal installer.

Rotate transmission to horizontal position, with
valve body side down.

Inspect parking wheel seal ring. Replace if
necessary.

Install wheel parking lock assembly (35).
40. Install speed wheel (36) and snap ring (37).
NOTE: Use extra long, needle-nose pliers.
41. Install gasket onto extension assembly with a thin
coating of oil.

Install extension housing assembly (38), and align
parking pawl shaft.

Install actuator assembly into extension assembly.

Install seven 8 mm hexagon socket head screws.
Torque: 32 Nwm (3.3 kg´m/24 lb ft)
42. Inspect speed sensor O±ring. Replace if necessary.

Install speed sensor assembly (39) and 10 mm
screw.
Torque: 9 Nwm (0.9 kg´m/78 lb in)

7A±85 AUTOMATIC TRANSMISSION (4L30±E)
(38) Seal, O±Ring
(39) Reservoir
(42) Gasket, Extension Case
(43) Extension Assembly
(44) Seal, O±Ring/Speed Sensor
(45) Sensor Assembly, Speed
(46) Screw, Speed Sensor
(50) Seal, Extension Assembly
(52) Screw, Extension/Main Case
(53) Spring, Parking Pawl Lock
(54) Pawl, Parking Lock
(55) Connector, Electrical/Main Case
(56) Actuator Assembly, Parking Lock
(57) Nut, Parking Lock Lever
(58) Link, Manual Valve
(59) Pin, Spring
(60) Lever, Parking Lock and Range Selector
(61) Shaft, Selector
(62) Seal, Selector Shaft
(63) Mode Switch Assembly
(64) Screw and Conical Washer Assembly
(65) Shield, Mode Switch
(67) Pan, Bottom/Adapter Case
(68) Gasket, Bottom Pan/Adapter Case
(69) Harness Assembly, Adapter Case
(70) Screw, Valve Body
(71) Valve Body Assembly, Adapter Case
(72) Gasket, Adapter Valve Body
(73) Plate, Adapter Valve Body/Transfer
(74) Pan, Bottom/Main Case(75) Gasket, Bottom Pan/Main Case
(76) Gasket, Oil Drain or Overfill Screw
(77) Screw, Oil Drain or Overfill
(78) Magnet, Chip Collector
(79) Filter Oil
(80) Harness Assembly, Main Case
(82) Roller and Spring Assembly, Manual Detent
(84) Valve Body Assembly, Main Case
(85) Ball, Check
(86) Gasket, Main V.B./Transfer Plate
(87) Plate, Main V.B./Transfer
(88) Gasket, Transfer/Main Case
(89) Screw, Transfer Plate on V.B.
(90) Screw, Servo Cover
(91) Cover, Servo Piston
(92) Gasket, Cover/Servo Piston
(93) Ring, Retaining Servo Piston
(94) Clip, Servo Piston
(95) Nut, Servo Screw
(96) Screw, Servo Piston
(97) Piston, Servo
(98) Seal, Ring/Servo Piston
(99) Spring, Cushion/Servo Piston
(100) Seat, Cushion Spring
(101) Sleeve, Servo Piston Adjust
(102) Rod, Apply/Servo Piston
(103) Spring, Return/Servo Piston
(104) Gasket, Adapter Case/Transfer Plate
(105) Powertrain Control Module
(106) Servo Piston Assembly

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±1
TRANSMISSION
TRANSMISSION CONTROL SYSTEM (4L30±E)
CONTENTS
Service Precaution 7A1±2. . . . . . . . . . . . . . . . . . . . . .
General Description 7A1±2. . . . . . . . . . . . . . . . . . . . .
Shift Control 7A1±6. . . . . . . . . . . . . . . . . . . . . . . . . .
Band Apply Control 7A1±6. . . . . . . . . . . . . . . . . . . .
Torque Converter Clutch Control 7A1±6. . . . . . . . .
Line Pressure Control 7A1±6. . . . . . . . . . . . . . . . . .
On±Board Diagnostic System 7A1±6. . . . . . . . . . .
Fail Safe Mechanism 7A1±6. . . . . . . . . . . . . . . . . . .
Torque Management Control 7A1±6. . . . . . . . . . . .
ATF Warning Control 7A1±6. . . . . . . . . . . . . . . . . . .
ABS Control (If equipped) 7A1±6. . . . . . . . . . . . . .
Winter Drive Mode 7A1±9. . . . . . . . . . . . . . . . . . . . .
Backup Mode 7A1±9. . . . . . . . . . . . . . . . . . . . . . . . .
Functions of Input / Output Components 7A1±10. .
Diagnosis 7A1±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Check Trans Indicator 7A1±11. . . . . . . . . . . . . . . . . .
Diagnostic Check 7A1±11. . . . . . . . . . . . . . . . . . . . . .
ªCheck Transº Check 7A1±12. . . . . . . . . . . . . . . . . .
Tech2 OBD II Connection 7A1±13. . . . . . . . . . . . . . .
OBD II Diagnostic Management System 7A1±18. .
16 ± Terminal Data Link Connector (DLC) 7A1±19.
Malfunction Indicator Lamp (MIL) 7A1±20. . . . . . . .
Types Of Diagnostic Trouble Codes
(DTCs) 7A1±20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clear DTC 7A1±20. . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC Check 7A1±21. . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Precaution 7A1±21. . . . . . . . . . . . . . . . . . . . . . .
Information On PCM 7A1±21. . . . . . . . . . . . . . . . . . .
Intermittent Conditions 7A1±21. . . . . . . . . . . . . . . . .
Transmission And PCM Identification 7A1±22. . . . .
Diagnostic Trouble Code (DTC)
Identification 7A1±24. . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0218 Transmission Fluid Over
Temperature 7A1±25. . . . . . . . . . . . . . . . . . . . . . . . . . . Conditions For Setting The DTC 7A1±25. . . . . . . . .
Action Taken When The DTC Sets 7A1±25. . . . . . .
Conditions For Clearing The DTC 7A1±25. . . . . . . .
Diagnostic Aids 7A1±25. . . . . . . . . . . . . . . . . . . . . . . .
Test Description 7A1±25. . . . . . . . . . . . . . . . . . . . . . .
DTC P0560 System Voltage Malfunction 7A1±27. . .
DTC P0705 Transmission Range Switch
(Mode Switch) Illegal Position 7A1±30. . . . . . . . . . . .
DTC P0706 Transmission Range Switch
(Mode Switch) Performance 7A1±33. . . . . . . . . . . . . .
DTC P0712 Transmission Fluid Temperature
(TFT) Sensor Circuit Low Input 7A1±36. . . . . . . . . . .
DTC P0713 Transmission Fluid Temperature
(TFT) Sensor Circuit High Input 7A1±39. . . . . . . . . . .
DTC P0719 TCC Brake Switch Circuit High
(Stuck On) 7A1±42. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0722 Transmission Output Speed
Sensor (OSS) Low Input 7A1±45. . . . . . . . . . . . . . . . .
DTC P0723 Transmission Output Speed
Sensor (OSS) Intermittent 7A1±48. . . . . . . . . . . . . . .
DTC P0730 Transmission Incorrect
Gear Ratio 7A1±51. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0748 Pressure Control Solenoid
(PCS) (Force Motor) Circuit Electrical 7A1±54. . . . .
DTC P0753 Shift Solenoid A Electrical 7A1±56. . . . .
DTC P0758 Shift Solenoid B Electrical 7A1±59. . . . .
DTC P1790 ROM Transmission Side Bad
Check Sum 7A1±63. . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P1792 EEPROM Transmission Side
Bad Check Sum 7A1±64. . . . . . . . . . . . . . . . . . . . . . . .
DTC P1835 Kickdown Switch Always On 7A1±65. . .
DTC P1850 Brake Band Apply Solenoid
Malfunction 7A1±67. . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P1860 TCC Solenoid Electrical 7A1±71. . . . . . .

7A1±2
TRANSMISSION CONTROL SYSTEM (4L30±E)
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
General Description
The 4L30±E is a 4±speed fully automatic transmission. It
uses a microcomputer as a control unit to judge running
conditions including throttle opening rate and vehicle
speed, then it sets the shifting point in the optimum timing
so that best driving performance can be achieved.
In addition, the built±in shift mode select function can
select three shift modes according to the driver's
preference:

Normal mode ±Normal shift pattern.

Winter mode ±Starts in 3rd gear to reduce slippage on
ice or snow.

Power mode has a delayed upshift for when more
powerful acceleration is required.
Also, the built±in fail safe function (ªbackup modeº)
assures driving performance even if the vehicle speed
sensor, throttle signal or any solenoid fails.
Further, the self±diagnostic function conducts diagnosis
in a short time when the control system fails, thus
improving serviceability.
The major features of 4L30±E are as follows:

A compact structure consisting of 2 sets of planetary
gears and flat torque converter.

Electronic control selects the optimum shift mode
according to the driving conditions.

Electronic control maintains the optimum hydraulic
pressure for clutch, band brake as well as
transmission so that shift feeling is improved.

Two sets of planetary gears reduce friction of power
train.
Also, a lockup mechanism in the torque converter
reduces fuel consumption.

Wide gear ratio and high torque rate of torque
converter provide excellent starting performance.

7A1±6
TRANSMISSION CONTROL SYSTEM (4L30±E)
Shift Control
The transmission gear is shifted according to the shift
pattern selected by the driver. In shifting gears, the gear
ratio is controlled by the ON/ OFF signal using the shift
solenoid A and the shift solenoid B.
Band Apply Control
The band apply is controlled when in the 3±2 downshift
(engine overrun prevention) and the garage shift (shock
control).
The band apply solenoid is controlled by the signal from
the Pulse Width Modulation (PWM) to regulate the flow of
the oil.
Torque Converter Clutch Control
The clutch ON/OFF is controlled by moving the converter
clutch valve through shifting Torque Converter Clutch
(TCC) solenoid using the ON/OFF signal.
Line Pressure Control
The throttle signal allows the current signal to be sent to
the force motor. After receiving the current signal, the
force motor activates the pressure regulator valve to
regulate the line pressure.
On±Board Diagnostic System
Several malfunction displays can be stored in the
Powertrain Control Module (PCM) memory, and read out
of it afterward.The serial data lines, which are required for the testing of
the final assembly and the coupling to other electronic
modules, can be regulated by this function.
Fail Safe Mechanism
If there is a problem in the transmission system, the PCM
will go into a ªbackupº mode.
The vehicle can still be driven, but the driver must use the
select lever to shift gears.
Torque Management Control
The transmission control side sends the absolute spark
advance signal to the engine control side while the
transmission is being shifted. This controls the engine
spark timing in compliance with the vehicle running
condition to reduce the shocks caused by the change of
speed.
ATF Warning Control
The oil temperature sensor detects the ATF oil
temperature to control the oil temperature warning, TCC,
and the winter mode.
ABS Control (If equipped)
When the select lever is at ªLº or ªRº range, a signal is sent
to the ABS controller as one of the ABS control
conditions.
