WIRING SYSTEM 8D – 443
Parts Location (LHD W/O T.O.D 6V*1)
Legend
(1) L-5
(2) I-10
(3) I-9
(4) F-5
(5) H-7, H-8, H-9, H-24, H-25, H-26, H-62
(6) H-46
(7) B-26
(8) B-62
(9) Fuse Box
(10) C-15
(11) B-18
(12) C-16
(13) H-33(14) H-6
(15) E-2
(16) H-10
(17) E-1
(18) C-9
(19) E-19
(20) B-6, B-7 (Alarm and Relay Control Unit)
(21) H-42
(22) Relay and Fuse Box
(23) B-1, B-2
(24) H-16, H-21, H-48
(25) C-39
(26) M-10
(27) B-27
D08RW930
123
4
5
6
7
8
9
10
11
12
13
141516
1718
19
20
21
22
23
24
25
26
27

8D – 444 WIRING SYSTEM
Parts Location (LHD 4JG2)
Legend
(1) L-5
(2) I-10
(3) I-9
(4) F-5
(5) B-27
(6) C-15
(7) H-33
(8) R-4
(9) H-7, H-9, H-24, H-25, H-62
(10) B-26
(11) C-16
(12) H-46
(13) Fuse Box
(14) B-18(15) C-68
(16) B-62
(17) H-4, H-5
(18) C-67
(19) E-36
(20) C-9
(21) E-19
(22) B-6, B-7 (Alarm and Relay Control Unit)
(23) B-1, B-2
(24) Relay and Fuse Box
(25) C-39
(26) H-12, H-14, H-16, H-21, H-48
(27) E-2
(28) E-20
D08RW897
123
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2021
22
23
24
25
26
27
28

WIRING SYSTEM 8DÐ445
Diagnosis
1. Speedometer
1-1. Speedometer and Odometer Do Not Function
·DOES THE CAR SPEED SENSOR OUTPUT IN
4 PULSES/1 ROTATION?
YES
·ARE THE CIRCUITS BETWEEN THE VEHICLE SPEED
SENSOR AND THE METER, AND THE FUSE C-10
(10 A) AND THE GROUND NORMAL?
YES
REPLACE THE VEHICLE SPEED SENSOR
NO
REPAIR A POOR CONNECTION AT THE CONNECTORS
OR AN OPEN CIRCUIT IN THE CIRCUIT
NO
REPLACE THE METER ASSEMBLY
1-2. Speedometer Does Not Function (Odometer is Normal)
REPLACE THE METER ASSEMBLY
1-3. Odometer Does Not Function (Speedometer is Normal)
REPLACE THE METER ASSEMBLY

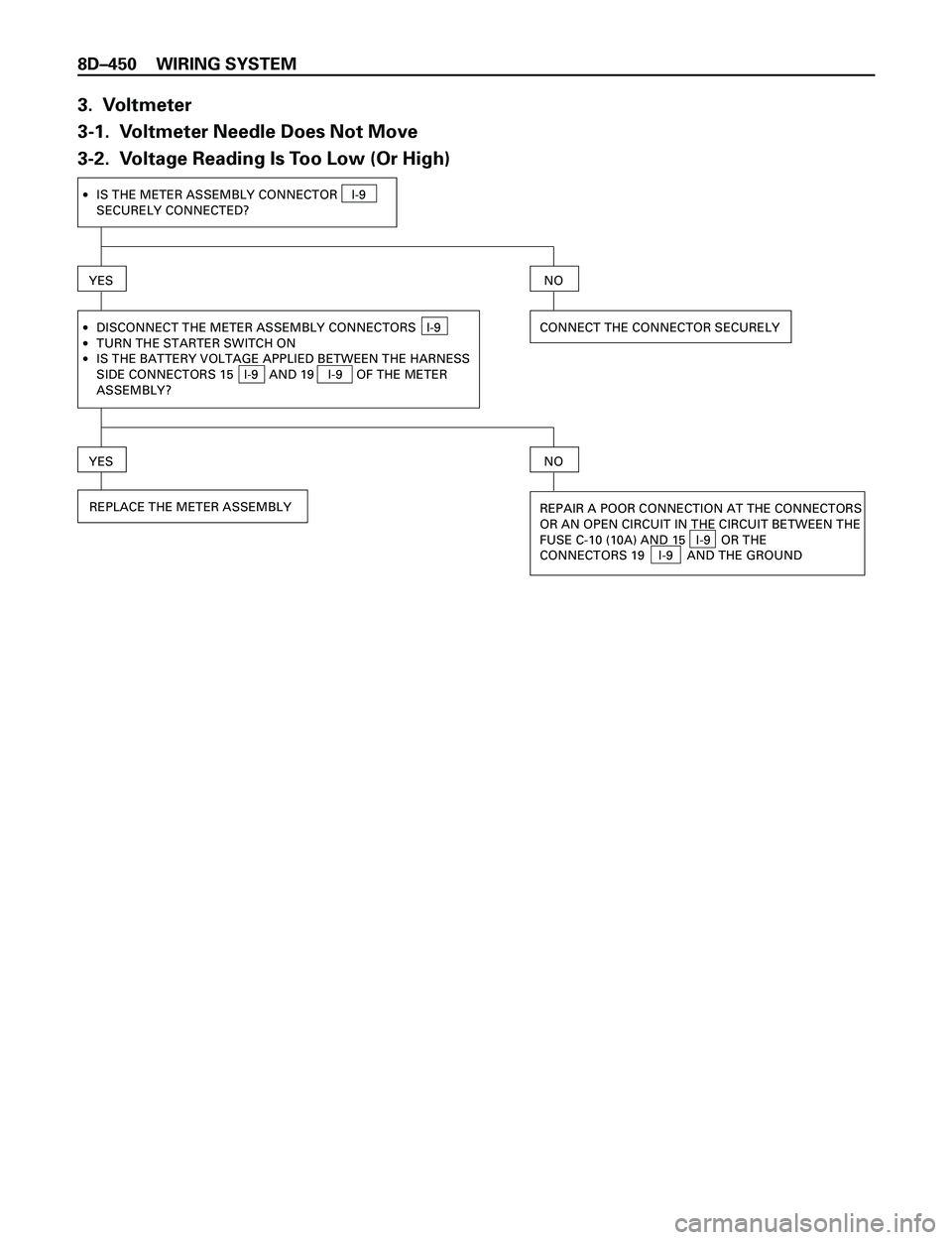

8DÐ450 WIRING SYSTEM
3. Voltmeter
3-1. Voltmeter Needle Does Not Move
3-2. Voltage Reading Is Too Low (Or High)
·IS THE METER ASSEMBLY CONNECTOR I-9
SECURELY CONNECTED?
YES
·
·
·DISCONNECT THE METER ASSEMBLY CONNECTORS I-9
TURN THE STARTER SWITCH ON
IS THE BATTERY VOLTAGE APPLIED BETWEEN THE HARNESS
SIDE CONNECTORS 15 I-9 AND 19 I-9 OF THE METER
ASSEMBLY?
YES
CONNECT THE CONNECTOR SECURELY
NO
REPAIR A POOR CONNECTION AT THE CONNECTORS
OR AN OPEN CIRCUIT IN THE CIRCUIT BETWEEN THE
FUSE C-10 (10A) AND 15 I-9 OR THE
CONNECTORS 19 I-9 AND THE GROUND
NO
REPLACE THE METER ASSEMBLY

WIRING SYSTEM 8D Ð 467

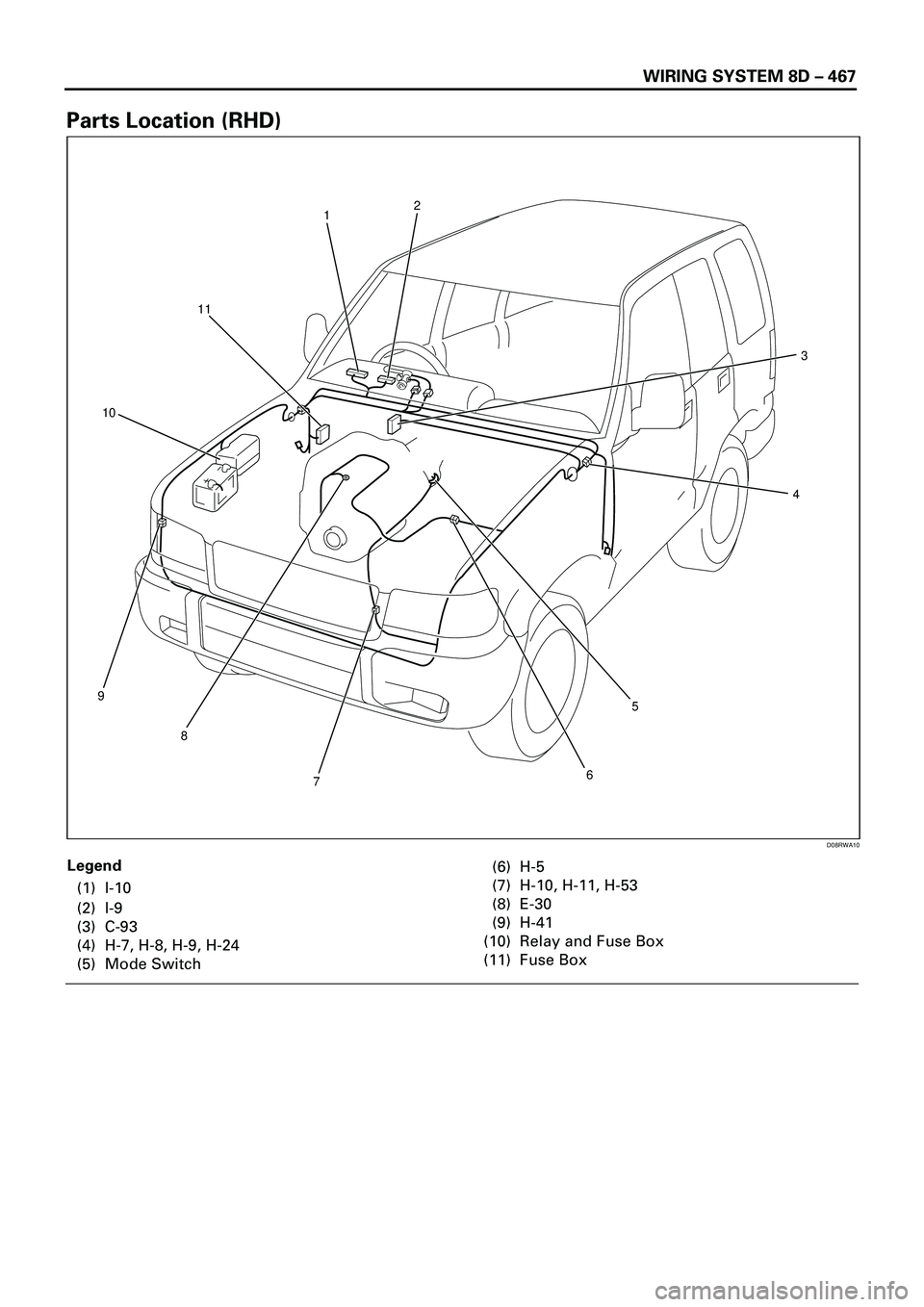

Parts Location (RHD)
Legend
(1) I-10
(2) I-9
(3) C-93
(4) H-7, H-8, H-9, H-24
(5) Mode Switch(6) H-5
(7) H-10, H-11, H-53
(8) E-30
(9) H-41
(10) Relay and Fuse Box
(11) Fuse Box
D08RWA10
5
3
4
67
9
10
11
12
8

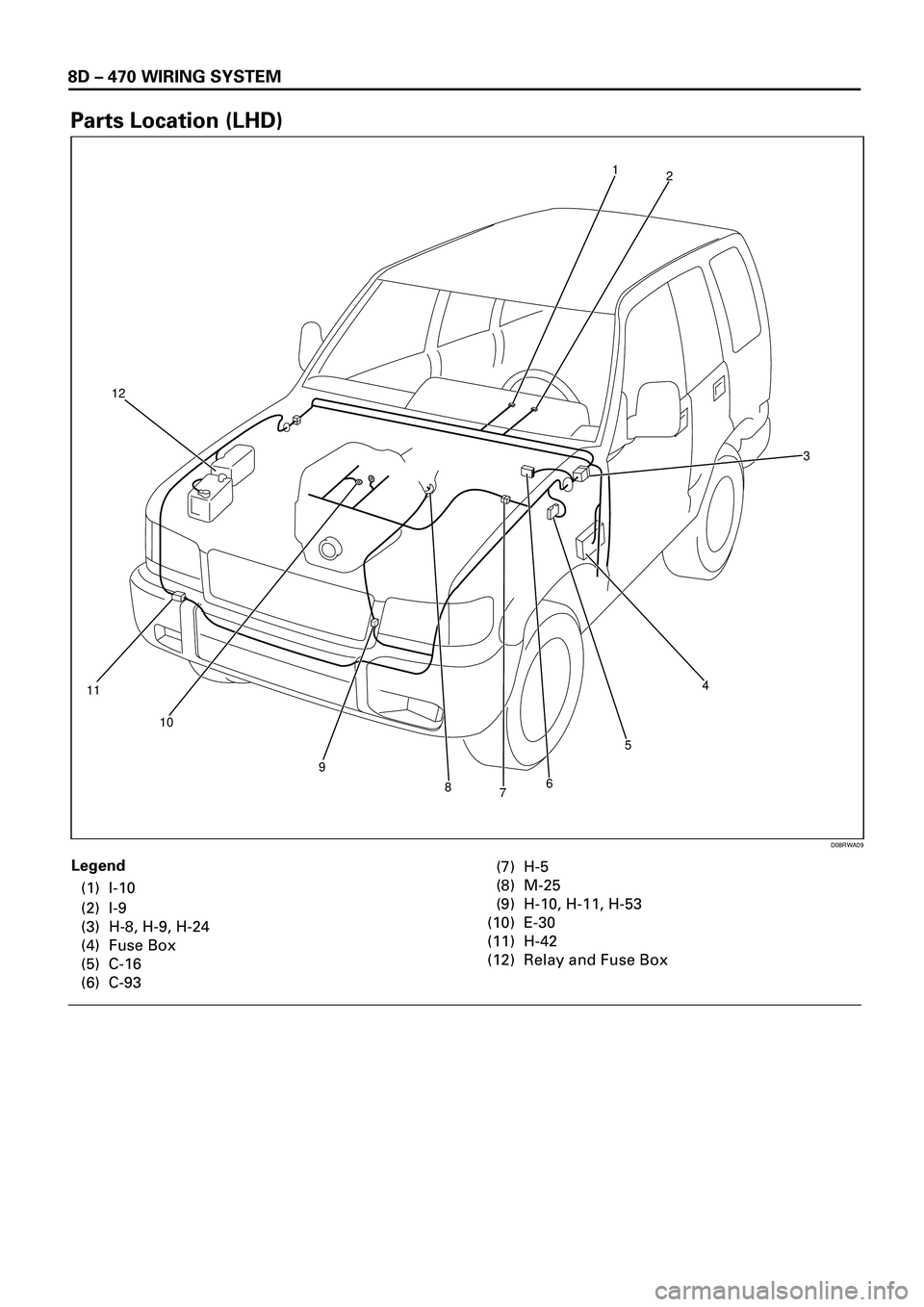

8D Ð 470 WIRING SYSTEM
Parts Location (LHD)
Legend
(1) I-10
(2) I-9
(3) H-8, H-9, H-24
(4) Fuse Box
(5) C-16
(6) C-93(7) H-5
(8) M-25
(9) H-10, H-11, H-53
(10) E-30
(11) H-42
(12) Relay and Fuse Box
D08RWA09
2 1
3
4
5
6
8 9 1112
7
10

8D – 474 WIRING SYSTEM
Parts Location (RHD 6VD1)
Legend
(1) I-23
(2) I-18
(3) Blower Resistor (I-41)
(4) Electronic Thermostat (I-42)
(5) H-50
(6) R-3
(7) H-7, H-20, H-24
(8) H-31
(9) B-1
(10) Blower Motor (B-5)(11) X-4
(12) E-3
(13) C-25
(14) H-51
(15) B-19
(16) C-75
(17) H-41, H-42
(18) Relay and Fuse Box (X-5, X-6, X-7, X-19)
(19) C-39
(20) H-13, H-14, H-15, H-16, H-24
(21) Fuse Box (B-36)
D08RWA15
6 5
7
8
9
10
11121314
1617
18
19
20
21
123
4
15

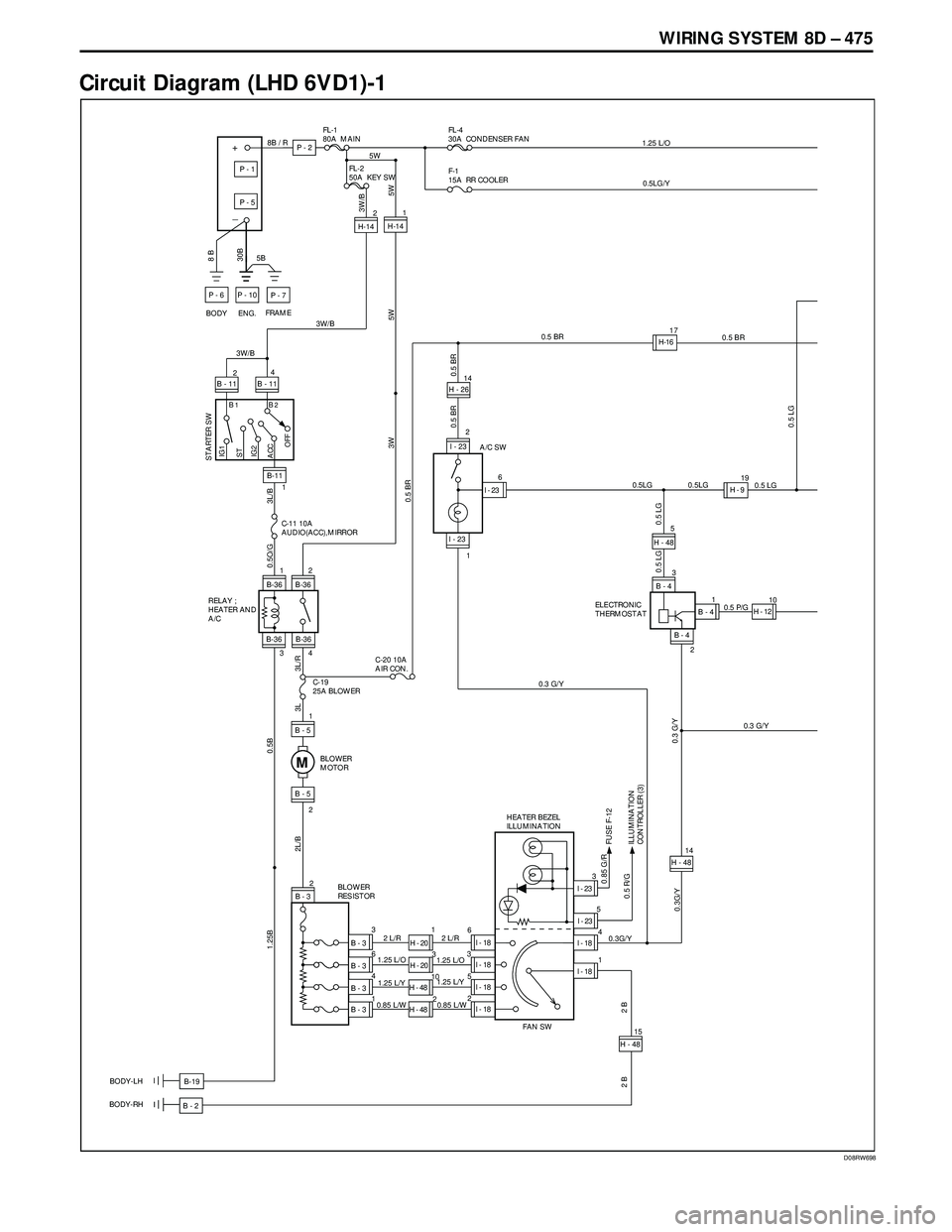

WIRING SYSTEM 8D – 475
Circuit Diagram (LHD 6VD1)-1
D08RW698
0.5 LG
H - 2614
B - 2 BODY-LH
BODY-RH
FRAME
ENG.5B
BODY
8B / R
8 B
+
_
P - 6
30B
P - 1
P - 5
P - 10
P - 7
P - 2
FL-1
80A MAIN
I - 232
I - 23
I - 236
1A/C SW
BLOWER
MOTOR
0.3 G/Y
B - 4 B - 4
B - 41 3
2 H - 48
10 5
0.5 LG
0.5LG
H-141
5W
B-190.5 BR
B
OFF ST
IG2
ACCSTARTER SWIG1
B2 1
4
2
5WFL-2
50A KEY SW
H-142
3W/B
B-11
0.5 BR
0.5 P/GH - 919
H-1617
H - 12 0.5LG
0.5 LG
0.5 LG
0.3G/Y
H - 4814
2 L/R
B - 3
H - 20
H - 20
H - 48
H - 48I - 18
I - 18
I - 18
I - 18 1.25 L/O
1.25 L/Y
0.85 L/W1.25 L/O
1.25 L/Y 31
36
5
2 3
10
2 4
1 6
FAN SW HEATER BEZEL
ILLUMINATION
I - 23 I - 23
I - 18
I - 183
5
4
10.5 R/G0.85 G/R
ILLUMINATION
CONTROLLER (3) FUSE F-12
H - 4815
2 B
2
0.85 L/W2 L/RBLOWER
RESISTOR
B - 3
B - 3
B - 3
B - 3
2L/B
2 B
0.3G/Y1.25B
M
B - 51
2
C-11 10A
AUDIO(ACC),MIRROR
B - 5
B-361
B-36
B-36 B-362
34
3L/B
0.5O/G
3L/R 3LC-19
25A BLOWER
0.5B
ELECTRONIC
THERMOSTAT
5W 3W
3W/B
3W/B
0.3 G/Y
1
RELAY ;
HEATER AND
A/C
C-20 10A
AIR CON.
0.5 BR
0.5 BR
0.5 BR
B - 11B - 11
FL-4
30A CONDENSER FAN
F-1
15A RR COOLER1.25 L/O
0.5LG/Y
0.3 G/Y
