5. Install lower valve spring seat, valve spring and upper
valve spring seat then put split collars on the upper
spring seat, using the 5±8840±2446±0 valve spring
compressor and 5±8840±2547±0 valve spring
compressor adapter to install the split collars.
014RW042
6. Install tappet with shim.
7. Install camshaft assembly.

Refer to installation procedure for Camshaft in this
manual.

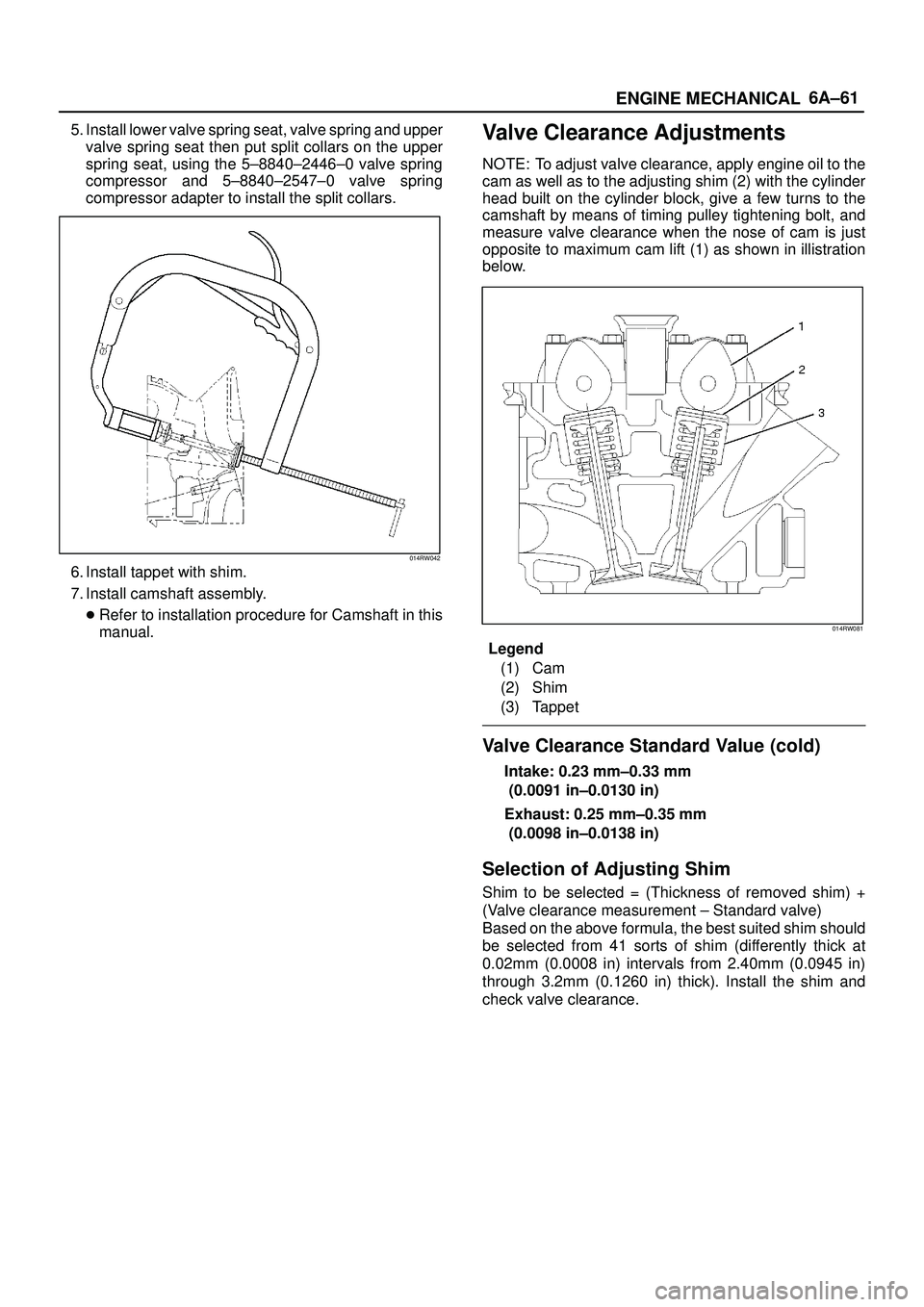

Valve Clearance Adjustments
NOTE: To adjust valve clearance, apply engine oil to the
cam as well as to the adjusting shim (2) with the cylinder
head built on the cylinder block, give a few turns to the
camshaft by means of timing pulley tightening bolt, and
measure valve clearance when the nose of cam is just
opposite to maximum cam lift (1) as shown in illistration
below.
014RW081
Legend
(1) Cam
(2) Shim
(3) Tappet
Valve Clearance Standard Value (cold)
Intake: 0.23 mm±0.33 mm
(0.0091 in±0.0130 in)
Exhaust: 0.25 mm±0.35 mm
(0.0098 in±0.0138 in)
Selection of Adjusting Shim
Shim to be selected = (Thickness of removed shim) +
(Valve clearance measurement ± Standard valve)
Based on the above formula, the best suited shim should
be selected from 41 sorts of shim (differently thick at
0.02mm (0.0008 in) intervals from 2.40mm (0.0945 in)
through 3.2mm (0.1260 in) thick). Install the shim and
check valve clearance.

6A±63
ENGINE MECHANICAL
Camshaft

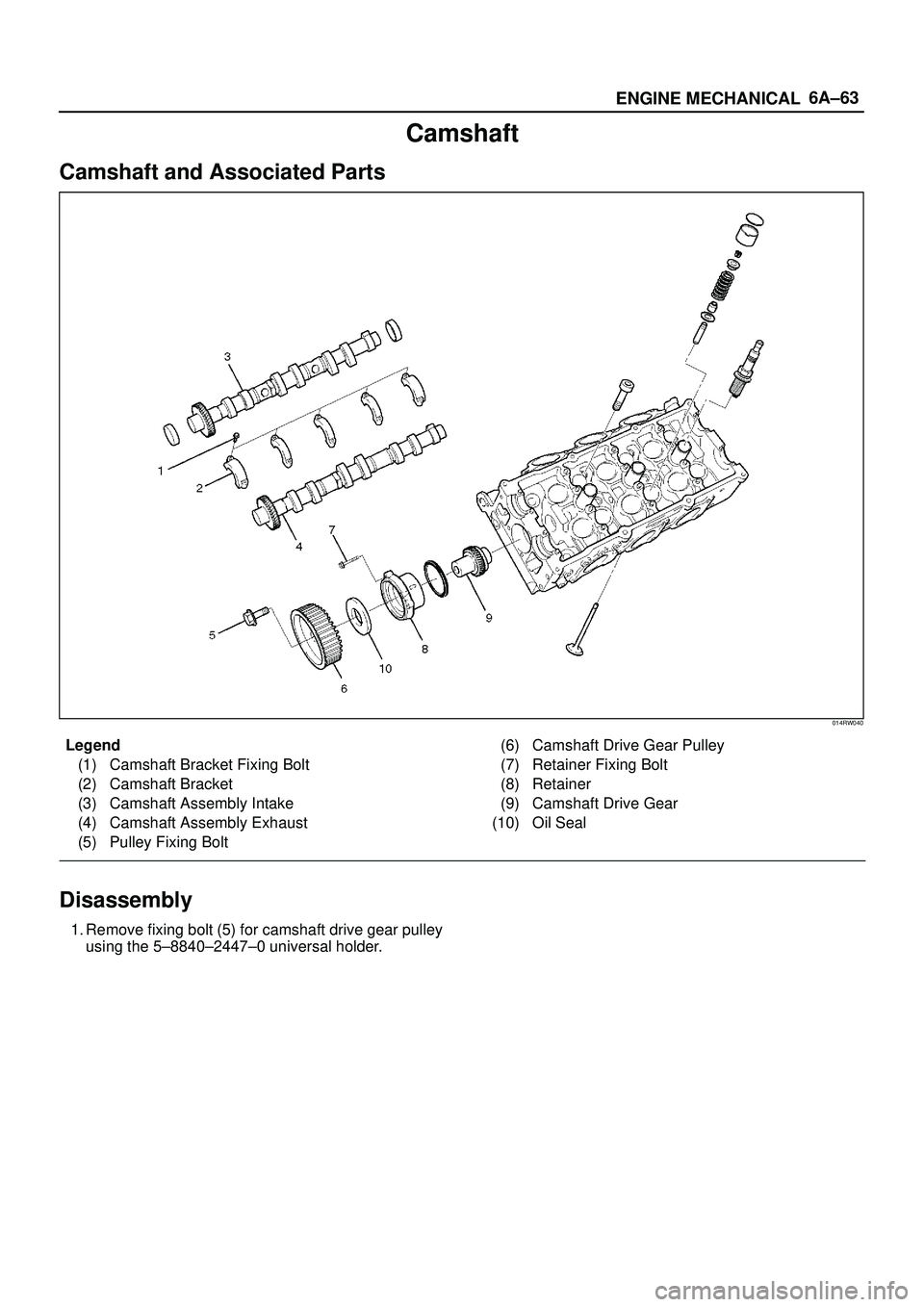

Camshaft and Associated Parts
014RW040
Legend
(1) Camshaft Bracket Fixing Bolt
(2) Camshaft Bracket
(3) Camshaft Assembly Intake
(4) Camshaft Assembly Exhaust
(5) Pulley Fixing Bolt(6) Camshaft Drive Gear Pulley
(7) Retainer Fixing Bolt
(8) Retainer
(9) Camshaft Drive Gear
(10) Oil Seal
Disassembly
1. Remove fixing bolt (5) for camshaft drive gear pulley
using the 5±8840±2447±0 universal holder.

6A±64
ENGINE MECHANICAL
014RW060
2. Remove twenty fixing bolts from inlet and exhaust
camshaft bracket on one side bank, then camshaft
brackets (2).
014RW027
3. Remove camshaft assembly (3), (4).
4. Remove three fixing bolts (7) from camshaft drive
gear retainer (8), then camshaft drive gear assembly.

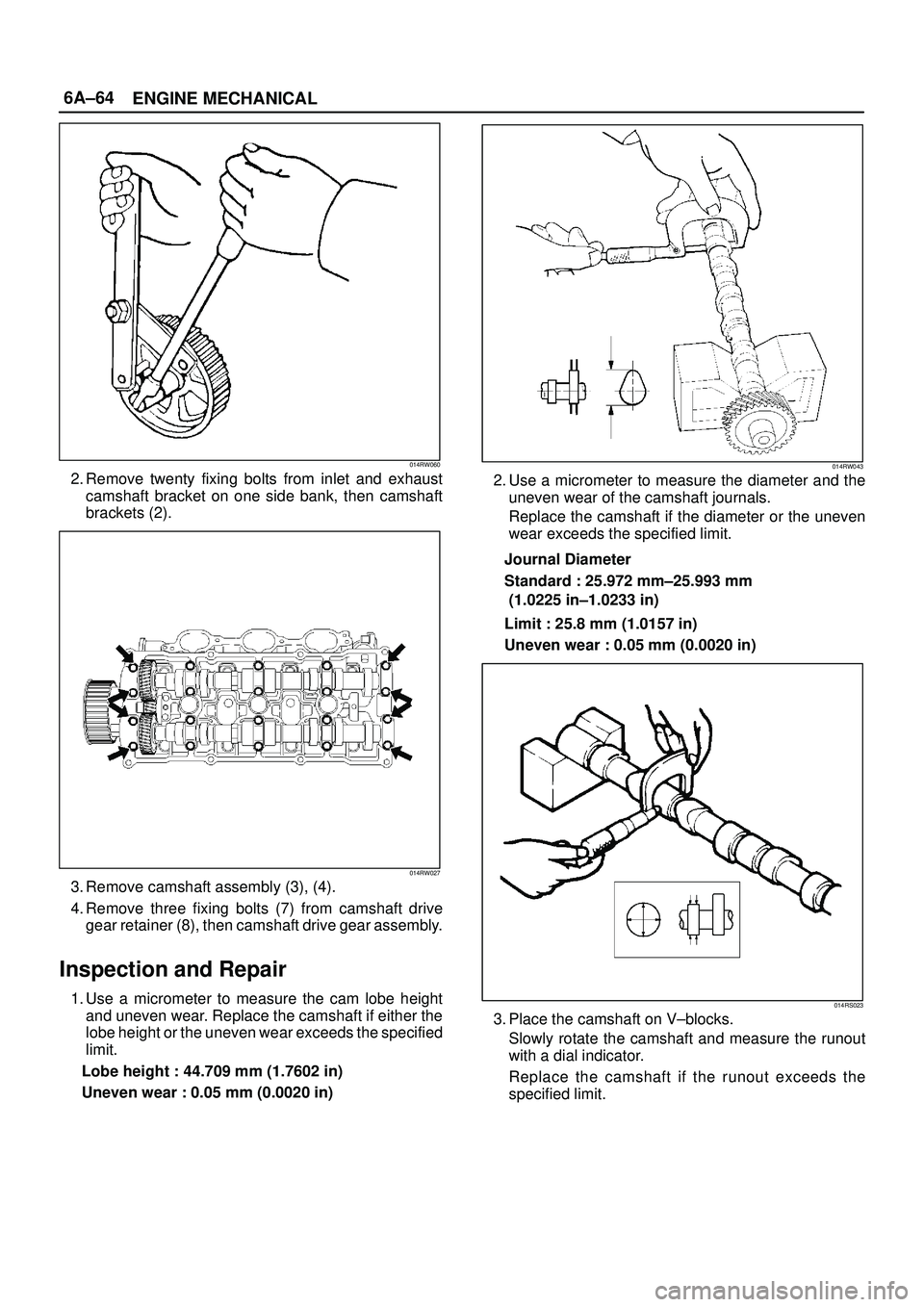

Inspection and Repair
1. Use a micrometer to measure the cam lobe height
and uneven wear. Replace the camshaft if either the
lobe height or the uneven wear exceeds the specified
limit.
Lobe height : 44.709 mm (1.7602 in)
Uneven wear : 0.05 mm (0.0020 in)
014RW043
2. Use a micrometer to measure the diameter and the
uneven wear of the camshaft journals.
Replace the camshaft if the diameter or the uneven
wear exceeds the specified limit.
Journal Diameter
Standard : 25.972 mm±25.993 mm
(1.0225 in±1.0233 in)
Limit : 25.8 mm (1.0157 in)
Uneven wear : 0.05 mm (0.0020 in)
014RS023
3. Place the camshaft on V±blocks.
Slowly rotate the camshaft and measure the runout
with a dial indicator.
Replace the camshaft if the runout exceeds the
specified limit.

6A±69
ENGINE MECHANICAL
Crankshaft

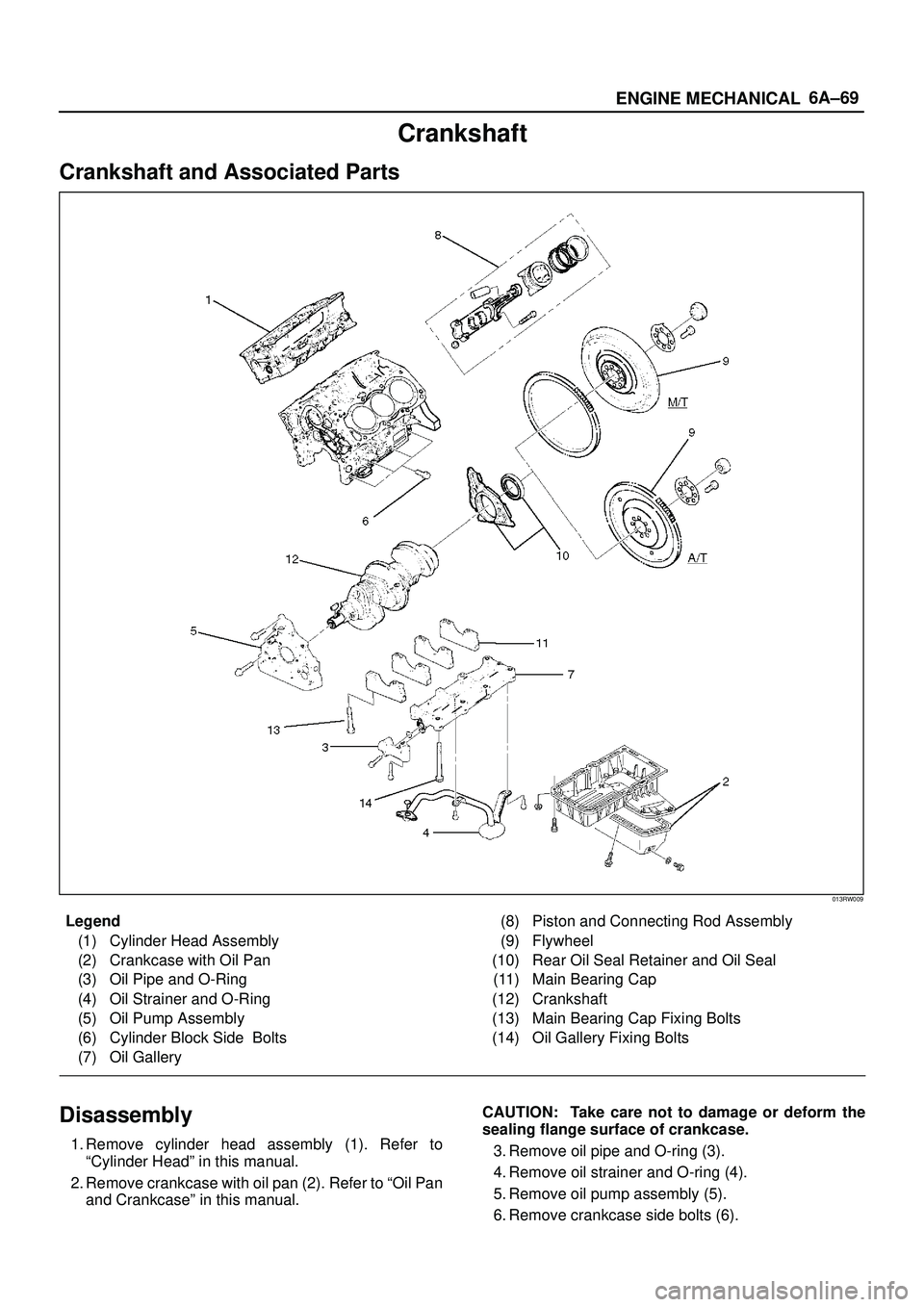

Crankshaft and Associated Parts
013RW009
Legend
(1) Cylinder Head Assembly
(2) Crankcase with Oil Pan
(3) Oil Pipe and O-Ring
(4) Oil Strainer and O-Ring
(5) Oil Pump Assembly
(6) Cylinder Block Side Bolts
(7) Oil Gallery(8) Piston and Connecting Rod Assembly
(9) Flywheel
(10) Rear Oil Seal Retainer and Oil Seal
(11) Main Bearing Cap
(12) Crankshaft
(13) Main Bearing Cap Fixing Bolts
(14) Oil Gallery Fixing Bolts
Disassembly
1. Remove cylinder head assembly (1). Refer to
ªCylinder Headº in this manual.
2. Remove crankcase with oil pan (2). Refer to ªOil Pan
and Crankcaseº in this manual.CAUTION: Take care not to damage or deform the
sealing flange surface of crankcase.
3. Remove oil pipe and O-ring (3).
4. Remove oil strainer and O-ring (4).
5. Remove oil pump assembly (5).
6. Remove crankcase side bolts (6).

6A±70
ENGINE MECHANICAL
7. Remove oil gallery (7).
8. Remove piston and connecting rod assembly (8).
Refer to ªPiston, Piston Ring and Connecting Rodº in
this manual.
9. Remove flywheel (9).
10. Remove rear oil seal retainer (10).
11. Remove main bearing cap (11).
12. Remove crankshaft (12).

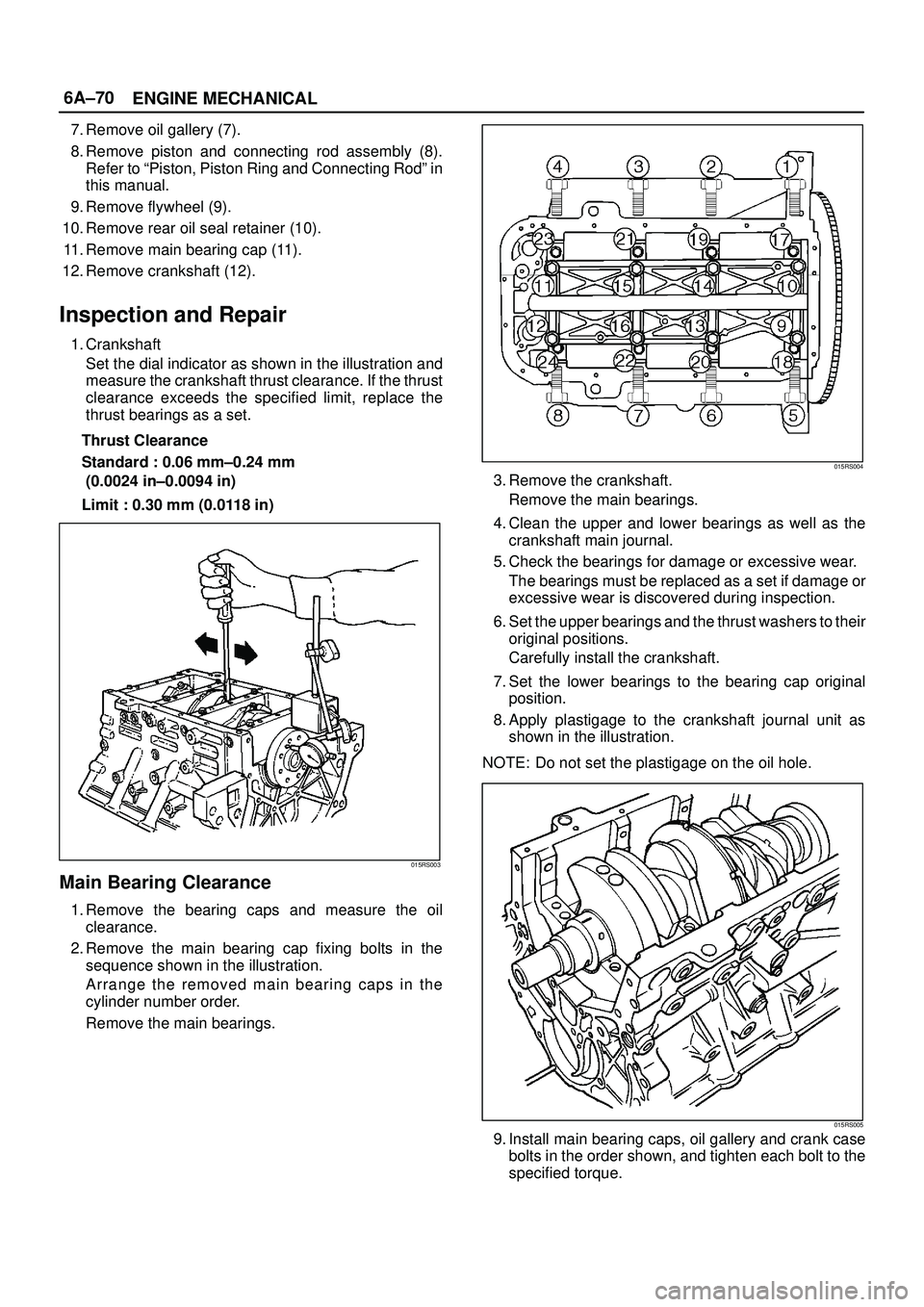

Inspection and Repair
1. Crankshaft
Set the dial indicator as shown in the illustration and
measure the crankshaft thrust clearance. If the thrust
clearance exceeds the specified limit, replace the
thrust bearings as a set.
Thrust Clearance
Standard : 0.06 mm±0.24 mm
(0.0024 in±0.0094 in)
Limit : 0.30 mm (0.0118 in)
015RS003
Main Bearing Clearance
1. Remove the bearing caps and measure the oil
clearance.
2. Remove the main bearing cap fixing bolts in the
sequence shown in the illustration.
Arrange the removed main bearing caps in the
cylinder number order.
Remove the main bearings.
015RS004
3. Remove the crankshaft.
Remove the main bearings.
4. Clean the upper and lower bearings as well as the
crankshaft main journal.
5. Check the bearings for damage or excessive wear.
The bearings must be replaced as a set if damage or
excessive wear is discovered during inspection.
6. Set the upper bearings and the thrust washers to their
original positions.
Carefully install the crankshaft.
7. Set the lower bearings to the bearing cap original
position.
8. Apply plastigage to the crankshaft journal unit as
shown in the illustration.
NOTE: Do not set the plastigage on the oil hole.
015RS005
9. Install main bearing caps, oil gallery and crank case
bolts in the order shown, and tighten each bolt to the
specified torque.

6A±71
ENGINE MECHANICAL

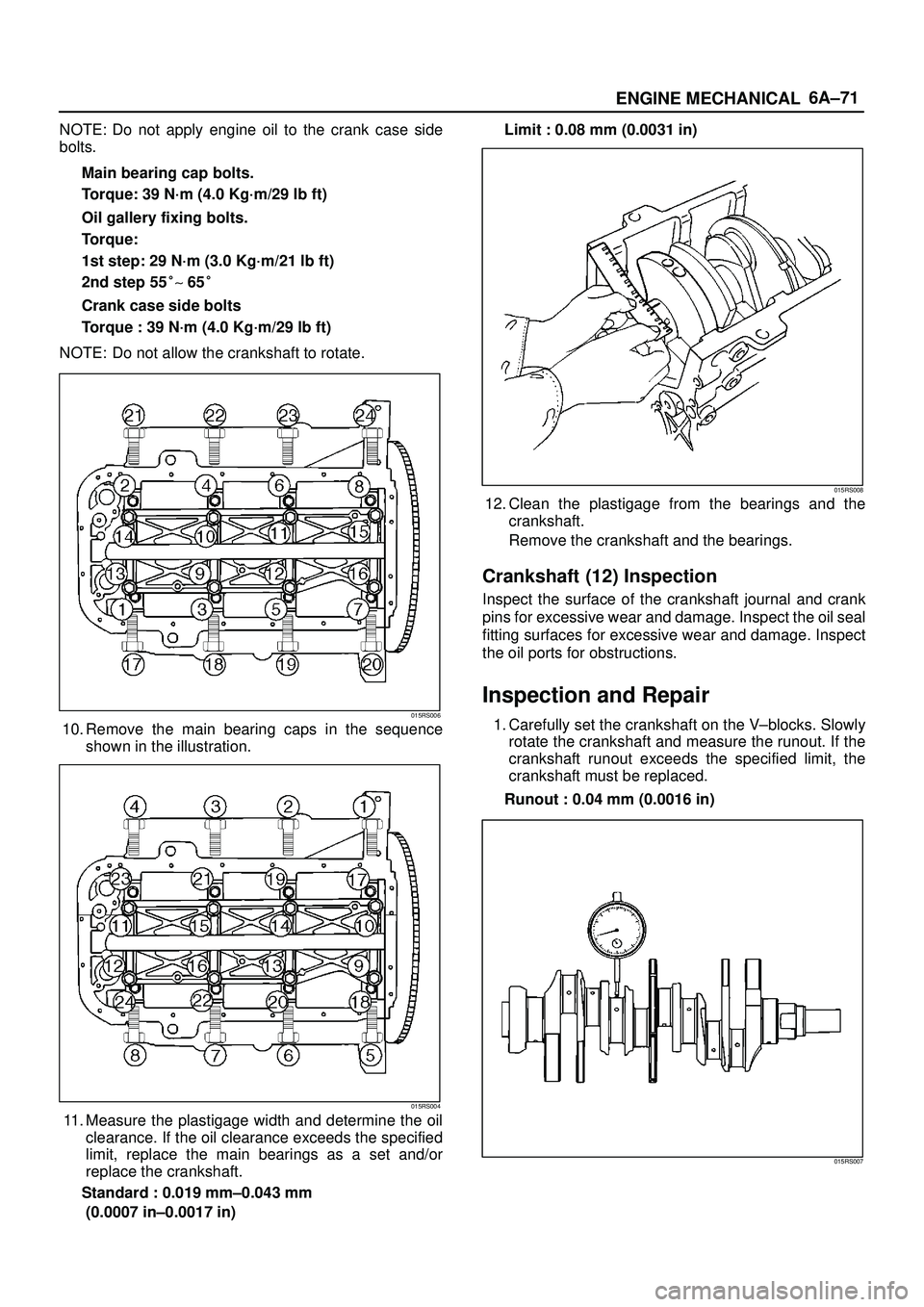

NOTE: Do not apply engine oil to the crank case side
bolts.
Main bearing cap bolts.
Torque: 39 N´m (4.0 Kg´m/29 lb ft)
Oil gallery fixing bolts.
Torque:
1st step: 29 N´m (3.0 Kg´m/21 lb ft)
2nd step 55
~ 65

Crank case side bolts
Torque : 39 N´m (4.0 Kg´m/29 lb ft)
NOTE: Do not allow the crankshaft to rotate.
015RS006
10. Remove the main bearing caps in the sequence
shown in the illustration.
015RS004
11. Measure the plastigage width and determine the oil
clearance. If the oil clearance exceeds the specified
limit, replace the main bearings as a set and/or
replace the crankshaft.
Standard : 0.019 mm±0.043 mm
(0.0007 in±0.0017 in)Limit : 0.08 mm (0.0031 in)
015RS008
12. Clean the plastigage from the bearings and the
crankshaft.
Remove the crankshaft and the bearings.
Crankshaft (12) Inspection
Inspect the surface of the crankshaft journal and crank
pins for excessive wear and damage. Inspect the oil seal
fitting surfaces for excessive wear and damage. Inspect
the oil ports for obstructions.
Inspection and Repair
1. Carefully set the crankshaft on the V±blocks. Slowly
rotate the crankshaft and measure the runout. If the
crankshaft runout exceeds the specified limit, the
crankshaft must be replaced.
Runout : 0.04 mm (0.0016 in)
015RS007

6A±73
ENGINE MECHANICAL
1 Size
MarkMain Bearing
Bore DiameterCrank Shaft Main
Journal Diameter2 Size
Mark
Crank Shaft
Bearing
Size Mark
(Upper
Side)Crank Shaft
Bearing
Size Mark
(Lower
Side)
Oil Clearance
(Reference)
168.994-69.000
63.918-63.925
(2.5165-2.5167)2BlueBlue0.030-0.049
(0.0012-0.0019)
1(2.7163-2.7165)63.926-63.933
(2.5168-2.5170)1
BrownBrown
0.028-0.047
(0.0011-0.0019)
268.987-68.993
63.918-63.925
(2.5165-2.5167)2
BrownBrown0.029-0.048
(0.0011-0.0019)
2(2.7160-2.7163)63.926-63.933
(2.5168-2.5170)1
GreenGreen
0.027-0.046
(0.0011-0.0018)
368.980-68.986
63.918-63.925
(2.5165-2.5167)2
GreenGreen0.028-0.047
(0.0011-0.0019)
3(2.7157-2.7160)63.926-63.933
(2.5168-2.5170)1YellowYellow0.026-0.045
(0.0010-0.0018)

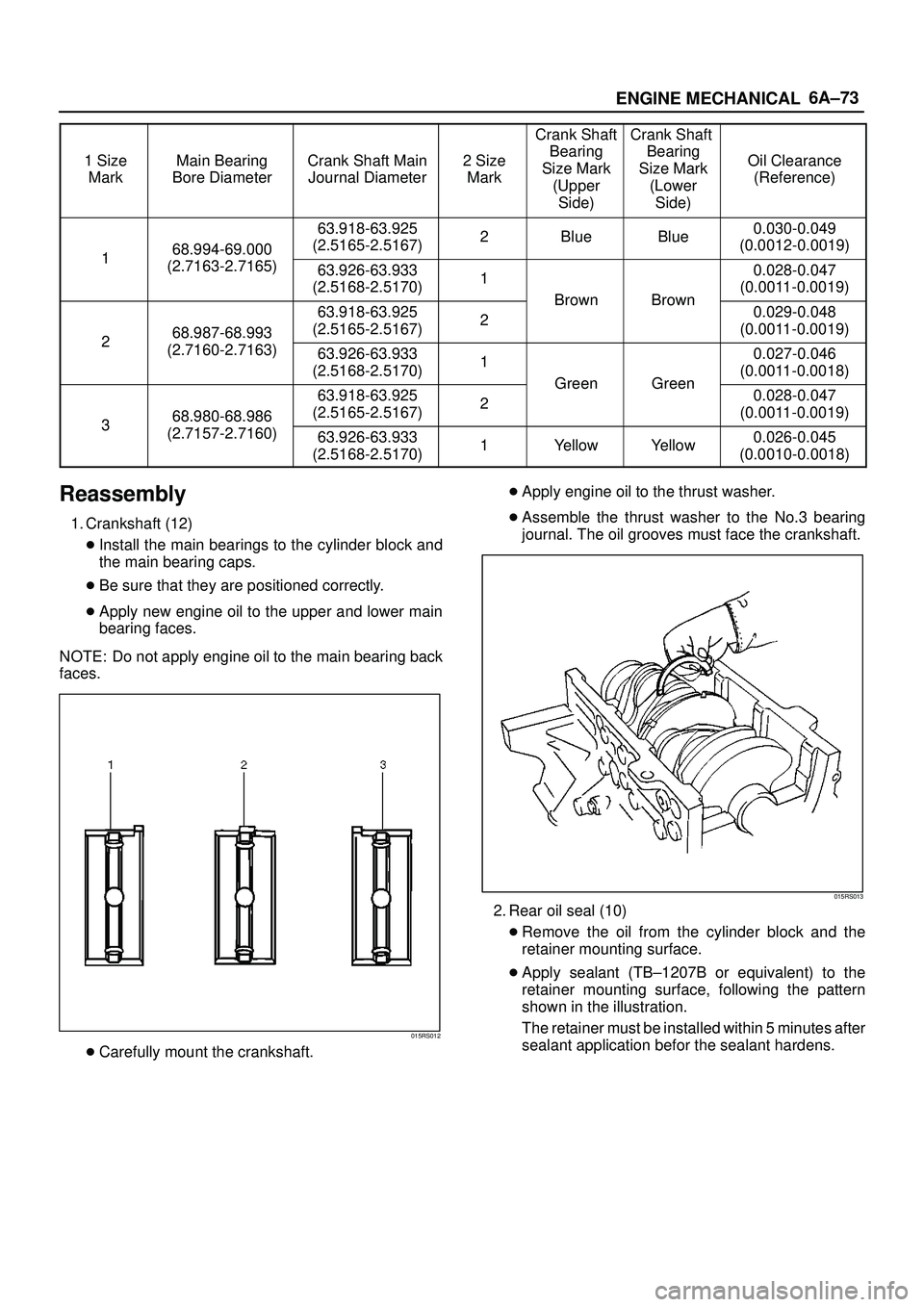

Reassembly
1. Crankshaft (12)

Install the main bearings to the cylinder block and
the main bearing caps.

Be sure that they are positioned correctly.

Apply new engine oil to the upper and lower main
bearing faces.
NOTE: Do not apply engine oil to the main bearing back
faces.
015RS012

Carefully mount the crankshaft.
Apply engine oil to the thrust washer.

Assemble the thrust washer to the No.3 bearing
journal. The oil grooves must face the crankshaft.
015RS013

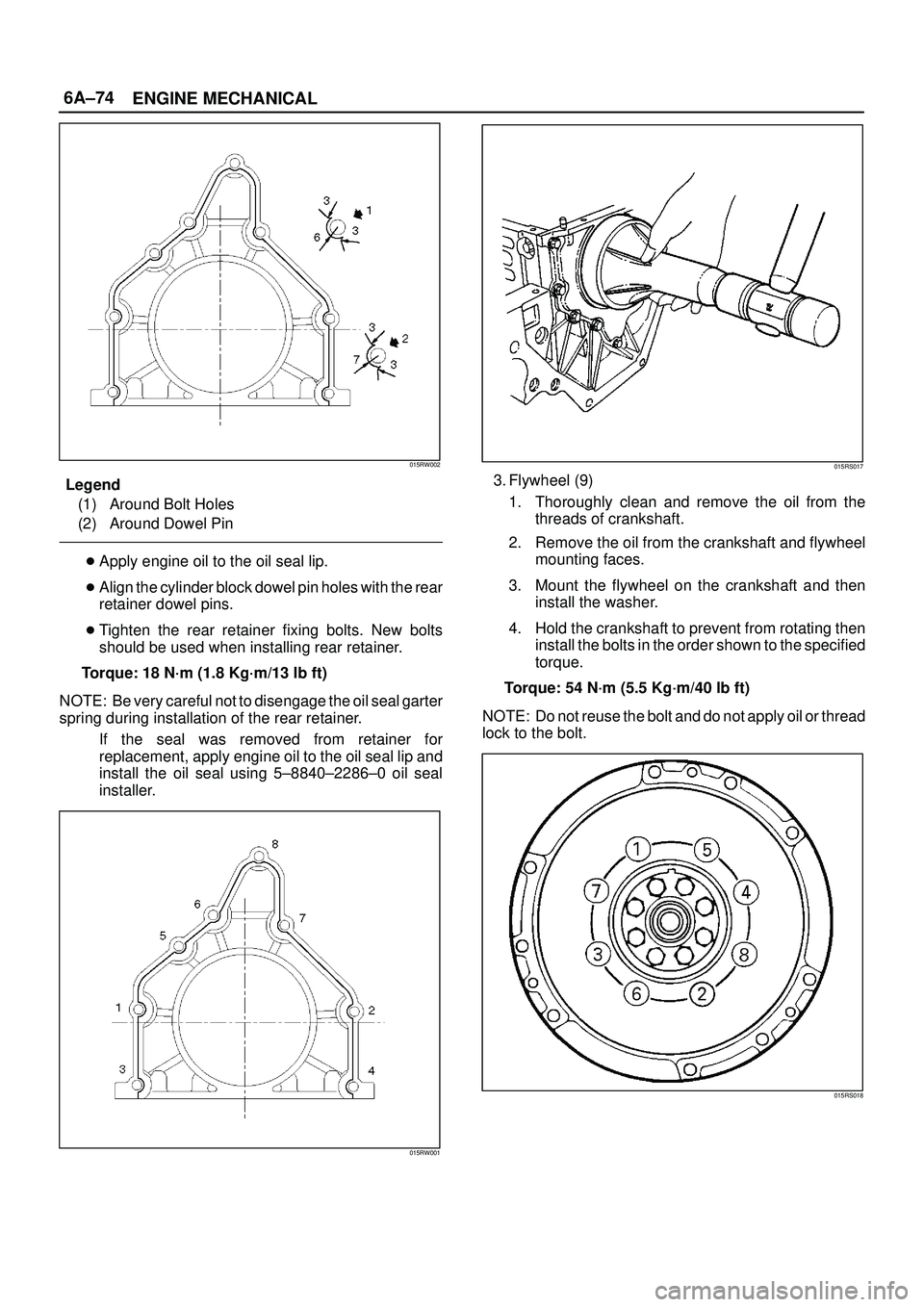

2. Rear oil seal (10)

Remove the oil from the cylinder block and the
retainer mounting surface.

Apply sealant (TB±1207B or equivalent) to the
retainer mounting surface, following the pattern
shown in the illustration.
The retainer must be installed within 5 minutes after
sealant application befor the sealant hardens.

6A±74
ENGINE MECHANICAL
015RW002
Legend
(1) Around Bolt Holes
(2) Around Dowel Pin

Apply engine oil to the oil seal lip.

Align the cylinder block dowel pin holes with the rear
retainer dowel pins.

Tighten the rear retainer fixing bolts. New bolts
should be used when installing rear retainer.
Torque: 18 N´m (1.8 Kg´m/13 lb ft)
NOTE: Be very careful not to disengage the oil seal garter
spring during installation of the rear retainer.
If the seal was removed from retainer for
replacement, apply engine oil to the oil seal lip and
install the oil seal using 5±8840±2286±0 oil seal
installer.
015RW001
015RS017
3. Flywheel (9)
1. Thoroughly clean and remove the oil from the
threads of crankshaft.
2. Remove the oil from the crankshaft and flywheel
mounting faces.
3. Mount the flywheel on the crankshaft and then
install the washer.
4. Hold the crankshaft to prevent from rotating then
install the bolts in the order shown to the specified
torque.
Torque: 54 N´m (5.5 Kg´m/40 lb ft)
NOTE: Do not reuse the bolt and do not apply oil or thread
lock to the bolt.
015RS018
