1998 GMC SIERRA turn signal

Trailer Wiring Harness
A. Light-Duty Wiring Harness
B. Additional Heavy-Duty Wiring
C. Tie Straps
A eight-wire harness is stored under the rear end of your
vehicle. Five wires (A) are located between the rear
bumper and the spare tire, near the center. This wiring
harnewis tie-strapped to the taillamp and stoplamp
harness. Three wires (B) (light gauge white, blue and
orange) are located at
the rear left hand frame rail. This
harness has a
30 amp battery feed wire and no
connector, and should be wired
by a qualified electrical
technician. After choosing an aftermarket mating
connector pair, have the technician attach one connector
to the eight-wire trailer harness and the other connector
to the wiring harness on the trailer. Be sure that the
wiring harness on the trailer is strapped to the trailer’s
frame and leave
it loose enough so that the wiring
doesn’t bend or break, but not
so loose that it drags on
the ground. The technician can use the following color
code chart when connecting the wiring harness to
your trailer.
0 Brown: Rear Lamps
0 Yellow: Left Stoplamp and Turn Signal
0 Dark Green: Right Stoplamp and Turn Signal
0 White (Heavy Gauge): Ground
0 Light Green: Back-up Lamps
0 White (Light Gauge): Center High-Mounted
Stop Lamp
0 Blue: Auxiliary/Electric Trailer Brake Circuit
0 Orange: Fused Auxiliary Circuit
Store the harness
in its original place. Wrap the harness
together and tie
it neatly so it won’t be damaged.
4-60
ProCarManuals.com

Hazard Warning Flashers
the way down to make you
front and rear turn signal
lamps flash
on and off.
-. ......................... ............................ ................................. ................................. ................................. ................................. ................................. ................................ ................................................. .................................................. .................................................. .................................................. .................................................. .................................................. ....................................................................
........................... n
................................................ ...................................................
.................................................................... ..................................................................... ........................................................................\
.... ........................................................................\
.. ........................................................................\
.... ........................................................................\
.. ........................................................................\
.... ........................................................................\
................ ........................................................................\
.................. -7a ........................................................................\
................... ........................................................................\
..................... ........................................................................\
................... ........................................................................\
..................... ........................................................................\
................... ........................................................................\
..................... ........................................................................\
................... ........................................................................\
....................................... ........................................................................\
....................................... ........................................................................\
........................................... ........................................................................\
............................................. ........................................................................\
.............................................. ........................................................................\
............................................. ........................................................................\
.............................................. 3 ........................................................................\
........................................................... ........................................................................\
............................................................ ........................................................................\
.............................................................. ........................................................................\
............................................................... ........................................................................\
.............................................................. ........................................................................\
............................................................... ........................................................................\
.............................................................. ........................................................................\
............................................................... ........................................................................\
........................................................................\
...... ........................................................................\
........................................................................\
......... ........................................................................\
........................................................................\
....... ........................................................................\
........................................................................\
...............
.................................................................... m
.::::~:..::::::....: .: ~... :.::. ..: :::::::::::.::::::::::. .:::::..::::::::::::::::::::::::::...:::::..::...::::.....::.::~
;. ........................................................................\
.................................... ..........................................
" .. ., , ..
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front and
rear turn signal lamps will flash on and off.
But they won't flash
if you're braking.
I
Your hazard warning flashers work no matter what
position your key is in,
and even if the key isn't in.
To turn off the flashers, press the button until the fist
click
and release.
When
the hazard warning flashers are on, your turn
signals won't work.
5-2
P
ProCarManuals.com

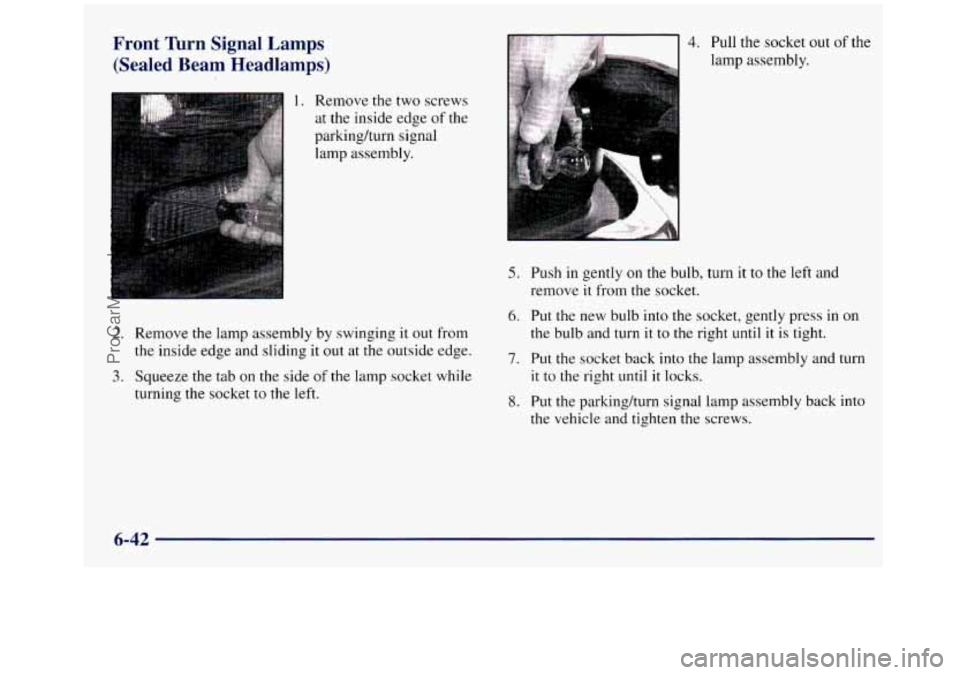

Front Turn Signal Lamps
/c
1. Remove the two screws at the inside edge
of the
parkinghurn signal lamp assembly.
2. Remove the lamp assembly by swinging it out from
the inside edge and sliding
it out at the outside edge.
3. Squeeze the tab on the side of the lamp socket while
turning the socket to the left.
4. Pull the socket out of the
lamp assembly.
5. Push in gently on the bulb, turn it to the left and
remove
it from the socket.
6. Put the new bulb into the socket, gently press in on
the bulb and
turn it to the right until it is tight.
7. Put the socket back into the lamp assembly and turn
it to the right until it locks.
8. Put the parkinghrn signal lamp assembly back into
the vehicle and tighten the screws.
6-42
ProCarManuals.com

Front Turn Signal Lamps
(Composite Headlamps)
1. Remove the four screws
and take out the
parking/turn signal
lamp assembly.
2. Squeeze the tab on the side of the lamp socket while
turning the socket
to the left.
4. Push in gently on the bulb, turn it to the left and
remove
it from the socket.
5. Put the new bulb into the socket, gently press in on
the bulb and turn it to the right until it
is tight.
6. Put the socket back into the lamp assembly and turn
it to the right until it locks.
7. Put the parkinghrn signal lamp assembly back into
the vehicle and tighten the four screws.
6-43
ProCarManuals.com

Front Sidemarker Lamps (Composite Headlamps)
1. Remove the four screws
and pull out the
parkinghrn signal
lamp assembly.
2. Reach through the opening and turn the sidemarker
bulb socket to the left and remove it.
3.
4. Put a new bulb into the socket and push it in until it
5. Put the socket back into the sidemarker assembly
is
tight.
and turn it to the right to tighten it.
6. Replace the parkinghrn signal lamp assembly and
tighten the screws.
ProCarManuals.com

FuseKircuit Breaker
3
4
Usage
Courtesy Lamps, Cargo Lamp,
Glove Box Lamp, Dome/Reading
Lamps, Vanity Mirrors,
Power Mirrors
Instrument Cluster, DRL Relay,
Lamp Switch, Keyless Entry,
Low Coolant Module, Illuminated Entry Module,
DRAC (Diesel Engine)
Not Used
Cruise Control
Auxiliary Power Outlet
Crank
License Lamp, Parking Lamps,
Taillamps,
Roof Marker Lamps,
Tailgate Lamps, Front
Sidemarkers, Fog Lamp Relay,
Door Switch Illumination,
Fender Lamps, Headlamp Switch Illumination
FuseKircuit
Breaker
10
11
12
13
14
15
I6
17
18
19
Usage
Air Bag System
Wiper Motor, Washer Pump
A/C,
A/C Blower,
High Blower Relay
Power
Amp, Cigarette Lighter,
Door Lock Relay,
Power Lumbar Seat
4WD Indicator, Cluster, Comfort
Controls, Instrument Switches,
Radio Illumination,
Chime Module
DRL Relay,
Fog Lamp Relay
Front and Rear Turn Signals,
Back-up Lamps, BTSl Solenoid
Radio (Ignition)
4WAL/VCM, ABS. Cruise Control
Radio (Batterv)
6-73
ProCarManuals.com

Hitches ..................................... 4-55
Maintenance When Towing
..................... 4-59
Parking on Hills
.............................. 4-58
Safety Chains
................................ 4-56
Tongueweight
............................... 4-54
Total Weight on Tires
.......................... 4-55
Towing
..................................... 4-49
Turn Signals ................................. 4-57
Weight
..................................... 4-50
Wiring Harness
............................... 4-60
Transfer Case. Electronic
......................... 2-23
Transfer Case Lubricant ..................... 6-26 . 7-47
Transfer Case. Manual
........................... 2-2 1
Transmission Fluid
Automatic
.............................. 6-2 1.7-47
Manual
................................ 6-24. 7-46
Transmitters. Keyless Entry
........................ 2-6
Transportation
. Courtesy .......................... 8-8
Trip Odometer ................................. 2-63
TTYUsers
..................................... 8-4
Turn Signal and Lane Change Signals
............... 2-35
Turn SignaVMultifunction Lever
................... 2-35
Turn Signals When Towing a Trailer
................ 4-57
Underbody Maintenance
........................ 6-68
Underllood-Fuse/Relay Center
..................... 6-74 Vehicle
Control
...................................... 4-5
Damage Warnings
.............................. iv
Identification Number ......................... 6-70
Loading
.................................... 4-43
Storage
..................................... 6-39
Ventilation System
............................... 3-5
Visors. Sun .................................... 2-59
Voltmeter
..................................... 2-67
warning Devices
............................... 5-3
Wxranty Information
............................ 8- IO
Washer Fluid. Windshield ................... 6.33. 7-47
Washing
Your Vehicle ........................... 6-65
Weatherstrips
.................................. 6-65
West Coast Type Mirror
.......................... 2-50
Wheel Warning
Lights
. Gages and Indicators ............... 2-64
Alignment
.................................. 6-59
Nut Torque ............................. 5-32. 6-77
Replacement
................................. 6-59
Wrench
..................................... 5-25
Windows
..................................... 2-32
Lockout Switch
.............................. 2-33
Manual
..................................... 2-32
Power
...................................... 2-32
Sliding Rear
................................. 2-34
Swing-Out
.................................. 2-34
9-11
