1998 GMC SIERRA bulb

Front Sidemarker Lamps (Composite Headlamps)
1. Remove the four screws
and pull out the
parkinghrn signal
lamp assembly.
2. Reach through the opening and turn the sidemarker
bulb socket to the left and remove it.
3.
4. Put a new bulb into the socket and push it in until it
5. Put the socket back into the sidemarker assembly
is
tight.
and turn it to the right to tighten it.
6. Replace the parkinghrn signal lamp assembly and
tighten the screws.
ProCarManuals.com

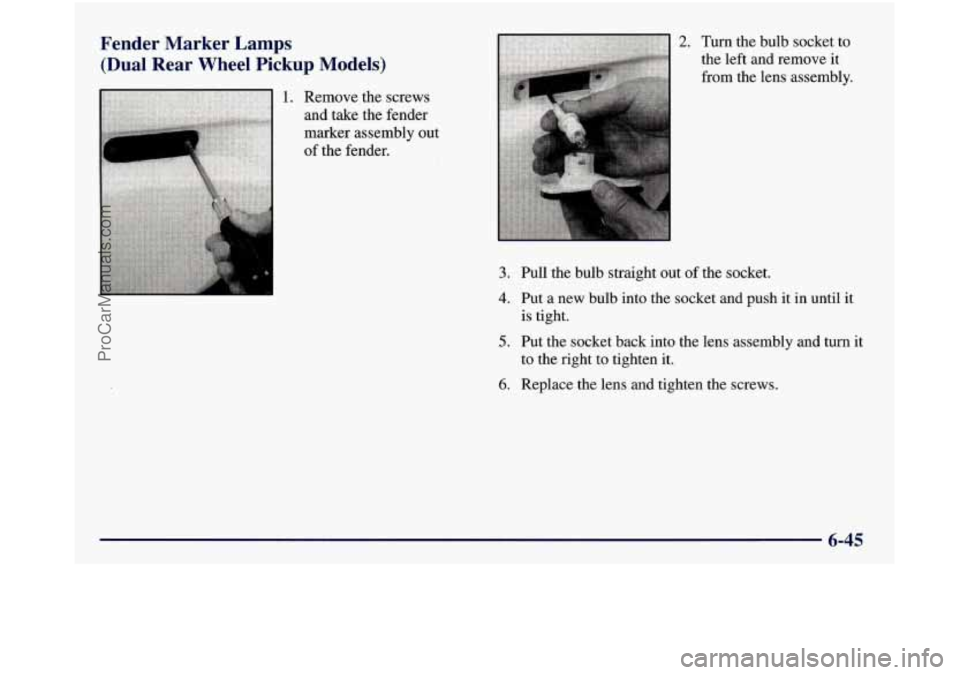

Fender Marker Lamps (Dual Rear Wheel Pickup Models)
1. Remove the screws
and take the fender
marker assembly out
of the fender.
2. Turn the bulb socket to
the left and remove it
from
the lens assembly.
3. Pull the bulb straight out of the socket.
4. Put a new bulb into the socket and push it in until it
is tight.
5. Put the socket back into the lens assembly and turn it
to the right to tighten it.
6. Replace the lens and tighten the screws.
6-45
ProCarManuals.com

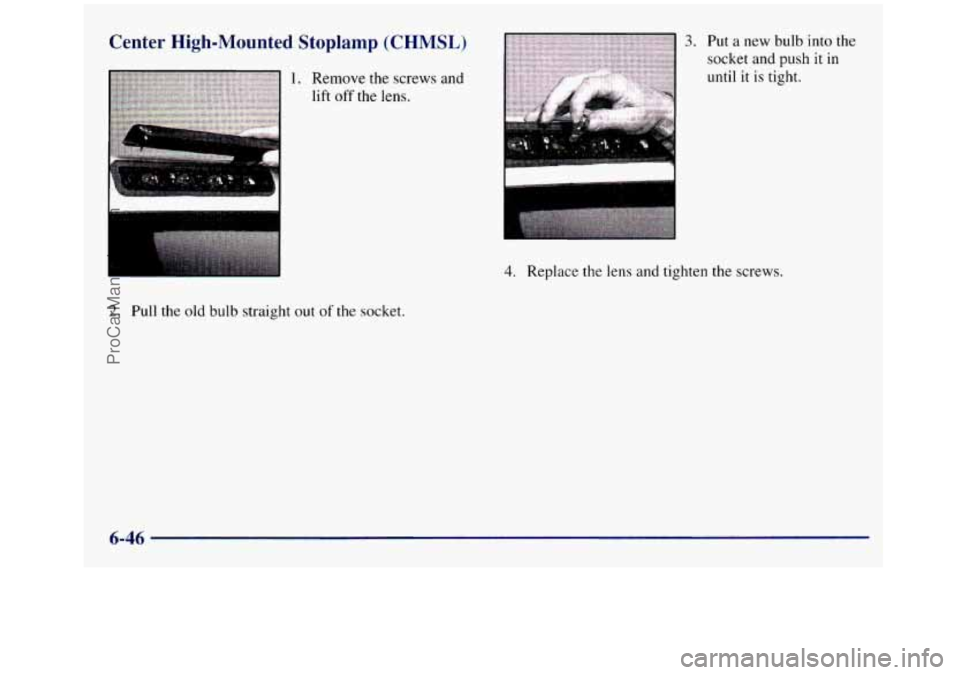

Center High-Mounted Stoplamp (CHMSL)
.......
L%rnwa?r::;; .............................................. .*....* I
I I
I
2. Pull the old bulb straight out of the socket.
I
3. Put a new bulb into the
socket
and push it in
until it is tight.
4. Replace the lens and tighten the screws.
6-46
ProCarManuals.com

Roof Marker Lamps
1. Remove the screws and lift off the lens.
2. Pull the bulb straight out of the socket.
3. Put a new bulb into the socket and push it in until it
is tight.
4. Replace the lens and tighten the screws.
Pickup Box Identification Lamps
(Dual Rear Wheel Pickup Models)
1. Remove the screws and lamp assembly.
2. Unplug the lamp assembly harness.
3. Use a screwdriver to gently pry the individual lamp
from the lamp housing.
6-47
ProCarManuals.com

4. Unplug the lamp at the connector.
5. Plug in a new lamp and snap it into the housing.
6. Reinstall the lamp housing.
Taillamps (Pickup Models)
1. Open the tailgate.
2. Remove the two
rear lamp assembly
screws near
the tailgate
latch
and pull out the
lamp assembly.
3. Remove the screws
from the bulb retainer
and take
it off the
lamp assembly.
c
6-48
ProCarManuals.com

4. Pull the old bulb straight
out
of the socket.
5. Put in a new bulb and push it straight in until it
is tight.
6. Replace the bulb retainer.
7. Replace the rear lamp assembly and tighten
the screws.
8. Close the tailgate.
Taillamps (Chassis Cab Models)
1. Using your hands, peel the rubber seal away from
the lens.
2. Lift the lens off the
lamp assembly.
3. Slide the socket out of the lamp assembly.
6-49
ProCarManuals.com

4. Push in gently on the
bulb, turn it to the
left and remove it from
the socket. Windshield Wiper Blade Replacement
For proper type and length, see “‘Normal Maintenance 1 I
Replacement Parts” in the Index. I i
i
5. Put in a new bulb and, pushing in gently, turn it to
the right until it is tight.
6. Put the socket back in the lamp assembly and replace
the lens and lens seal.
To replace the windshield wiper blade assembly:
1. Lift the wiper arm and rotate the blade until it is
2. Push the release lever and slide the wiper assembly
3. Install a new blade by reversing Steps 1 and 2.
facing away from the windshield.
toward the driver’s side
of the vehicle.
