Tilt Wheel (Option)
A tilt steering wheel allows you to adjust the steering
wheel before
you drive. You can also raise it to the
highest level to give your legs more room when you
enter and exit the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever. Move the steering wheel to a comfortable level,
then release the lever
to lock the wheel in place.
Turn SignaUMultifunction Lever
The lever on the left side of the steering column
includes your:
Turn Signal and Lane Changer
Headlamp HighLow Beam Changer
0 Windshield Wipers
Windshield Washer
Cruise Control (Option)
2-34
ProCarManuals.com

Windshield Washer
At the top of the lever, there’s a paddle with the word
PUSH on it. To spray washer fluid on the windshield,
push the paddle.
I A CAUTION:
Cruise Control (Option)
With cruise control, you can maintain a speed of about
25 mph (40 kdh) or more without keeping your foot
on the accelerator. This can really help on long trips.
Cruise control does not work at speeds below about
25 mph (40kmh).
When you apply your brakes, the cruise control
shuts off.
In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
Washer fluid will spray as long as you push the paddle.
When
you let go of the paddle, the wipers will continue
to wipe for approximately two more wipe cycles and
then either stop
or return to the preset speed.
L
A CAUTION:
Cruise control can be dangerous where you
can’t drive safely at a steady speed.
So,
don’t use your cruise control on winding
roads or in heavy traffic.
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control. Don’t
use cruise control on slippery roads.
Cruise control can be dangerous on
I
ProCarManuals.com

Setting Cruise Control Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course, shuts off
the cruise control. But you don’t need
to reset it.
Once you’re going about
25 mph (40 kmh) or more,
you can
move the cruise control switch from ON to R/A
(Resume/Accelerate) for about half a second.
You’ll
go right back up to your chosen speed and
stay there.
Remember, if
you hold the switch at R/A longer than
half a second, the vehicle will keep going faster until
you release the switch
or apply the brake. So unless you
want
to go faster, don’t hold the switch at R/A.
I
If you leave your cruise control switch on when
you’re not using cruise, you might hit
a button
and
go into cruise when you don’t want to. You
could be startled and even lose control. Keep the
cruise control switch
off until you want to use it.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
3.
4.
Press in the SET button
at the end of the lever
and release it.
Take your foot off
the
accelerator pedal.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:
Use the accelerator pedal to get to the higher speed.
Push the button at the end
of the lever, then release
the button and the accelerator pedal. You’ll now
cruise at the higher speed.
0 Move the cruise switch from ON to R/A. Hold it
there until you get up to the speed you want, and
then release the switch. To increase your speed in
very small amounts, move
the switch to R/A for less
than half
a second. Each time you do this, your
vehicle will go about 1 mph (1.6 kdh) faster.
2-38
ProCarManuals.com

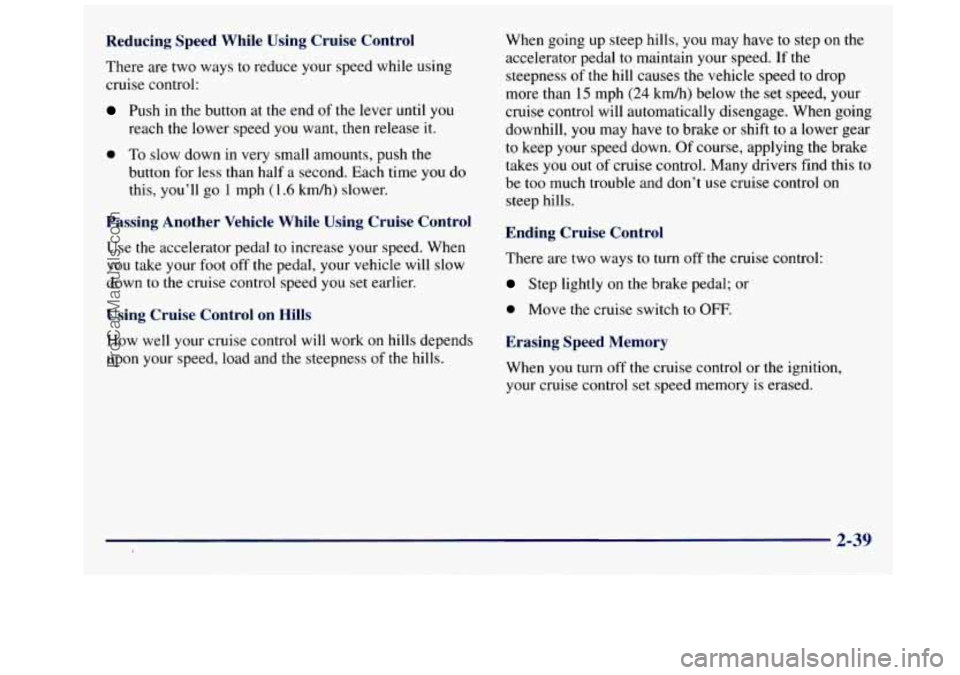

Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:
Push in the button at the end of the lever until you
reach the lower speed you want, then release it.
0 To slow down in very small amounts, push the
button for less than half
a second. Each time you do
this, you’ll go
1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of the hills. When
going up steep hills,
you may have to step on the
accelerator pedal to maintain your speed. If the
steepness of the hill causes the vehicle speed to drop
more than
15 mph (24 kmh) below the set speed, your
cruise control will automatically disengage. When going
downhill, you may have to brake or shift to a lower gear
to keep your speed
down. Of course, applying the brake
takes you out of cruise control. Many drivers find this to
be too much trouble and don’t use cruise control on
steep hills.
Ending Cruise Control
There are two ways to turn off the cruise control:
Step lightly on the brake pedal; or
0 Move the cruise switch to OFF.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.
2-39
ProCarManuals.com

POSITION NAME
1. STOP
2. HTD MIR
3. CTSY
4. GAUGES
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
HAZARD
CRUISE
PWR AUX
CRANK
PARK LPS
AIR BAGS
WIPER
HTR-A/C
CIG LTR
ILLUM
CIRCUITS PROTECTED
StopKHMSL, Stoplamps
Electric Heated Mirrors
Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry
Illumination, Low Coolant Module, CHIME Module, DRAB Module
Hazard LampdCHIME Module
Cruise Control
Auxiliary Power Outlet, DLC
License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove
Box Ashtray
Air Bags
Wiper Motor, Washer Pump
A/C, A/C Blower, High Blower Relay, HTD Mirror
Cigarette Lighter
IP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio
Illumination, Door Switch Illumination
6-63
ProCarManuals.com

POSITION
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
A. B.
NAME
DRL TURN
B/U
RADIO- 1
BRAKE
RADIO-B
TRANS SECURITY/STRG
RR DEFOG
Not Used
RR HVAC
PWR ACCY
CIRCUITS PROTECTED
DRL Relay
Front Turn,
RR Turn, Back-up Lamps, BTSI Solenoid
Radio (Ign, Accy), Upfitter Provision Relay
4WAL PCM, ABS, Cruise Control
Radio (Battery), Power Antenna
PRNDL, Automatic Transmission
EVO Steering, Passlock
Rear Window Defog
--
RR HVAC Controls, HIGH, MED, LOW Relays
Power Door Lock, Six-Way Power Seat, Keyless Entry
Illumination Module
PWR WDO Power Windows
~ Fuse amperage levels are imprinted on the fuse panel under the dash.
' 6-64
ProCarManuals.com

Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts
as
needed. Replace any components that have high effort
or excessive wear.
Do not lubricate accelerator and
cruise control cables.
Rear Axle Service
Check the gear lubricant level in the rear axle and add if
needed.
See “Rear Axle” in the Index. A fluid loss may
indicate a problem. Check the axle and repair it
if needed.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment.
You may need to have
your brakes inspected more often if your driving habits
or conditions result in frequent braking.
7-43
ProCarManuals.com

Comfort Controls ................................ 3-2
Compact Disc Care ............................. 3-26
Compact Disc Player
....................... 3- 16. 3.20
Console Storage
................................ 2-48
Control of
a Vehicle .............................. 4-5
Convex Outside Mirror
.......................... 2-46
Coolant
....................................... 6-21
RecoveryTank
............................... 5-16
Cooling System
................................ 5- 14
Courtesy Transportation
........................... 8-8
Crankcase Capacity ............................. 6-68
Cruise Control
................................. 2-37
Cupholders
.................................... 2-48
Customer Assistance Information
................... 8- 1
Customer Satisfaction Procedure .................... 8-2
Customer Assistance
for Text Telephone Users
......... 8-4
Damage. Finish
...................................... 6-57
Sheet Metal ................................. 6-57
Daytime Running Lamps
......................... 2-41
Daytime Running Lamps Indicator
Light ............ 2-62
Dead Battery ................................... 5-3
Defects. Reporting Safety
................... 8-10. 8-1 1
Defensive Driving ............................... 4-2
Defogging
................................. 3.3. 3.4
Defrosting
................................. 3.3. 3.4
Dome Lamps
.................................. 2-43
Door Locks
....................................... 2-4 Sliding
..................................... 2-12
Storage
..................................... 2-48
Swing-Out Side
.............................. 2-10
Drive Position. Automatic Transmission
............. 2-23
DriverPosition
................................. 1-17
Driving City
........................................ 4-18
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-19
InaBlizzard
................................. 4-25
In Foreign Countries ........................... 6-5
IntheRain
.................................. 4-15
Night
...................................... 4-14
OnCurves
................................... 4-9
On Grades While Towing a Trailer ............... 4-35
On Hill
and Mountain Roads .................... 4-21
OnSnowandIce
............................. 4-23
Throughwater
............................... 4-17
WetRoads
.................................. 4-15
Winter
...................................... 4-23
With
a Trailer ................................ 4-33
Drunken Driving
................................ 4-3
Dual Tire Operation
............................. 6-45
Storagepocket
............................... 2-48
Electrical Equipment. Adding
.................... 6-61
Electrical System
............................... 6-61
Electronic
Road Speed Governor (Gasoline Engines) ... 2-53
