Controls and Features
97
*
[CF19800(ALL)01/96]
Windshield Washer
[CF19900(ALL)01/96]
To clean the windshield, push in the washer button on the end
of the turn signal lever. For a constant spray, push and hold the
button. If the windshield wipers are off, one momentary push
results in one wipe and a longer push in three wipes and
activation of washer fluid. If the windshield wipers are in
interval mode a quick tap results in two wipe cycles and a
longer tap in three wipes and washer fluid activation.
*
[CF20000(ALL)01/96]
Do not try to clean the windshield when the washer fluid
container is empty and never activate the washers for more than
fifteen seconds continuously. This could damage the washer
pump system.
*
[CF20100(ALL)01/96]
RWARNING
Always warm up the windshield with the defroster
before you use the washer fluid. In freezing weather, the
washer solution may freeze on the windshield and
obscure your vision.
*
[CF20200(ALL)03/96]
For information about refilling the washer fluid or replacing
your windshield wiper blades, seeWindshield washer fluid and
Wipersin the Index.
%*
[CF20300(ALL)01/96]
Gearshift Lever
[CF20400(ALL)07/96]
The gearshift lever on your vehicle is mounted on the steering
column. On the end of the gearshift lever is the Overdrive
On/Off button and the OVERDRIVE OFF lamp. For additional
information about the gearshift lever and the Overdrive On/Off
button, see theDrivingchapter.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

100
%*
[CF21500(ALL)05/96]
Hazard Flasher Switch
[CF21600(ALL)01/96]
The hazard flasher switch is located on top of the steering
column.
*
[CF21700(ALL)01/96]
To use the hazard flasher:
*
[CF21800(ALL)01/96]1.
Push the HAZARD switch; you will see the turn signal
arrows flash.
*
[CF21900(ALL)01/96]2.
To stop the hazard flashers, push the HAZARD switch again.
%*
[CF22000(ALL)05/96]
Tilt Steering (If equipped)
[CF22100(ALL)01/96]
With the tilt steering option, you can move your steering wheel
up or down.
[CF22200(ALL)01/96]
17-1/2 pica
art:0050101-A

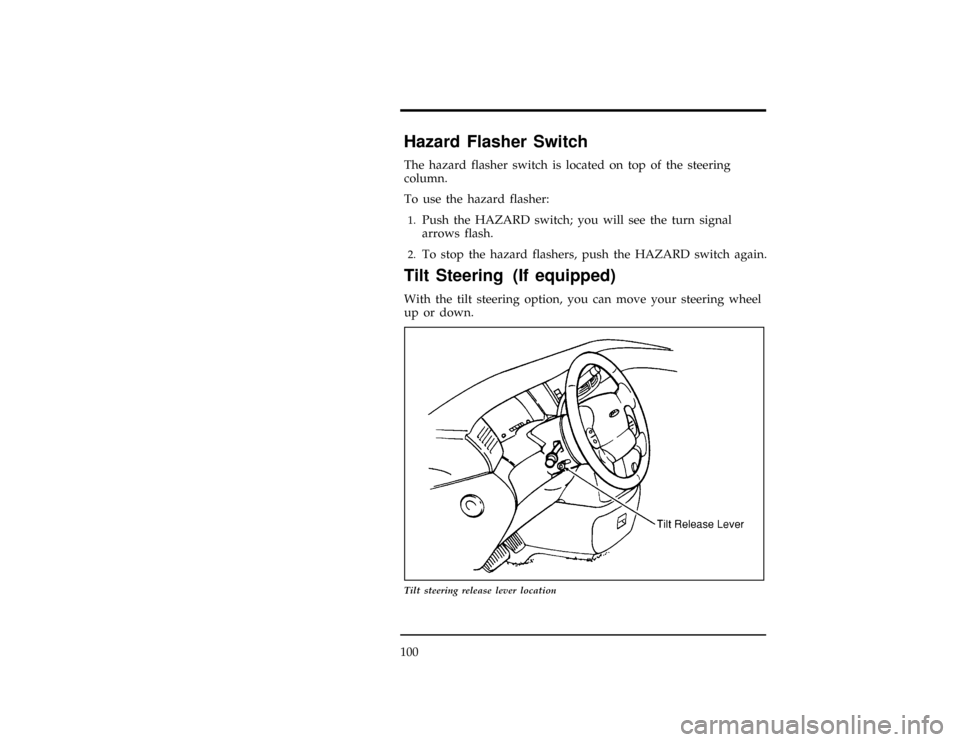

Tilt steering release lever location
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

235
Roadside Emergencies
*
[ER00200(ALL)01/96]
The hazard flasher is used to alert other drivers to hazardous
situations.
*
[ER00300(ALL)01/96]
The hazard flasher switch operates the same lamps as the turn
signal lever. When the hazard flasher is activated, all of these
lamps will flash on and off. The turn signal indicators cannot be
used when the hazard lamps are flashing. Operation of the
hazard flashers does not affect operation of the brakelamps.
*
[ER00400(ALL)01/96]
The flashers work even with the key out of the ignition. The
flashers will work for up to two hours when the battery is fully
charged and in good condition. They will not drain the battery
excessively. If the flashers run for longer than two hours or if
your battery is not fully charged, your battery may be drained
to the point where the vehicle will not start.
%*
[ER00500(ALL)01/96]
What To Do If The Engine Does Not Start
%*
[ER00600(ALL)01/96]
Fuel Pump Shut-Off Switch
*
[ER00700(ALL)03/96]
If the engine cranks but does not start or does not start even
after a small collision, the fuel pump shut-off switch may have
been activated. The shut-off switch is a device intended to stop
the fuel pump when your vehicle has been involved in a
substantial jolt.
[ER00800(ALL)09/96]
Once the shut-off switch is activated, you must depress the reset
switch by hand before you can start your vehicle.
[ER00900(ALL)08/96]
The fuel pump shut-off switch reset button is located behind the
trim panel of the driver's left foot.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

310
%*
[MC31700(ALL)03/96
]
How to Prepare Your Vehicle for
Inspection/Maintenance (I/M) Testing
*
[MC31800(ALL)07/96]
In some localities it may become a legal requirement to pass an
Inspection/Maintenance (I/M) test of the On-Board Diagnostic
(OBD) II system. If the vehicle's powertrain system or its battery
has just been serviced, the OBD II system is reset to a not ready
for I/M testing condition. To prepare for I/M testing, the law
specifies that additional mixed city and highway driving is
required to complete the check of the OBD II system.
*
[MC31825(ALL)07/96]
The driving modes required to reach the ready condition consist
of a minimum of 30 minutes of city and highway driving as
described below:
*
[MC32000(ALL)07/96]
n
At least twenty minutes driving in stop and go, city type
traffic with at least four idle periods.
*
[MC32100(ALL)07/96]
n
At least ten minutes of driving on an expressway or
highway.
*
[MC32200(ALL)07/96]
Before completing the above driving modes, the engine must be
warmed up and at operating temperature. Once started, the
vehicle must not be turned off during these driving modes.
[MC33200(ALL)01/96]
Lights
*
[MC33300(ALL)01/96]
It is a good idea to check the operation of the following lights
frequently:
*
[MC33400(ALL)01/96]
n
headlamps
*
[MC33500(ALL)01/96]
n
tail lamps
*
[MC33600(ALL)01/96]
n
brakelamps
*
[MC33700(ALL)01/96]
n
hazard flasher
*
[MC33800(ALL)01/96]
n
turn signals
*
[MC33900(ALL)05/96]
n
license plate lamps
*
[MC34000(ALL)01/96]
n
fog lamps
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

Maintenance and Care
311
%*
[MC34100(ALL)01/96]
The alignment of your headlamps should be checked if:
*
[MC34200(ALL)01/96]
n
oncoming motorists frequently signal you to turn off your
vehicle's high beams when you do not have the high beams
on
*
[MC34300(ALL)01/96]
n
the headlamps do not seem to give you enough light to see
clearly at night
*
[MC34400(ALL)01/96]
n
the headlamp beams are not pointed slightly down and to
the right
% [MC34500(ALL)04/96]
Replacing the Headlamp Bulb
*
[MC34600(ALL)03/96]
The headlamps on your vehicle use replaceable bulbs. When the
lamp burns out, simply replace the bulb, rather than the whole
lamp.
*
[MC34700(ALL)01/96]
RWARNING
Handle a halogen headlamp bulb carefully and keep out
of children's reach. Grasp the bulb only by its plastic
base and do not touch the glass. The oil from your hand
could cause the bulb to break the next time the
headlamps are operated.
*
[MC34800(ALL)01/96]
Do not remove the burned out bulb unless you can immediately
replace it with a new one. If a bulb is removed for an extended
period of time, contaminants may enter the headlamp and affect
its performance.
[MC34900(ALL)04/96]
To remove the headlamp bulb:
*
[MC35000(ALL)01/96]1.
Make sure that the engine is off and the headlamp switch on
the instrument panel is in the OFF position.
[MC35100(ALL)01/96]2.
Lift the hood and locate the headlamp bulb installed in the
rear of the headlamp. Remove the electrical connector from
the bulb by pulling the connector away from the bulb
assembly.
File:11wnmcs.ex
Update:Tue Oct 8 10:24:50 1996

371
Index
K
Keys
positions of the ignition................ 91
removing from the ignition.............. 92
stuck in lock position................. 92
L
Lamps
autolamp delay system............... 104
bulb replacement specifications chart......... 318
daytime running light system............. 88
dome lamps.................... 105
flashing the lamps................... 95
fog lamps...................... 87
hazard flashers................... 100
headlamps...................... 86
high beams...................... 94
illuminated entry system............... 130
illuminated mirrors................. 108
instrument panel, dimming............... 89
interior lamps..................... 89
map lamps..................... 106
trailer....................... 226
Lane change indicator (see Turn signal).......... 93
Lap belts....................... 165
Liftgate........................ 122
Lights, warning and indicator
airbag........................ 17
anti-lock brakes (ABS)................. 12
anti-theft....................... 27
brake........................ 11
charging system.................... 15
door ajar....................... 17
hazard warning light................ 100
high beam...................... 18
File:wnixs.ex
Update:Fri Oct 11 10:49:35 1996

372
Lights, warning and indicator (continued)
low fuel....................... 20
low washer fluid................... 19
oil pressure...................... 16
safety belt...................... 12
theft system..................... 27
traction control system................ 25
turn signal indicator................ 17,93
Load limits
GAWR....................... 233
GVWR....................... 233
trailer towing..................224, 234
Lubricant specifications................ 325
Luggage rack..................... 229
Lug nuts
anti-theft...................... 254
tightening sequence................. 260
Lumbar support pad.................. 137
M
Maintenance schedule and record (see separate Maintenance
Schedule and Record booklet)........... 3
Maintenance (see servicing)............... 269
Mileage, calculating fuel economy............ 305
Mirrors........................ 117
automatic dimming rearview mirror......... 107
dual electric remote control............. 118
side view mirrors (manual)............. 117
vanity mirror, illuminated.............. 108
Motorcraft parts.................... 323
File:wnixs.ex
Update:Fri Oct 11 10:49:35 1996

377
Index
Tires (continued)
inspection and maintenance............. 294
replacing...................... 296
rotating...................... 295
storing your vehicle................. 328
tire grades...................296±297
treadwear...................296, 298
wear bands..................... 296
Towing a trailer (see Trailer towing).......... 234
Towing your vehicle.................. 268
using wheel dollies................. 268
with a tow truck.................. 268
Traction control..................... 86
Trailer towing
tips........................ 226
trailer lamps.................... 226
Transaxle
automatic operation................. 216
fluid, checking and adding (automatic)......288±289
lubricant specifications................ 325
Transaxle control switch................ 218
Transmitter (see Remote entry)............. 126
Trip odometer...................... 23
Turn signal
indicator lights.................. 17,93
lever......................... 93
