1998 FORD WINDSTAR clock

122
%*
[CF39300(ALL)01/96]
Liftgate
*
[CF39400(ALL)01/96]
Liftgate opening procedure
[CF39500(ALL)01/96]1.
To open the liftgate, insert the door key into the lock and
turn it clockwise. You can also unlock the latch (but not
release it) with the power door lock system.
*
[CF39600(ALL)01/96]2.
Reach under the license plate light shield and release the
liftgate latch by squeezing the paddle handle rearward.
[CF39700(ALL)01/96]3.
To make the gate swing up to the fully opened position, pull
back and upward on the latch paddle handle under or
behind the license plate shield.
[CF39800(ALL)09/96]
13-1/2 pica
art:0050108-C
Opening the liftgate
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

Controls and Features
123
[CF39900(ALL)01/96]
Make certain that you close the liftgate door before driving your
vehicle. Possible damage may occur to the liftgate door lift
cylinders and attaching hardware if the liftgate door is not
closed prior to driving.
*
[CF40000(ALL)01/96]
RWARNING
Make sure that the liftgate door and/or window are
closed to prevent exhaust fumes from being drawn into
the vehicle. This will also prevent passengers and cargo
from falling out. If you must drive with the liftgate door
or window open, keep the vents open so outside air
comes into the vehicle.
*
[CF40100(ALL)01/96]
Liftgate closing procedure
*
[CF40200(ALL)01/96]1.
To make the liftgate swing downward, reach up and pull the
lower edge of the liftgate (or the loop handle on the inner
trim panel of vehicles with this option) and pull downward.
*
[CF40300(ALL)01/96]2.
When you have pulled down the liftgate enough so that you
can reach the license plate light shield, push the shield down
and forward to close the latch and liftgate. At this point, the
latch is not locked.
[CF40400(ALL)09/96]3.
You can lock the liftgate latch by pushing down the
night-lock button (located on the inside of the liftgate at the
bottom of the window) before you pull down and close the
liftgate. You can also lock the liftgate latch by inserting your
vehicle's door key and turning it counterclockwise after you
have closed the liftgate, by pressing LOCK on your
remote (if equipped), or by using the power door locks on
the front doors or the power lock switch in the cargo area.
*
[CF40500(ALL)01/96]
The liftgate area is only intended for cargo, not passengers. You
can open and close the liftgate from outside the vehicle. It
cannot be opened from inside the cargo area.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

Driving
219
[GF07100(ALL)01/96]
To return the transaxle to the normal Overdrive operation, press
the OVERDRIVE ON/OFF button again. Use this button to
select Overdrive or Overdrive Off whenever you drive your
vehicle.
*
[GF07200(ALL)01/96]
The transaxle will be in the ªoverdrive onº mode when the
vehicle is started even if the O/D OFF mode was selected when
the vehicle was last shut off.
*
[GF07300(ALL)01/96]
NOTE: If the O/D OFF indicator light is flashing on and off
repeatedly when the vehicle is started, there is a
transaxle electronic system malfunction. Contact your
dealer as soon as possible.
*
[GF07400(ALL)05/96]
When to use 2 (Second)
[GF07500(ALL)01/96]
Use 2 (Second) when driving on slippery roads or to provide
additional engine braking on downgrades. This position
provides Second and First gear operation only.
*
[GF07600(ALL)01/96]
When to use 1 (First)
[GF07700(ALL)05/96]
Use 1 (First) to provide maximum engine braking on steep
downgrades. Upshifts from First can be made by manually
shifting to 2 (Second) or
j(Overdrive). 1 (First) gear provides
only first gear operation. If you select First while driving at
higher speeds, the transaxle will shift to 2 (Second), and then
downshift to 1 (First) after the vehicle decelerates to the proper
speed.
*
[GF07800(ALL)01/96]
Parking
*
[GF07900(ALL)01/96]
Always come to a complete stop before you shift into P (Park).
This position locks the transaxle and prevents the front wheels
from turning. To securely latch the gearshift in the P (Park)
position, pull it toward you, push it completely
counterclockwise against the stop, and then push it toward the
instrument panel.
File:09wngfs.ex
Update:Mon Oct 7 11:46:08 1996

220
[GF08000(ALL)01/96]
The gearshift is securely latched in P (Park) if you can not
rotate it in a clockwise direction without pulling it toward you.
*
[GF08100(ALL)05/96]
RWARNING
Always set the parking brake fully and make sure the
gearshift is latched in P (Park). Turn off the ignition
whenever you leave your vehicle.
*
[GF08200(ALL)05/96]
RWARNING
Never leave your vehicle unattended while it is running.
*
[GF08300(ALL)05/96]
Forced Downshifts
[GF08400(ALL)01/96]
To gain extra acceleration in
j(Overdrive) (when passing
another vehicle) push the accelerator to the floor. The transaxle
will automatically downshift to the appropriate gear (third,
second or first).
*
[GF08500(ALL)01/96]
Vehicle Loading Information
*
[GF08600(ALL)01/96]
Your vehicle's load capacity is designated by weight, not
volume, so you cannot necessarily use all the available space.
Maximum safe vehicle weights as well as tire sizes, rim sizes
and inflation pressures are specified for your vehicle at the
assembly plant on the Safety Compliance Certification Label.
The certification label is located on the pillar in the driver's
door opening.
*
[GF08700(ALL)01/96]
Each additional item of equipment affects how much cargo a
vehicle can carry. If a vehicle is overloaded, performance will
suffer and service concerns may arise.
*
[GF08800(ALL)01/96]
NOTE: The vehicle must not be loaded to both the front and
rear GAWR because the GVWR will be exceeded. The
GAWR of the front and rear axles exceed the GVWR
when added together.
File:09wngfs.ex
Update:Mon Oct 7 11:46:08 1996

Roadside Emergencies
249
[ER06800(ALL)01/96]
Removing the spare tire
*
[ER06900(ALL)01/96]1.
Open the liftgate and find the plastic hex nut cover in the
carpeting of the cargo area. Lift the cover to expose the hex
nut.
[ER07000(ALL)01/96]
17-1/2 pica
art:0050024-B

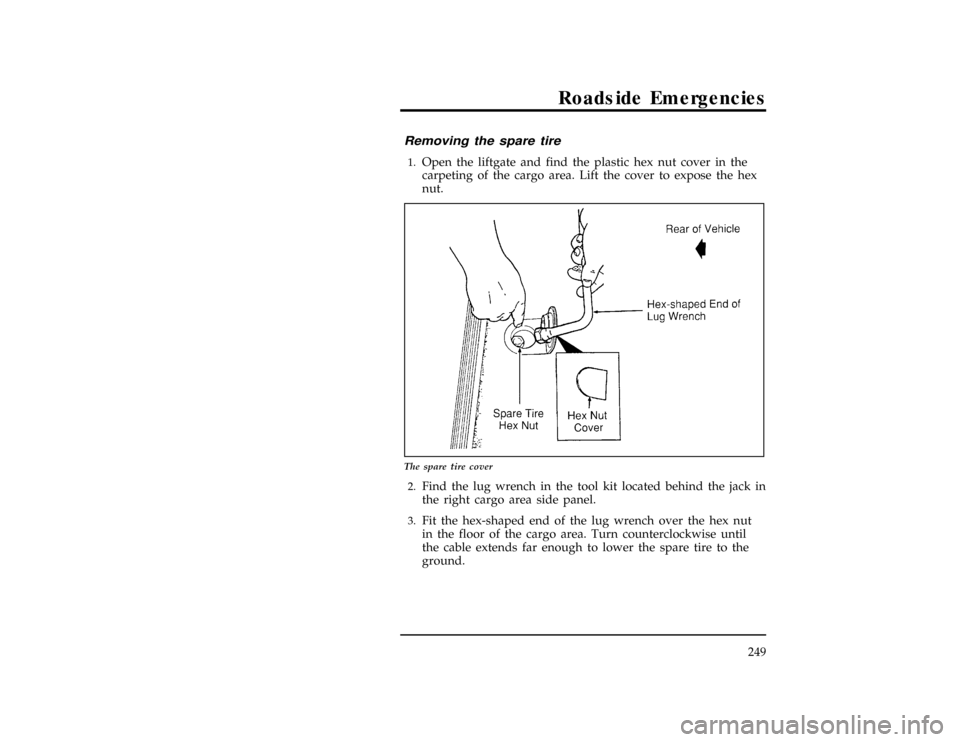

The spare tire cover
*
[ER07100(ALL)05/96]2.
Find the lug wrench in the tool kit located behind the jack in
the right cargo area side panel.
*
[ER07200(ALL)01/96]3.
Fit the hex-shaped end of the lug wrench over the hex nut
in the floor of the cargo area. Turn counterclockwise until
the cable extends far enough to lower the spare tire to the
ground.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

250
*
[ER07300(ALL)01/96]
10-1/2 pica
art:0040172-B

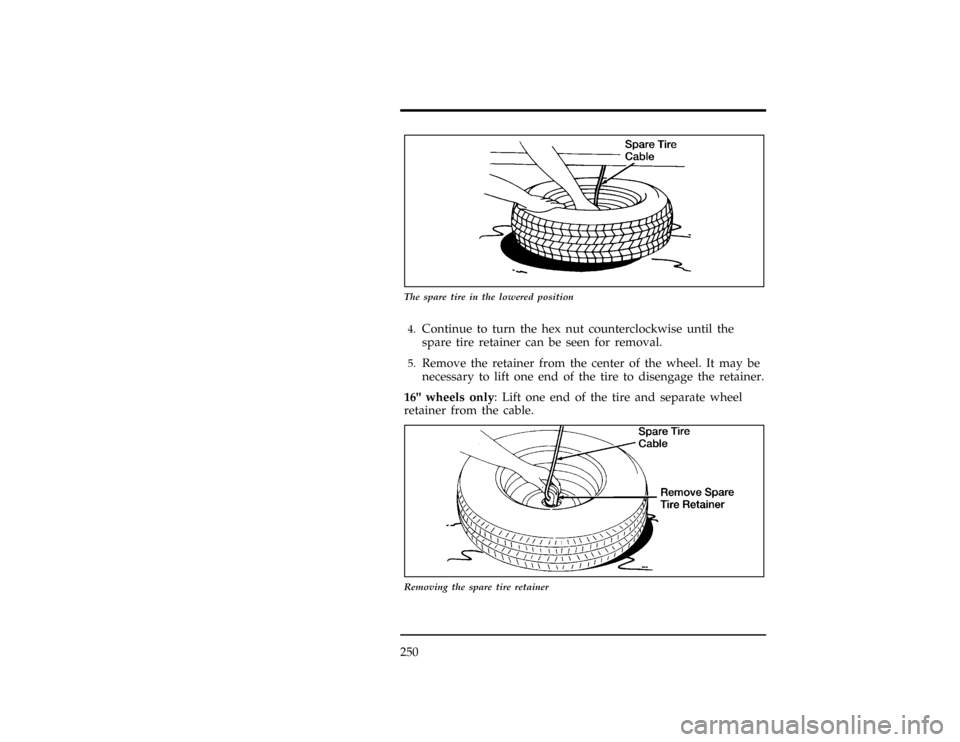

The spare tire in the lowered position
*
[ER07400(ALL)01/96]4.
Continue to turn the hex nut counterclockwise until the
spare tire retainer can be seen for removal.
*
[ER07500(ALL)01/96]5.
Remove the retainer from the center of the wheel. It may be
necessary to lift one end of the tire to disengage the retainer.
[ER07510(ALL)10/96]
16" wheels only: Lift one end of the tire and separate wheel
retainer from the cable.
*
[ER07600(ALL)01/96]
10-1/2 pica
art:0040173-B
Removing the spare tire retainer
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

254
[ER08865(ALL)08/96]
To replace the wheel ornament, align the tabs of the ornament
with the opening in the wheel. Push the ornament with your
palm until it is fully secured into the wheel opening.Do not
use excessive force or a metal hammer to install wheel covers
or wheel ornaments.
[ER08900(ALL)09/96]
13-1/2 pica
art:0050044-C

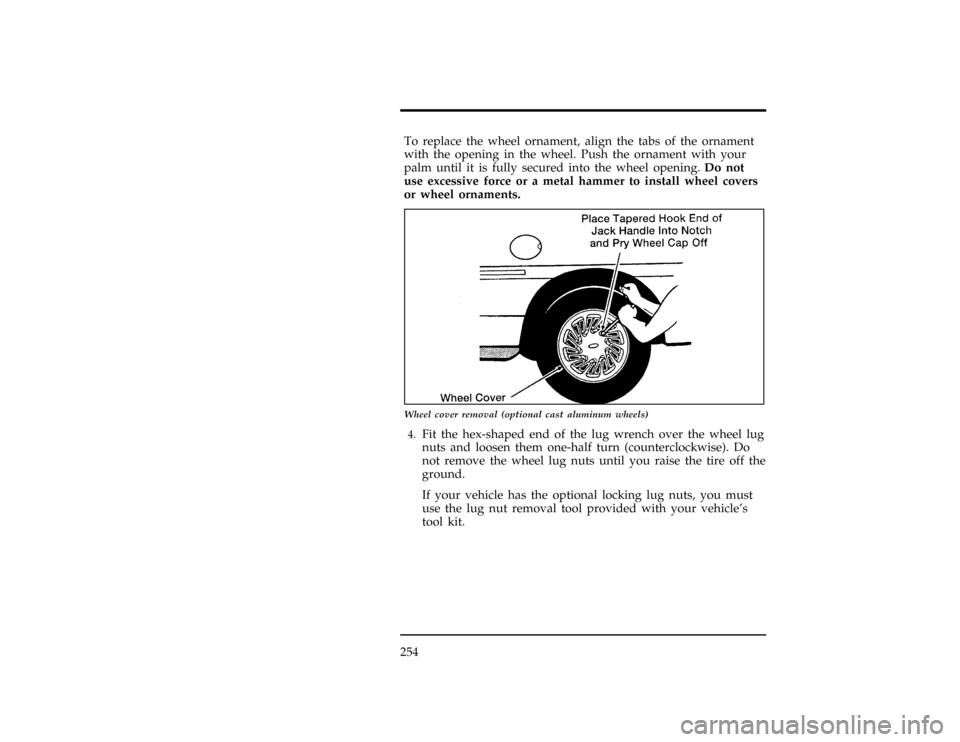

Wheel cover removal (optional cast aluminum wheels)
*
[ER09000(ALL)01/96]4.
Fit the hex-shaped end of the lug wrench over the wheel lug
nuts and loosen them one-half turn (counterclockwise). Do
not remove the wheel lug nuts until you raise the tire off the
ground.
%*
[ER09100(ALL)01/96]
If your vehicle has the optional locking lug nuts, you must
use the lug nut removal tool provided with your vehicle's
tool kit.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996

258
*
[ER09800(ALL)05/96]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
*
[ER09900(ALL)01/96]
RWARNING
To lessen the risk of personal injury, do not put any part
of your body under the vehicle while changing a tire. Do
not start the engine when your vehicle is on the jack.
The jack is only meant for changing the tire.
*
[ER10000(ALL)01/96]
RWARNING
Never raise your vehicle by using a bumper jack. The
bumper could be damaged or the jack could slip and you
could be injured.
[ER10100(ALL)01/96]
NOTE: Never raise your vehicle by placing the jack on the
torsion bar (within axle) or front or rear suspension
components. Serious damage to these components may
occur.
[ER10200(ALL)08/96]6.
Your vehicle may be equipped with one of two types of jack
and handle asemblies. Operation of each type is described as
follows:
[ER10210(ALL)08/96]
a. Separate Lug Nut Wrench and Jack Handle Type.
[ER10220(ALL)08/96]
Insert the jack handle into the jack and slide the tapered end
of the jack handle through the slot in the lug nut wrench.
[ER10230(ALL)08/96]
b. Articulated Hex Handle Type
[ER10240(ALL)08/96]
Remove the handle assembly from the jack retaining bracket.
Swing the hex socket end outward to an approximate right
angle position. Place the hex socket end on the hex nut of
the jack assembly. Turn the handle clockwise to raise the
vehicle off the ground.
File:10wners.ex
Update:Mon Oct 7 11:47:52 1996
