1998 FIAT PUNTO Wiring Diagrams Workshop Manual

service intervalchange wheelremove seatsfuse box locationbulbandroid auto
Previous
Next

Page 1 of 49

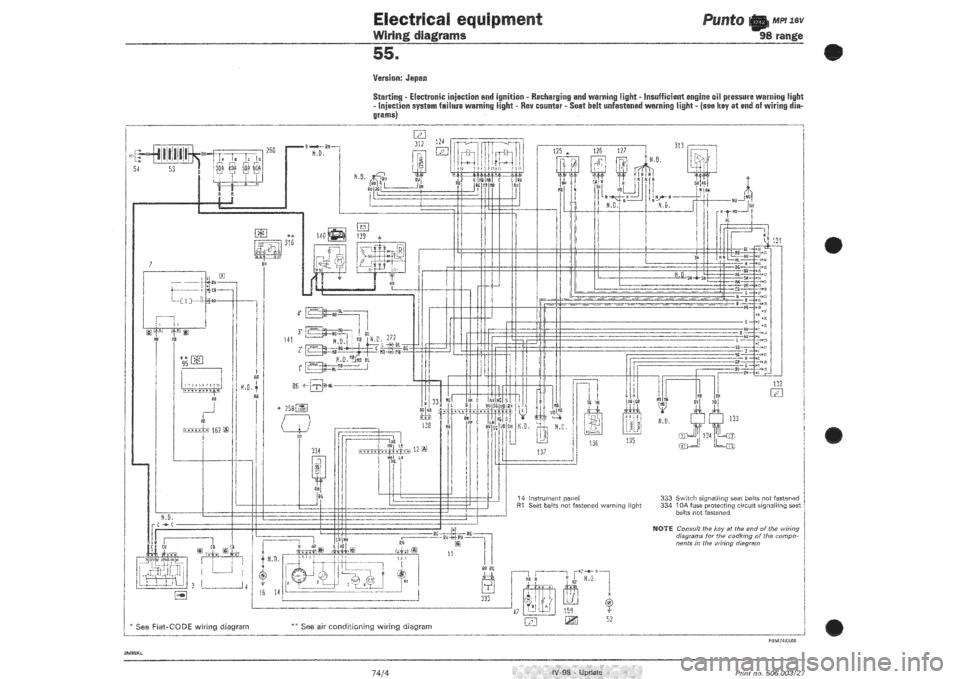

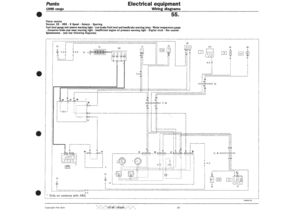

FIAT PUNTO 1998 176 / 1.G Wiring Diagrams Workshop Manual PUNTO eMANUAL Electrical Equipment Title Page Diagrams .................................................................................... 1
