1998 CHEVROLET MALIBU fuses

Downloaded from www.Manualslib.com manuals search engine If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t
go on at all when you
signal a turn, check for burned-out bulbs and then check
the fuse (see “Fuses and Circuit Breakers” in the Index).
Windshield Wipers
Headlamp High/Low Beam
To change the headlamps
from low-beam to
high-beam, push forward on the turn signaUmultifunction lever.
To change the headlamps from high-beam to low-beam,
pull the turn signal lever backward. When the high-beams
are on, a light on the instrument panel also
will be on.
Flash to Pass
This feature lets you use your high-beam headlamps to
signal a driver in front of you that you want to pass.
To use it, pull the turn signaVmultifunction lever toward
you until the high-beam headlamps come on, then
release the lever to turn them off. You
control the windshield wipers by moving the stalk
with the wiper symbol on it up or down.
For a single wiper cycle, push the
stalk down to MIST,
then release it. For more cycles, hold the stalk
down longer.
For steady wiping at low speed, move the stalk up to the
LO position. For high-speed wiping, move the stalk up
further, to
HI. To stop the wipers, move the stalk to OFF.
You can set the wiper speed for a long or short delay between
wipes.
This can be very useful in light rain or snow.

Downloaded from www.Manualslib.com manuals search engine To tow your vehicle with all four wheels on the ground,
follow these steps: Module,
Cluster. See “Instrument Panel Fuse Block”
in the Index for location of the fuses.
5. Turn the ignition switch to ACC.
6. Shift your transaxle to NEUTRAL (N).
7. Release the parking brake.
Remember to replace the fuses once you reach your
destination.
To replace a fuse:
1. Set the parking brake.
2. Remove the key from the ignition switch.
3. Replace the fuse.
I NOTICE:
1. Position the vehicle to tow and then secure it.
2. Turn the ignition switch to OFF.
3. Set the parking brake.
4. To prevent your battery from draining while towing,
Remove the following fuses from the instrument
panel fuse block: A) Radio,
B) Wiper, H) Powertrain
Control Module and
K) Body Function Control
Make sure that the towing speed does not exceed
65 mph (110 km/h), or your vehicle could be
badly damaged.

Downloaded from www.Manualslib.com manuals search engine Electrical System
Add-on Electrical Equipment
I NOTICE:
Don’t add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see “Servicing
Your Air Bag-Equipped Vehicle” in
the Index.
Headlamp Wiring
The headlamp wiring is protected by fuses, one for each
headlamp, in the fuse block. An electrical overload will
cause the lamps to turn
off. If this happens, have your
headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools.
If the overload is caused by some electrical
problem and not snow, etc., be sure
to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse block protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until
the problem is fixed or
goes away.

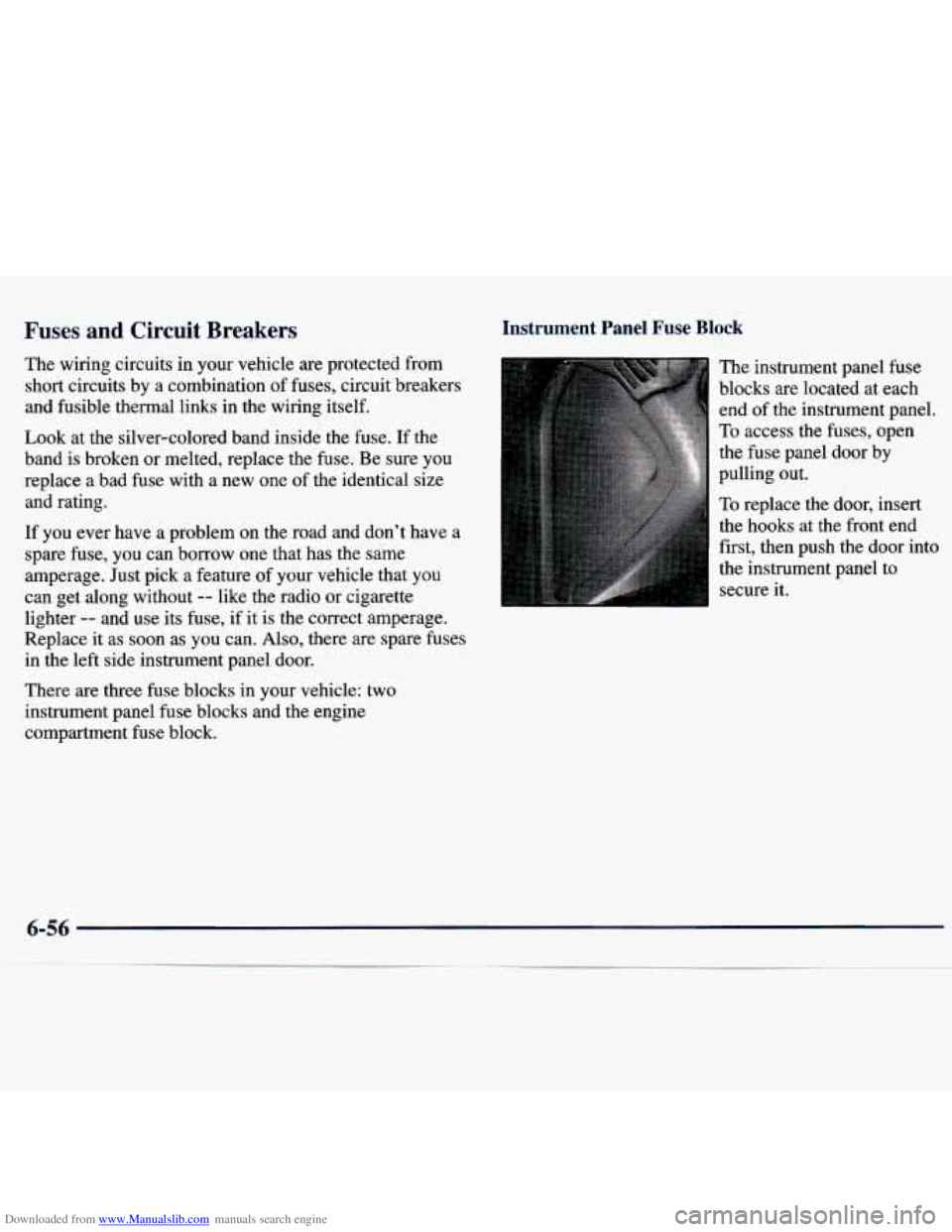

Downloaded from www.Manualslib.com manuals search engine Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links in the wiring itself.
Look at
the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don’t have a
spare fuse, you can borrow one that has the same
amperage. Just pick a feature of your vehicle that you
can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as you can. Also, there are spare fuses
in the left side instrument panel door.
There are three fuse blocks in your vehicle: two
instrument panel fuse blocks and the engine
compartment fuse block.
Instrument Panel Fuse Block
The instrument panel fuse
blocks are located at each end of the instrument panel.
To access the fuses, open
the fuse panel door by
pulling out.
To replace the door, insert
the hooks at the front end
first, then push the door into
the instrument panel to
secure it.
6-56

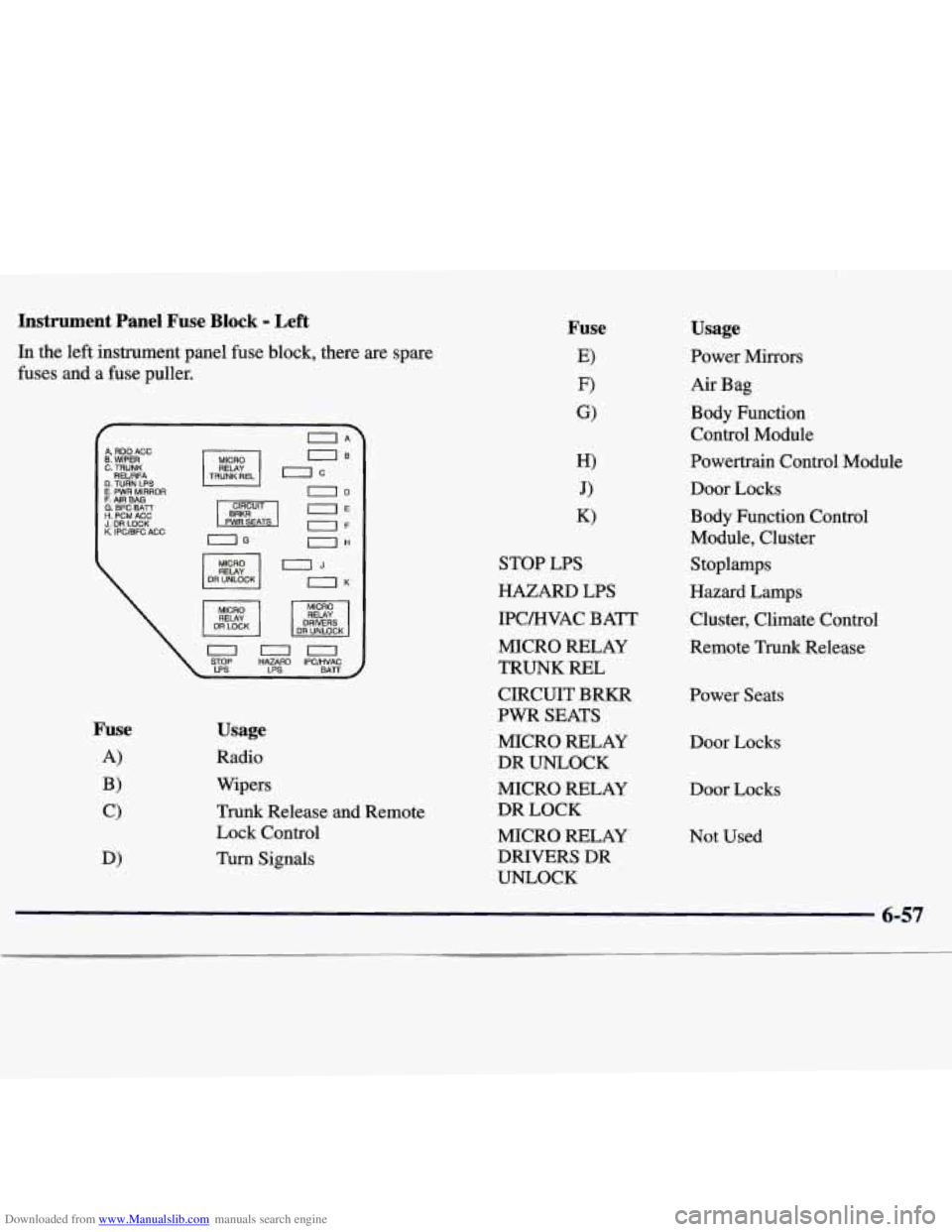

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Fuse Block - Left
In the left instrument panel fuse block, there are spare
fuses and a fuse puller.
A RDO ACC B. WIPER C. TRUNK
D. TURN LPS REURFA
E. PWR MIRROR F. AIR BAG G. BFC BATT H. PCM ACC J. DR LOCK
K. IPC/BFC ACC
- . - - -. . . .
MICRO
TRUNK REL

MICRO
OR LOCK
Usage
Radio
Wipers Trunk Release and Remote
Lock Control
Turn Signals STOP
LPS
HAZARD LPS
IPCIHVAC BATT
MICRO RELAY
TRUNK REL
CIRCUIT BRKR
PWR SEATS
MICRO RELAY
DR UNLOCK
MICRO RELAY
DR LOCK
MICRO RELAY
DRIVERS DR
UNLOCK
Usage
Power Mirrors
Air Bag
Body Function
Control Module
Powertrain Control Module
Door Locks
Body Function Control
Module, Cluster
Stoplamps
Hazard Lamps
Cluster, Climate Control
Remote Trunk Release
Power Seats
Door Locks
Door Locks
Not Used
6-57

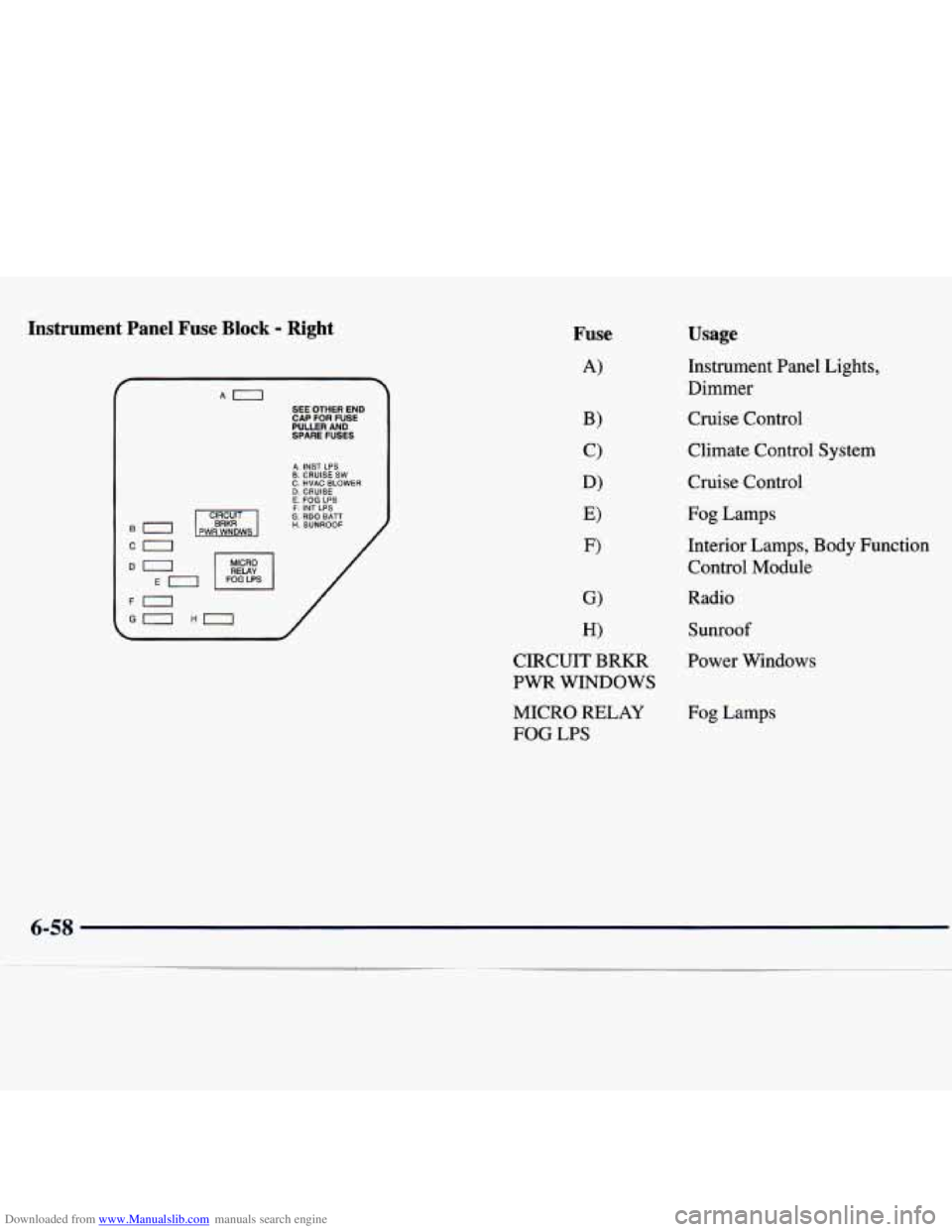

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Fuse Block - Right
SEE OTHER END
CAP FOR FUSE PUUER AND
SPARE FUSES
A. INST LPS B. CRUISE SW C. HVAC BLOWER D. CRUISE E. FOG LPS F. INT LPS G. RDO BATT H. SUNROOF
/
/
Fuse
A)
Usage
Instrument Panel Lights,
Dimmer
Cruise Control
Climate Control
System
Cruise Control
Fog Lamps
Interior Lamps, Body Function Control Module
Radio
Sunroof
CIRCUIT BRKR Power Windows
PWR WINDOWS
MICRO RELAY
FOG
LPS
Fog Lamps
6-58

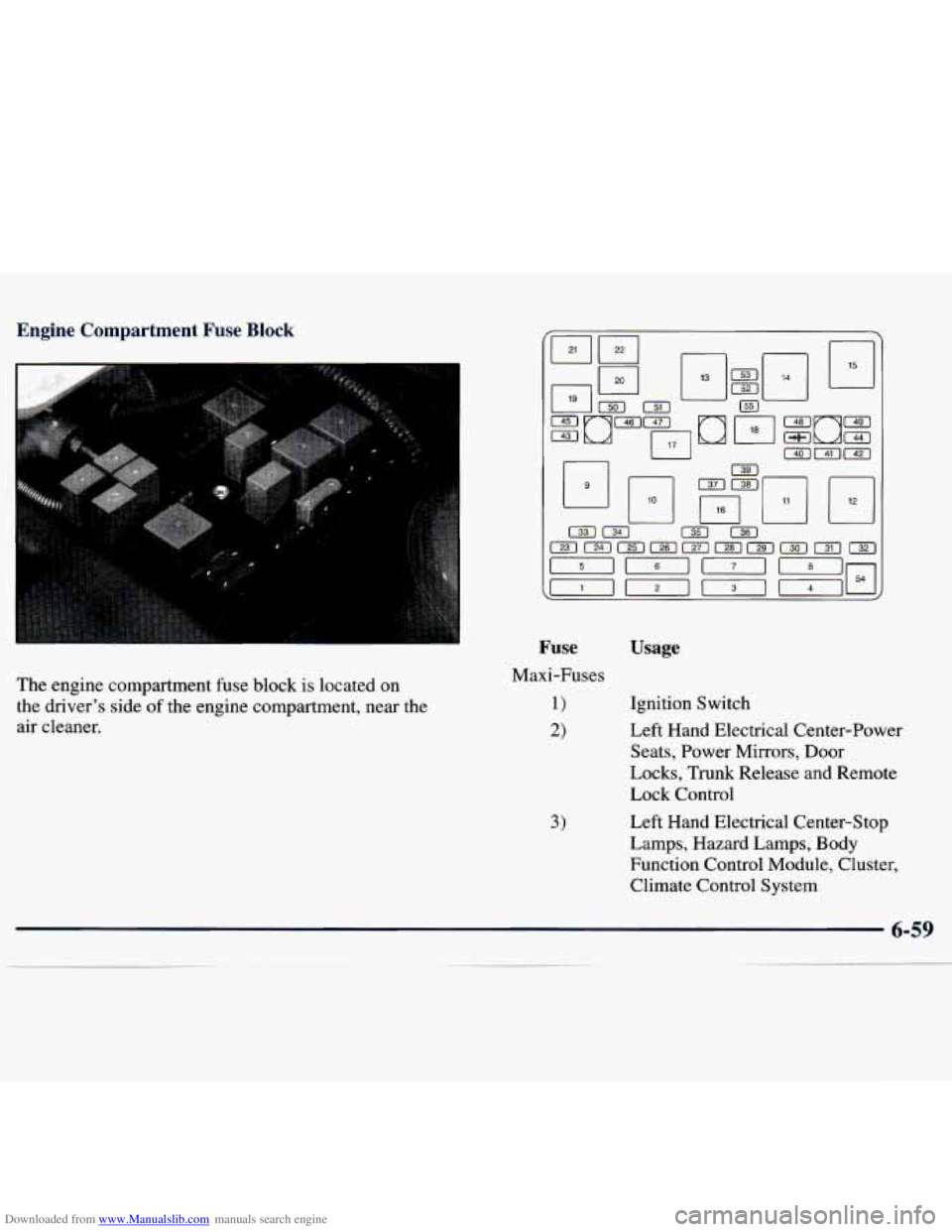

Downloaded from www.Manualslib.com manuals search engine Engine Comnartment Fuse Block
The engine compartment fuse block is located on
the driver’s side of the engine compartment, near the
air cleaner.
Fuse Usage
Maxi-Fuses
1)
2)
3)
Ignition Switch
Left Hand Electrical Center-Power Seats, Power Mirrors, Door
Locks, Trunk Release and Remote
Lock Control
Left Hand Electrical Center-Stop
Lamps, Hazard Lamps, Body
Function Control Module, Cluster,
Climate Control System

Downloaded from www.Manualslib.com manuals search engine Fuse
4)
Usage
Right Hand Electrical Center-Fog
Lamps, Radio, Body Function Control
Module, Interior Lamps
Ignition Switch
Not Used
Anti-Lock Brakes
Cooling Fans
Mini-Relays
9) Rear Defog
10) Not Used
11) Anti-Lock Brakes
12) Cooling Fan
13) HVAC Blower (Climate Control)
14) Cooling Fans
15) Cooling Fans
16) Air Conditioning Compressor
17) Not Used
1% Fuel Pump
19) Automatic Light Control
Micro-Relays
Fuse
20)
21)
22)
Mini-Fuses
23
- 32)
33)
34)
35)
36)
37)
43)
44)
Usage
Automatic Light Control
Horn
Daytime Running
Lamps
Spare Fuse Holder
Rear Defog
Accessory Power Outlets, Cigar
Lighter
Anti-Lock Brakes
Anti-Lock Brakes
Air Conditioning Compressor, Body
Function Control Module
Automatic Transaxle
Powertrain Control Module, Ignition Anti-Lock Brakes
Ignition System Back-up Lamps, Brake Transaxle
Shift Interlock
Horn
Powertrain Control Module
