1998 CADILLAC DEVILLE radiator

Downloaded from www.Manualslib.com manuals search engine If it isn’t, the coolant level should be indicated by a
CHECK COOLANT
LEVEL message on the Driver
Information Center. If it is, you may have a leak in the
radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system.
Heater and radiator hoses, and other engine
parts, can be very hot. Don’t touch them.
If you
do, you can be burned.
Don’t run the engine if there is
a leak. If you run
the engine, it could lose all coolant. That could
cause an engine fire, and you could be burned.
Get any leak fixed before you drive the vehicle.
I NOTICE:
Engine damage if you keep running your engine
without coolant isn’t covered
by your warranty.
See “Overheated Engine Protection Operating
Mode” in the Index.
If there seems to be no leak, with the engine on, check to
see if the electric engine cooling fans are running. If the
engine is overheating, both fans should be running..
If
they aren’t, your vehicle needs service.
.

Downloaded from www.Manualslib.com manuals search engine ~- ~~ ~
get the overheat warning. Your engine could
catch fire and you or others could be burned.
Use a 50/50 mixture of clean water and
DEX-COOL@ coolant.
I NOTICE:
In cold weather, water can freeze and crack the
engine, radiator, heater core and other parts.
So
use the recommended coolant. 1. You can remove the coolant surge tank pressure
cap when the cooling system, including the coolant
surge tank pressure cap and upper radiator hose,
is no longer hot. Turn the pressure cap slowly
counterclockwise until it first stops. (Don’t press
down while turning the pressure cap.)
If you hear a hiss, wait for that to stop. A hiss means
there is still some pressure left.
You
can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and
it will burn if the engine parts are hot
enough. Don’t spill coolant on
a hot engine.
5-21

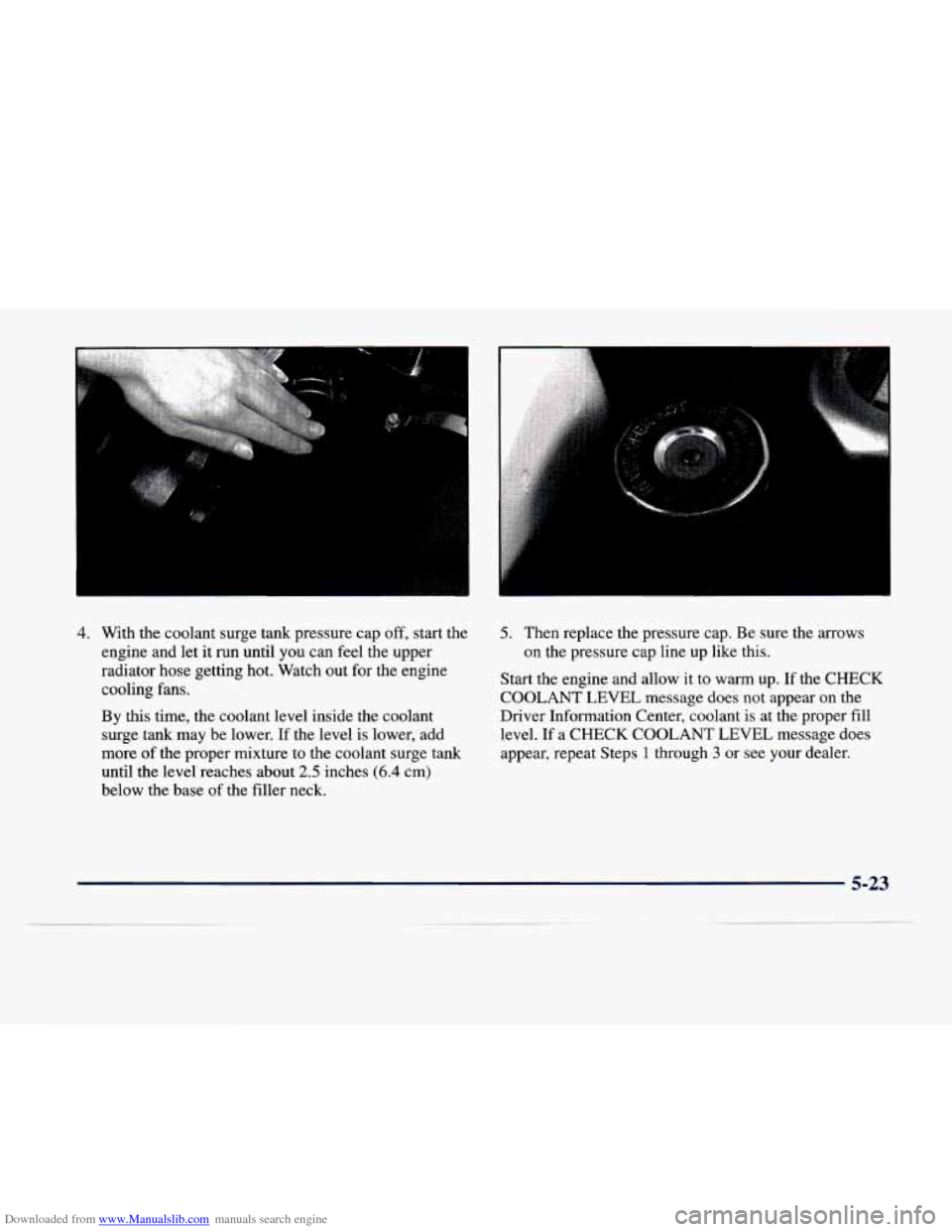

Downloaded from www.Manualslib.com manuals search engine 4. With the coolant surge tank pressure cap off, start the
engine and let it run until
you can feel the upper
radiator hose getting hot. Watch out for the engine
cooling fans.
By this time, the coolant level inside the coolant
surge tank may be lower.
If the level is lower, add
more
of the proper mixture to the coolant surge tank
until the level reaches about
2.5 inches (6.4 cm)
below
the base of the filler neck.
5. Then replace the pressure cap. Be sure the arrows
on
the pressure cap line up like this.
Start the engine and allow it to warm up. If the
CHECK
COOLANT LEVEL message does not appear on the
Driver Information Center, coolant
is at the proper fill
level.
If a CHECK COOLANT LEVEL message does
appear, repeat Steps
1 through 3 or see your dealer.

Downloaded from www.Manualslib.com manuals search engine Underhood Lamp
Turn the parking lamps on to operate the underhood
lamp. The underhood lamp will come on when the
ho0.d
is opened.
Engine Oil
~MIUM UNLEADED - -
FUEL ONLY Dg Dg Dg MZ TRIP ; 4 4.
HHBHHHrn
..". ."... "... .... -... . I ...... "... ........... ..... ....... .... "". . ..... ,:*. :::: ....... :::: :. ... "I. ."." "... ". " ". "..."... U..".. . ..... . : f. ,I.! I" ;
A CHECK OIL LEVEL message will appear when the
engine oil is approximately
1 quart (1 L) low. If the
' message is displayed, check the dipstick level and-add
oil as needed.
It's a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be
warm and the vehicle must be on level ground.
The engine
oil dipstick is
located behind the radiator
on the driver's side of the
engine. The black handle
'says
ENGINE OIL on it.
Turn off the engine .and
give the
oil a few minutes
to drain back into the
oil
pan.' If you don't, the oil
dipstick might not show
the actual'level.
I
6-11

Downloaded from www.Manualslib.com manuals search engine Checking Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
When to Add Engine Oil
If the oil is at or below the ADD line, then you’ll need
to add at least one quart of oil. But you must use the
right kind. This part explains what kind
of oil to use. For
crankcase capacity, see “Capacities and Specifications”
in the Index.
I NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the upper
mark that shows the proper operating range,
your engine could be damaged.
The oil fill cap is located
behind the radiator on the
passenger’s side of the
engine.
Turn the cap to the
left to remove it.
Be sure to fill
it enough to put the level somewhere in
the proper operating range. Push the dipstick all the way
back in when you’re through.
6-12

Downloaded from www.Manualslib.com manuals search engine 1. Disconnect the Intake
Air Temperature (IAT)
sensor from the base of
the air cleaner.
2. With a screwdriver,
loosen the air duct
clamp, which is located at the mass airflow
sensor end of the
air duct.
L
4. Unhook both air cleaner cover latches. One latch is
located near the radiator hose (not shown) and the
other latch-is located next to the
UT sensor.
5. Pivot the air cleaner and air duct assembly toward
the front of the vehicle. Remove the cover.
3. Disconnect the air duct from the mass aifflow sensor.
6-16

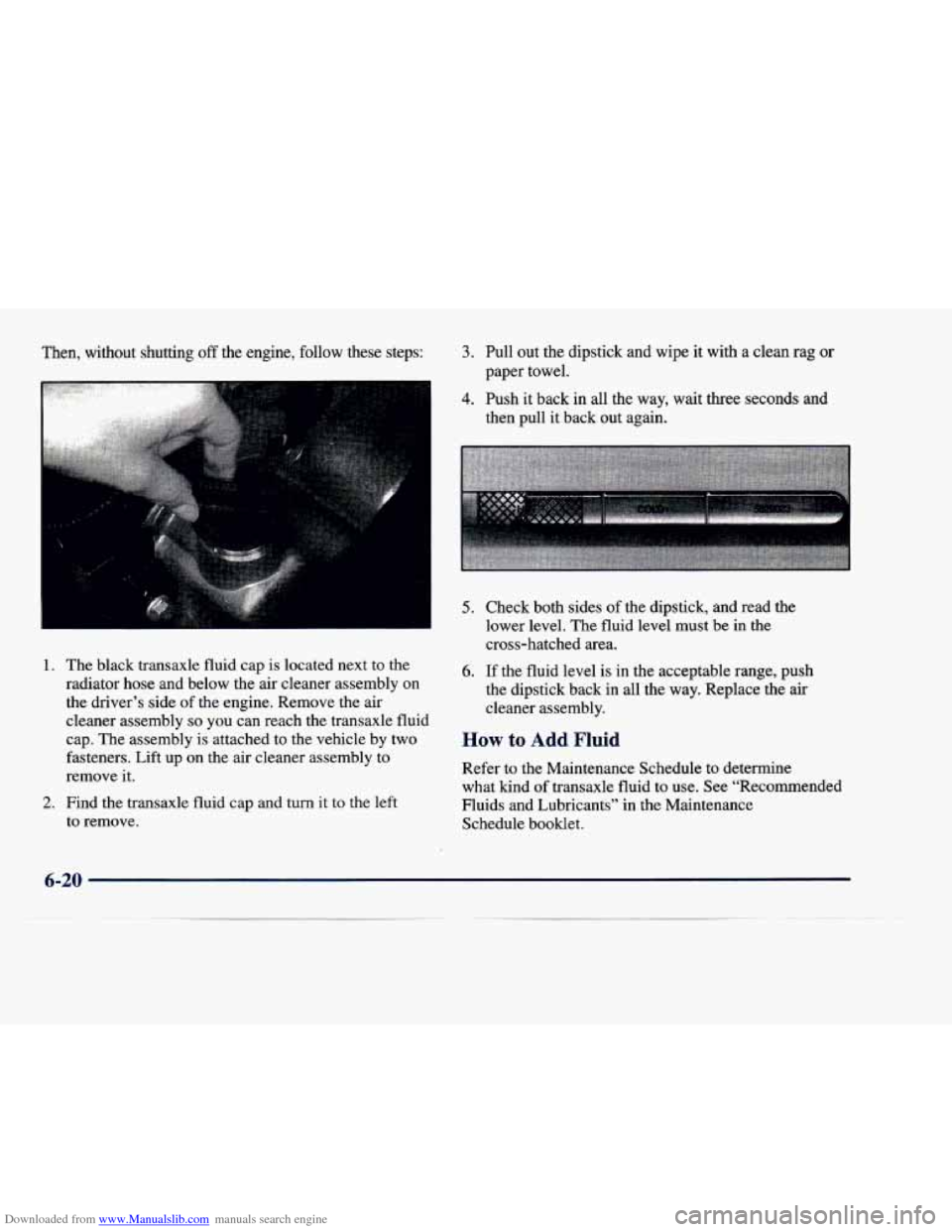

Downloaded from www.Manualslib.com manuals search engine Then, without shutting off the engine, follow these steps:
I
1. The black transaxle fluid cap is located next to the
radiator hose and below the air cleaner assembly on
the driver’s side of the engine. Remove the air
cleaner assembly
so you can reach the transaxle fluid
cap. The assembly
is attached to the vehicle by two
fasteners. Lift up on the air cleaner assembly to
remove it.
2. Find the transaxle fluid cap and turn it to the left
to remove.
3. Pull out the dipstick and wipe it with a clean rag or
4. Push it back in all the way, wait three seconds and
paper towel.
then pull it back out again.
5. Check both sides of the dipstick, and read the
lower level. The fluid level must be in the
cross-hatched area.
6. If the fluid level is in the acceptable range, push
the dipstick back in all the way. Replace the
air
cleaner assembly.
How to Add Fluid
Refer to the Maintenance Schedule to determine
what kind of transaxle fluid to use. See “Recommended
Fluids and Lubricants” in the Maintenance
Schedule booklet.
6-20

Downloaded from www.Manualslib.com manuals search engine Engine Coolant
The cooling s stem in your vehicle is filled with
DEX-COOL engine coolant.
This coolant is designed
to remain
in your vehicle for 5 years or 150,000 miles
(240 000 km) whichever occurs first, if you add only
DEX-COOL’ extended
life coolant.
B
The following explains your cooling system and how
to add coolant when it is low. If you have a problem
with engine overheating, see “Engine Overheating” in
the Index.
A 50/50 mixture of water and DEX-COOL’
coolant will:
0 Give freezing protection down to -34°F (-37°C).
0 Give boiling protection up to 265 “F ( 129 O C).
0 Protect against rust and corrosion.
0 Help keep the proper engine temperature.
0 Let the warning lights and gages work as
they should.
NOTICE:
When adding coolant, it is important that you
use only DEX-COOL@ (silicate-free) coolant.
If coolant other than DEX-COOL is added to
the system, premature engine, heater core or
radiator corrosion may result. In addition, the
engine coolant will require change sooner
-- at
30,000 miles (50 000 km) or 24 months,
whichever occurs first. Damage caused by the
use
of coolant other than DEX-COOL’ is not
covered by your new vehicle warranty.
6-22
