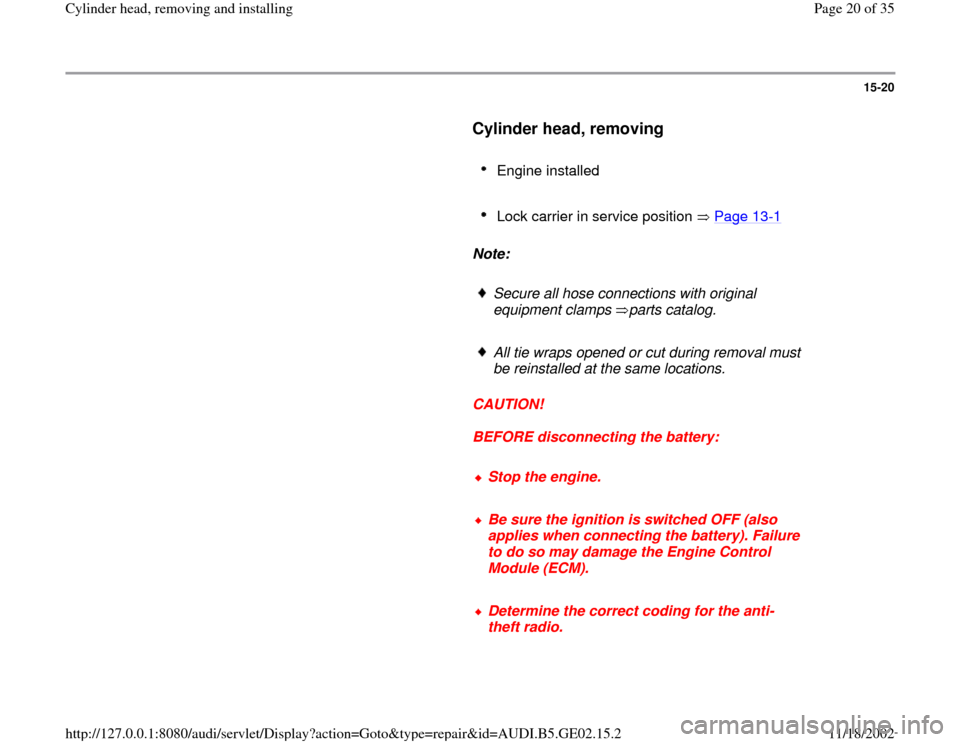

15-20
Cylinder head, removing
Engine installed
Lock carrier in service position Page 13
-1
Note:
Secure all hose connections with original
equipment clamps parts catalog.
All tie wraps opened or cut during removal must
be reinstalled at the same locations.
CAUTION!
BEFORE disconnecting the battery:
Stop the engine.
Be sure the ignition is switched OFF (also
applies when connecting the battery). Failure
to do so may damage the Engine Control
Module (ECM).
Determine the correct coding for the anti-
theft radio.
