1998 AUDI A4 coolant level

15-14

Removing oil seal at Hall sensor (left cylinder
head)

Note:
Leave coolant hoses connected. - Detach coolant reservoir -arrows- and move clear to side.
- Unplug connector from coolant level monitor.
- Move wiring harness clear at bulkhead.

- Unbolt bracket -arrows- for plug connectors on bulkhead and move
clear to side.
Pa
ge 14 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

15-18


Note:
Leave coolant hoses connected. - Remove coolant reservoir -arrows- and move it clear to the side.
- Unplug connector from coolant level monitor.
- Move wiring harness clear at bulkhead.

- Unbolt bracket -arrows- for plug connectors on bulkhead and move
clear to the side.
- Unbolt Hall sensor housing (10 Nm).
- Remove bolt securing Hall sensor rotor (20 Nm) and carefully lever off
rotor using a screwdriver.
Pa
ge 18 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

15-23


Note:
Leave coolant hoses connected. - Remove coolant reservoir -arrows- and move it clear to the side.
- Unplug connector from coolant level monitor.
- Remove cover panel from cylinder head cover (cylinder bank 4 - 6).

Note:
Plug lower section of intake line. - Release hose clamp -arrow-.
- Remove intake line -1-.
- Disconnect hose -2-.
- Detach water line -3-.
Pa
ge 23 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

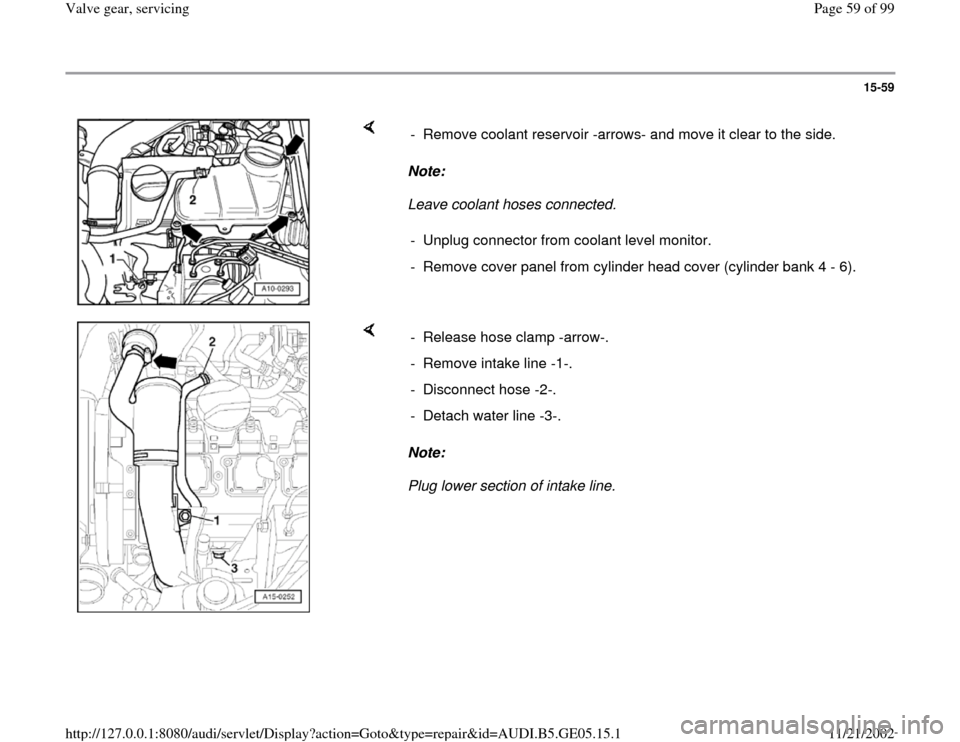

15-59


Note:
Leave coolant hoses connected. - Remove coolant reservoir -arrows- and move it clear to the side.
- Unplug connector from coolant level monitor.
- Remove cover panel from cylinder head cover (cylinder bank 4 - 6).

Note:
Plug lower section of intake line. - Release hose clamp -arrow-.
- Remove intake line -1-.
- Disconnect hose -2-.
- Detach water line -3-.
Pa
ge 59 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1
