1998 AUDI A4 fuel pump

26-42


Electrical Wiring Diagrams, Troubleshooting & Component Locations
Repair Manual, 2.7 Liter V6 5V BiTurbo Fuel Injection & Ignition,
Engine Code(s): APB, Repair Group 24

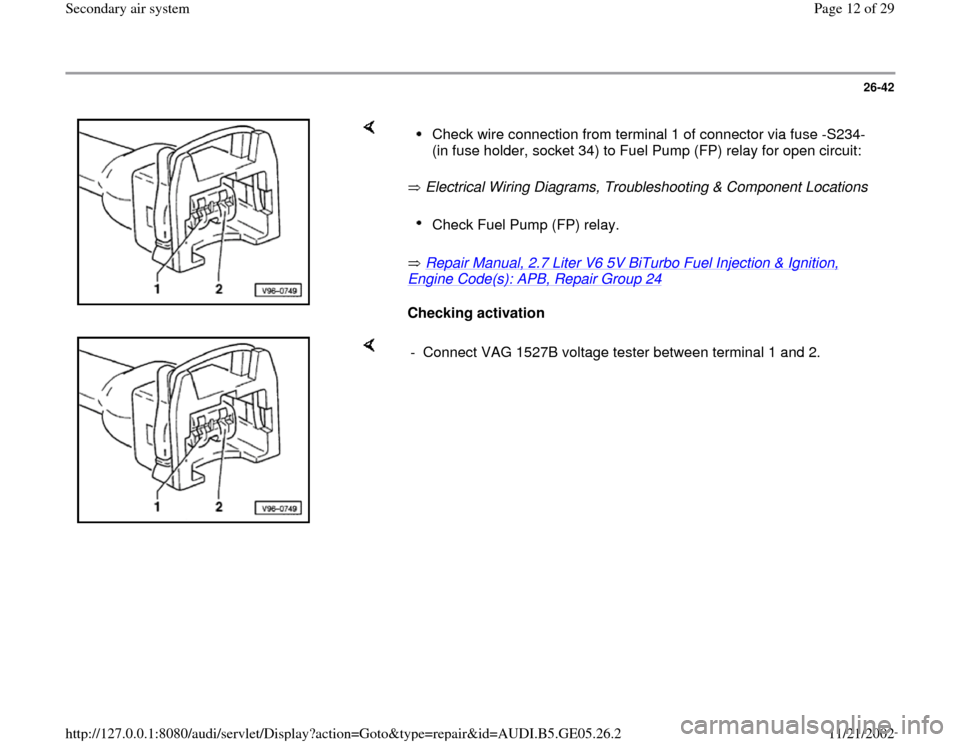

Checking activation
Check wire connection from terminal 1 of connector via fuse -S234-
(in fuse holder, socket 34) to Fuel Pump (FP) relay for open circuit: Check Fuel Pump (FP) relay.

- Connect VAG 1527B voltage tester between terminal 1 and 2.
Pa
ge 12 of 29 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.26.2

26-46

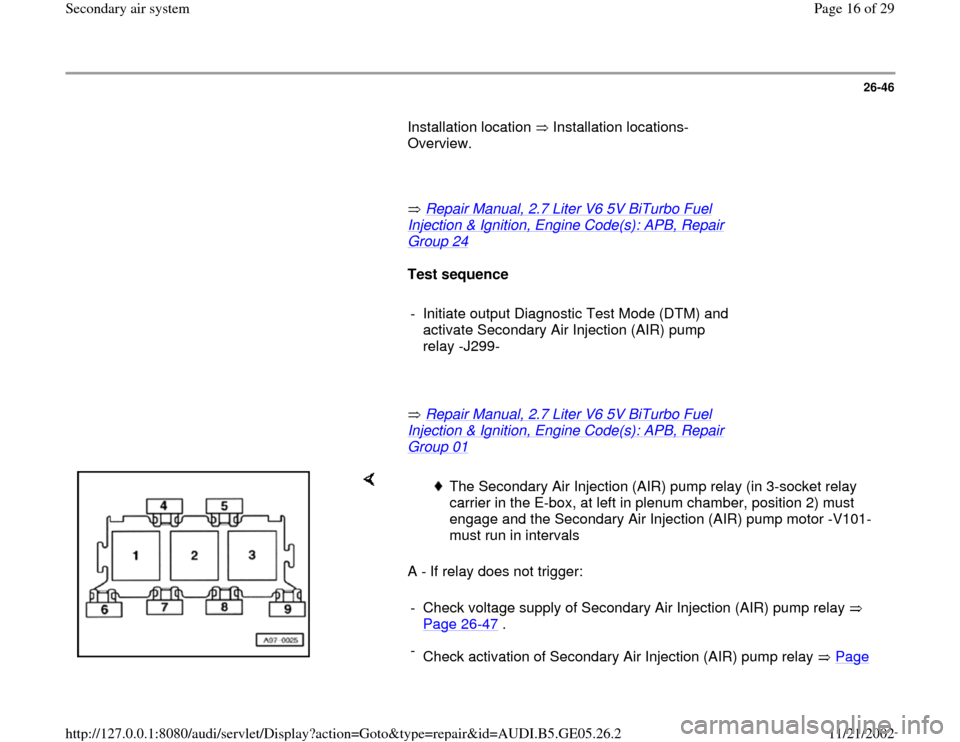

Installation location Installation locations-
Overview.
Repair Manual, 2.7 Liter V6 5V BiTurbo Fuel
Injection & Ignition, Engine Code(s): APB, Repair Group 24


Test sequence

- Initiate output Diagnostic Test Mode (DTM) and
activate Secondary Air Injection (AIR) pump
relay -J299-

Repair Manual, 2.7 Liter V6 5V BiTurbo Fuel
Injection & Ignition, Engine Code(s): APB, Repair Group 01


A - If relay does not trigger:
The Secondary Air Injection (AIR) pump relay (in 3-socket relay
carrier in the E-box, at left in plenum chamber, position 2) must
engage and the Secondary Air Injection (AIR) pump motor -V101-
must run in intervals
- Check voltage supply of Secondary Air Injection (AIR) pump relay
Page 26
-47
.
-
Check activation of Secondary Air Injection (AIR) pump relay Page
Pa
ge 16 of 29 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.26.2

26-48

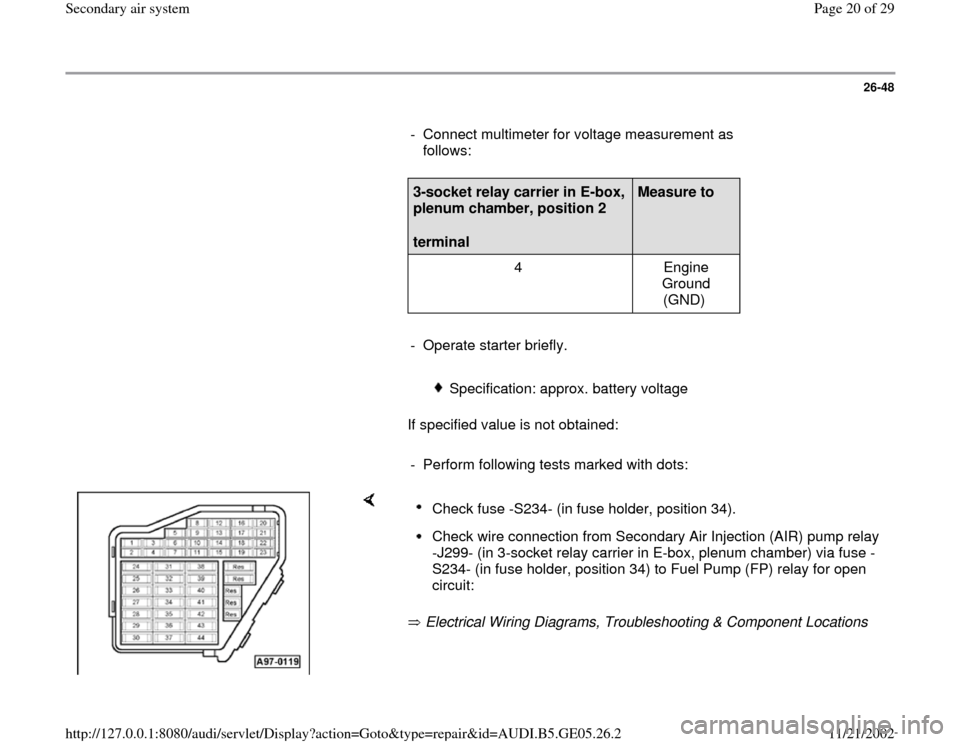

- Connect multimeter for voltage measurement as
follows:

3-socket relay carrier in E-box,
plenum chamber, position 2
terminal
Measure to

4 Engine
Ground
(GND)

- Operate starter briefly.


Specification: approx. battery voltage
If specified value is not obtained:

- Perform following tests marked with dots:

Electrical Wiring Diagrams, Troubleshooting & Component Locations Check fuse -S234- (in fuse holder, position 34). Check wire connection from Secondary Air Injection (AIR) pump relay
-J299- (in 3-socket relay carrier in E-box, plenum chamber) via fuse -
S234- (in fuse holder, position 34) to Fuel Pump (FP) relay for open
circuit:
Pa
ge 20 of 29 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.26.2

26-49

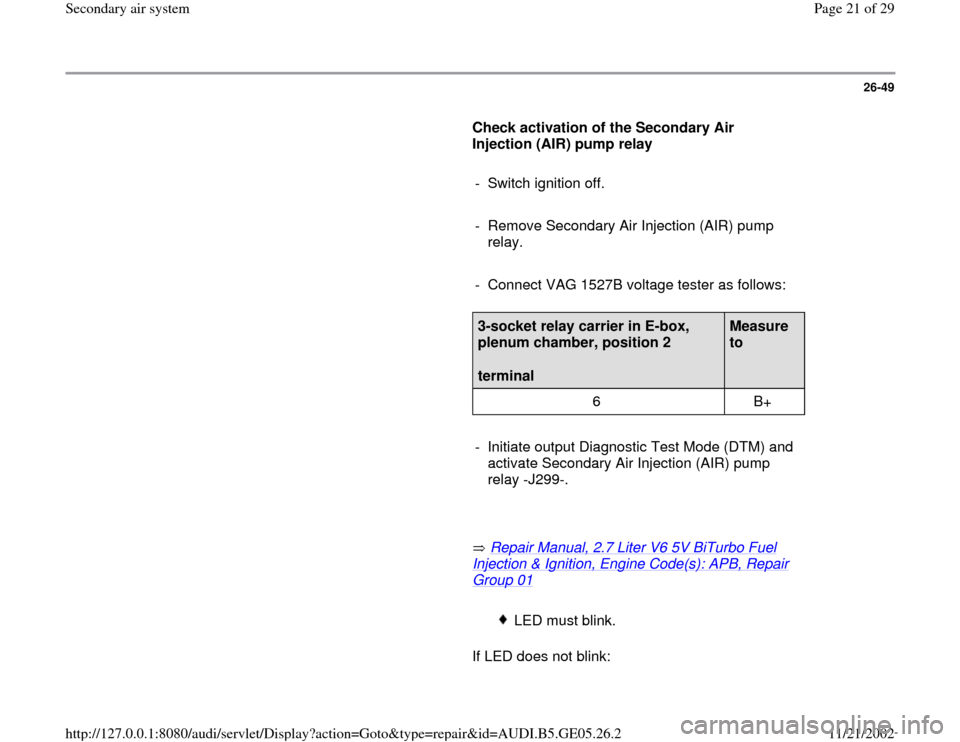

Check activation of the Secondary Air
Injection (AIR) pump relay

- Switch ignition off.

- Remove Secondary Air Injection (AIR) pump
relay.

- Connect VAG 1527B voltage tester as follows:

3-socket relay carrier in E-box,
plenum chamber, position 2
terminal
Measure
to

6 B+

- Initiate output Diagnostic Test Mode (DTM) and
activate Secondary Air Injection (AIR) pump
relay -J299-.

Repair Manual, 2.7 Liter V6 5V BiTurbo Fuel
Injection & Ignition, Engine Code(s): APB, Repair Group 01



LED must blink.
If LED does not blink:
Pa
ge 21 of 29 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.26.2

26-50

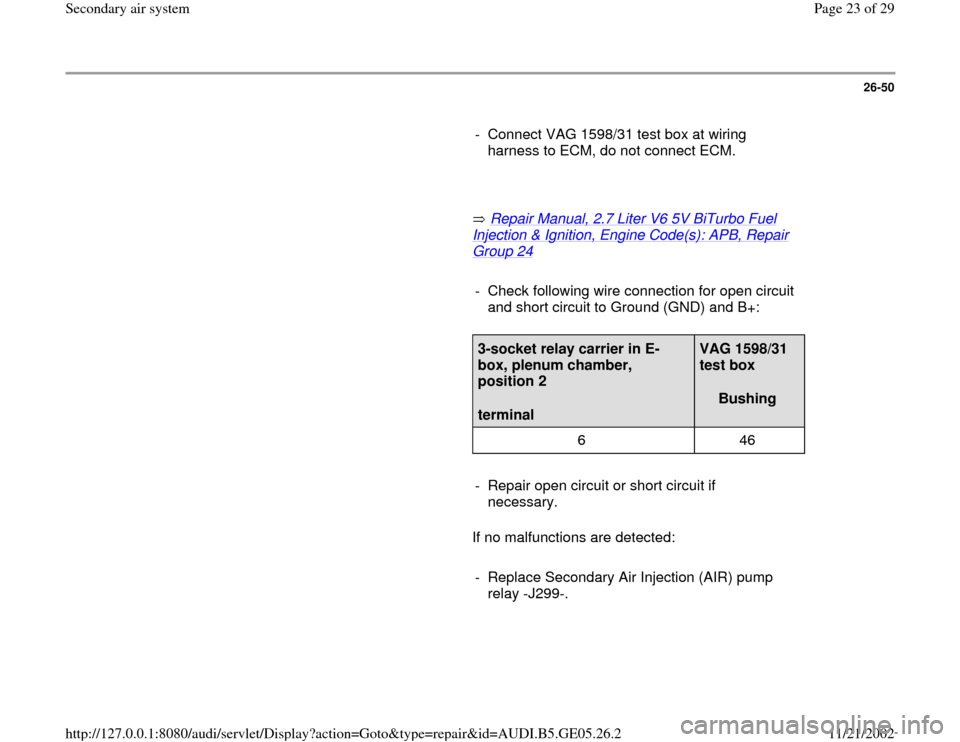

- Connect VAG 1598/31 test box at wiring
harness to ECM, do not connect ECM.

Repair Manual, 2.7 Liter V6 5V BiTurbo Fuel
Injection & Ignition, Engine Code(s): APB, Repair Group 24


- Check following wire connection for open circuit
and short circuit to Ground (GND) and B+:

3-socket relay carrier in E-
box, plenum chamber,
position 2
terminal
VAG 1598/31
test box
Bushing
6 46

- Repair open circuit or short circuit if
necessary.
If no malfunctions are detected:

- Replace Secondary Air Injection (AIR) pump
relay -J299-.
Pa
ge 23 of 29 Secondar
y air s
ystem
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.26.2

26-51

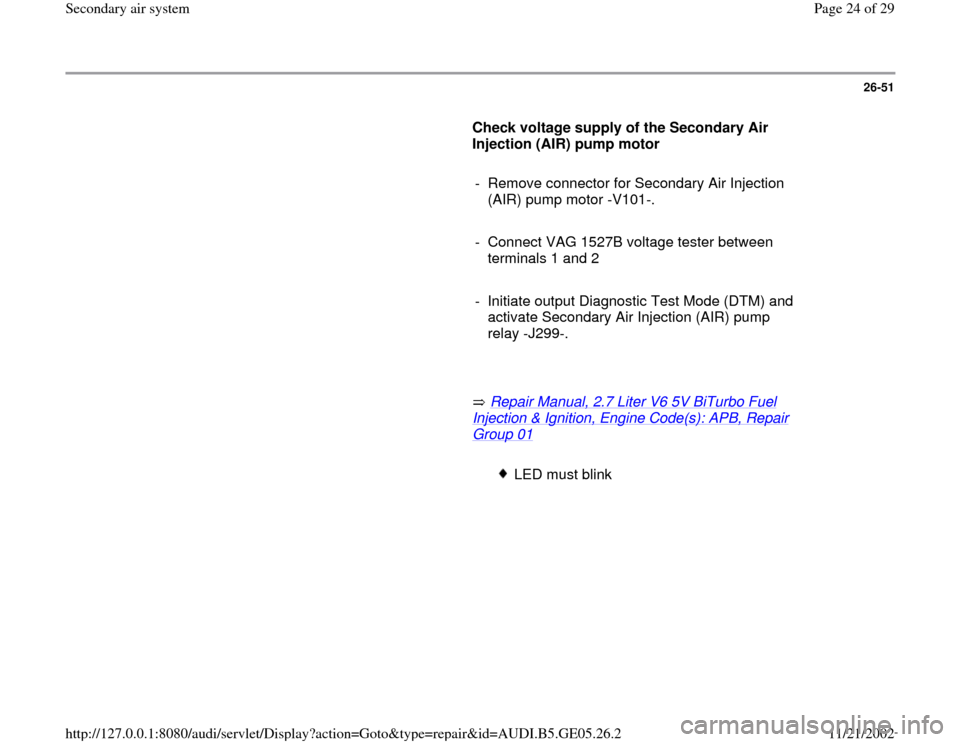

Check voltage supply of the Secondary Air
