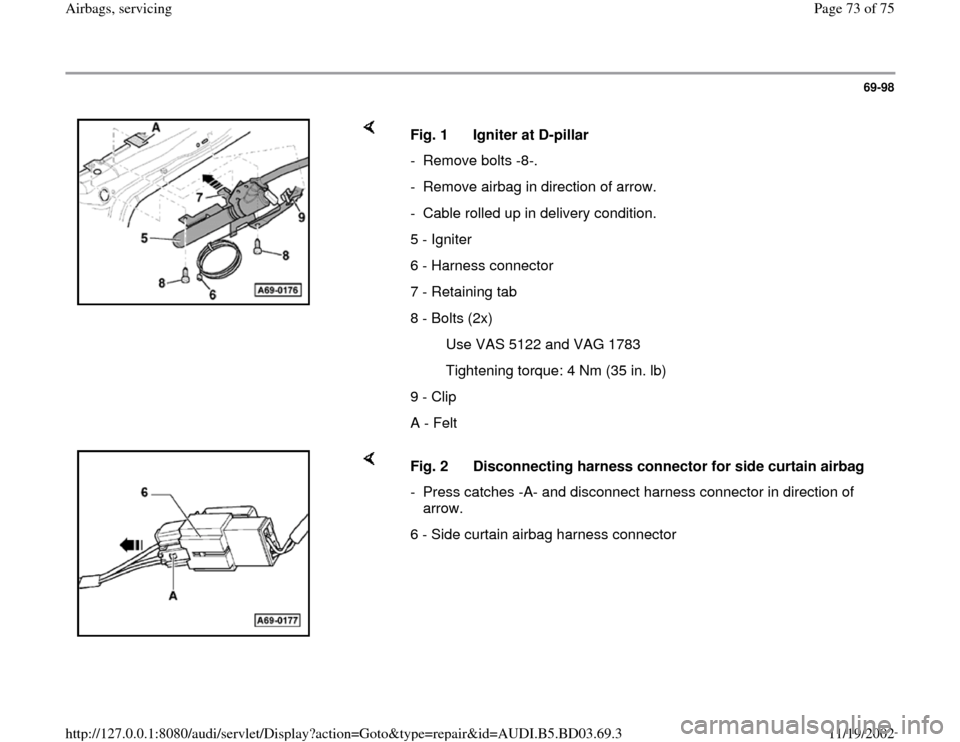

Fig. 1 Igniter at D-pillar
- Remove bolts -8-.
- Remove airbag in direction of arrow.
- Cable rolled up in delivery condition.
5 - Igniter
6 - Harness connector
7 - Retaining tab
8 - Bolts (2x)
Use VAS 5122 and VAG 1783
Tightening torque: 4 Nm (35 in. lb)
9 - Clip
A - Felt
Fig. 2 Disconnecting harness connector for side curtain airbag
- Press catches -A- and disconnect harness connector in direction of
arrow.
6 - Side curtain airbag harness connector
